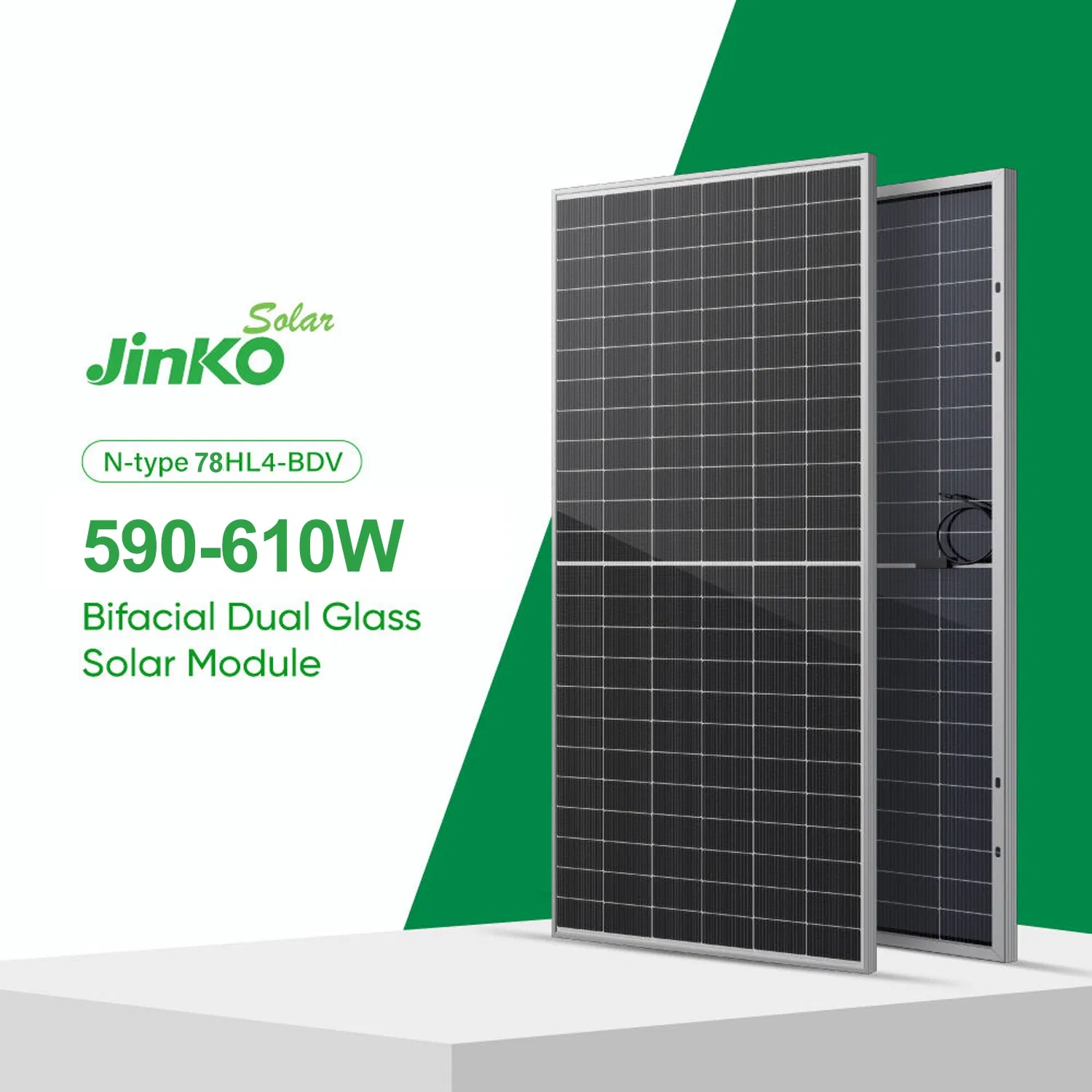

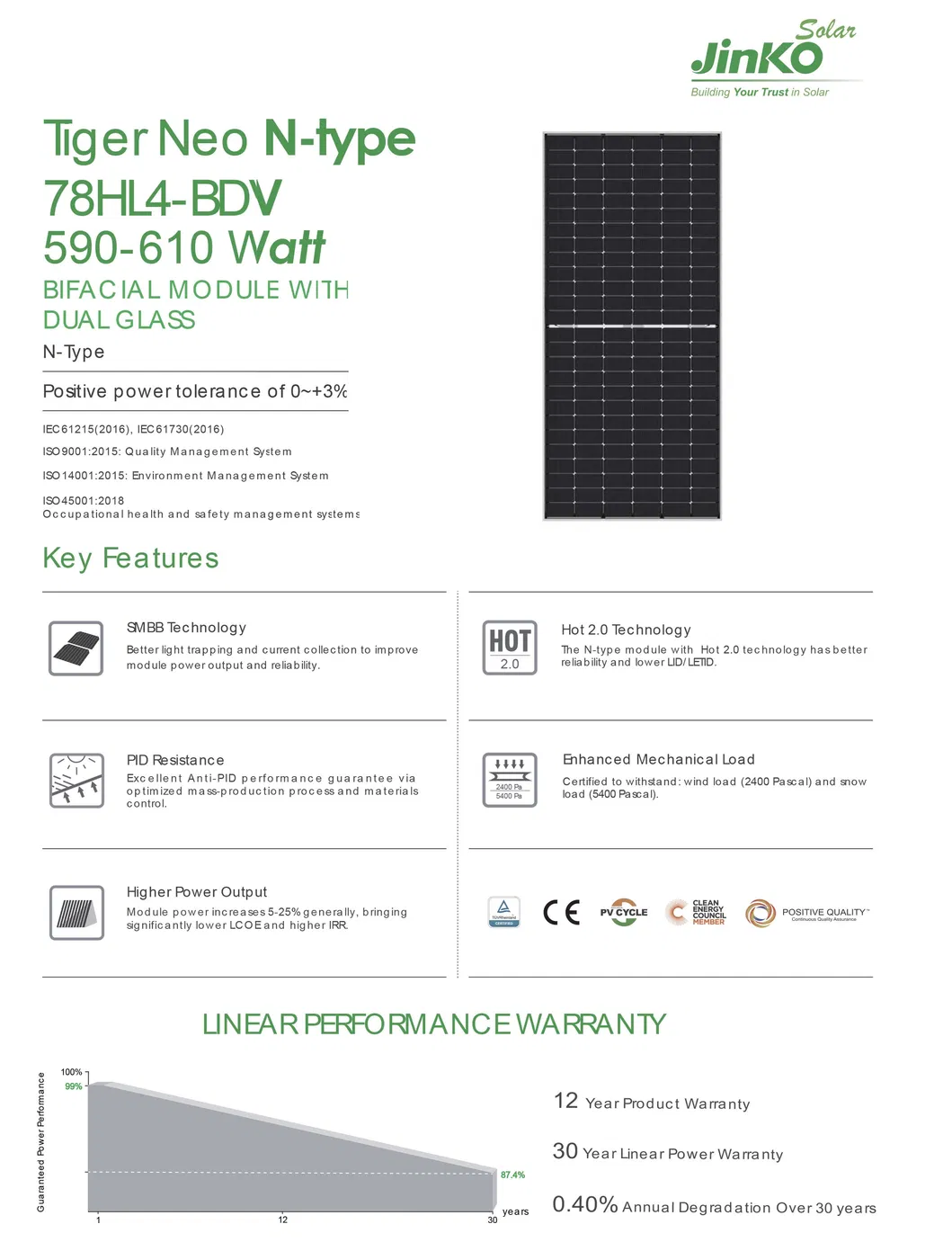

Jinko Factory Tiger Neo Ntype Half Cell 590W 610W Solar Panels

1 / 5

Jinko Factory Tiger Neo Ntype Half Cell 590W 610W Solar Panels

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.JK590

Number of Cells120cells

ApplicationSolar Panel System/Solar Pump/Power Station

ConditionNew

CertificationISO, CE, TUV

MaterialMonocrystalline Silicon

Weight34.6 Kg (76.38 Lbs)

Efficiency21.82%

FrameAnodized Aluminium Alloy

Glass3.2mm, Anti-Reflection Coating

ConnectorMc4

CableTUV 1X4.0mm, (+) 290mm, (-) 145mm or Customized Le

HS Code854143000

OEMAcceptable

Junction BoxIP67 Rated

CertificatesTUV, ISO, CE, ETL

Tpt BacksheetWhite/Black Backsheet

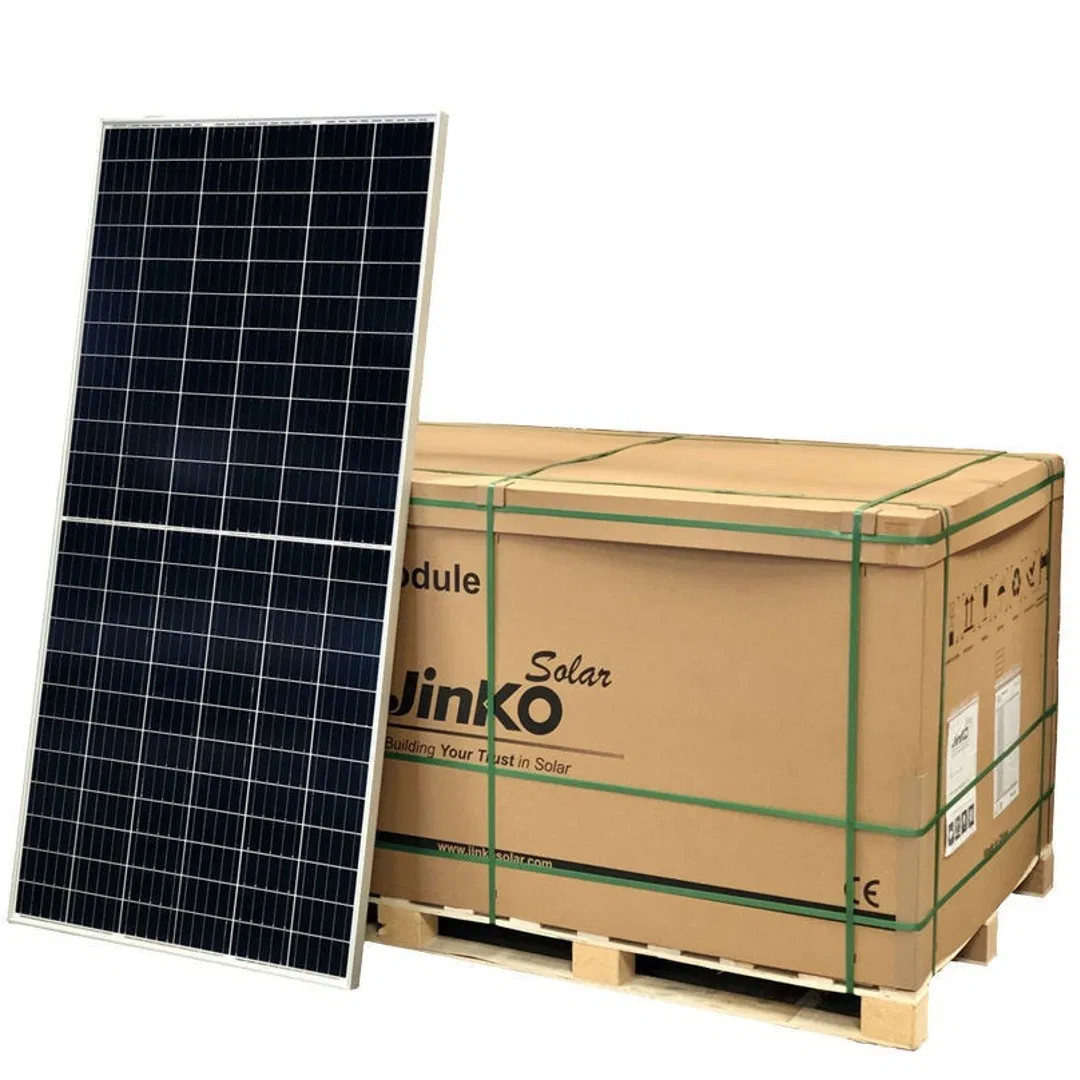

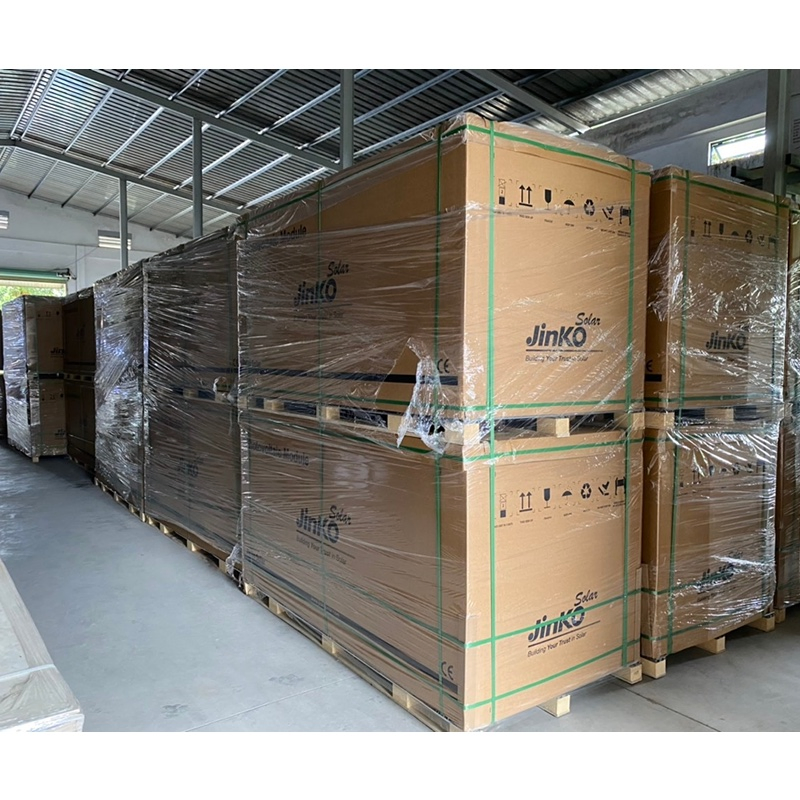

Transport PackageWooden Pallet & Carton

Specification2278x1134x35mm (89.69x44.65x1.38 inch)

TrademarkJinko

OriginChina

Production Capacity3000PCS/Week

Packaging & Delivery

Package Size227.00cm * 113.00cm * 3.50cm

Package Gross Weight28.000kg

Product Description

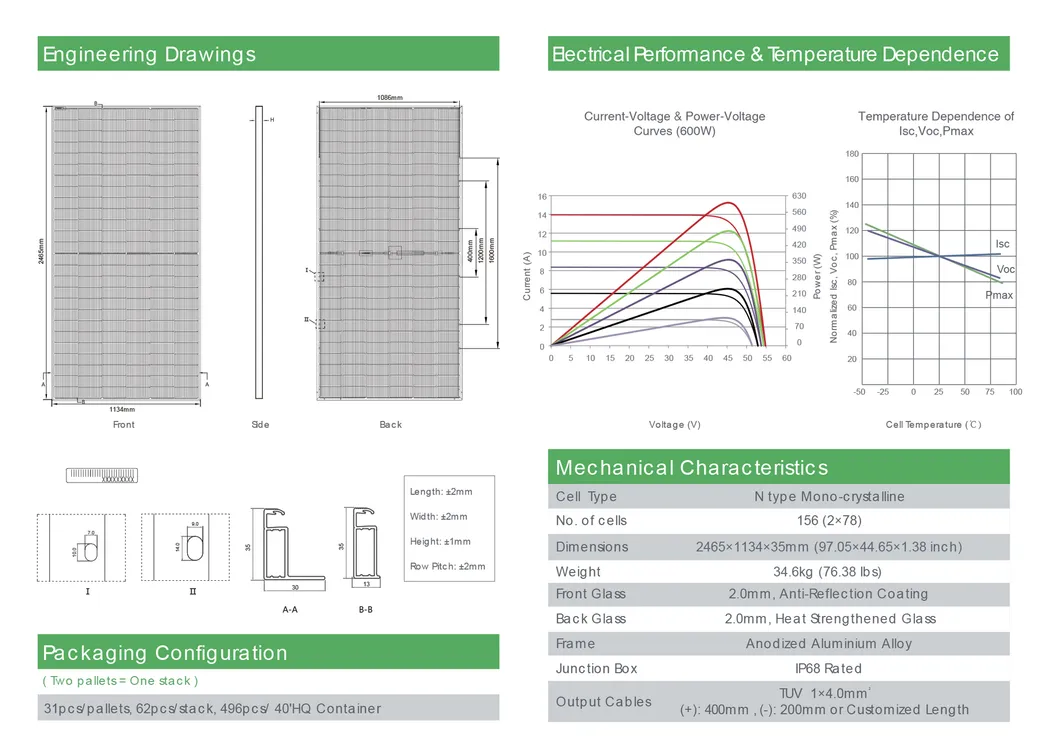

SPECIFICATIONS
Module Type	JKM590N-78HL4-BDV		JKM595N-78HL4-BDV		JKM600N-78HL4-BDV		JKM605N-78HL4-BDV		JKM610N-78HL4-BDV
Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax)	590	444	595	447	600	451	605	455	610	459
Maximum Power Voltage(Vmp)	44.91	41.89	45.08	42	45.25	42.12	45.42	42.23	45.6	42.35
Maximum Power Current(Imp)	13.14	10.59	13.2	10.65	13.26	10.71	13.32	10.77	13.38	10.83
Open-circuit Voltage(Voc)	54.76	52.02	54.9	52.15	55.03	52.27	55.17	52.41	55.31	52.45
Short-circuit Current(Isc)	13.71	11.07	13.79	11.13	13.87	11.20	13.95	11.26	14.03	11.33
Module Efficiency STC(%)	21.11%		21.29%		21.46%		21.64%		21.82%
Operating Temperature(°C)	-40°C~+85°C
Maximum System Voltage	1500VDC(IEC)
Maximum Series Fuse Rating	30A
Power Tolerance	0~+3%
Temperature Coefficients of Pmax	-0.3%/°C
Temperature Coefficients of Voc	-0.25%/°C
Temperature Coefficients of Isc	0.046%/°C
Nominal Operating Cell Temperature(NOCT)	45±2°C

💡 What is the difference between Tier 1 Solar Panel and not Tier 1 Solar Panel?

The main difference of the solar panel price is between Tier 1 Solar Panel and not Tier 1 Solar Panel.
If you order the mainstream solar panel (cell size 166*166mm or 182mm*182mm, cell number 54pcs, 60pcs, 72pcs, wattage: 365-670W), you can get the lower price because of bulk factory stock. Customized orders are also supported where you can choose the cell battery (IBC, type P-perc, or type N-I-TOPCON), mono or poly, Monofacial or Bifacial, size, and power outputs.

💡 How to choose a solar panel?

This guide will help you to choose the best solar panel for your project. Use the reference table below to compare features, performance, warranty, and more. Make an informed decision about what you are purchasing. Note that these products are dynamically updating with new capabilities added over time.

Power Range (Watts)	310 - 410	400 - 455	455 - 670
Description	Best fit for residential / household needs.	Highest power and best value for larger roofs, ground mounts, commercial or industrial projects.	Best choice of utility.
Cell Size	166166mm (60pcs) 182182mm (54pcs)	166166mm (72pcs) 182182mm (54pcs)	166166mm (72pcs) 182182mm (72pcs) 210*210mm (60pcs)
Frame	Silver or Black	Silver or Black	Silver
Efficiency	19.2% to 21%	20% to 21.1%	20% to 21.57%
Warranty	10 Years Product Warranty, 25 Years Power Output Warranty

Frequently Asked Questions (FAQ)

What are your payment terms?

Accepted payment terms include T/T, L/C, PayPal, Western Union, and other standard trade payment methods.

What advantages do you provide for sourcing different brands?

Direct factory production services are provided along with key industry brand choices including Longi, JA Solar, Jinko, Trina, Canadian Solar, GCL, Suntech, and Yingli to guarantee competitive rates and customized solutions.

Can I request a sample to check the product quality?

Yes, sample testing orders are welcome to evaluate and verify product quality before placing bulk orders.

What is the typical delivery timeframe?

Standard delivery takes between 15-20 days following receipt of payment. The exact delivery timeline is subject to the specific product model and ordering volume.

Where is the loading port located?

Orders are primarily dispatched from Shanghai or Ningbo ports.

Are OEM and custom specifications supported?

Yes, OEM services and custom configurations (such as dimensions, power output, cells, structure types, and branding) are fully accepted and supported.
