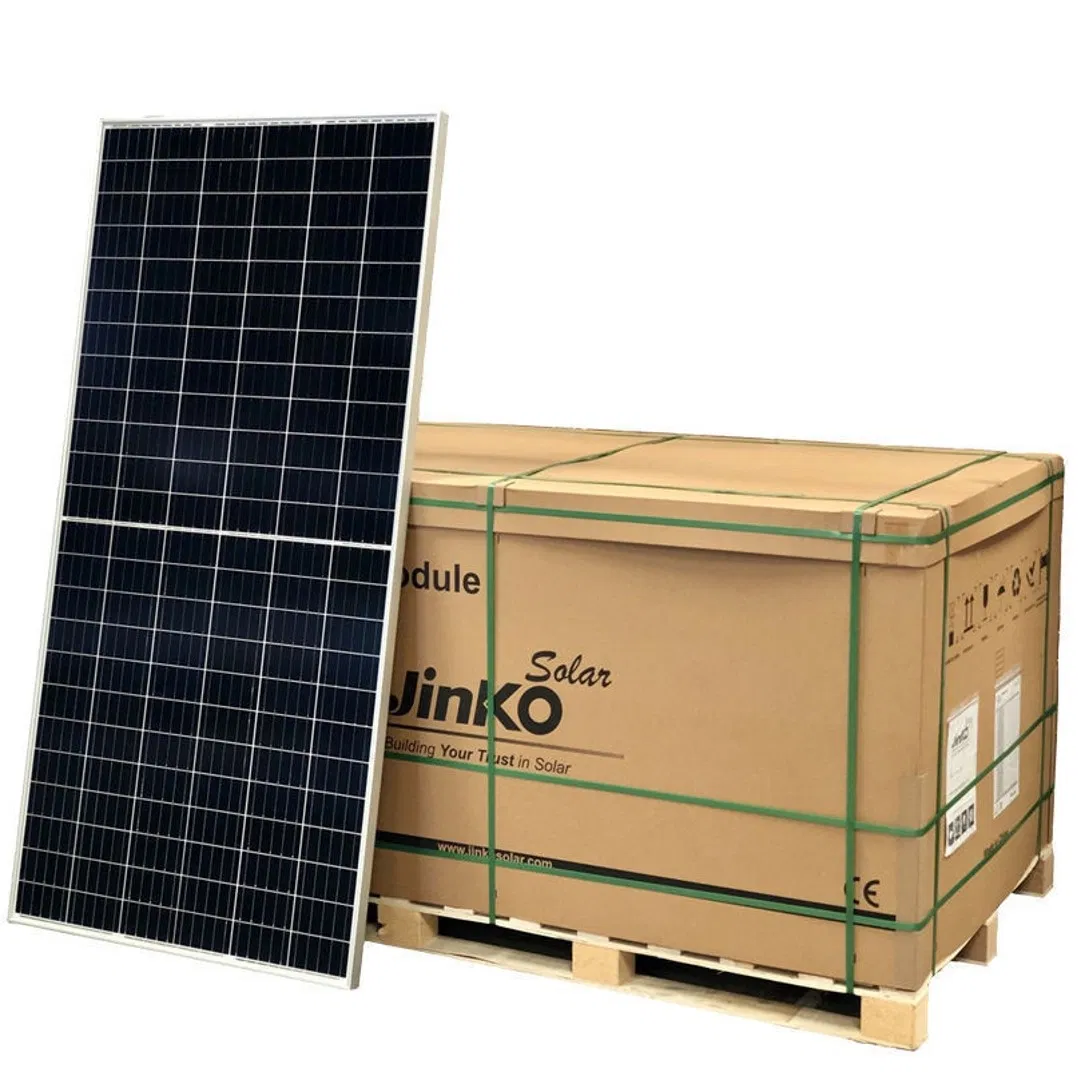

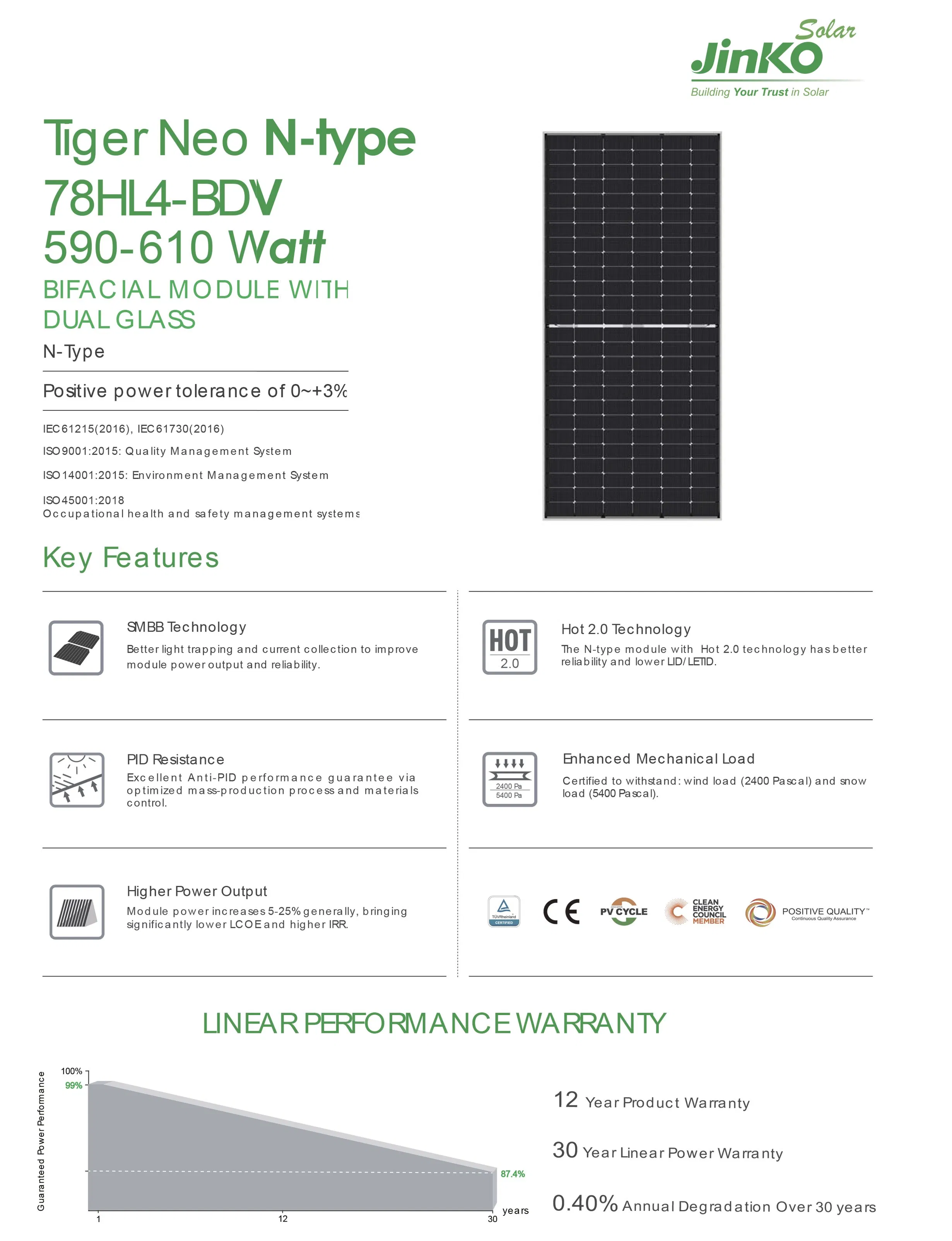

| SPECIFICATIONS | ||||||||||
| Module Type | JKM590N-78HL4-BDV | JKM595N-78HL4-BDV | JKM600N-78HL4-BDV | JKM605N-78HL4-BDV | JKM610N-78HL4-BDV | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 590 | 444 | 595 | 447 | 600 | 451 | 605 | 455 | 610 | 459 |
| Maximum Power Voltage(Vmp) | 44.91 | 41.89 | 45.08 | 42 | 45.25 | 42.12 | 45.42 | 42.23 | 45.6 | 42.35 |
| Maximum Power Current(Imp) | 13.14 | 10.59 | 13.2 | 10.65 | 13.26 | 10.71 | 13.32 | 10.77 | 13.38 | 10.83 |
| Open-circuit Voltage(Voc) | 54.76 | 52.02 | 54.9 | 52.15 | 55.03 | 52.27 | 55.17 | 52.41 | 55.31 | 52.45 |
| Short-circuit Current(Isc) | 13.71 | 11.07 | 13.79 | 11.13 | 13.87 | 11.20 | 13.95 | 11.26 | 14.03 | 11.33 |
| Module Efficiency STC(%) | 21.11% | 21.29% | 21.46% | 21.64% | 21.82% | |||||
| Operating Temperature(°C) | -40°C~+85°C | |||||||||
| Maximum System Voltage | 1500VDC(IEC) | |||||||||
| Maximum Series Fuse Rating | 30A | |||||||||
| Power Tolerance | 0~+3% | |||||||||
| Temperature Coefficients of Pmax | -0.3%/°C | |||||||||
| Temperature Coefficients of Voc | -0.25%/°C | |||||||||
| Temperature Coefficients of Isc | 0.046%/°C | |||||||||
| Nominal Operating Cell Temperature(NOCT) | 45±2°C | |||||||||
The main price difference of solar panels lies between Tier 1 Solar Panels and non-Tier 1 Solar Panels.
Ordering mainstream solar panels (cell sizes like 166*166mm or 182mm*182mm, cell configurations of 54pcs, 60pcs, or 72pcs, and wattages ranging from 365W to 670W) typically yields a lower price due to available stock. Customized orders are also supported, allowing choice of battery cells (IBC, P-type PERC, or N-type TOPCON), mono or poly crystalline, monofacial or bifacial designs, customized dimensions, and power outputs.
Selecting the best solar panel for your project requires comparing features, performance, and warranties. Use the reference table below to analyze specific parameters and make an informed buying decision. Note that these specifications are constantly updated as technology advances.
| Power Range (Watts) | 310 - 410 | 400 - 455 | 455 - 670 |
|---|---|---|---|
| Description | Best fit for residential & household projects. | Highest power and best value for larger roofs, ground mounts, commercial, or industrial applications. | Best choice for utility-scale solar projects. |
| Cell Size | 166*166mm (60pcs) 182*182mm (54pcs) |
166*166mm (72pcs) 182*182mm (54pcs) |
166*166mm (72pcs) 182*182mm (72pcs) 210*210mm (60pcs) |
| Frame | Silver or black | Silver or black | Silver |
| Efficiency | 19.2% to 21% | 20% to 21.1% | 20% to 21.57% |
| Warranty | 10 Years Product Warranty & 25 Years Power Output Warranty | ||
