Basic Info

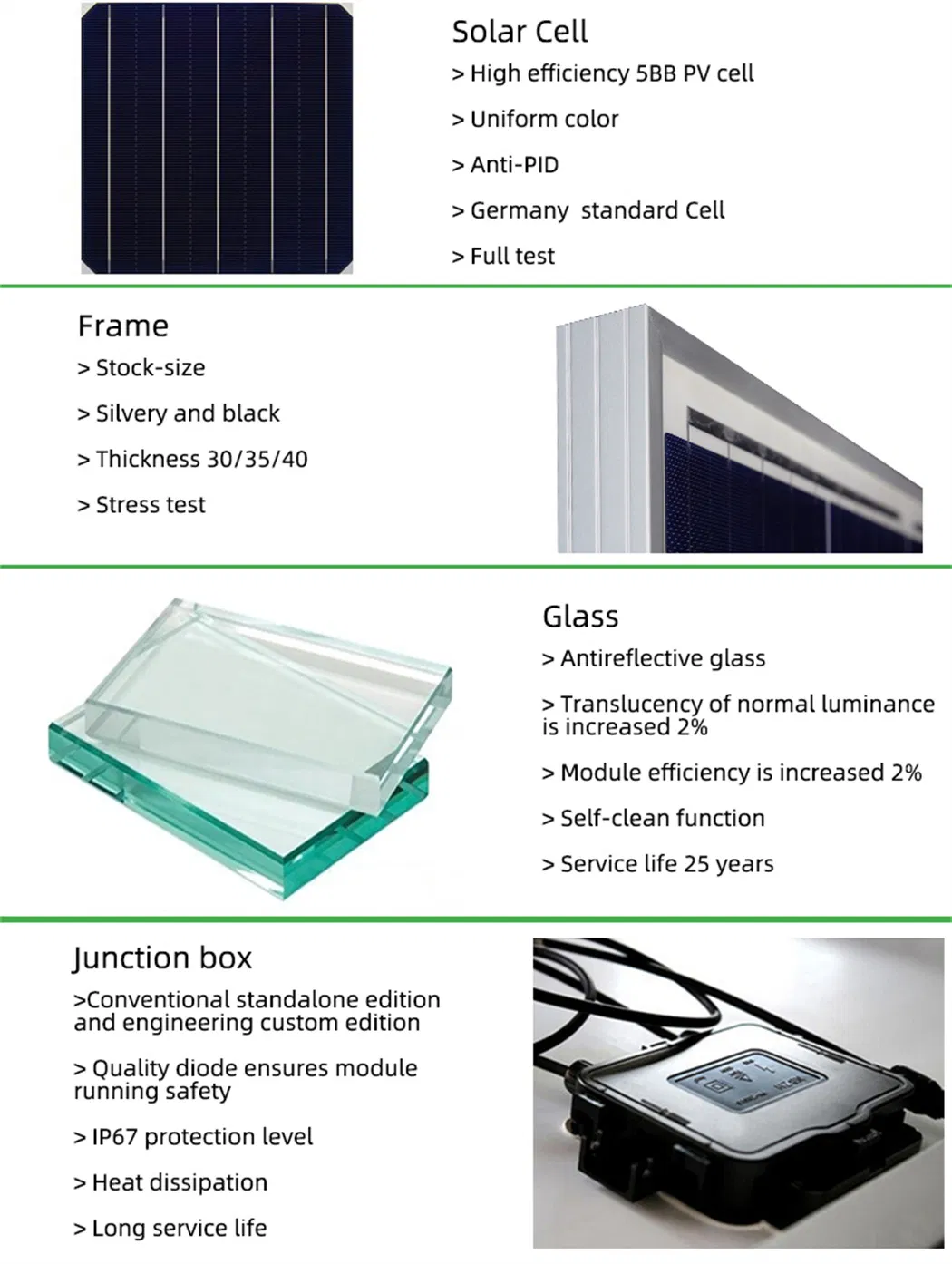

Material
Monocrystalline Silicon
Glass
3.2mm Tempered Low Iron
Cable
PV Cable 4mm^2, 300/1400mm
Solar Cell
5bb 6bb 9bb 12bb Mono
Frame
Silver/Black Anodized Aluminium Alloy
Transport Package
Wooden Plate
Production Capacity
15000PCS/Week
Packaging & Delivery
Package Size
2200.00cm * 1800.00cm * 50.00cm
Package Gross Weight
50.000kg
Product Parameters
| Model Mono solar panel |
300M-60 |
330M-72 |
360M-72 |
390M-72 |
480M-96 |
500M-96 |
520M-96 |
| Rated Maximum Power at STC |
300W |
330W |
360W |
390W |
480W |
500W |
520W |
| Open Circuit Voltage(Voc/V) |
32.1A |
38.4V |
39.1V |
39.8V |
48.7V |
49.1V |
49.5V |
| Maximum PowerVoltage(Vmp/V) |
9.5A |
8.59A |
9.21A |
9.8A |
9.86A |
10.18A |
10.51A |
| Short Circuit Current(Isc/A) |
38.52V |
46.08V |
46.92V |
47.76V |
58.44V |
58.92V |
59.4V |
| Maximum Power Current(Imp/A) |
9.81A |
9.02A |
9.67A |
1029A |
10.35A |
10.69A |
11.03A |
| Module Efficiency(%) |
18.63% |
17.18% |
18.74% |
20.30% |
18.92% |
19.71% |
20.50% |
| Power Tolerance |
-0~+5% |
| Standard Test Condition(STC) |
Irradiance 1000W/m2,Cell Temperature 25ºC,Air Mass1.5 |
| Application Class |
Class A |
Product Description

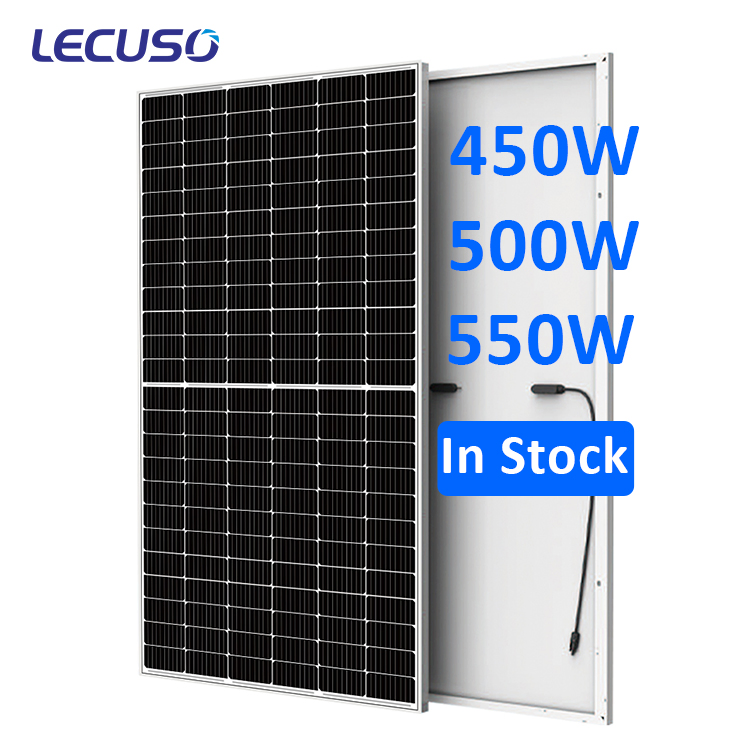

N-Type Dual Glass Half Cut Cell Panels
Offering OEM services. Reliable after-sale service.

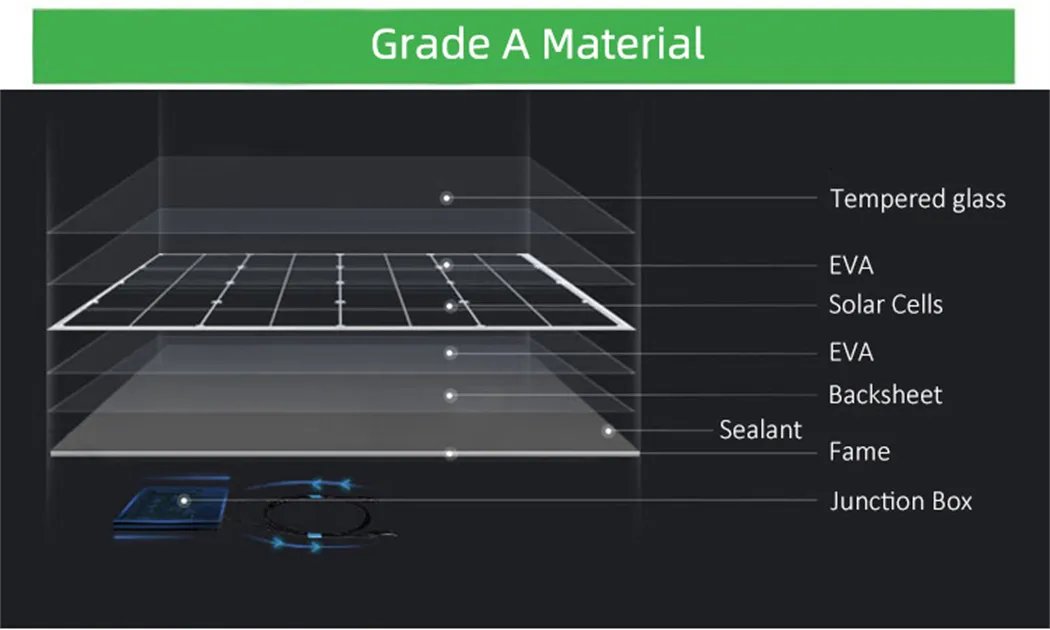

MONO half-cut single / double glass module, assembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back, offer the advantages of higher power output, reduce shading effect on the energy generation, enhance the mechanical load bearing capacity as well.
-

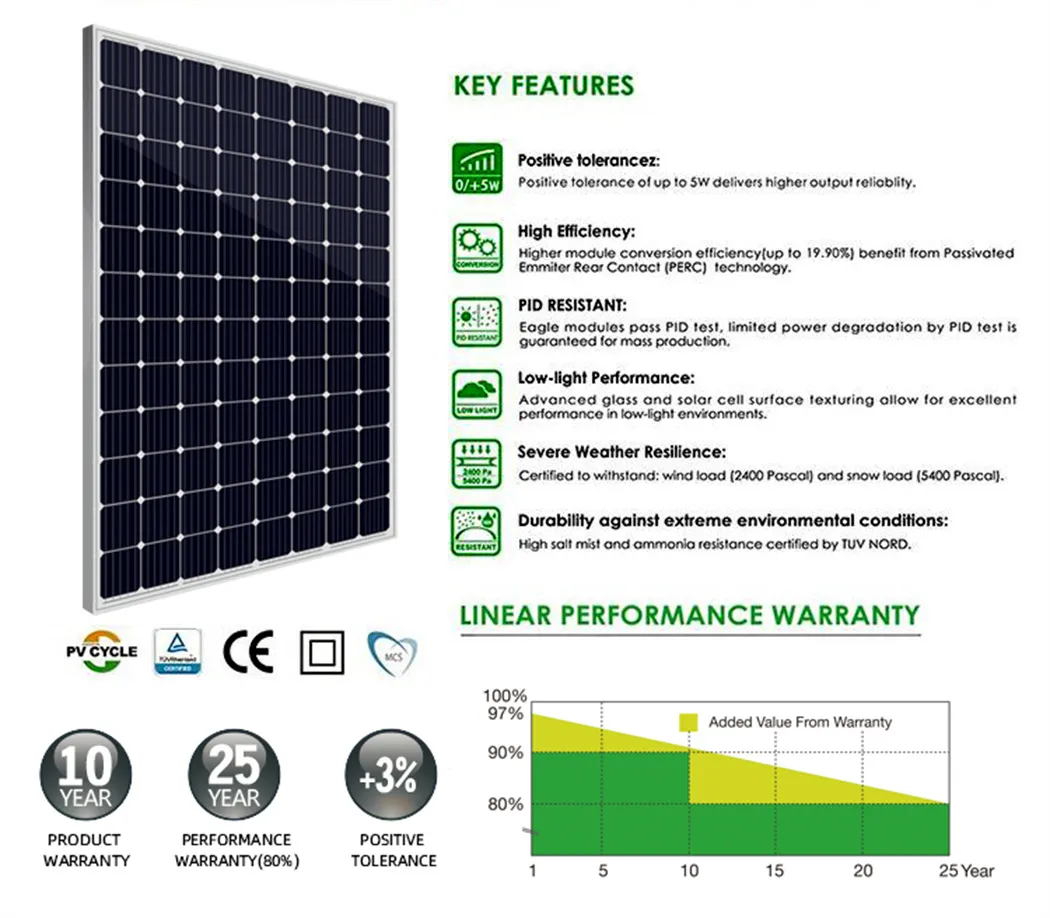

★Multi Busbar Technology
Better light utilization and current collection improve product power output and reliability.
-
★Half-cut Technology
The internal power loss of the half-cut module is reduced to 1/4 for the whole mould.
-
★PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
-
★Warranty Structure
12 Year Product Warranty
30 Year Linear Power Warranty
0.40% Annual Degradation Over 30 years

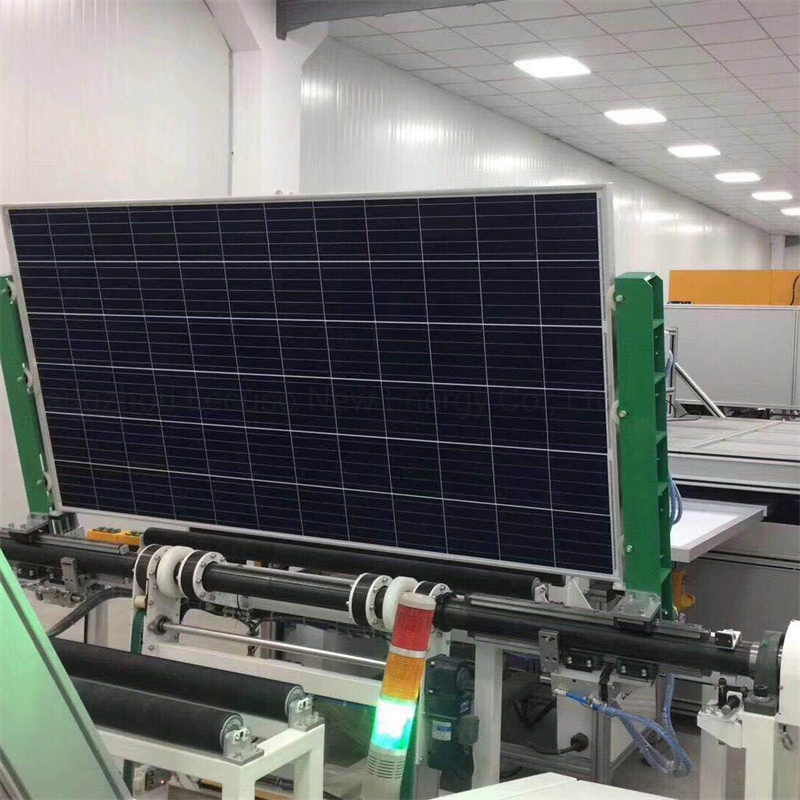

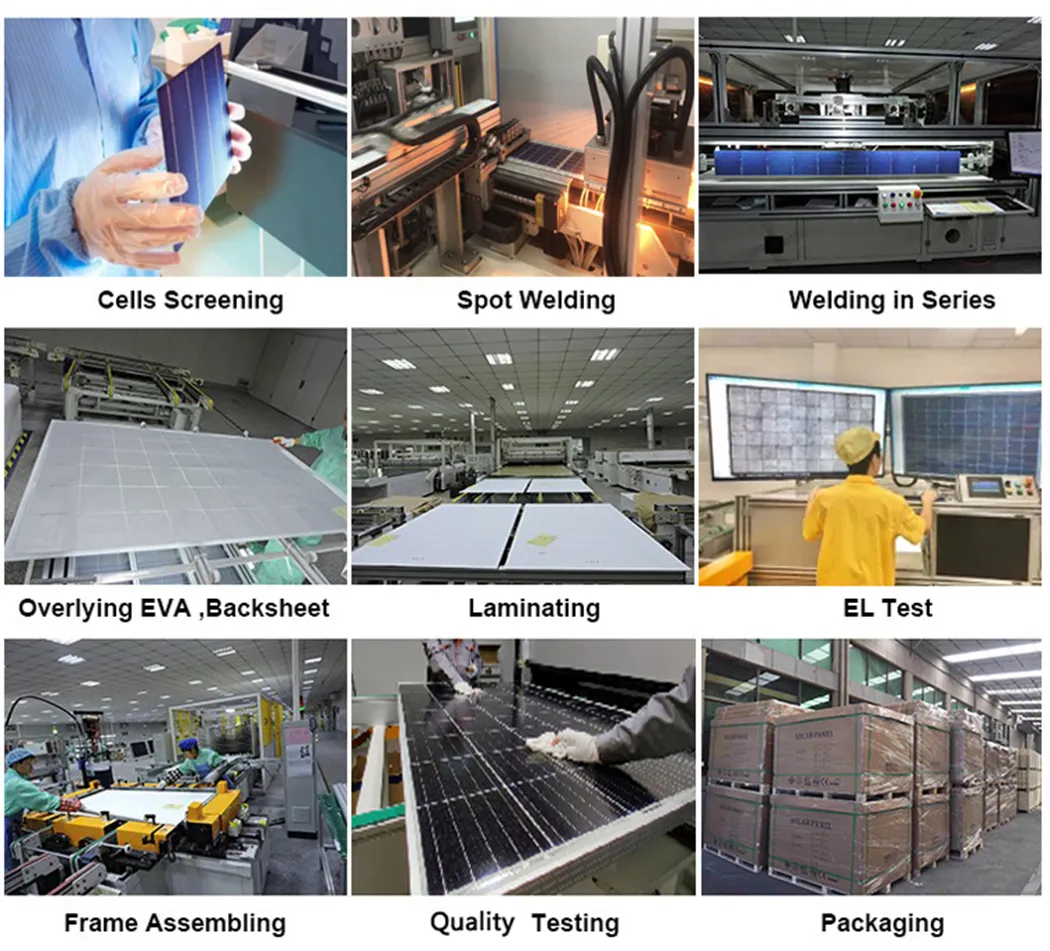

Production & QC
Company Profile

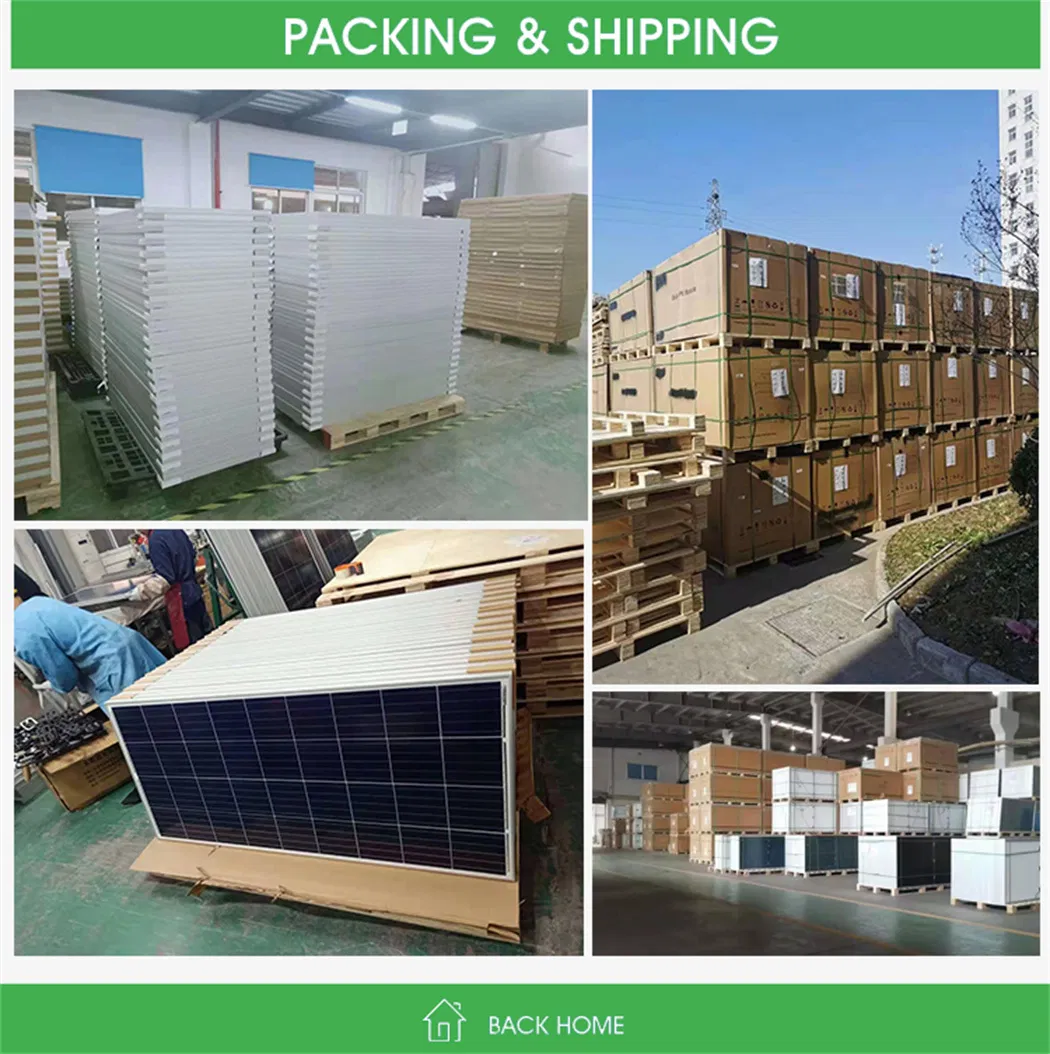

Packaging & Shipping
Frequently Asked Questions
What are the main advantages of N-Type Dual Glass Solar Panels?
N-Type panels feature lower light-induced degradation (LID) and higher conversion efficiency. Combined with dual glass, they offer robust physical protection, outstanding PID resistance, and improved performance over a 30-year lifespan.
How does Half-Cut Cell technology improve performance?
By halving the cells, the internal electrical current is reduced by half, resulting in lower power losses due to resistance. This configuration also allows panels to perform significantly better under partial shading conditions.
What warranties do these monocrystalline solar modules carry?
These modules are backed by a 12-year product warranty covering materials and workmanship, alongside a 30-year linear power warranty guaranteeing minimal power degradation over time.
Are these solar panels suitable for harsh environmental conditions?
Yes. Formed with 3.2mm tempered low iron glass and anodized aluminium frames, these panels are designed to tolerate high mechanical loads, heavy wind, and thick snow accumulation.
What does the Multi-Busbar (MBB) configuration do?
MBB technology shortens the distance that the current must travel across the cell, improving light absorption efficiency, reducing grid resistance, and increasing overall power generation capacity.
Can you provide OEM services for custom requirements?
Yes, custom specifications, dimensions, branding, and packaging configurations can be accommodated through our OEM services to suit specific project profiles.
