Basic Info.
Model NO.
KM580W-144
Number of Cells
72pcs
Application
Light Industry
Condition
New
Certification
EST, ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Colour
White and Black
Glass
Double and Single
Frame
Anodized Aluminum Alloy
Temperature
-40°C ~ +85°C
Junction Box
IP68/Pass TUV Certificate
Transport Package
Carton; Wooden Case; Pallet
Specification
2-3CBM
Origin
China
HS Code
8541430000
Production Capacity
50000 PCS/Year
Product Description

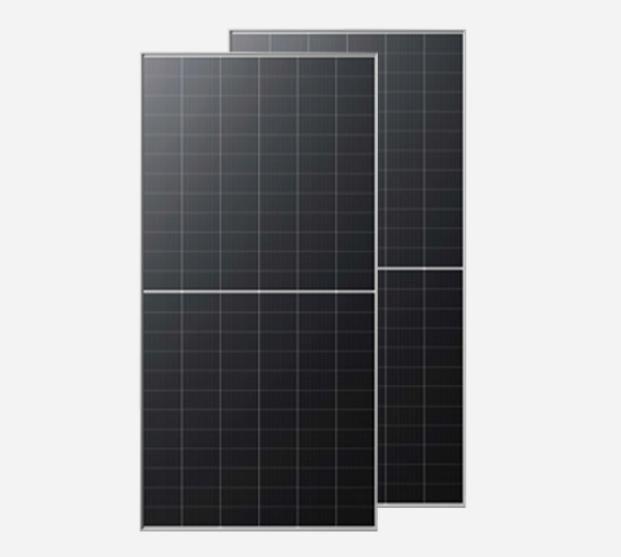

Unleash the future of solar energy with the JA Solar JAM72D42 630/LB N-type 16bb Double Glass Bifacial Mono Solar Panel 630W. This cutting-edge panel combines high-efficiency technology and robust construction to deliver unparalleled performance and durability.

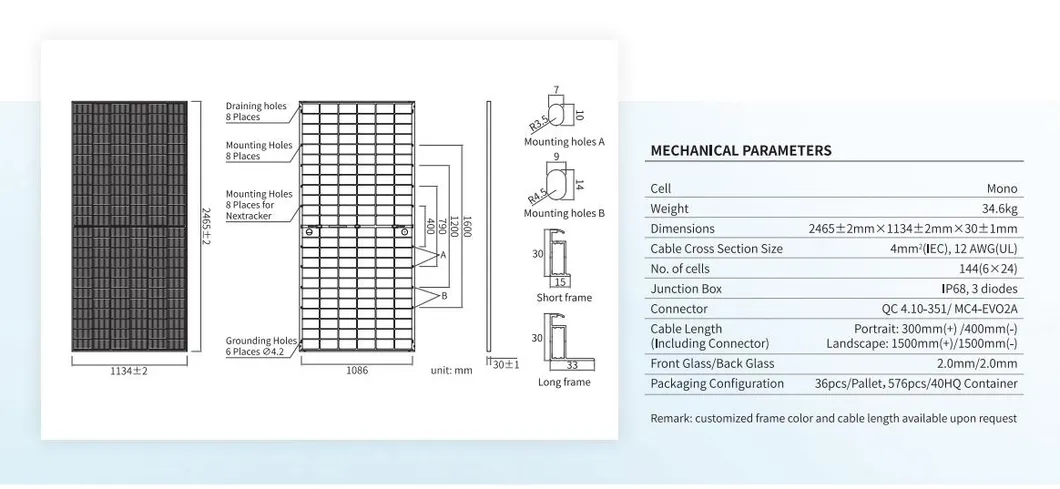

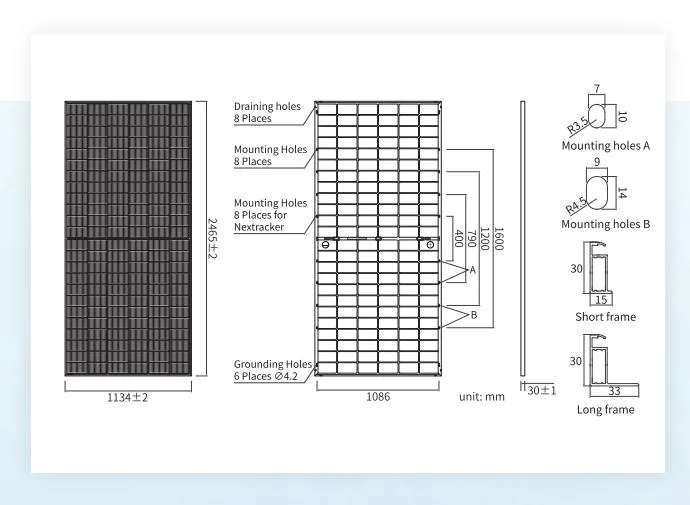

Mechanical Parameters
| Cell |
Mono |
| Weight |
34.6kg |
| Dimensions |
2465±2mm x 1134±2mm x 30±1mm |
| Cable Cross Section Size |
4mm²(IEC), 12 AWG() |
| No. of cells |
144(6x24) |
| Junction Box |
IP68, 3 diodes |
| Connector |
QC 4.10-351/MC4-EVO2A |
| Cable Length (Including Connector) |
Portrait: 300mm(+)/400mm(-)
Landscape: 1300mm(+)/1300mm(-) |
| Front Glass/Back Glass |
2.0mm/2.0mm |
| Packaging Configuration |

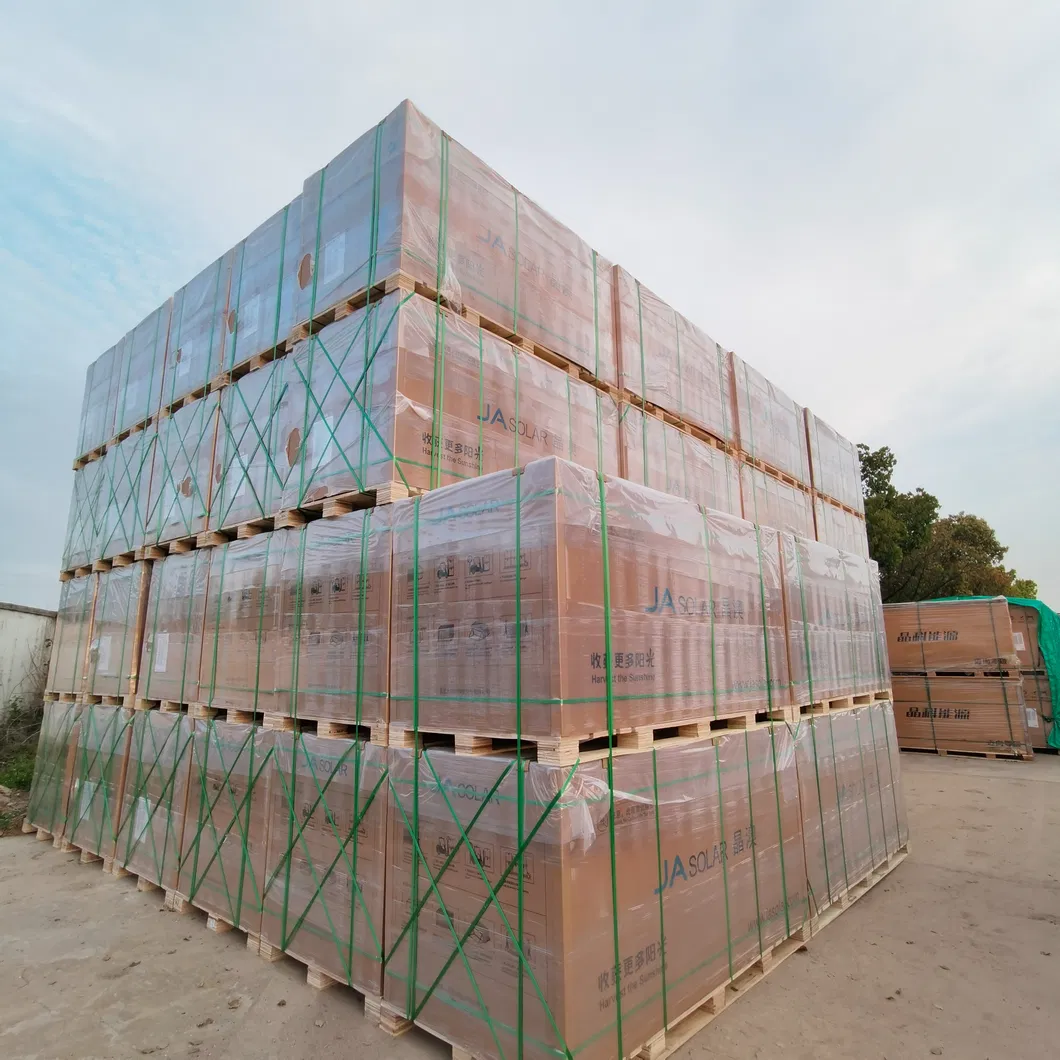

36pcs/Pallet, 576pcs/40HQ Container |
| Remark: customized frame color and cable length available upon request |

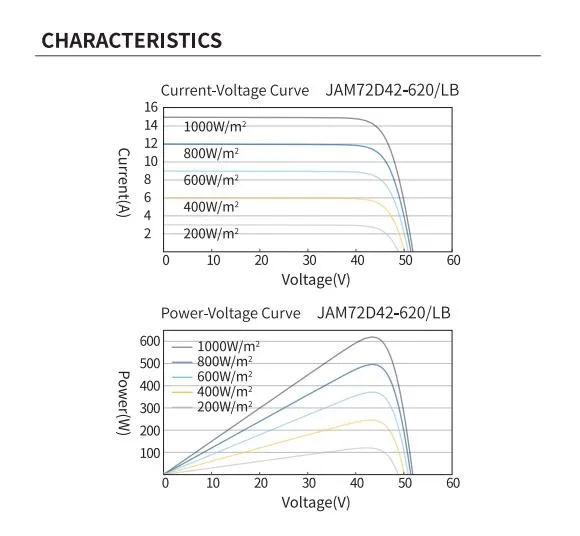

Electrical Parameters at STC
| TYPE |
JAM72D42-615/LB |
JAM72D42-620/LB |
JAM72D42-625/LB |
JAM72D42-630/LB |
JAM72D42-635/LB |
JAM72D42-640/LB |
| Rated Maximum Power(Pmax) [W] |
615 |
620 |
625 |
630 |
635 |
640 |
| Open Circuit Voltage(Voc) [V] |
51.87 |
52.07 |
52.27 |
52.47 |
52.67 |
52.87 |
| Maximum Power Voltage(Vmp) [V] |
43.31 |
43.51 |
43.71 |
43.90 |
44.10 |
44.29 |
| Short Circuit Current(Isc) [A] |
15.06 |
15.11 |
15.16 |
15.21 |
15.26 |
15.31 |
| Maximum Power Current(Imp) [A] |
14.20 |
14.25 |
14.30 |
14.35 |
14.40 |
14.45 |
| Module Efficiency(%) |
20.0% |
22.2% |
22.4% |
22.5% |
22.7% |
22.9% |
| Power tolerance |
0~+3W |
| Temperature coefficients of Isc |
+0.046%/ºC |
| Temperature Coefficient of Voc |
-0.260%/ºC |
| Temperature Coefficient of Pmax |
-0.290%/ºC |
| STC |
Irradiance 1000W/m², cell temperature 25°C, AM1.5G |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
Electrical Parameters at NOCT
| TYPE |
JAM72S30 570/MR |
JAM72S30 575/MR |
JAM72S30 580/MR |
JAM72S30 585/MR |
JAM72S30 590/MR |
JAM72S30 595/MR |
| Rated Max Power(Pmax) [W] |
664 |
670 |
675 |
680 |
686 |
691 |
| Maximum Power Voltage-VMP (V) |
43.31 |
43.51 |
43.71 |
43.90 |
44.10 |
44.29 |
| Maximum Power Current-IMP (A) |
15.34 |
15.39 |
15.44 |
15.50 |
15.55 |
15.61 |
| Open Circuit Voltage-VOC (V) |
51.87 |
52.07 |
52.27 |
52.47 |
55.67 |
55.87 |
| Short Circuit Current-ISC (A) |
16.26 |
16.32 |
16.37 |
16.43 |
16.48 |
16.53 |
| Irradiation Ratio (rear/front) |
10% |
*For Nextracker installations, maximum static load please take compatibility approve letter between JASolar and Nextracker for reference.
** Bifaciality=Pmax,rear/Rated Pmax, front
Operating Conditions
| Maximum System Voltage |
1500V |
| Operating Temperature |
-40ºC~+85ºC |
| Maximum Series Fuse Rating |
30A |
| Maximum Static Load, Front* |
5400Pa(112 lb/ft2) |
| Maximum Static Load, Back* |
2400Pa(50 lb/ft²) |
| NOCT |
45±2ºC |
| Bifaciality** |
80%±10% |
| Safety Class |
Class II |
| Fire Performance |
Type1/Class C |

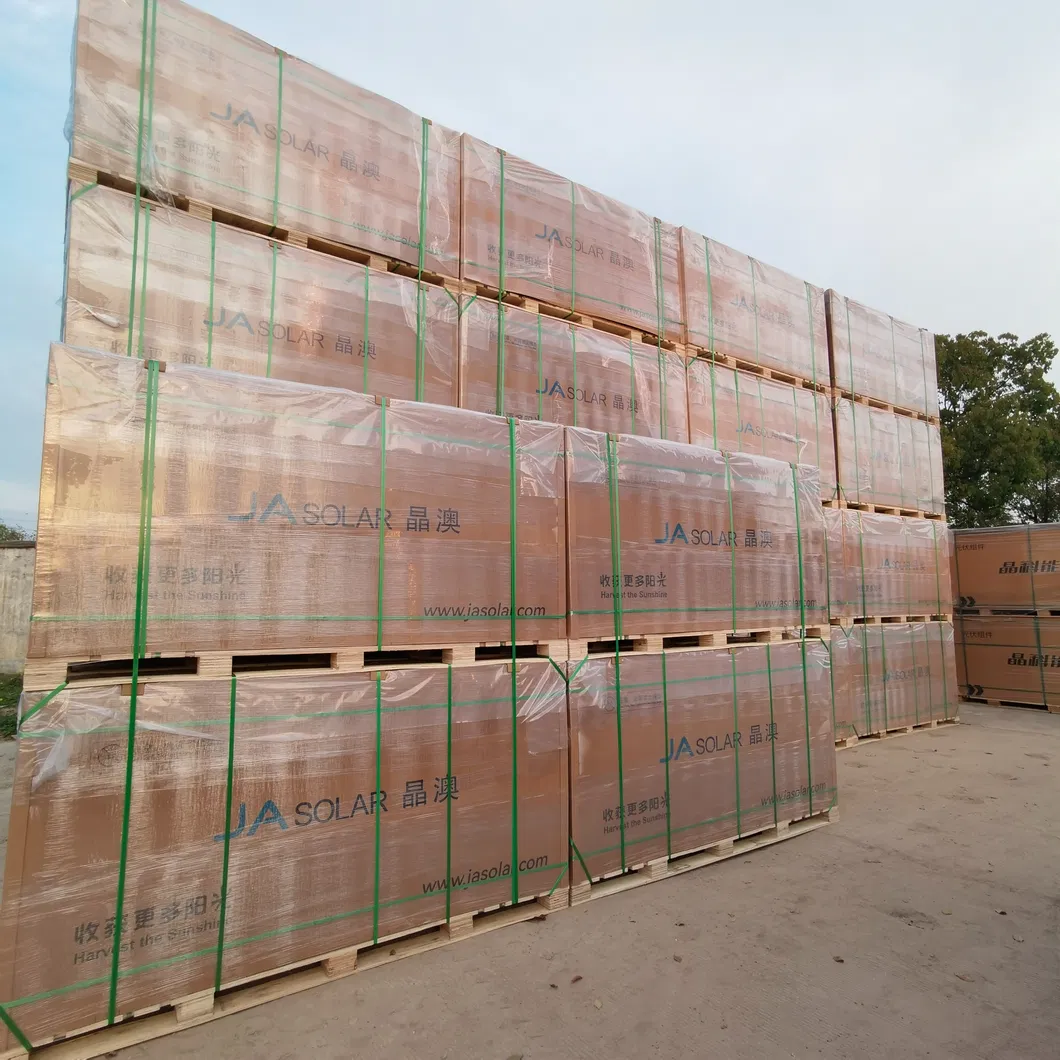

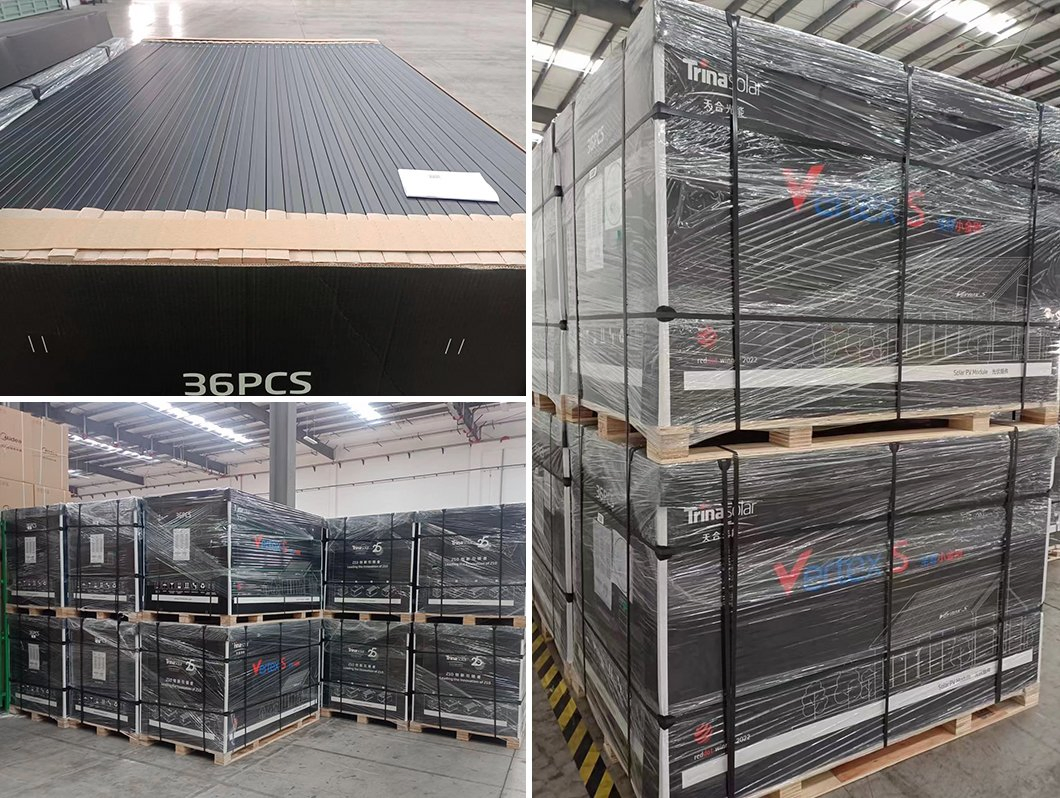

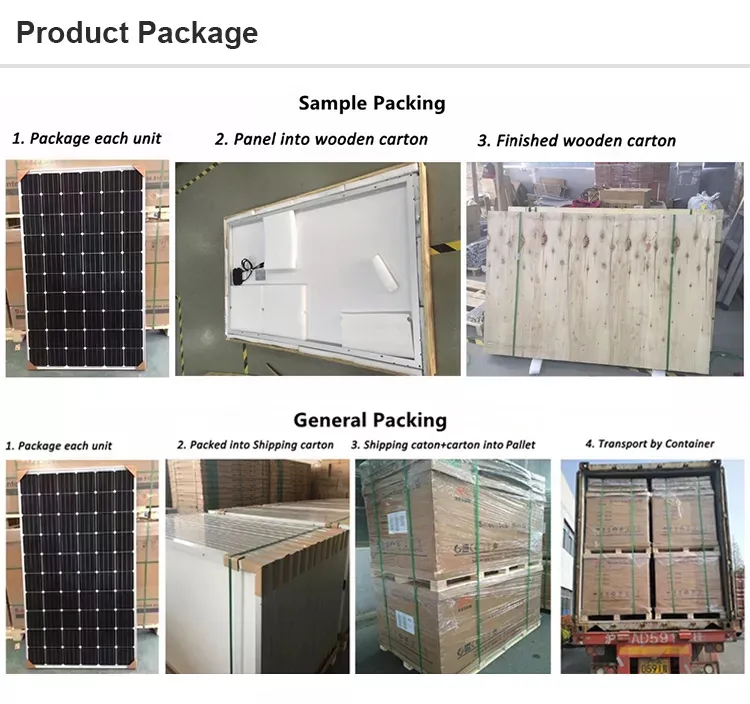

- We ensure secure packaging using durable cartons for safe transit.
- Custom packaging solutions available as per customer requirements.
Certification
FAQ
How can we guarantee quality?

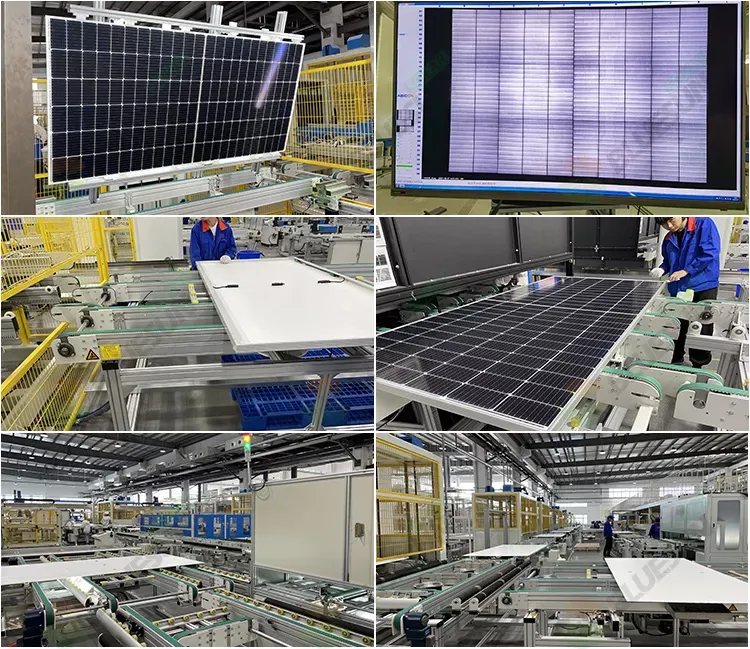

We employ the latest state-of-the-art fully automatic production equipment to maintain the highest quality standards. Our rigorous, step-by-step final inspection system ensures every product is thoroughly vetted before shipment.
What can you buy from us?
Explore our offerings: Solar Panels and complete system sets tailored to your needs.
Are you a manufacturer or a trading company?
We are a Manufacturer, committed to excellence.
What services can we provide?
Delivery Terms we offer include FOB, CIF, EXW, and Express Delivery for your convenience. We accept payments in multiple currencies: USD, EUR, HKD, CNY, and more. For payment, we accept T/T and Cash. Our team is multilingual, speaking English, Chinese, and French to serve you better.
What is the lead time?
Typically, orders are processed and ready for dispatch within 15 working days following advance payment.
What is the bifaciality of these double glass panels?
The double glass bifacial panels feature a bifaciality rating of 80%±10% under standard operating conditions.
