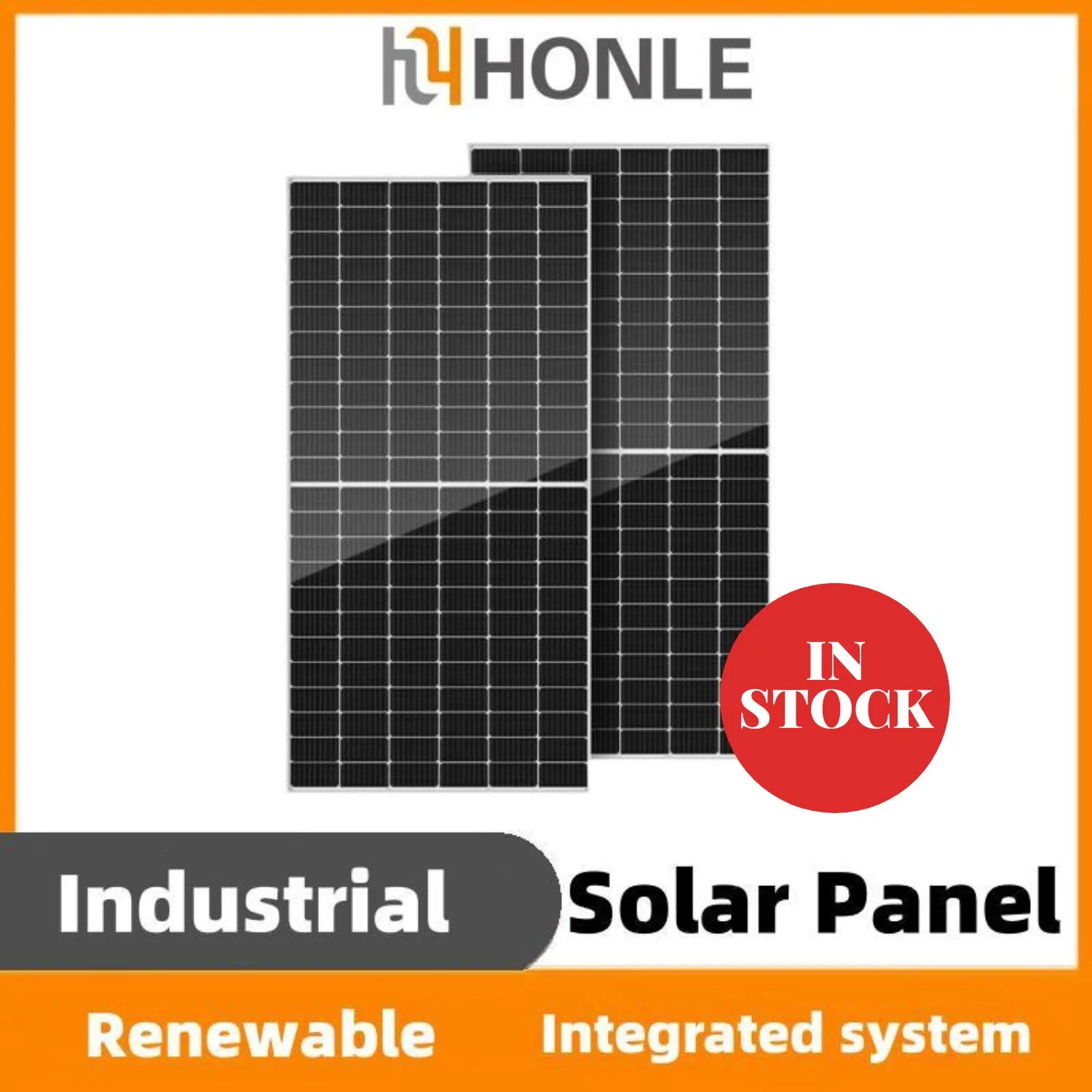

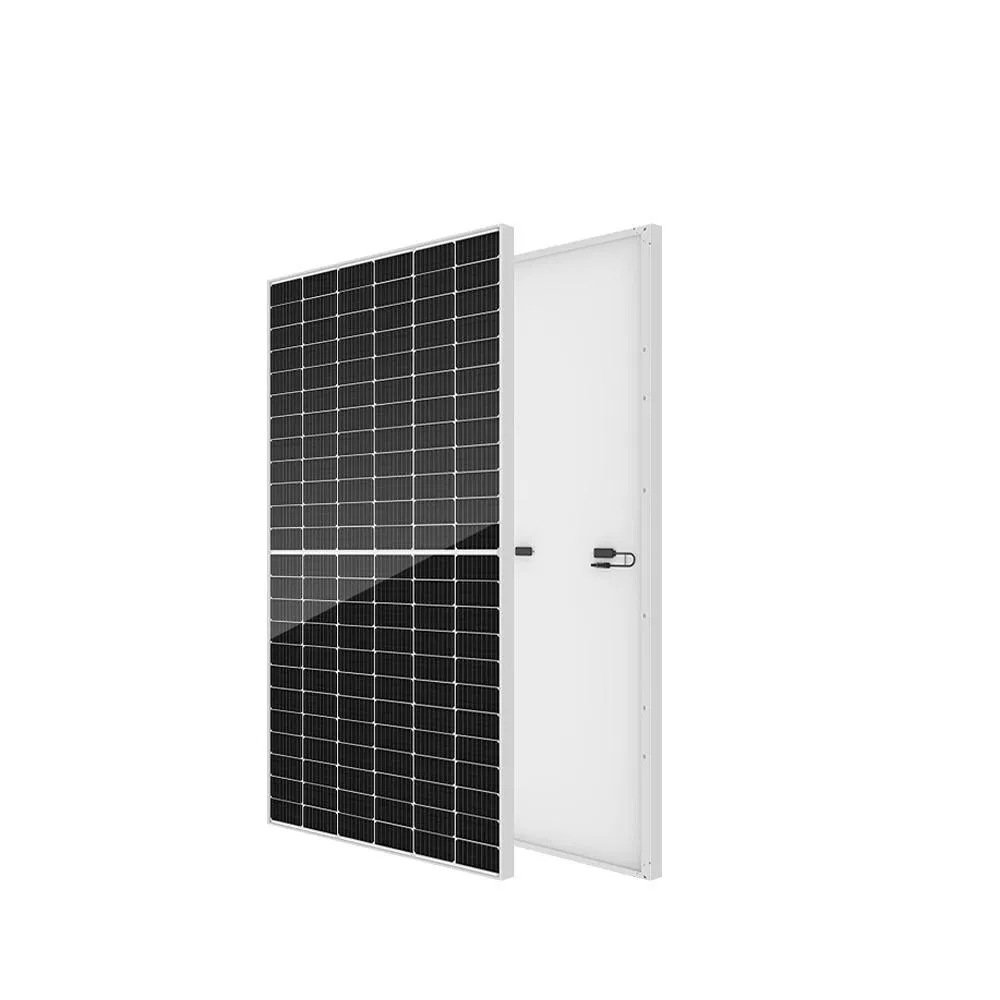

Honle Solar Panels Solar Module 30W to 720W Solar Battery Solar System Cell Perc Paneles Solares

Overview

Basic Info.

Model NO.HLM565M10-72HPH

ApplicationIndustrial

ConditionNew

CertificationCE

MaterialMonocrystalline Silicon

No. of Bypass Diodes3

Protection GradeIP68

Weight28.6kg

Cable LengthPortrait 300mm/Landscape 1200mm/Customized

Front Glass3.2mm (0.13inches) Ar Coating Tempered Glass

FrameAnodized Aluminium Alloy

Maximum Series Fuse25A

Maximum System Voltage1000/1500V/DC(IEC)

Static LoadingSnow Loading: 5400PA/ Wind Loading: 2400PA

Safety ClassII

ConnectorT01/Ljq-3-Csy/Mc4/Mc4-Evo2

Specification2278*1134*35mm

HS Code85414020

Packaging & Delivery

Package Size231.00cm * 113.00cm * 125.00cm

Package Gross Weight928.600kg

Transport Package31PCS/Carton, 620PCS/40hq

Product Description

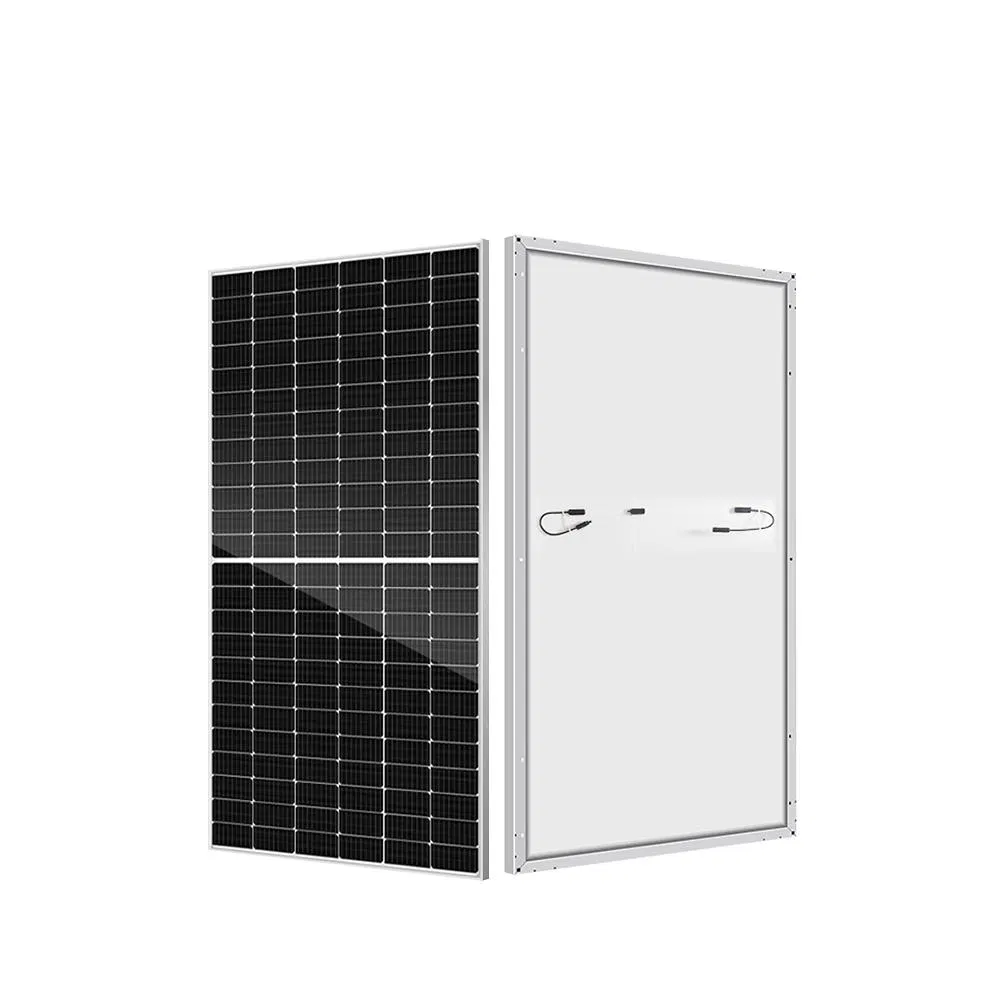

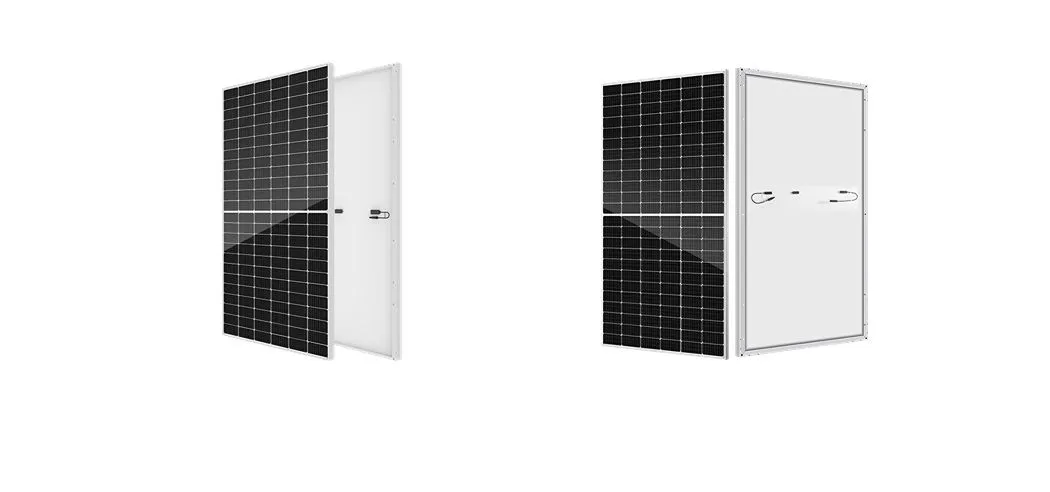

545W/550W/555W/560W/565W Half Cell Perc Solar Panel

Updated on Dec 10, 2025

1

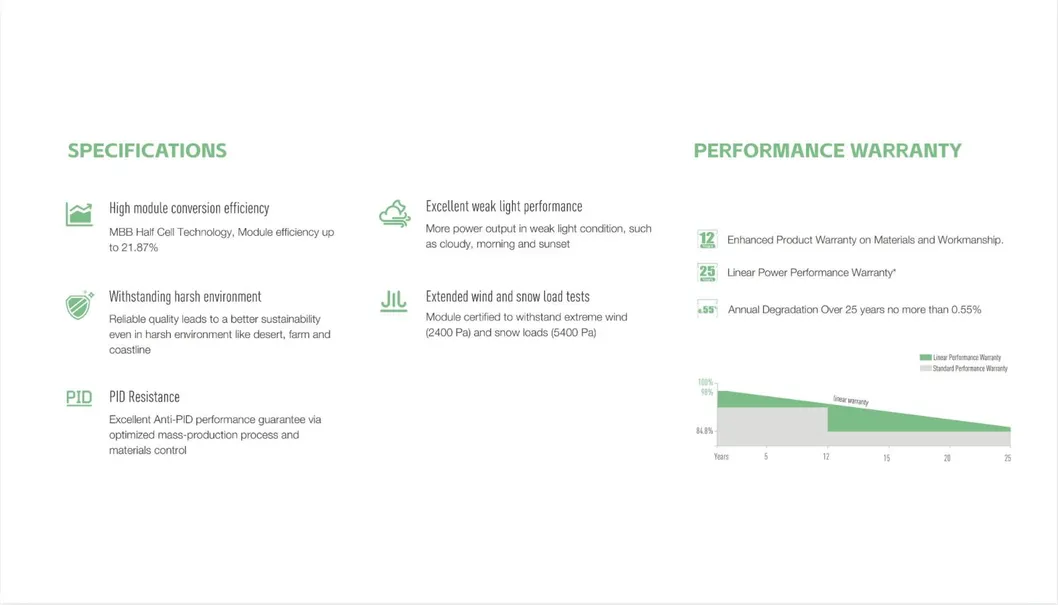

High Module Conversion Efficiency

MBB Half Cell Technology, Module efficiency up to 21.87%

2

Withstanding Harsh Environment

Reliable quality leads to a better sustainability even in harsh environments like desert, farm and coastline

3

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control

4

Excellent Weak Light Performance

More power output in weak light conditions, such as cloudy, morning and sunset

5

Extended Wind and Snow Load Tests

Module certified to withstand extreme wind (2400 Pa) and snow loads (5400 Pa)

Solar Panels Solar Module 30W to 720W Solar Battery Solar System Cell Perc Paneles Solares

Our Advantages

Product Parameters

Module Type	HLM545M10-72HPH	HLM550M10-72HPH	HLM555M10-72HPH	HLM560M10-72HPH	HLM565M10-72HPH
Testing Condition	STC NMOT	STC NMOT	STC NMOT	STC NMOT	STC NMOT
Maximum Power (Pmax/W)	545 406	550 410	555 413	560 416	565 419
Operating Voltage (Vmp/V)	42.06 38.35	42.16 38.43	42.24 38.52	42.33 38.59	42.42 38.66
Operating Current (Imp/A)	12.96 10.58	13.05 10.66	13.14 10.73	13.23 10.80	13.32 10.88
Open-Circuit Voltage (Voc/V)	49.70 46.21	49.80 46.31	49.90 46.40	50.00 46.49	50.10 46.58
Short-Circuit Current (Isc/A)	13.84 11.18	13.94 11.27	14.04 11.34	14.14 11.42	14.24 11.50
Module Efficiency ηm(%)	21.10	21.30	21.49	21.68	21.87

STC: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5 | NMOT: Irradiance at 800W/m², Ambient Temperature 20°C, Air Mass AM1.5, Wind Speed 1m/s

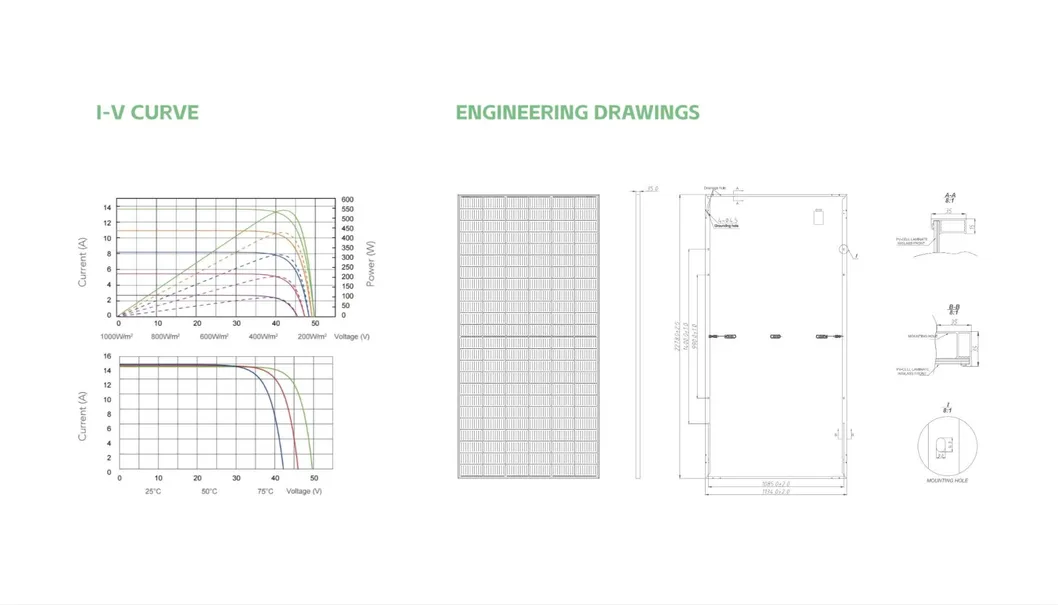

Mechanical Specification
Cell Type	Monocrystalline
Cell Dimensions	182*91mm
Cell Arrangement	144 (6*24)
Weight	28.6kg
Module Dimensions	2278113435mm
Cable Length	Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size	TUV: 4mm² (0.006inches² )/UL: 12AWG
Front Glass	3.2mm (0.13inches) AR Coating Tempered Glass
No. of Bypass Diodes	3
Packing Configuration	31pcs/carton, 620pcs/40hq
Frame	Anodized Aluminium Alloy
Junction Box	IP68
Operating Conditions
Maximum System Voltage	1000/1500V/DC(IEC)
Operating Temperature	-40°C~ +85°C
Maximum Series Fuse	25A
Static Loading	Snow Loading: 5400Pa/ Wind Loading: 2400Pa
Conductivity at Ground	≤0.1Ω
Safety Class	II
Resistance	≥100MΩ
Connector	T01/LJQ-3-CSY/MC4/MC4-EVO2
Temperature Coefficient
Temperature Coefficient Pmax	-0.36%/°C
Temperature Coefficient Voc	-0.29%/°C
Temperature Coefficient Isc	+0.048%/°C
NMOT	45±2°C

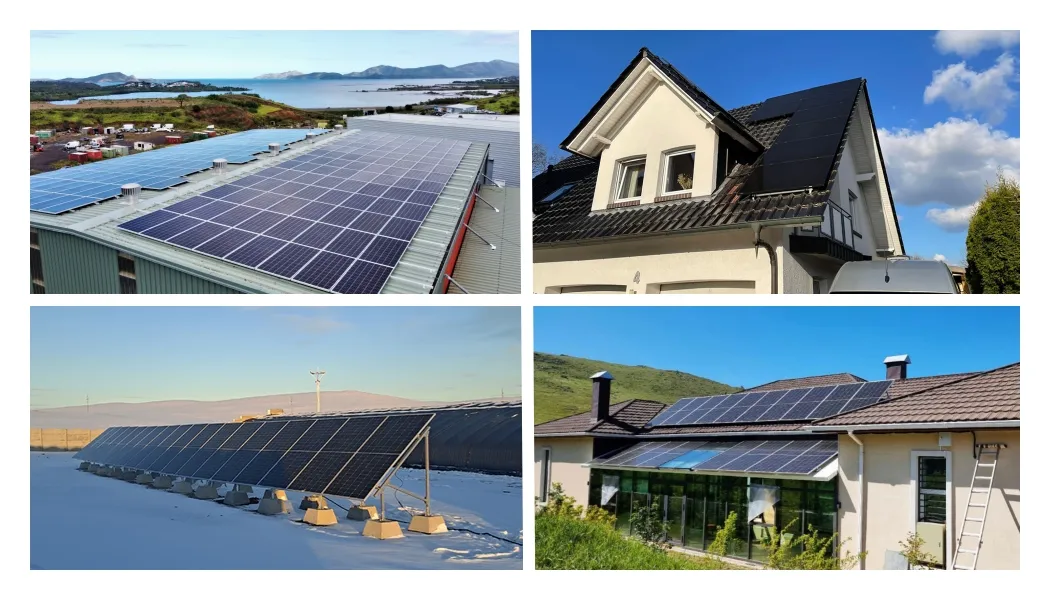

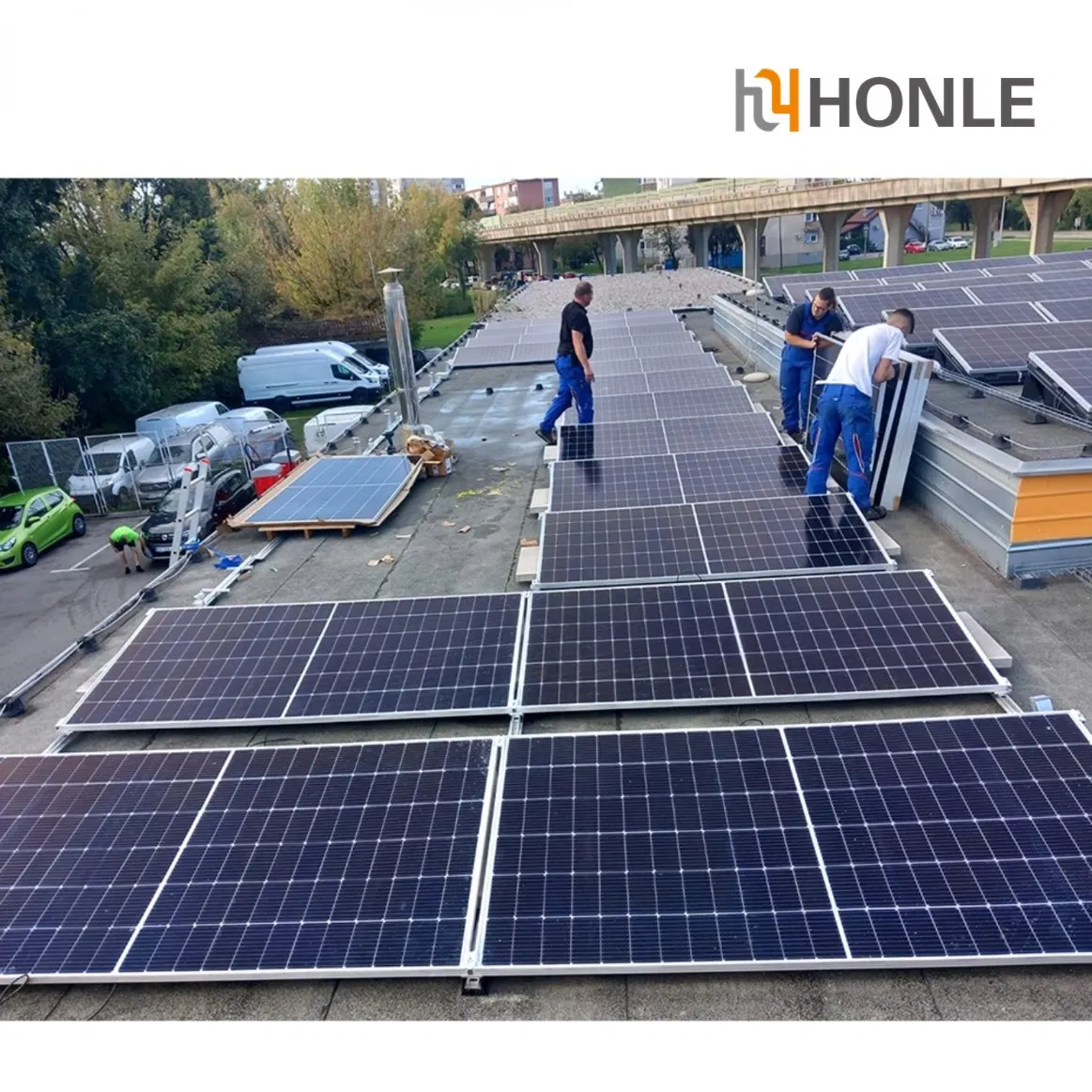

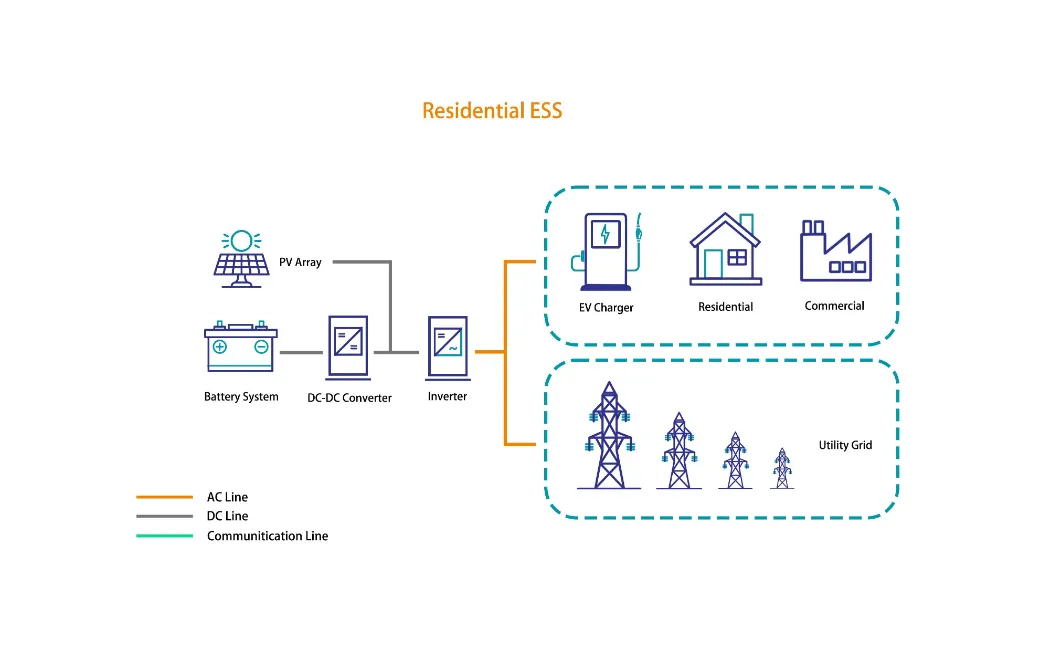

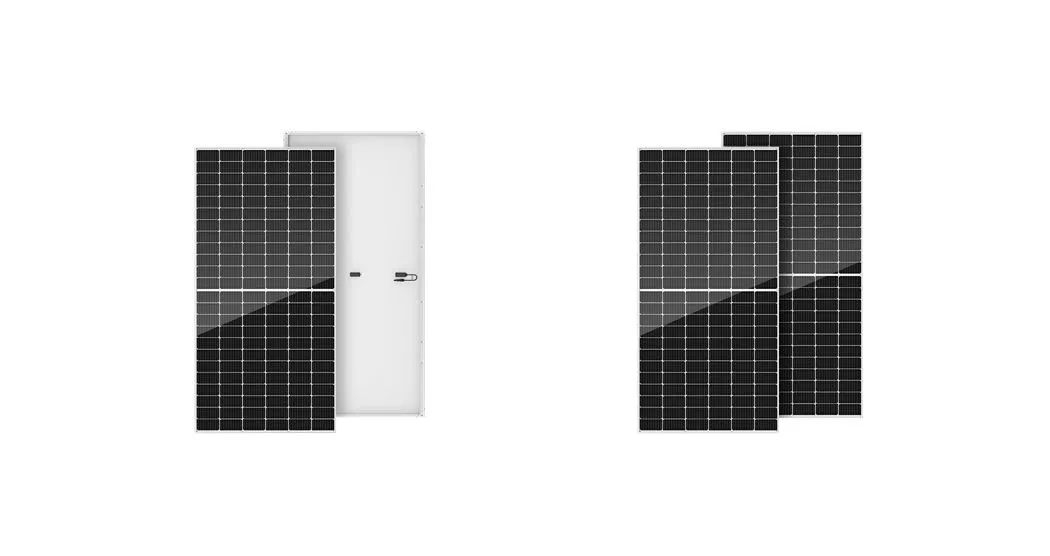

Application

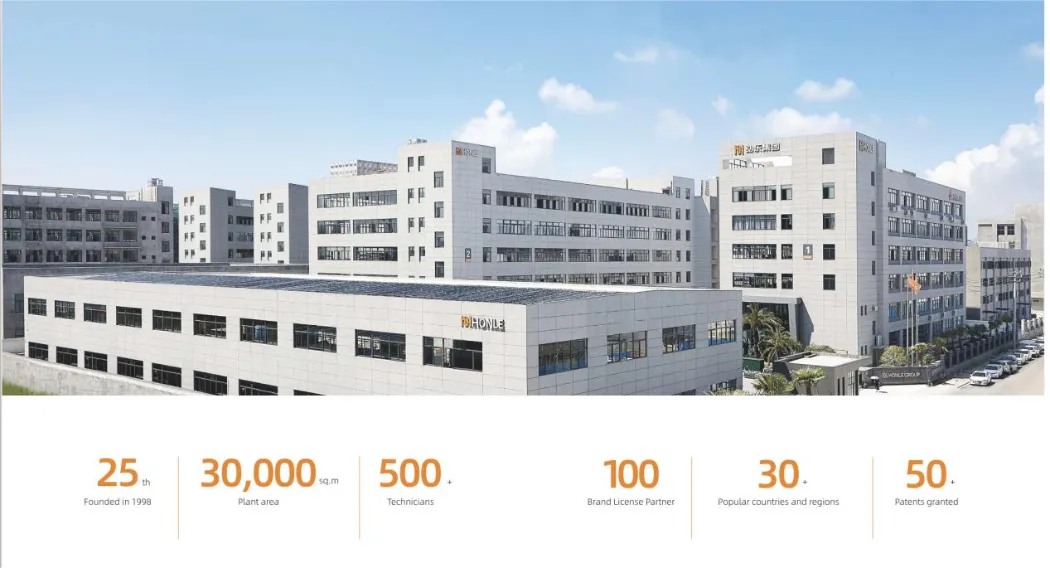

Company Profile

A globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions, with more than two decades of experience in the electric and new energy industry. With stable products and services, our reputation is established as a renowned supplier worldwide.

Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters, and we are open to negotiating maximum capacities for our power solutions. The new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.

We have established more than 100 agents, alongside international office representation. At the same time, offices and general agents have been established in more than 30 countries and regions.

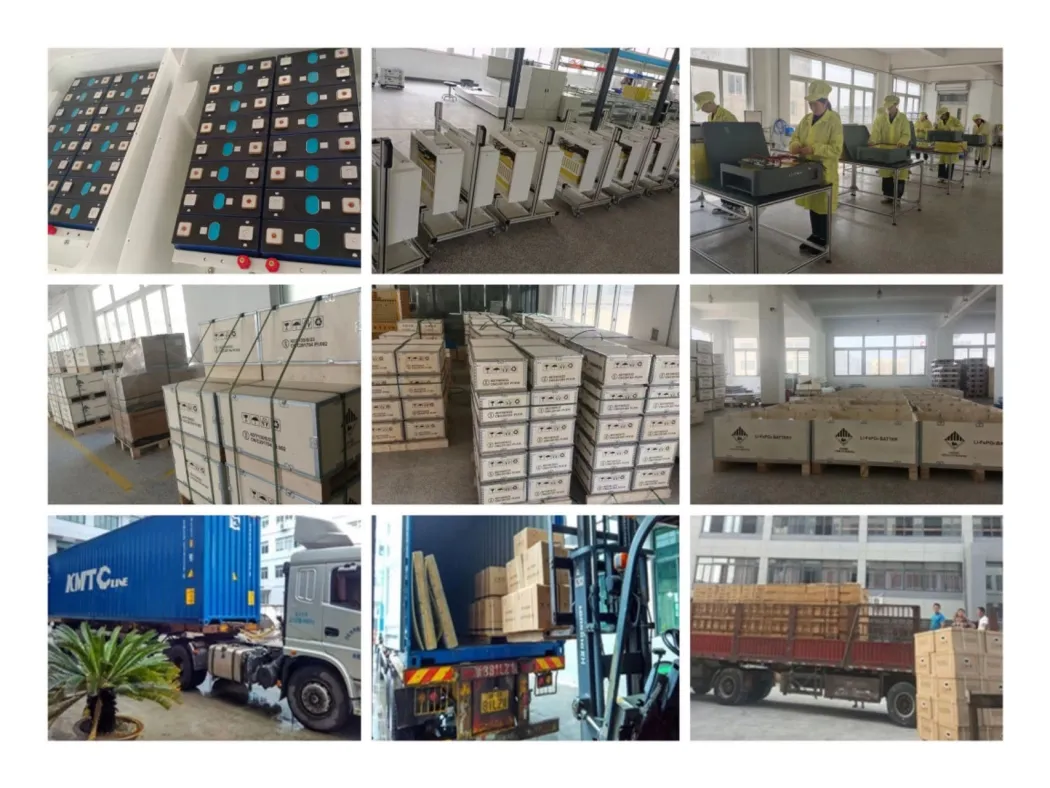

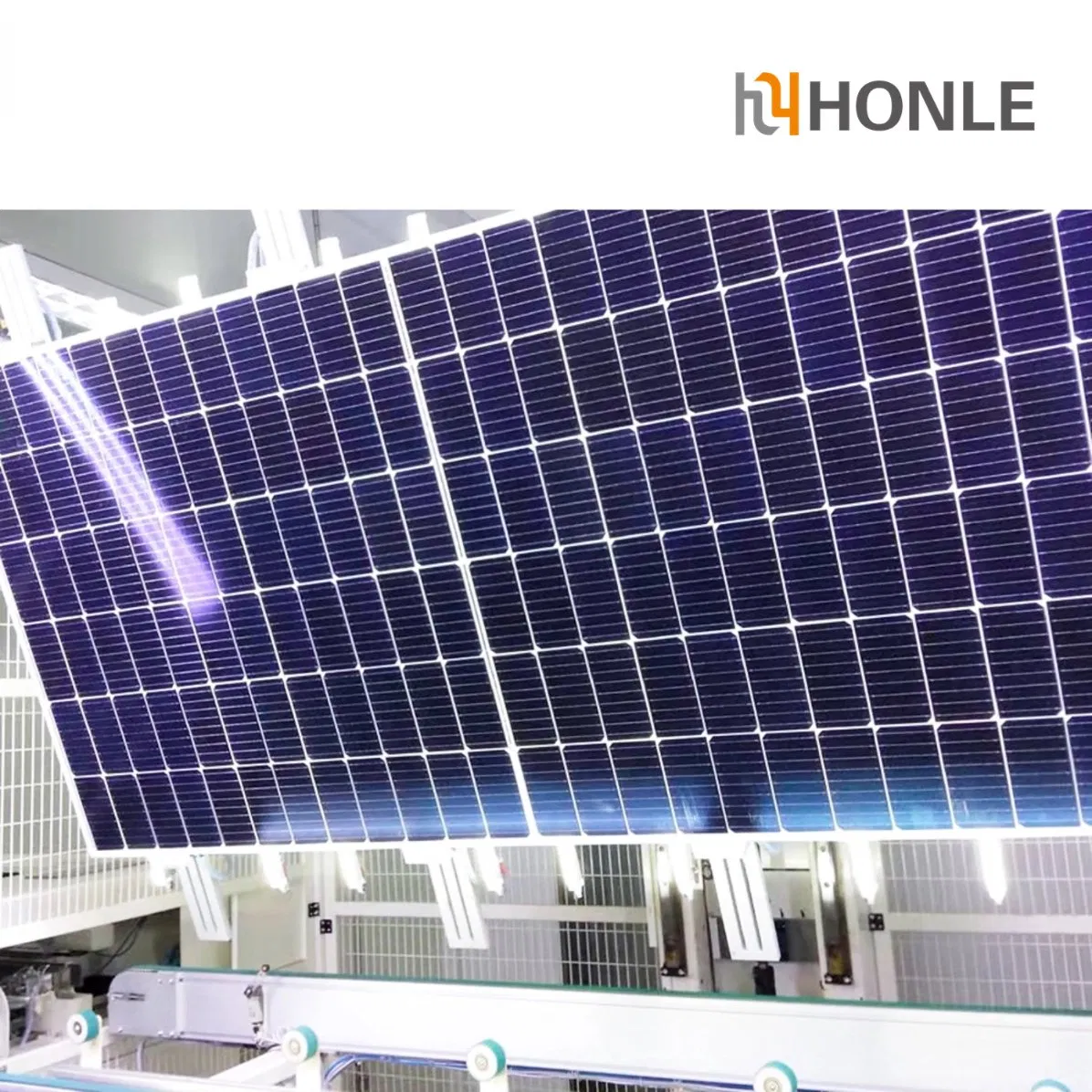

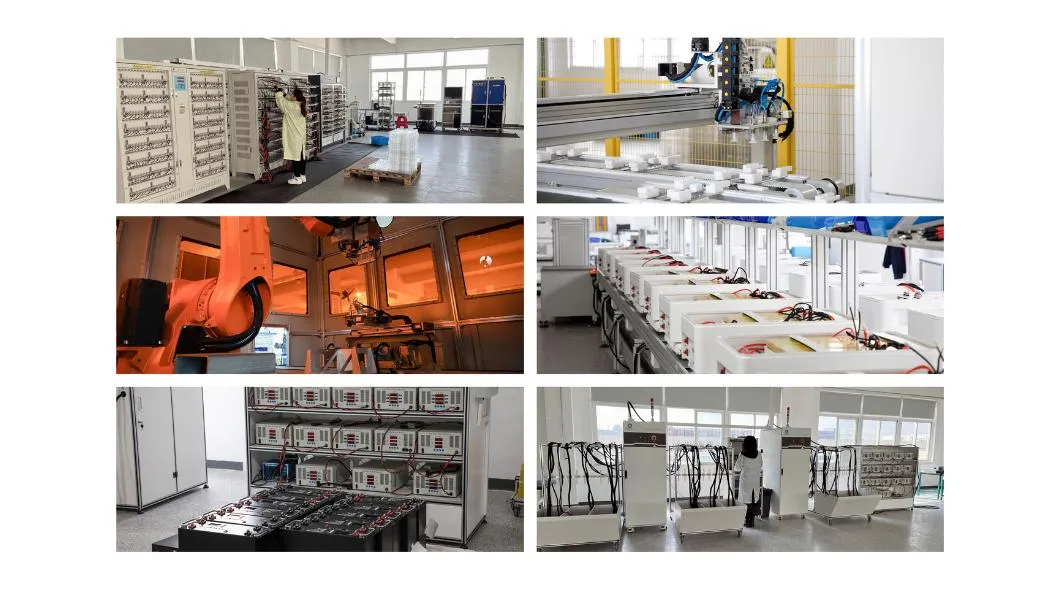

Production Line

As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high-level testing machines and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets strict quality standards.

Certifications

Packaging & Shipping

Frequently Asked Questions

Q1. Do you have any MOQ limit?

A: Yes. In general, MOQ is 1 pallet.

Q2. How about your delivery time?

A: For large capacity, we can deliver around 25 days. It depends on the items and the quantity of your order. It usually takes 1-2 days if the products are in stock.

Q3. Can you provide OEM and ODM Service?

A: Yes, we can provide free OEM Service and ODM Service. We can design the packaging and logo according to your requirements.

Q4. Do you test all your goods before delivery?

A: Yes, all our products have been fully tested before delivery.

Q5. What is the standard packaging?

A: We use cartons and pallets for secure protection during transit.

Q6. Could you offer Form A or C/O?

A: Yes. We can prepare relevant documentation for the origin affairs office or other departments to apply for these certificates for free.
