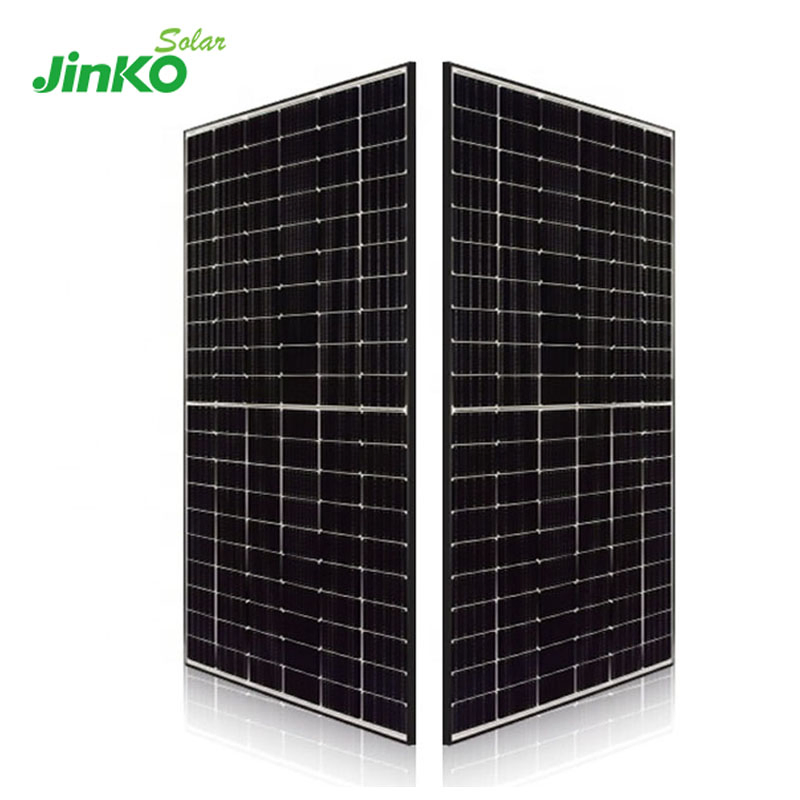

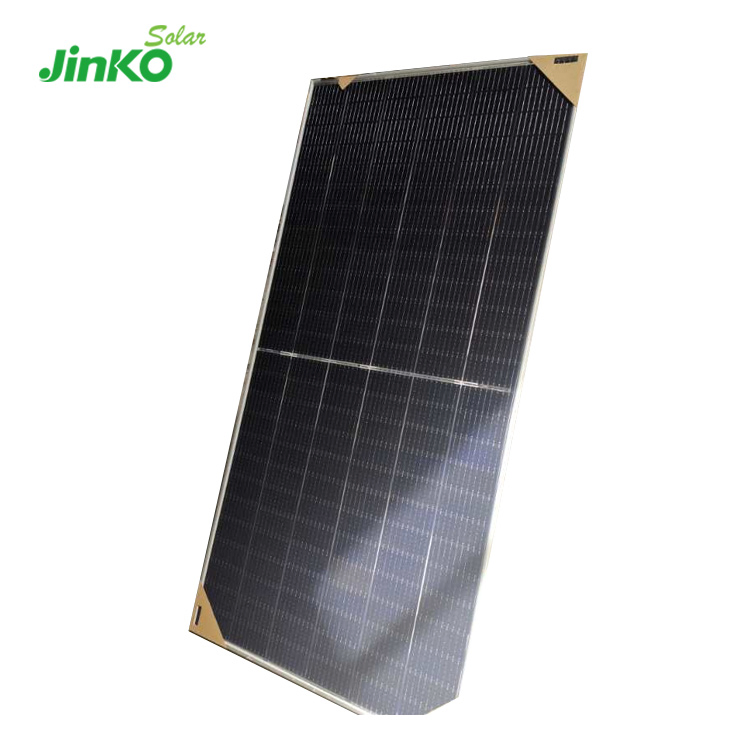

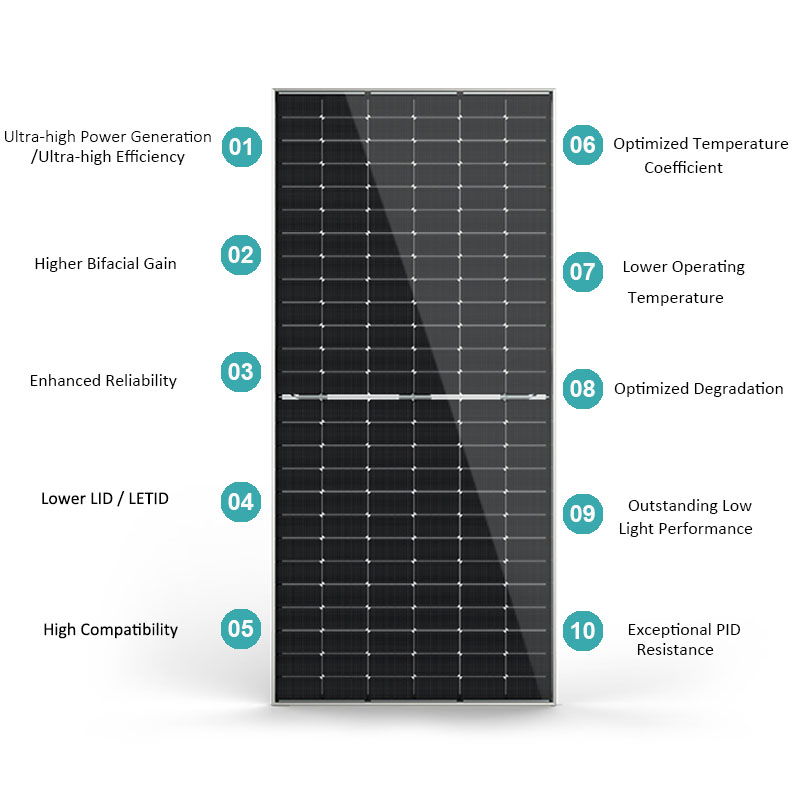

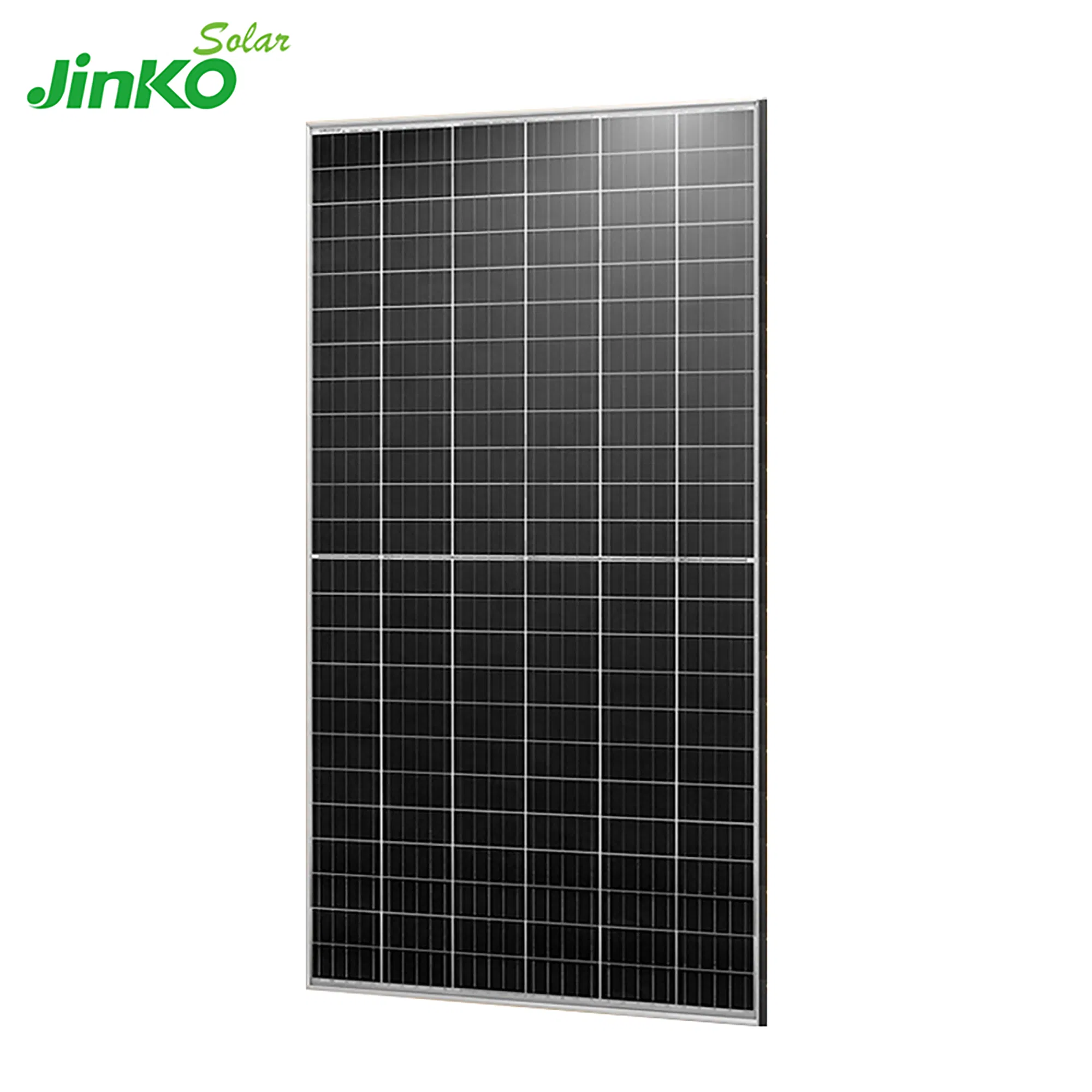

Jinko Solar 460W Mono Perc Panel

Send Inquiry

Product Description

■ Product Details

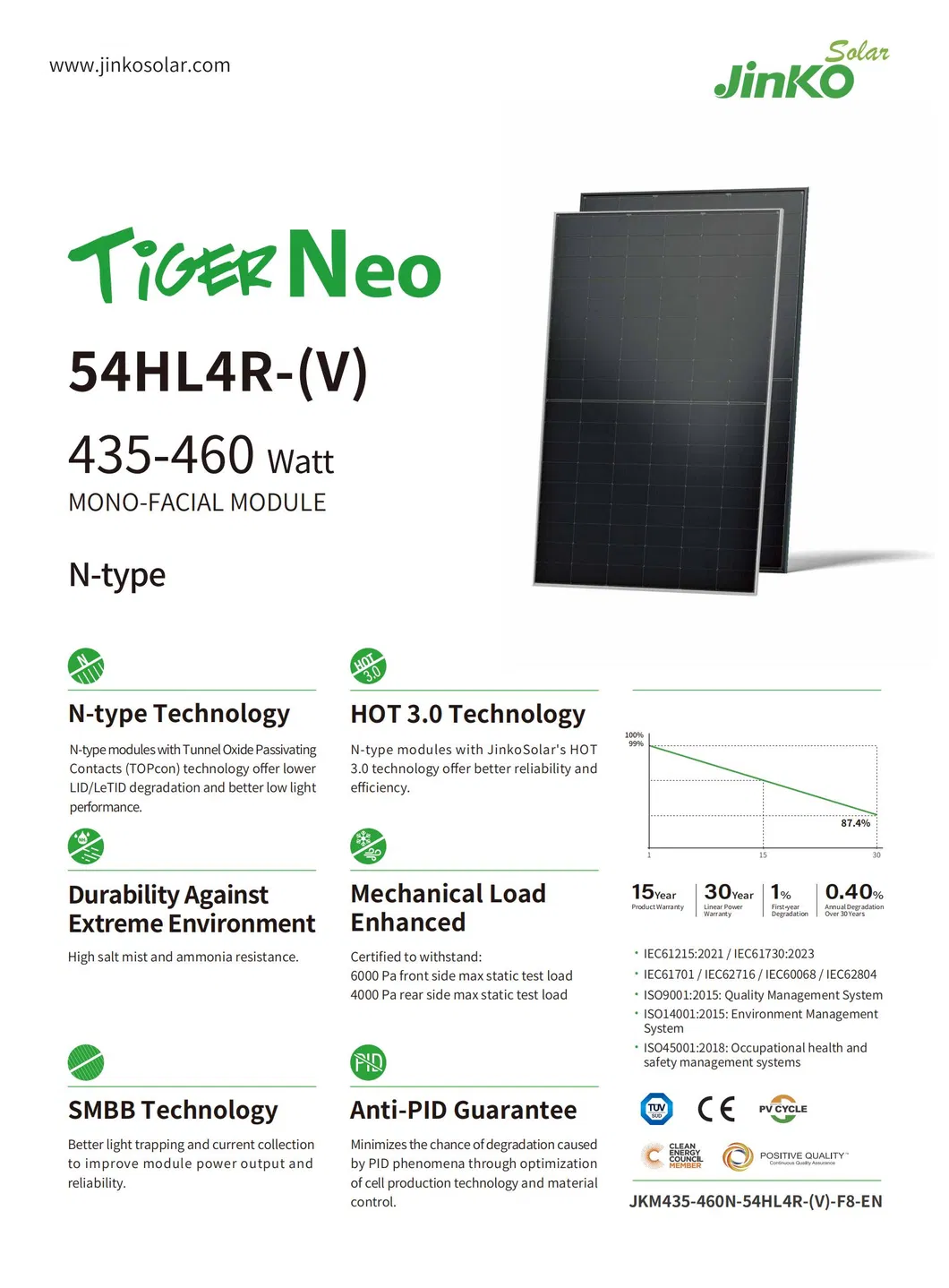

Jinko Solar 460W Mono Perc Panel Detail 1

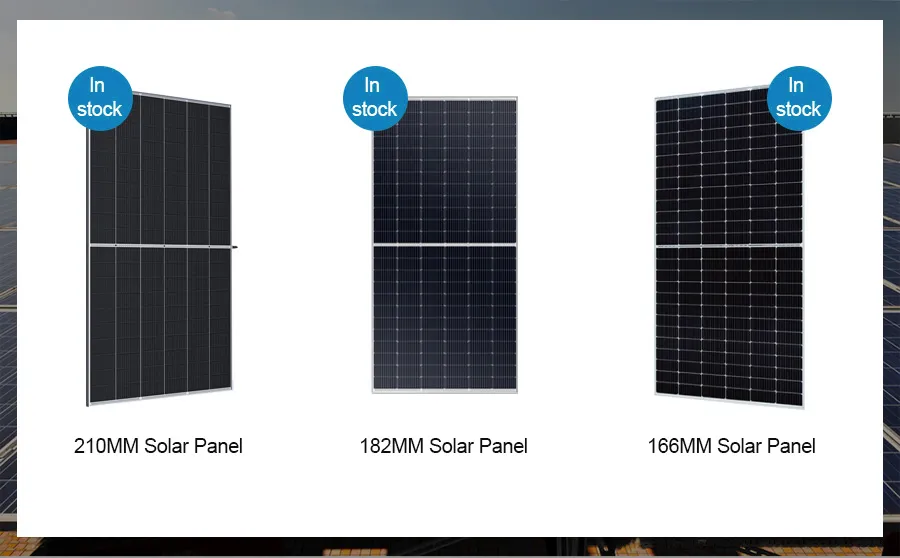

Jinko Solar 460W Mono Perc Panel Detail 2

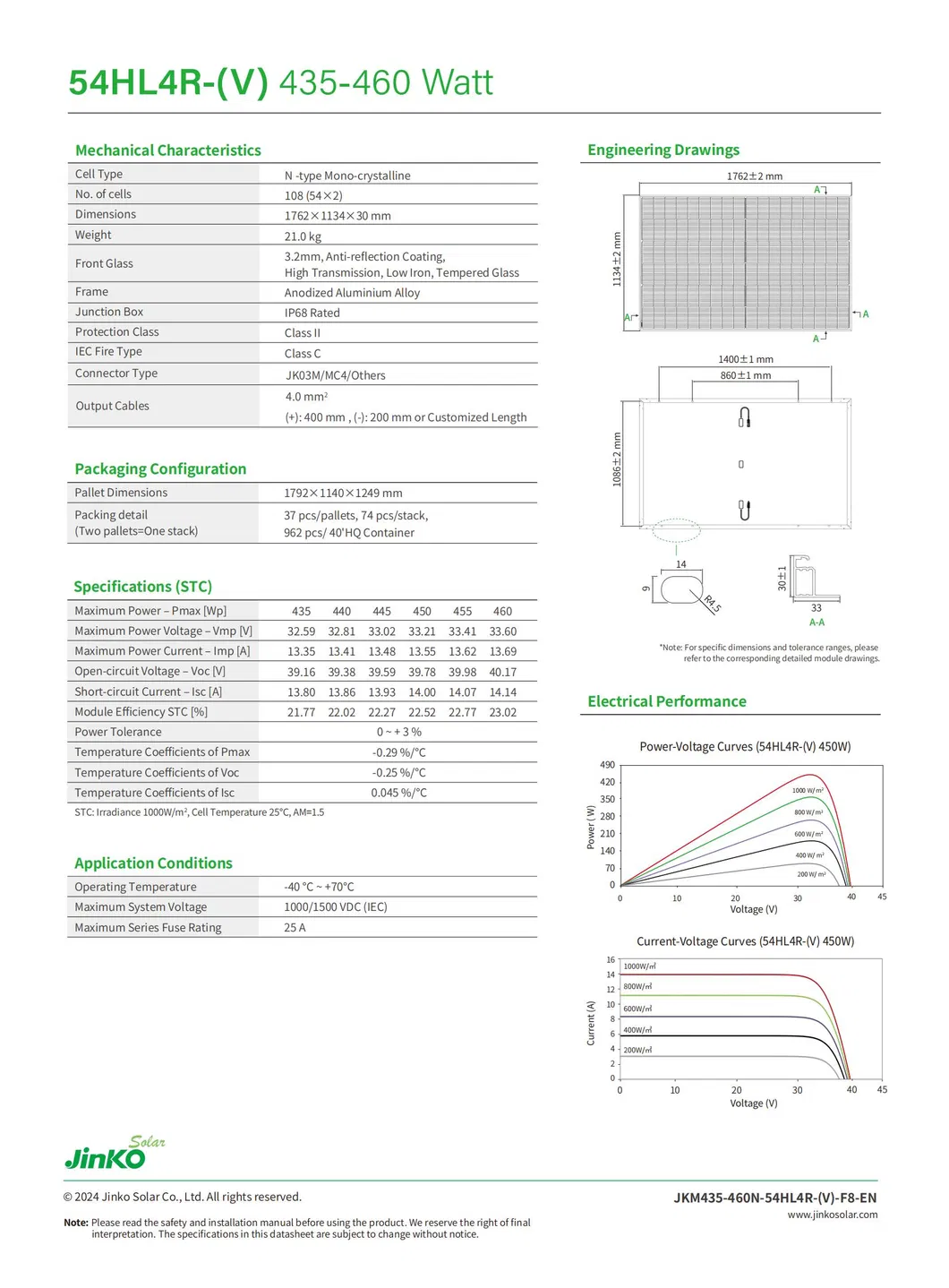

■ Comprehensive Electrical Data

SPECIFICATIONS (STC)
Maximum Power (Pmax)	425Wp	430Wp	435Wp	440Wp	450Wp
Maximum Power Voltage (Vmp)	40.56V	40.63V	40.70V	40.80V	40.90V
Maximum Power Current (Imp)	13.07A	13.17A	13.27A	13.36A	13.45A
Open-circuit Voltage (Voc)	49.26V	49.34V	49.42V	49.52V	49.62V
Short-circuit Current (Isc)	13.71A	13.79A	13.85A	13.94A	14.03A
Module Efficiency STC (%)	20.55%	20.75%	20.94%	21.13%	21.33%
Operating Temperature(ºC)	-40ºC~+85ºC
Maximum system voltage	1000/1500VDC (IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.30%/ºC
Temperature coefficients of Voc	-0.25%/ºC
Temperature coefficients of Isc	0.046%/ºC
Nominal operating cell temperature (NOCT)	45±2ºC

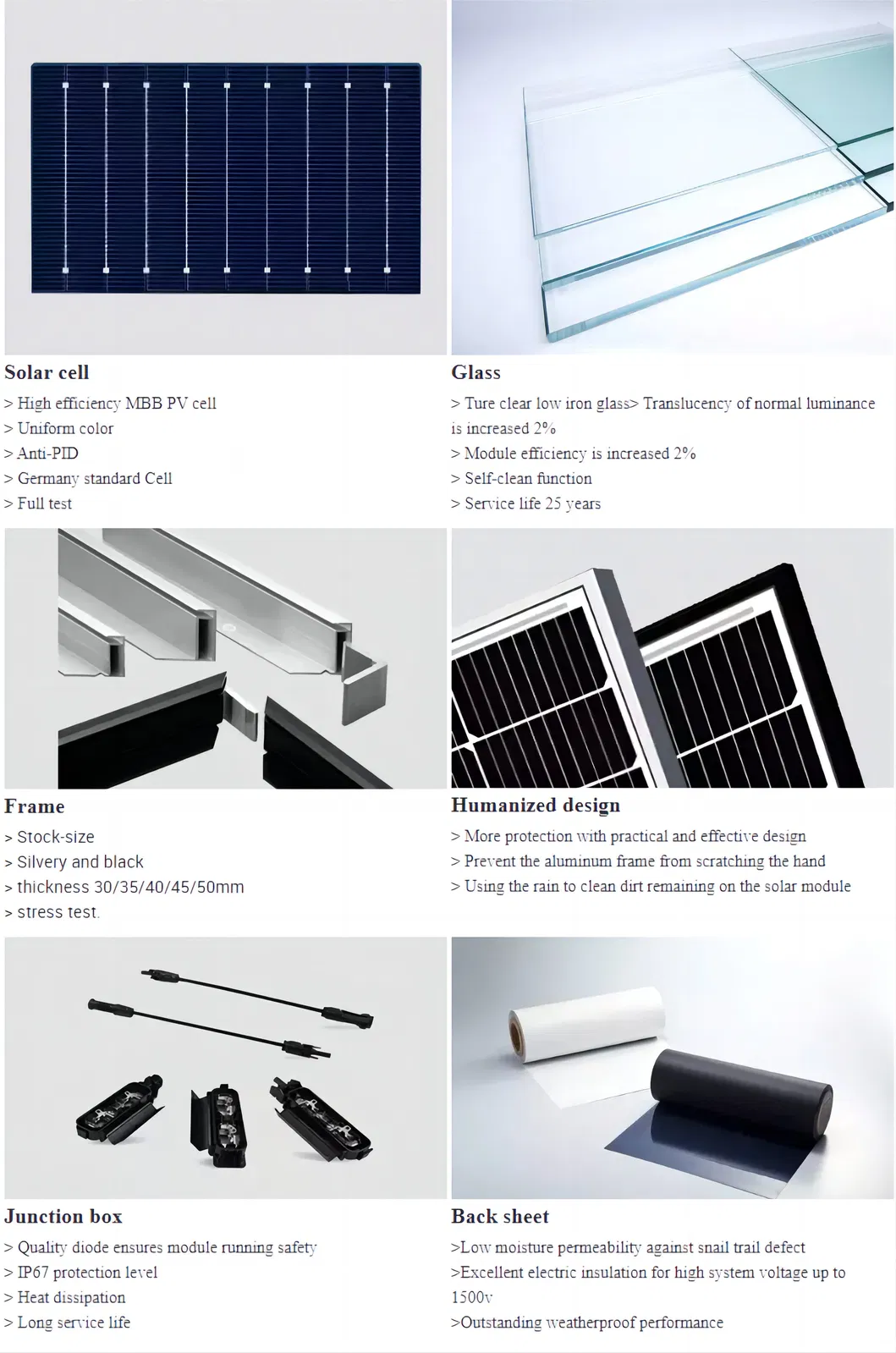

■ Premium A-Grade Material

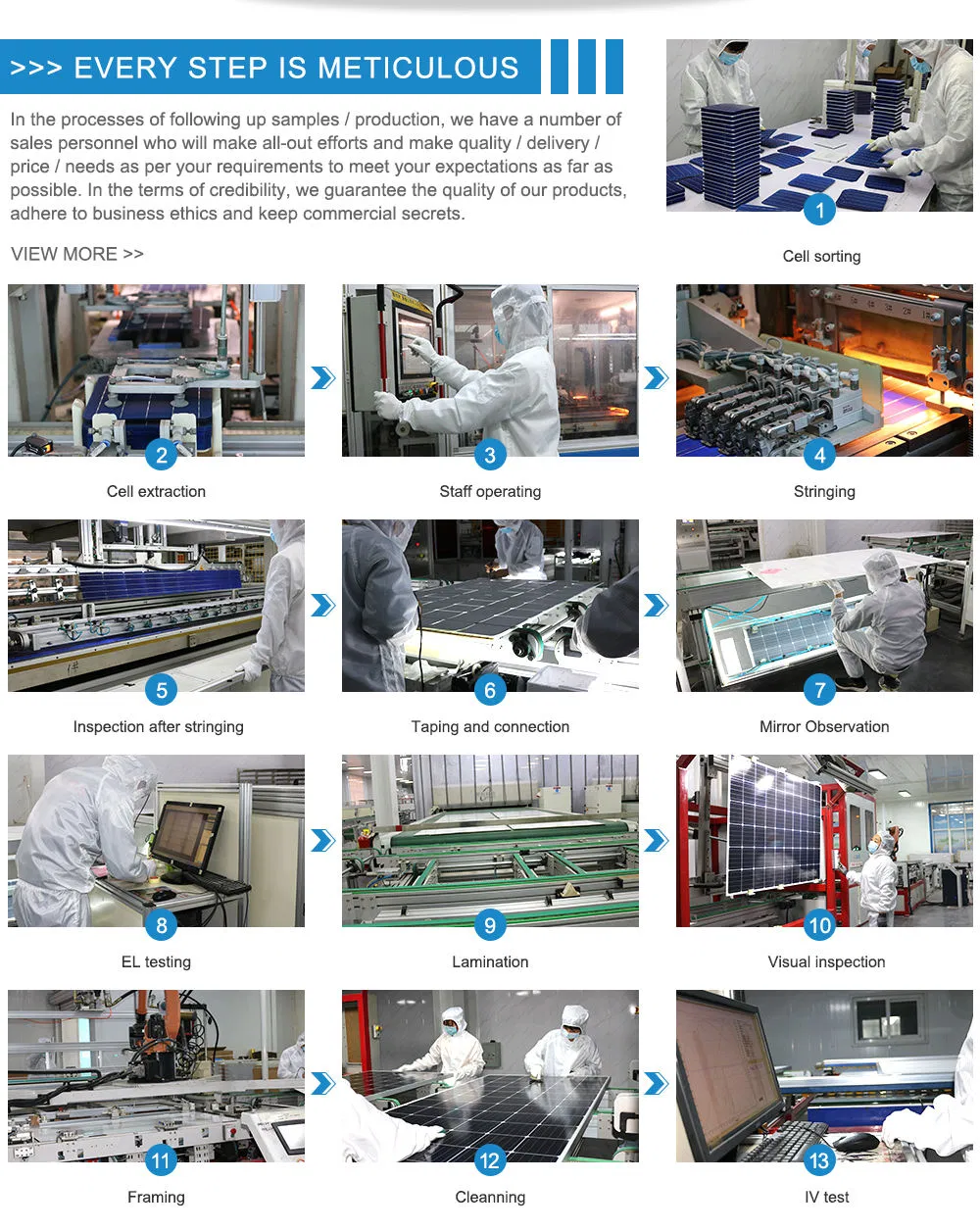

■ Advanced Production Process

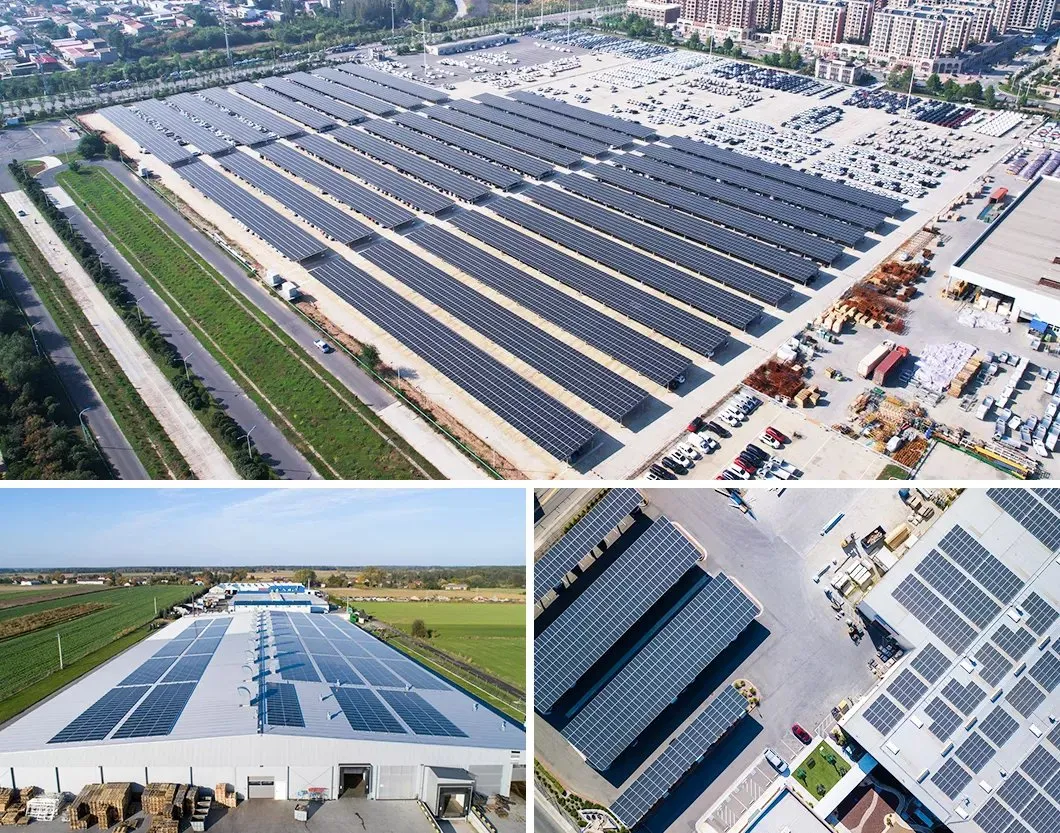

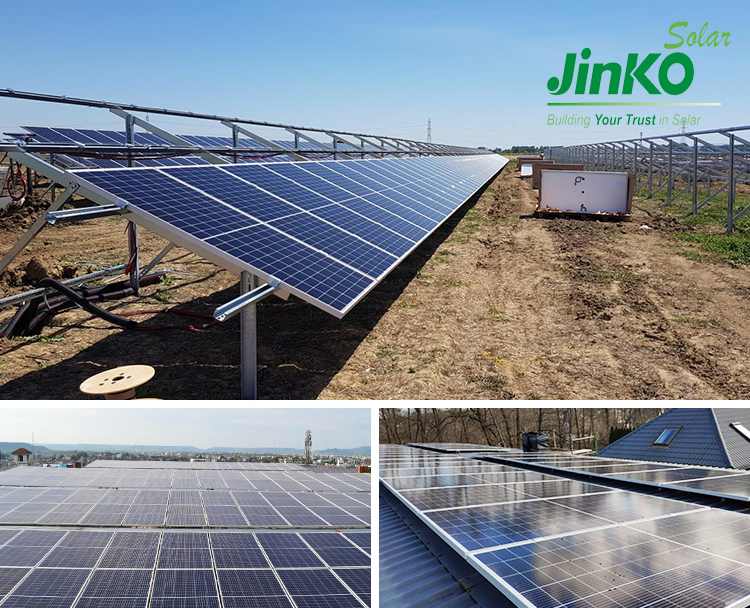

■ Impressive Project Cases

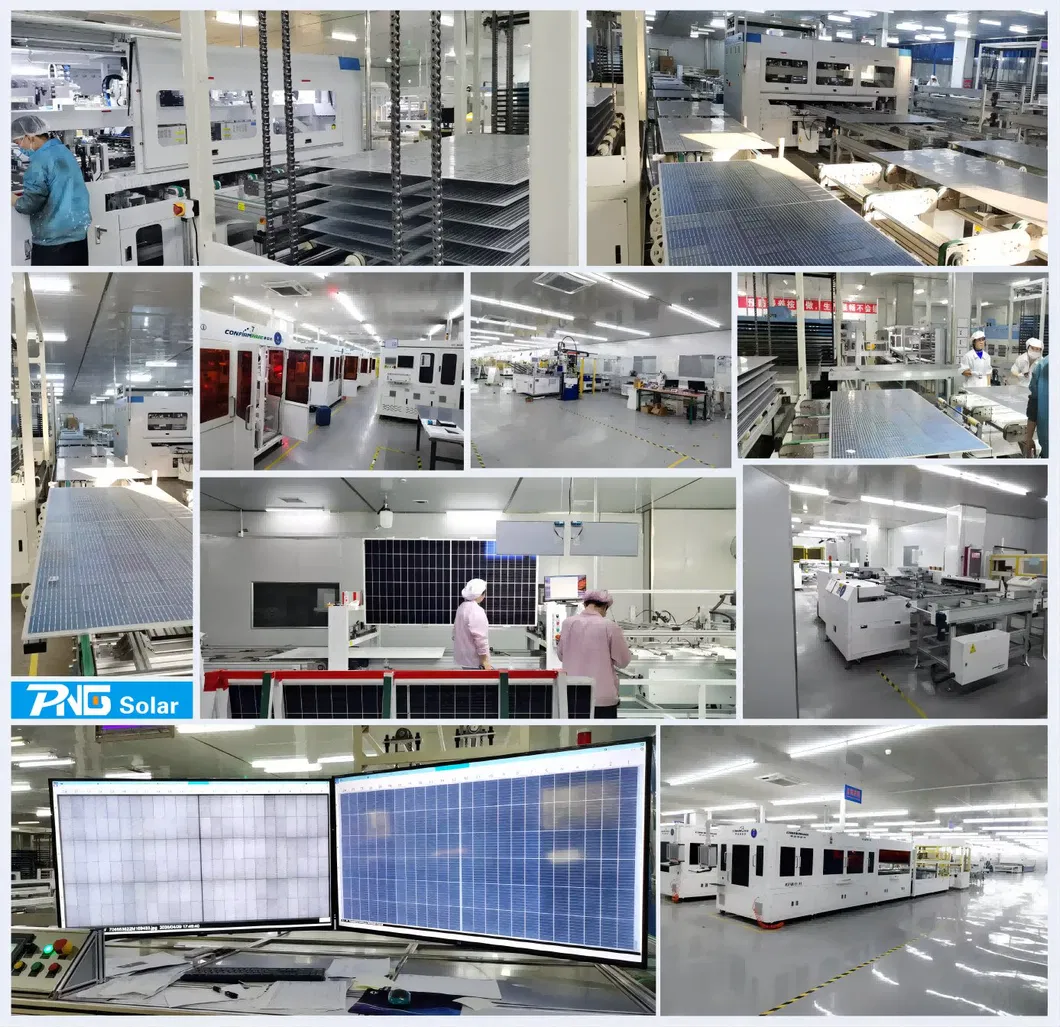

■ State-of-the-Art Factory

■ Flexible Delivery Methods

Frequently Asked Questions (FAQ)

Q1: What are your payment terms and conditions?

We accept various payment methods such as T/T, Letter of Credit, PayPal, and Western Union. We offer flexible shipping terms including FOB, CIF, CFR, DDU, DDP, and more.

Q2: Can we print our own sticker?

Absolutely! Our OEM and ODM services are one of our key strengths, allowing you to fully customize your products.

Q3: What are the advantages of your company?

Over the years, we've primarily been OEM partners for Tier 1 companies. Since 2017, we've launched our own brands that are celebrated for their superior quality and competitive pricing.

Q4: What is the warranty period for these Mono PERC solar panels?

These high-efficiency panels typically come with a 12-year product materials and workmanship warranty, alongside a 25-year linear power output warranty.

Q5: How do Mono PERC panels perform in low-light environments?

Thanks to the advanced passivated emitter rear cell (PERC) technology, our panels feature excellent low-light performance, ensuring reliable power generation during early mornings, evenings, or cloudy days.

Q6: Do these solar modules carry international quality certifications?

Yes, all manufactured modules conform to major global standards and hold certifications such as TUV, CE, IEC, and UL, ensuring they meet rigorous safety and efficiency standards.
