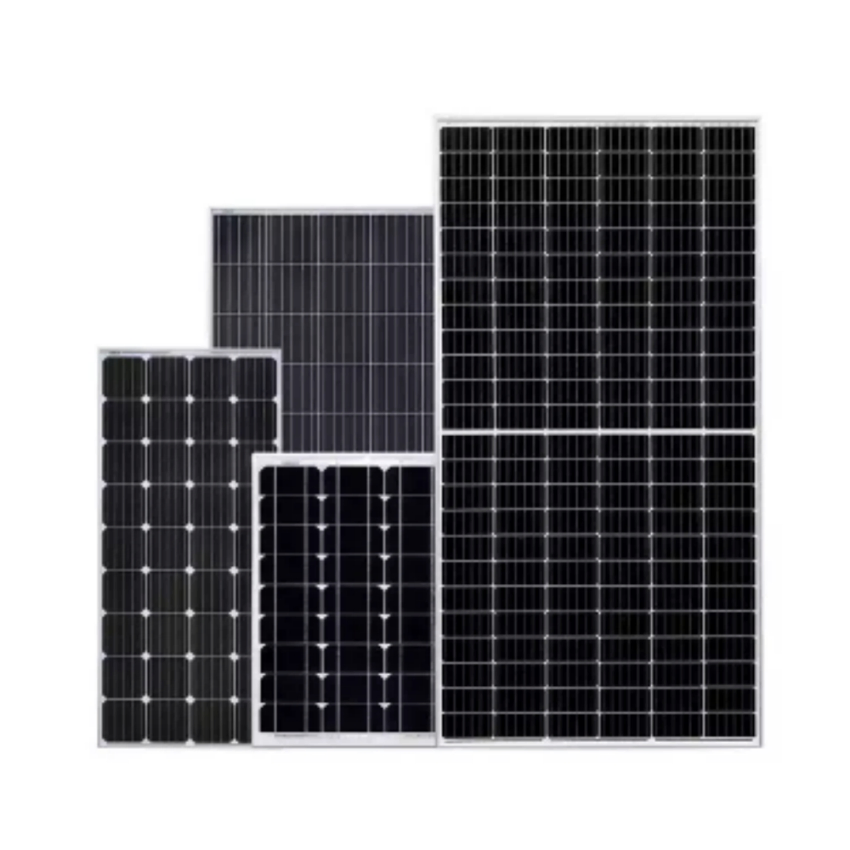

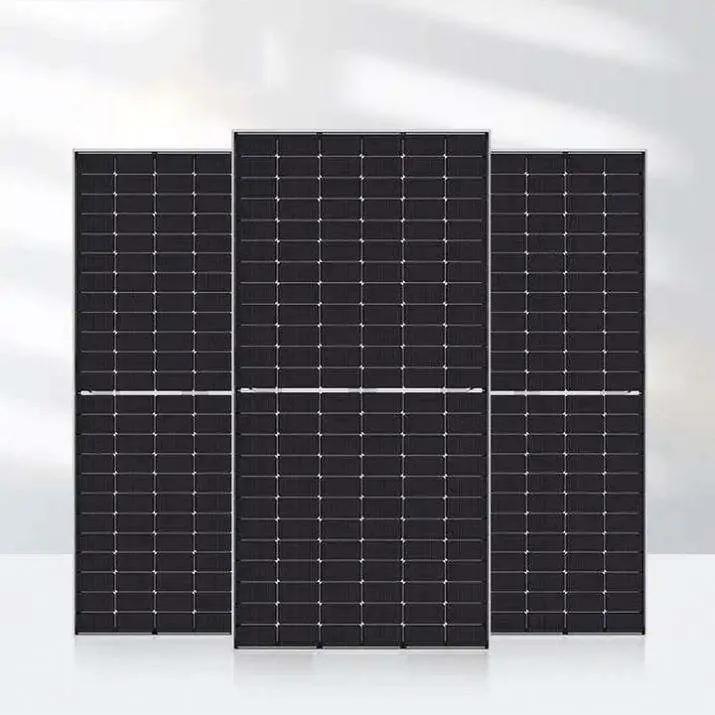

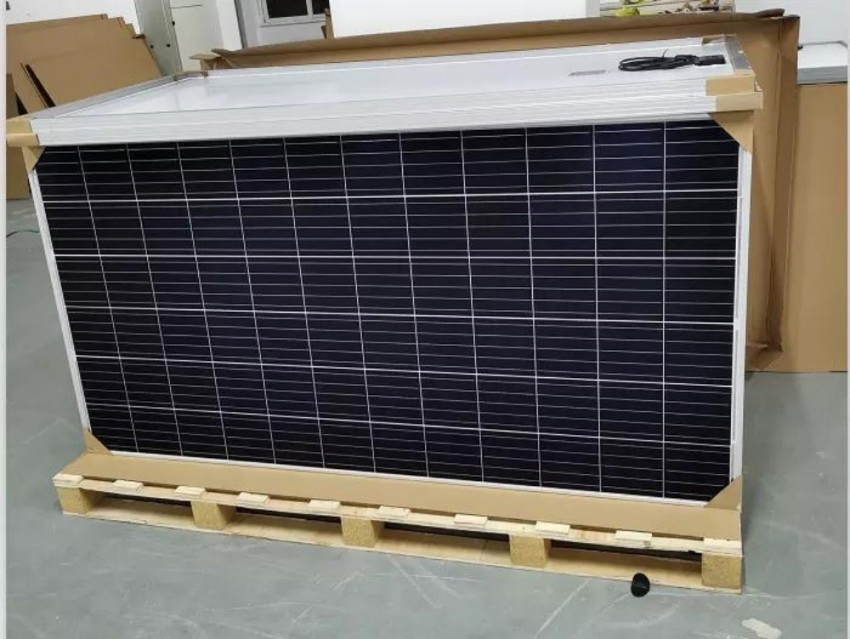

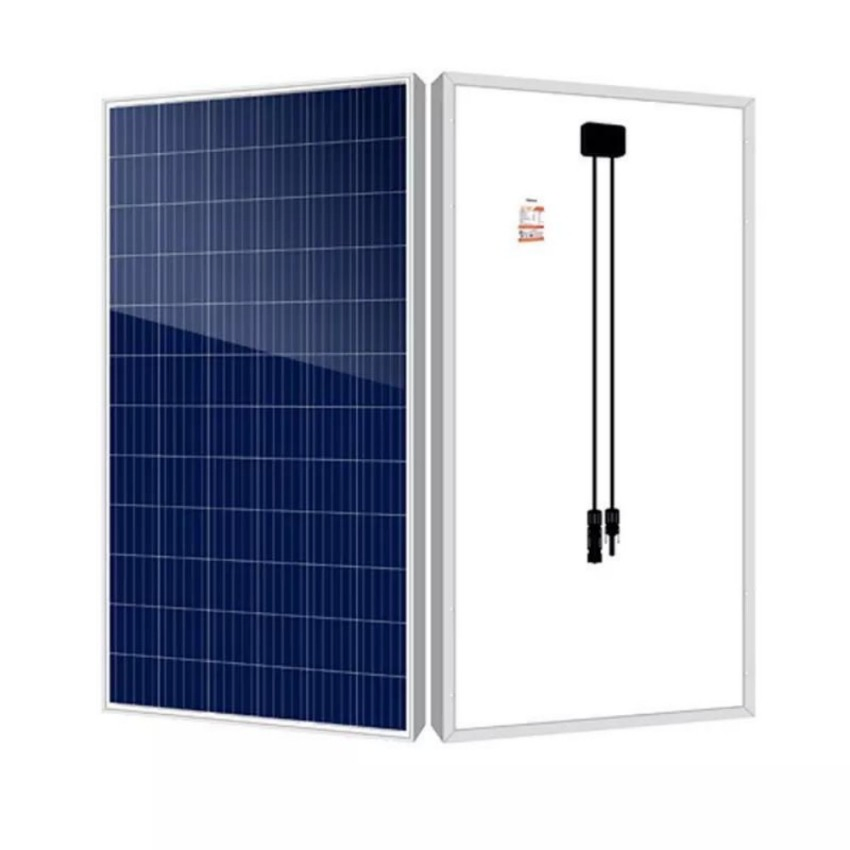

To produce monocrystalline silicon cells, absolutely pure semiconducting material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
| ELECTRICAL Characteristics | |||||
|---|---|---|---|---|---|
| Maximum Power-Pmax(w) | 100 | 110 | 120 | 130 | 140 |
| Open Circuit Voltage-Voc(V) | 20.60 | 21.23 | 21.60 | 21.95 | 23.16 |
| Short Circuit Current-Isc(A) | 5.94 | 6.41 | 6.87 | 7.21 | 7.46 |
| Maximum Power Voltage-Vmpp(V) | 17.82 | 18.15 | 18.48 | 19.08 | 19.80 |
| Maximum Power Current-Impp(A) | 5.62 | 6.07 | 6.50 | 6.82 | 7.08 |
| Module Efficiency(%) | 18.80 | 20.70 | 22.69 | 21.30 | 20.30 |
| Temperature Characteristics | |||||
| Pmax Temperature Coeffcient | -0.40%/ºC | ||||
| Voc Temperature Coeffcient | -0.32%/ºC | ||||
| Isc Temperature Coeffcient | +0.05%/ºC | ||||
| Operating Temperature | -40-+85ºC | ||||
| Nominal Operating Cell Temperature(NOCT) | 45±2ºC | ||||
| ELECTRICAL Characteristics | |||||
| Maximum Power-Pmax(w) | 150 | 160 | 170 | 180 | 190 |
| Open Circuit Voltage-Voc(V) | 23.58 | 21.05 | 21.53 | 24.42 | 24.88 |
| Short Circuit Current-Isc(A) | 7.86 | 9.31 | 9.71 | 9.02 | 9.35 |
| Maximum Power Voltage-Vmpp(V) | 20.16 | 18.15 | 18.48 | 21.06 | 21.45 |
| Maximum Power Current-Impp(A) | 7.45 | 8.82 | 9.20 | 8.55 | 8.86 |
| Module Efficiency(%) | 21.70 | 19.50 | 20.70 | 17.80 | 18.8 |
| Temperature Characteristics | |||||
| Pmax Temperature Coeffcient | -0.40%/ºC | ||||
| Voc Temperature Coeffcient | -0.32%/ºC | ||||
| Isc Temperature Coeffcient | +0.05%/ºC | ||||
| Operating Temperature | -40-+85ºC | ||||
| Nominal Operating Cell Temperature(NOCT) | 45±2ºC | ||||

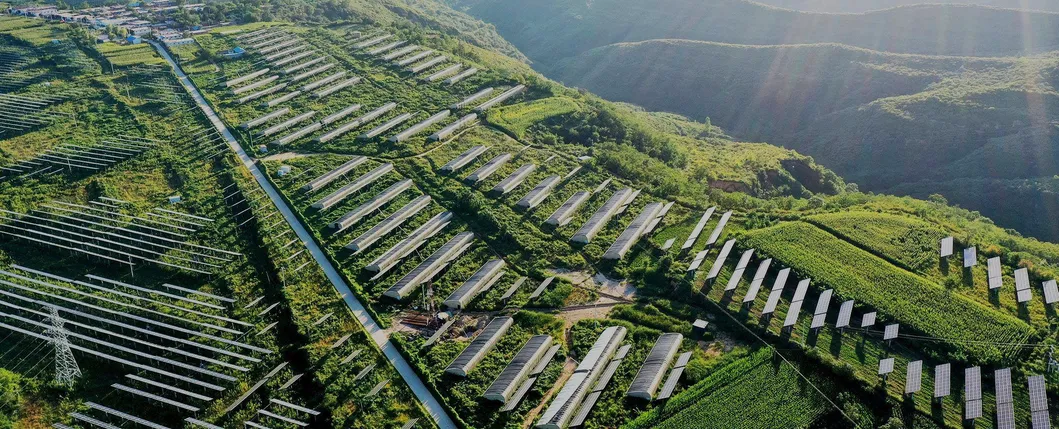

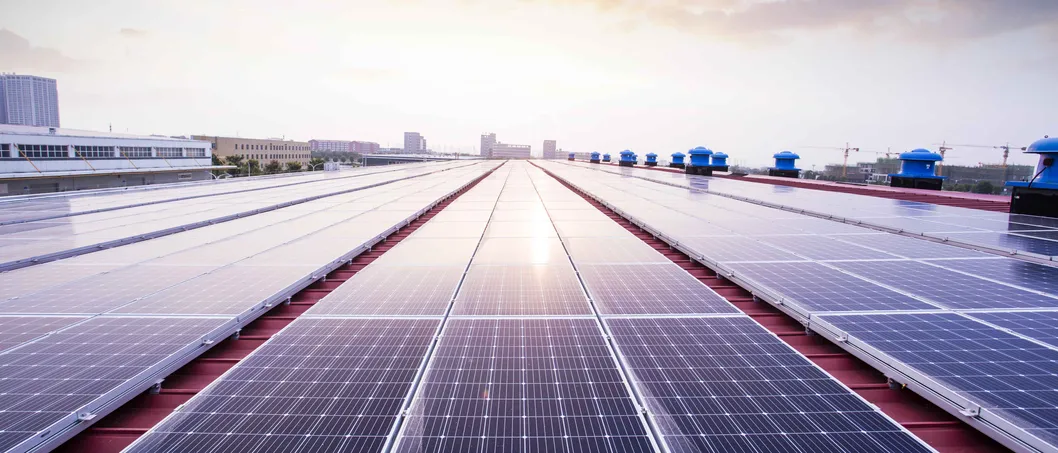

Eco-friendly PV power plants are grid-friendly, environmentally-friendly, and economic benefits-friendly. The featured applications are divided into large-scale PV power plants on mostly flat terrain, PV power plants on mountainous terrain, PV power plants on more complex mountainous terrain, and large-scale PV power plants floating on water (floatovoltaics).

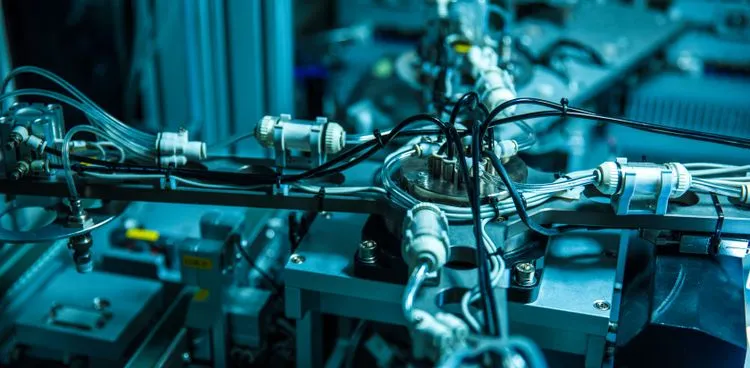

Solar PV can be paired with high-energy-consuming enterprises' own power plants to meet consumer demand. PV can also power the production of green hydrogen as a replacement for carbon-producing fuels, thereby helping companies achieve their decarbonization goals.

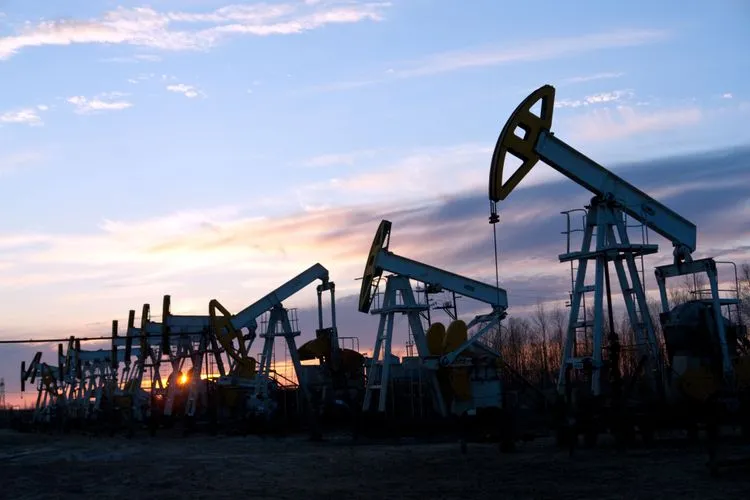

Help petroleum enterprises become greener and enhance the industry's environmental protection, societal benefits and brand equity.
Environmental protection value: reduce energy consumption and reduce pollution; social value: improve regional environment and improve public service level; brand value: reduce long-term operating costs and improve brand equity.
Create a new industrial paradigm with clean energy as the main energy system, which promotes global green environmental protection.

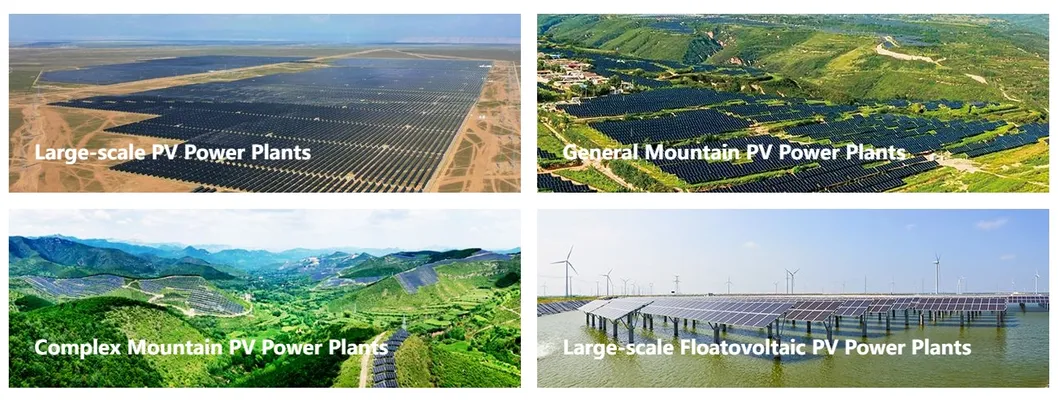

Depending on the different types of construction sites, installation locations and methods, we can provide solutions for large-scale PV power plants, general mountain PV power plants, complex mountain PV power plants, and floatovoltaic PV power plants.
