Top Rated Ja Solar Bifacial Panel 132 Cells Perc N-Type 605-630W PV Module Jam66D45 Lb 610W 620W 630W Wholesale Fast Shipping in Stock

1 / 5

Top Rated Ja Solar Bifacial Panel 132 Cells Perc N-Type 605-630W PV Module Jam66D45 Lb 610W 620W 630W Wholesale Fast Shipping in Stock

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. JAM66D45 LB

Number of Cells 132 cells

Application Solar System

Condition New

Certification EST, ISO, CB, CE

Material Monocrystalline Silicon

Weight 33.1 Kg

Packing 36PCS/Pallets

Loading 720PCS/ 40'hq Container

Junction Box IP68 Rated

Frame Anodized Aluminium Alloy

Output Cables TUV 1*4.0mm2

Maximum Series Fuse Rating 35A

Transport Package Pallet

Specification 2382*1134*30mm

Origin China

HS Code 85414300

Production Capacity 1,000,000 Watt Per Day

Packaging & Delivery

Package Size 238.20cm * 113.40cm * 3.00cm

Package Gross Weight 33.100kg

Product Description

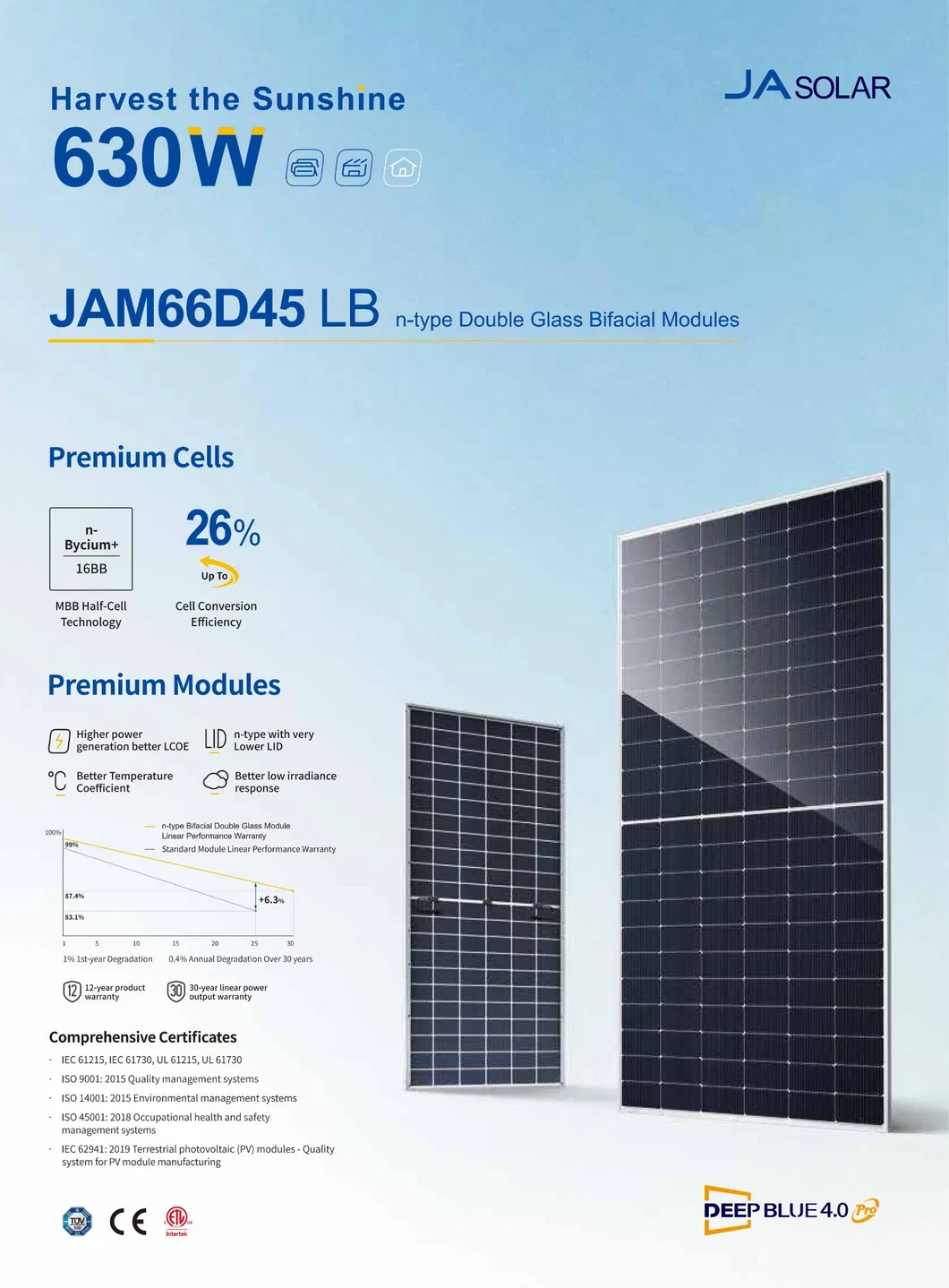

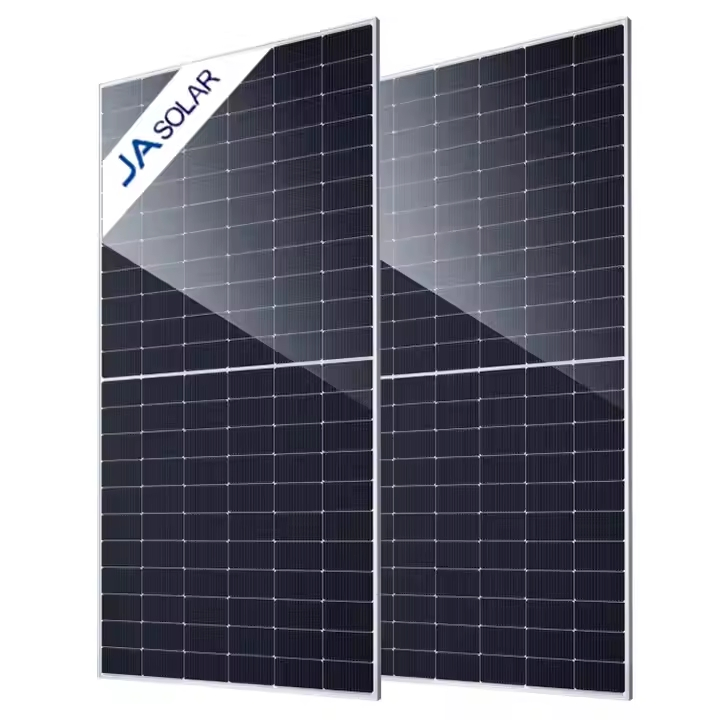

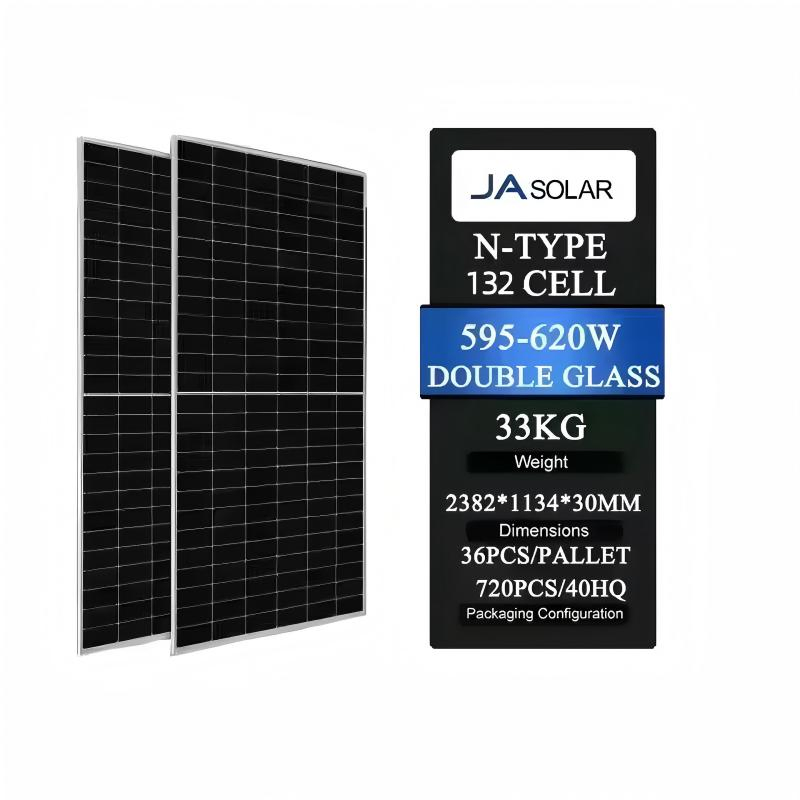

JA Solar Bifacial Panel 132 Cells Perc N-Type 605-630W PV Module Jam66D45 Lb 610W 620W 630W

ELECTRICAL PARAMETERS AT STC
Maximum Power - Pmax (W)	595	600	605	610	615	620
Open Circuit Voltage-Voc (V)	47.50	47.70	47.90	48.10	48.30	48.50
Maximum Power Voltage-Vmpp (V)	39.27	39.44	39.60	39.77	39.96	40.21
Short Circuit Current - Isc (A)	15.90	15.95	16.00	16.05	16.10	16.13
Maximum Power Current-Impp (A)	15.15	15.21	15.28	15.34	15.39	15.42
Module Efficiency (%)	22.0%	22.2	22.4	22.6	22.8	23.0

Temperature Ratings
Temperature Coefficient of Isc	0.045%/ºC
Temperature Coefficient of Voc	-0.250%/ºC
Temperature Coefficient of Pmax	-0.290%/ºC

Maximum Ratings
Maximum System Voltage	1500V DC (IEC)
Operational Temperature	-40ºC~+85ºC
Max Series Fuse Rating	35A

Frequently Asked Questions

What is the model type and key cell specification of this solar panel?

The model is JAM66D45 LB, featuring 132 high-efficiency N-Type Monocrystalline Silicon cells designed for optimal solar energy absorption and reliability.

What are the dimensions and weight of a single module?

Each module measures 2382mm * 1134mm * 30mm (or package size of 238.20cm * 113.40cm * 3.00cm) and has a weight of approximately 33.1 Kg.

What range of power output and efficiency does this module offer under STC?

Under Standard Test Conditions (STC), the module's maximum power output ranges from 595W up to 620W, delivering an impressive module efficiency rating between 22.0% and 23.0%.

What are the environmental and operational limits of the solar panels?

The solar panel is built to withstand extreme environments with an operational temperature range of -40ºC to +85ºC, supported by a maximum system voltage rating of 1500V DC (IEC) and an IP68-rated junction box.

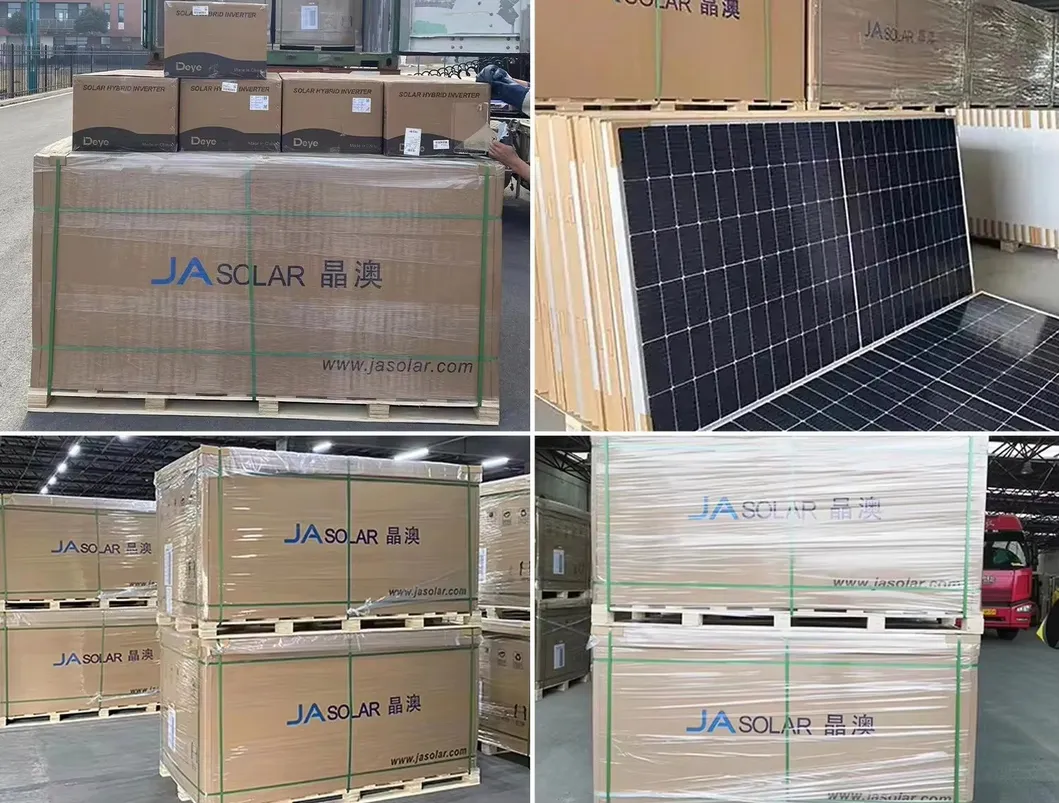

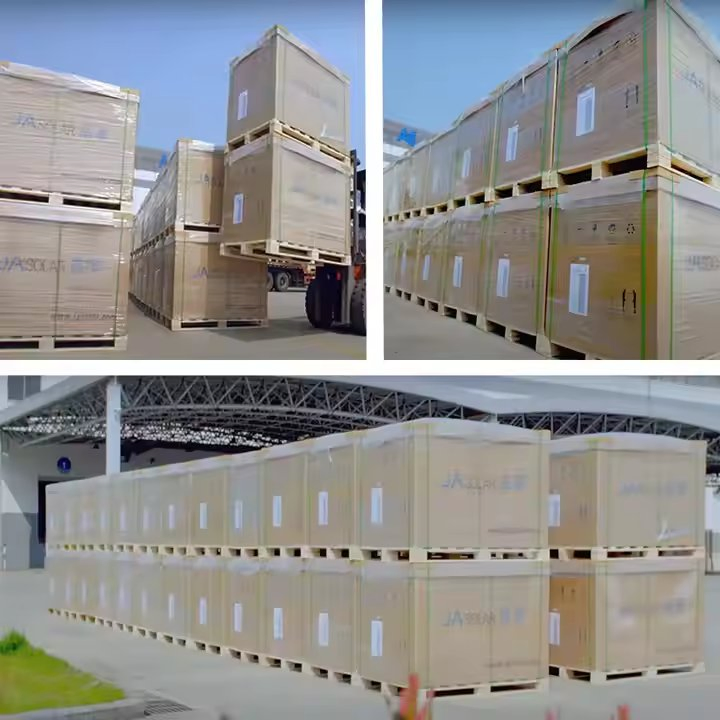

What is the packaging configuration for large shipments?

The panels are packaged safely at 36 pieces per pallet. A standard 40'HQ shipping container has a loading capacity of 20 pallets, accommodating a total of 720 pieces.
