| SPECIFICATIONS | ||||
|---|---|---|---|---|
| Module Type | JKM570N-72HL4-V | JKM575N-72HL4-V | JKM580N-72HL4-V | JKM585N-72HL4-V |
| Maximum Power (Pmax) | 570Wp | 575Wp | 580Wp | 585Wp |
| Maximum Power Voltage (Vmp) | 42.07V | 42.22V | 42.37V | 42.52V |
| Maximum Power Current (Imp) | 13.55A | 13.62A | 13.69A | 13.76A |
| Open-circuit Voltage (Voc) | 50.74V | 50.88V | 51.02V | 51.16V |
| Short-circuit Current (Isc) | 14.31A | 14.39A | 14.47A | 14.55A |
| Module Efficiency STC (%) | 22.07% | 22.26% | 22.45% | 22.65% |
| Operating Temperature(ºC) | -40ºC~+85ºC | |||
| Maximum System Voltage | 1000/1500VDC (IEC) | |||
| Maximum Series Fuse Rating | 25A | |||
| Power Tolerance | 0~+3% | |||
| Temperature Coefficients of Pmax | -0.30%/ºC | |||
| Temperature Coefficients of Voc | -0.25%/ºC | |||
| Temperature Coefficients of Isc | 0.046%/ºC | |||
| Mechanical Characteristics | ||||

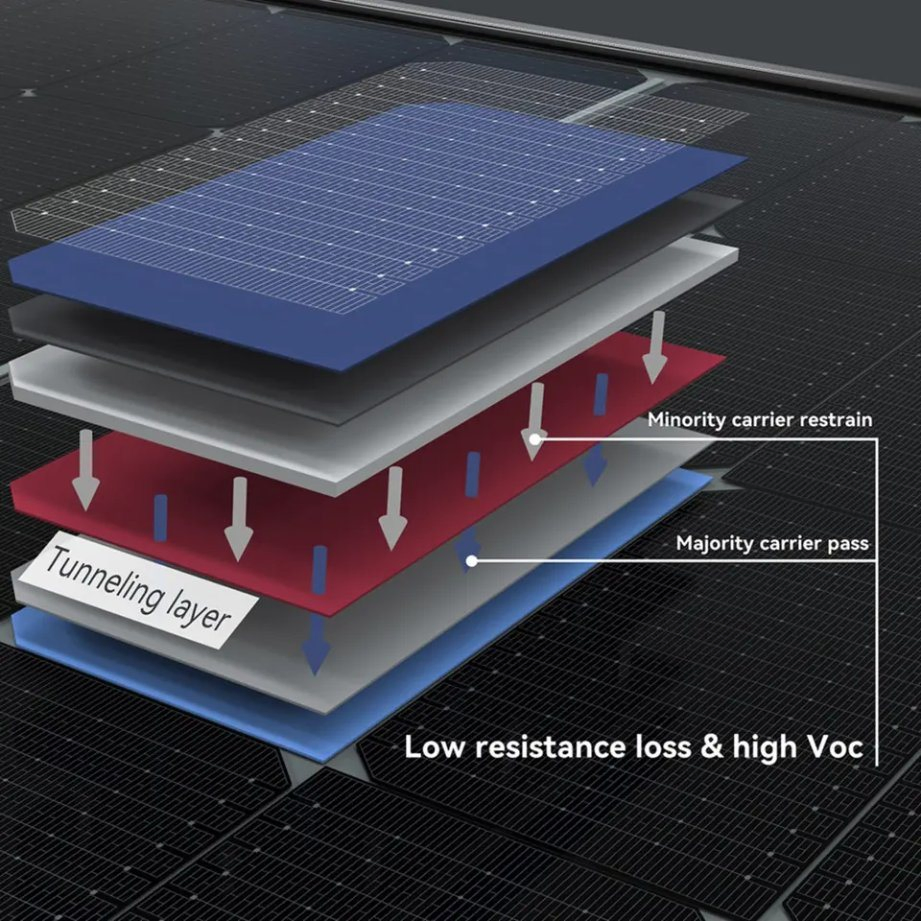

| Cell Type | N type Mono-crystalline | |||
| No. of Cells | 144 (6×24) | |||

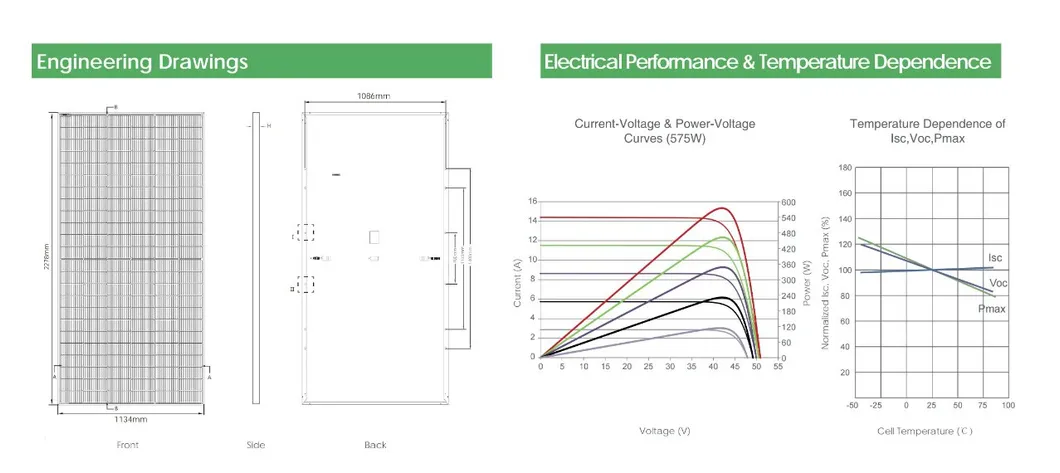

| Dimensions | 2278×1134×35mm | |||
| Weight | 28 kg (61.73 lbs) | |||
| Front Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass | |||
| Frame | Anodized Aluminium Alloy | |||

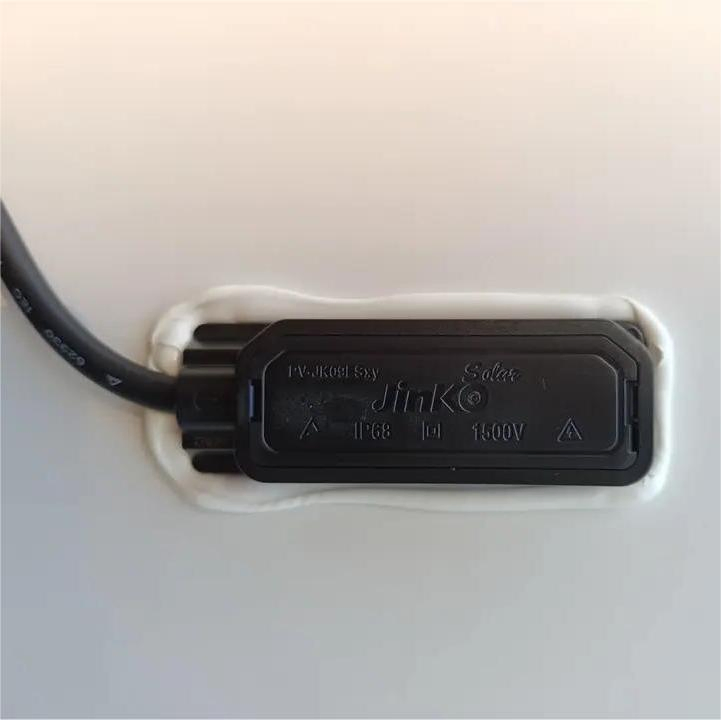

| Junction Box | IP68 Rated | |||
| Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length | |||
| Packaging Configuration | ||||
| 31pcs/pallets, 62pcs/stack, 620pcs/ 40'HQ Container | ||||
