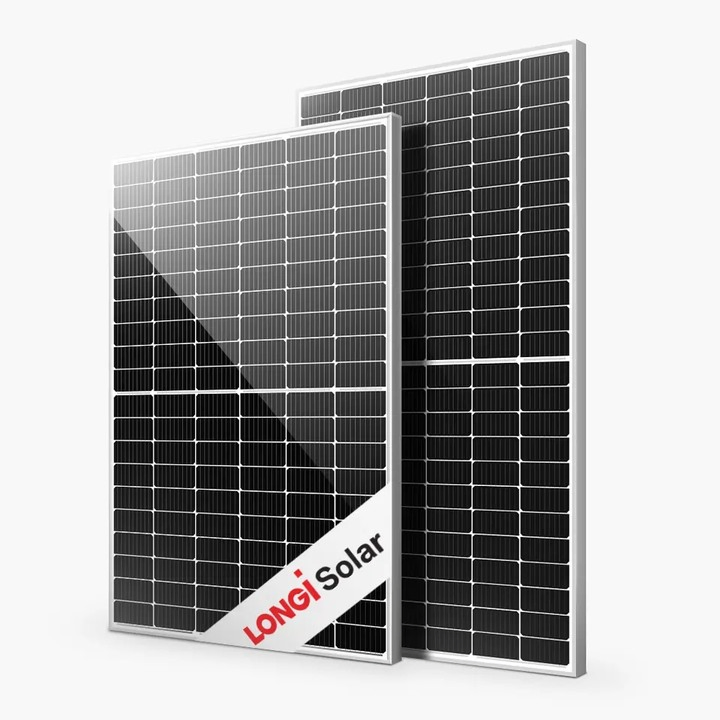

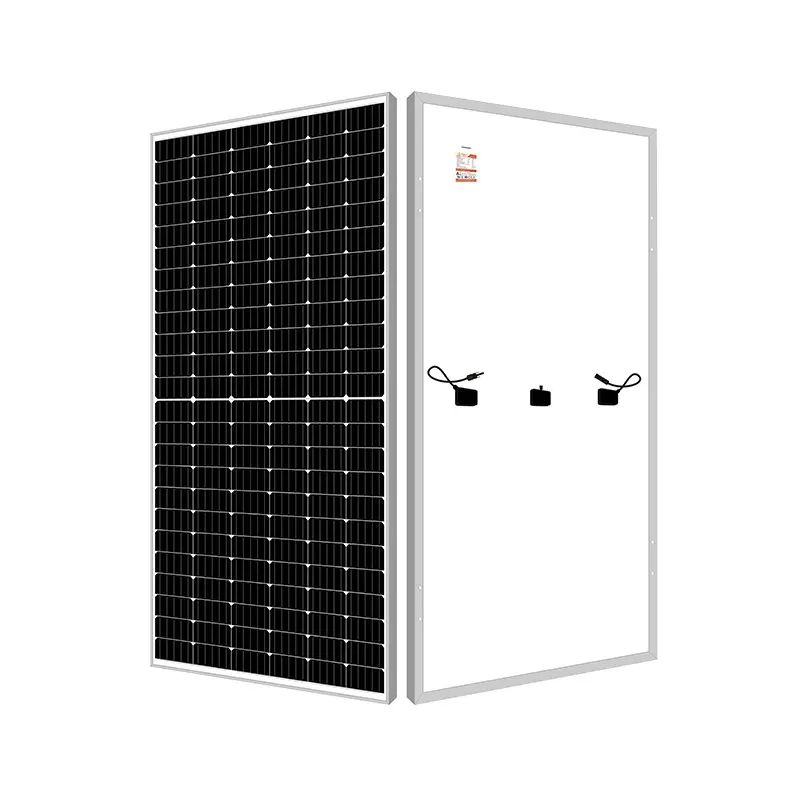

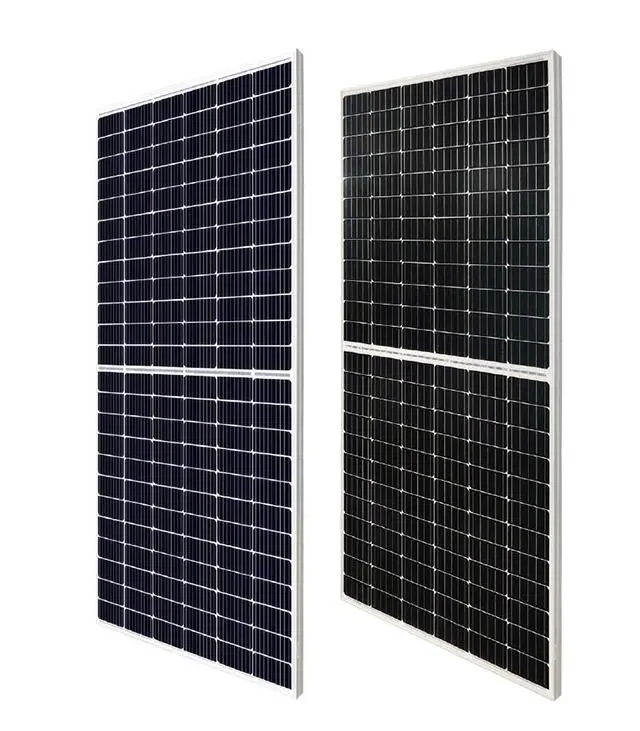

Longi Perc Mono Solar Panel 620W 610W 600W PV Module Solar Panel for Commercial Use

1 / 5

Longi Perc Mono Solar Panel 620W 610W 600W PV Module Solar Panel for Commercial Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

Hi-MO 7

Certification

ISO, CE

Material

Monocrystalline Silicon

Frame

Silver / Black Anodized Aluminium Alloy

Maximum System Voltage

1000V/1500V DC

Cable

4mm2; Portrait/Landscape Length

Solar Cell

182mmx182mm, Grade a, Half Cut

Panel Dimensions

2278X1134X30mm

Cell Type

Perc, Half Cell, Bifacial, N Type Topcon

Transport Package

Wooden Pallet and Carton Box

Specification

2278X1134X30mm

Origin

China

Production Capacity

100000PCS/Month

Product Description

PV Module Solar Panel for Commercial Use

MECHANICAL DATA
Module Dimensions	2278113430mm
Weight	31.8kg
Glass	3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass
Junction-Box	IP 68, three diodes
Cables	4.0mm² , 300mm in length
Cell Orientation	144cells(6*24)

ELECTRICAL CHARACTERISTICS
Model Number	LR5-72HGD-570M	LR5-72HGD-575M	LR5-72HGD-580M	LR5-72HGD-585M	LR5-72HGD-590M
Maximum Power (Pmax/W)	570	575	580	585	590
Open Circuit Voltage (Voc/V)	51.19	51.30	51.41	51.52	51.63
Short Circuit Current (Isc/A)	14.05	14.14	14.22	14.30	14.38
Voltage at Maximum Power (Vmp/V)	43.00	43.11	43.22	43.33	43.44
Current at Maximum Power (Imp/A)	13.26	13.34	13.42	13.51	13.59
Module Efficiency (%)	22.1	22.3	22.5	22.6	22.8
STC	Irradiance 1000W/m2, cell temperature 25°C, AM1.5G

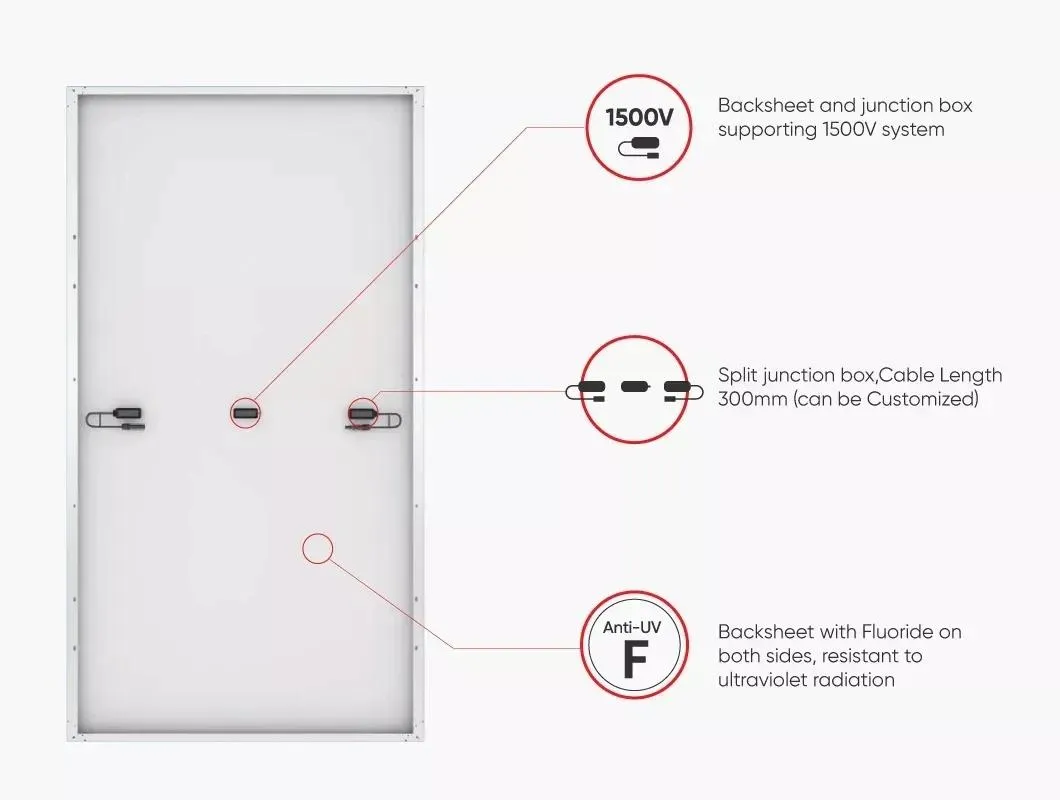

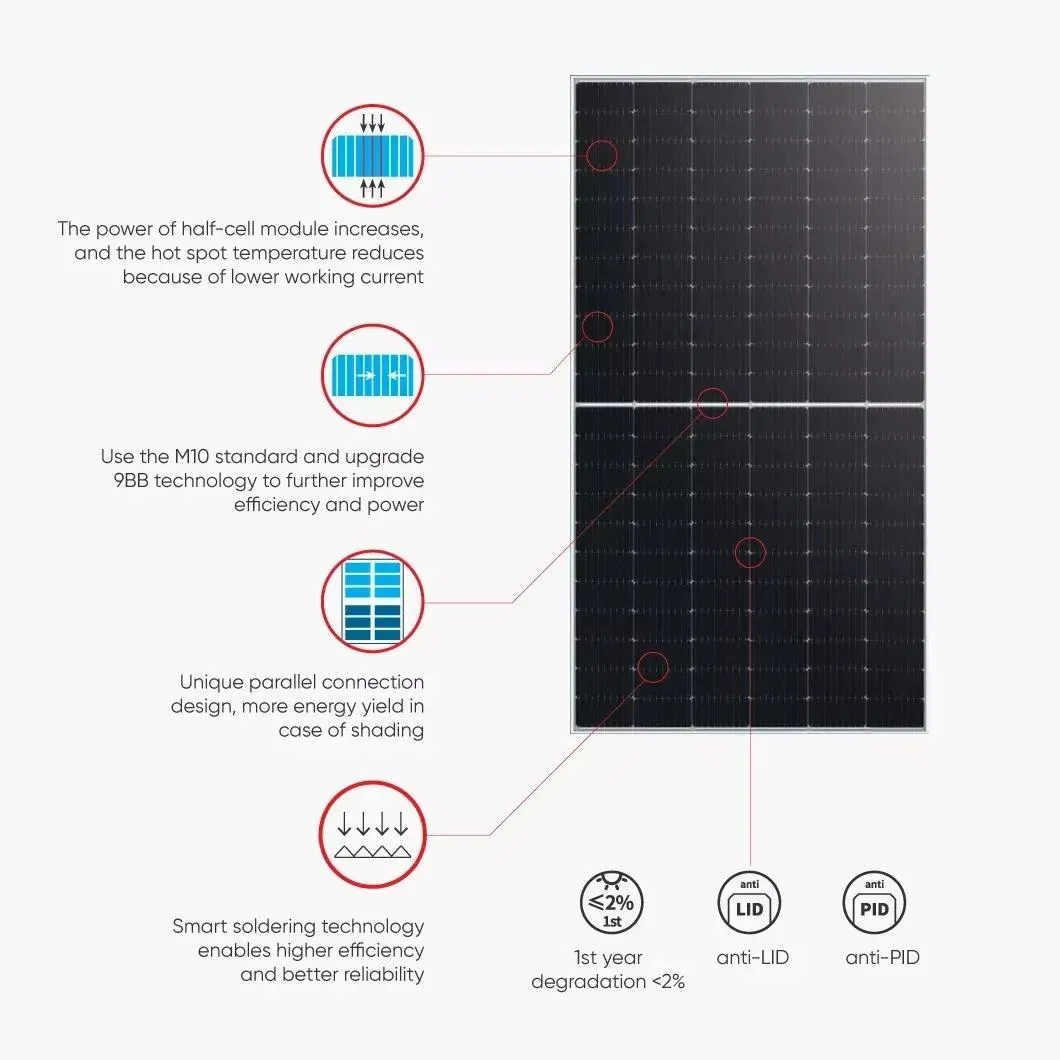

Grade A Material

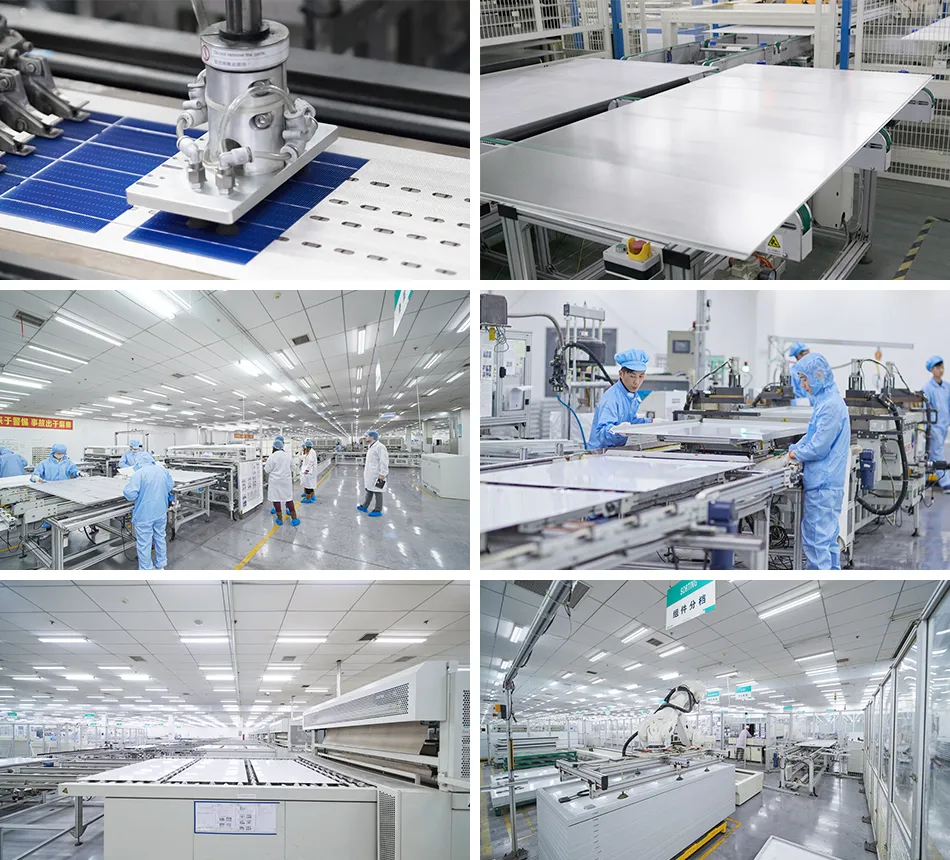

Our Factory

To ensure high quality, we continuously invest in high quality production equipment.

We have LEAD stringer, MITSUBISHI electric laminator and ETSUN automatic lamination equipment etc. Automatic production line, fast delivery and cost saving.

Strict QC System

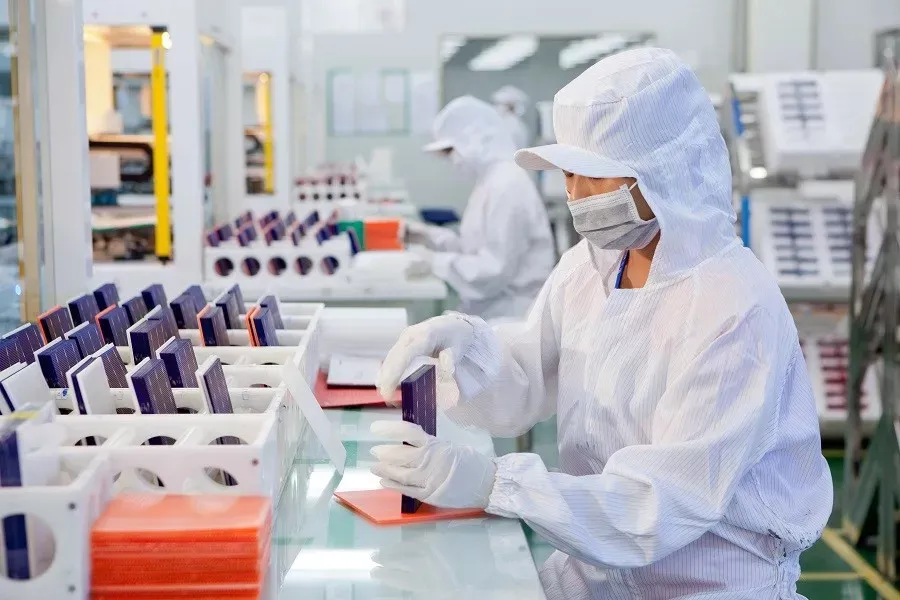

100% Cells Sorting

Ensure Color and Power No Difference. Ensure high yields, consistent performance and durability. First of 52 steps strict quality control and inspection process.

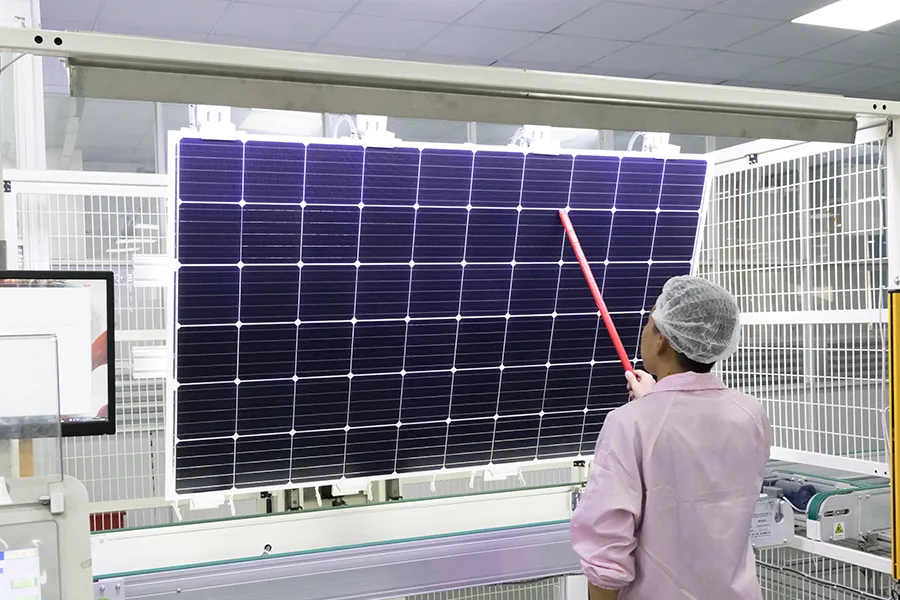

100% Inspection

Before and After Lamination. Most stringent acceptance criteria and tightest tolerance. Intelligent alarm and stop mechanism in case of any deviation or errors.

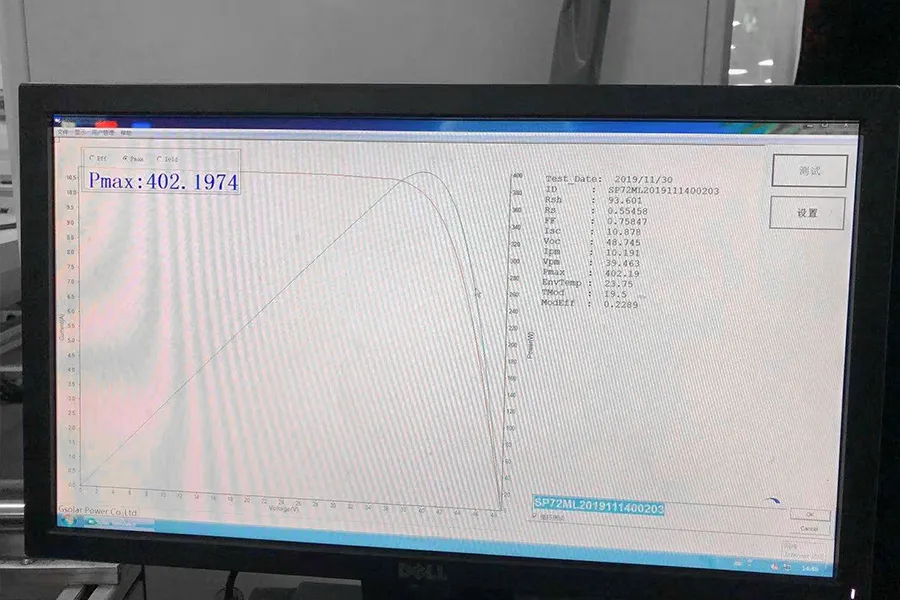

100% EL Testing

Before and Following Lamination. Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video photo record for each cell and panel.

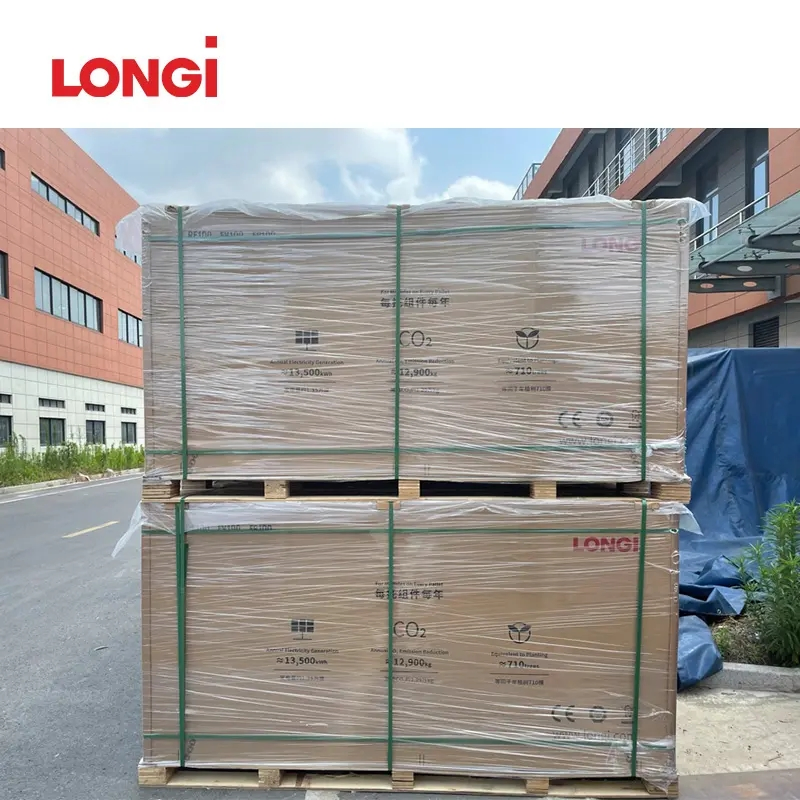

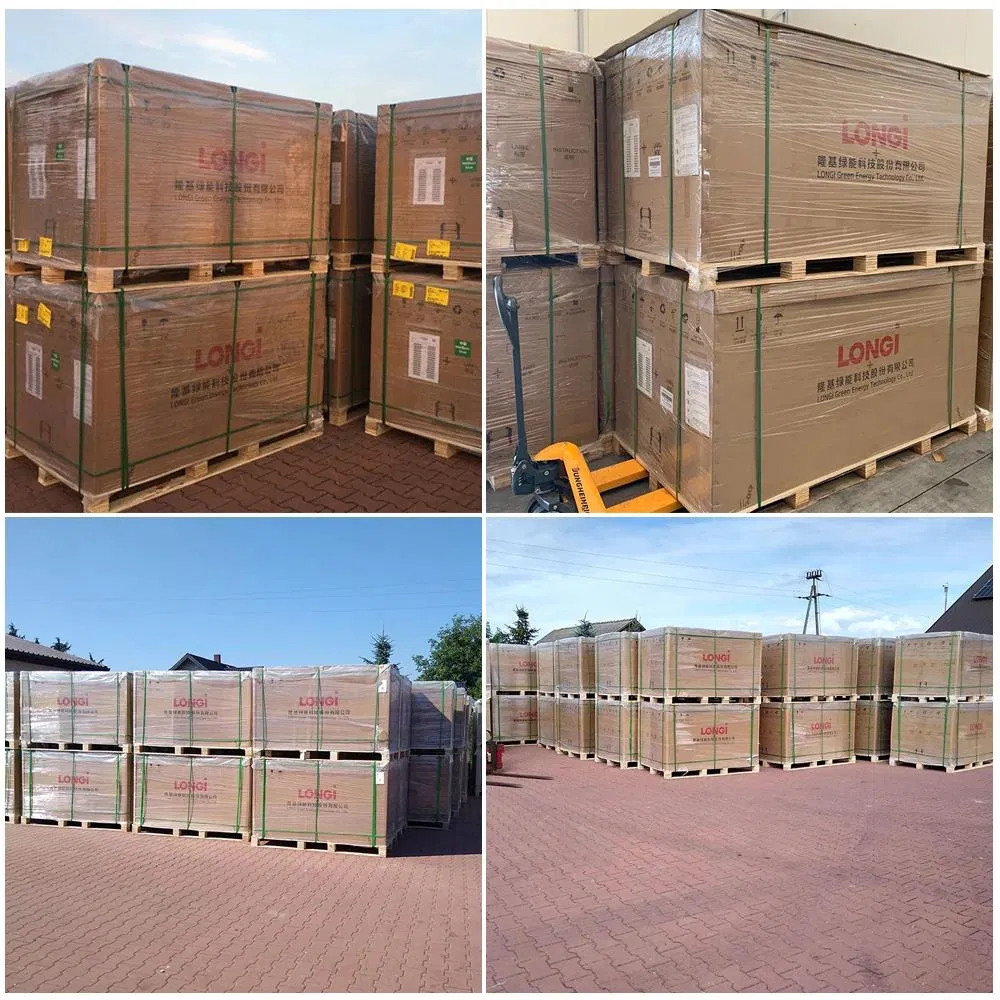

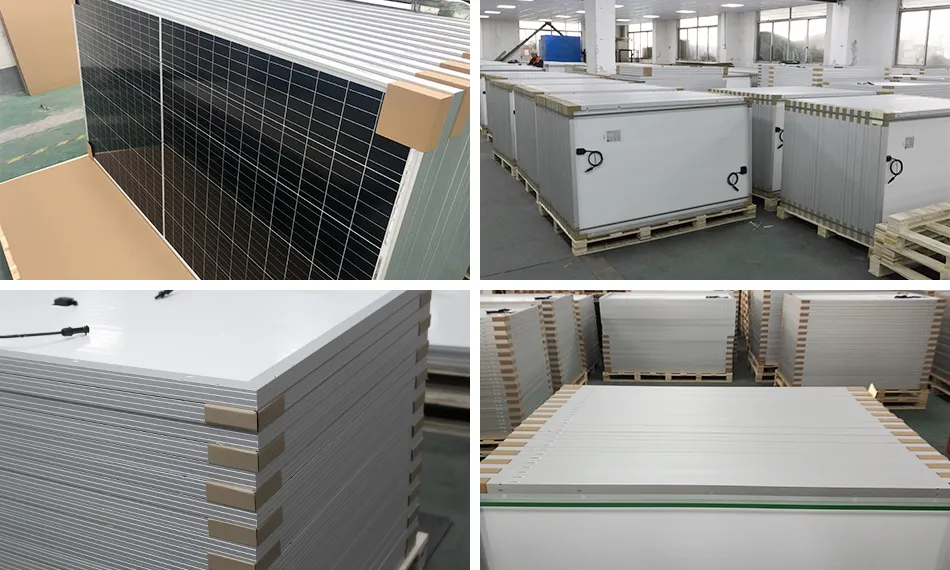

Packaging & Shipping

Packing Details : In carton on pallet or wooden box, OEM with your logo is available

Delivery Details : 5-7 working days

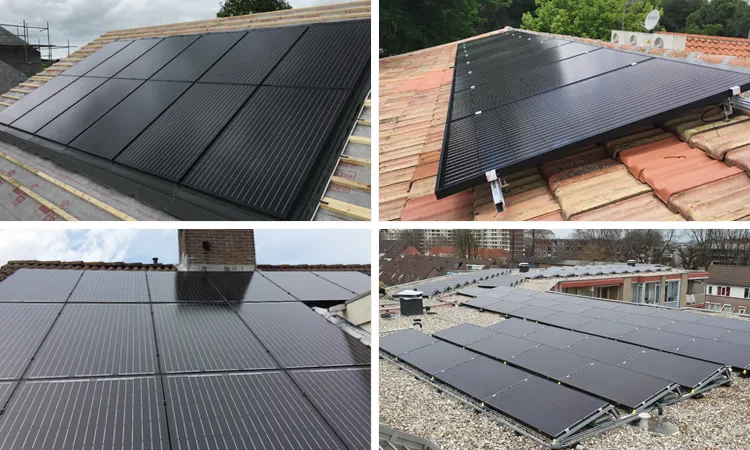

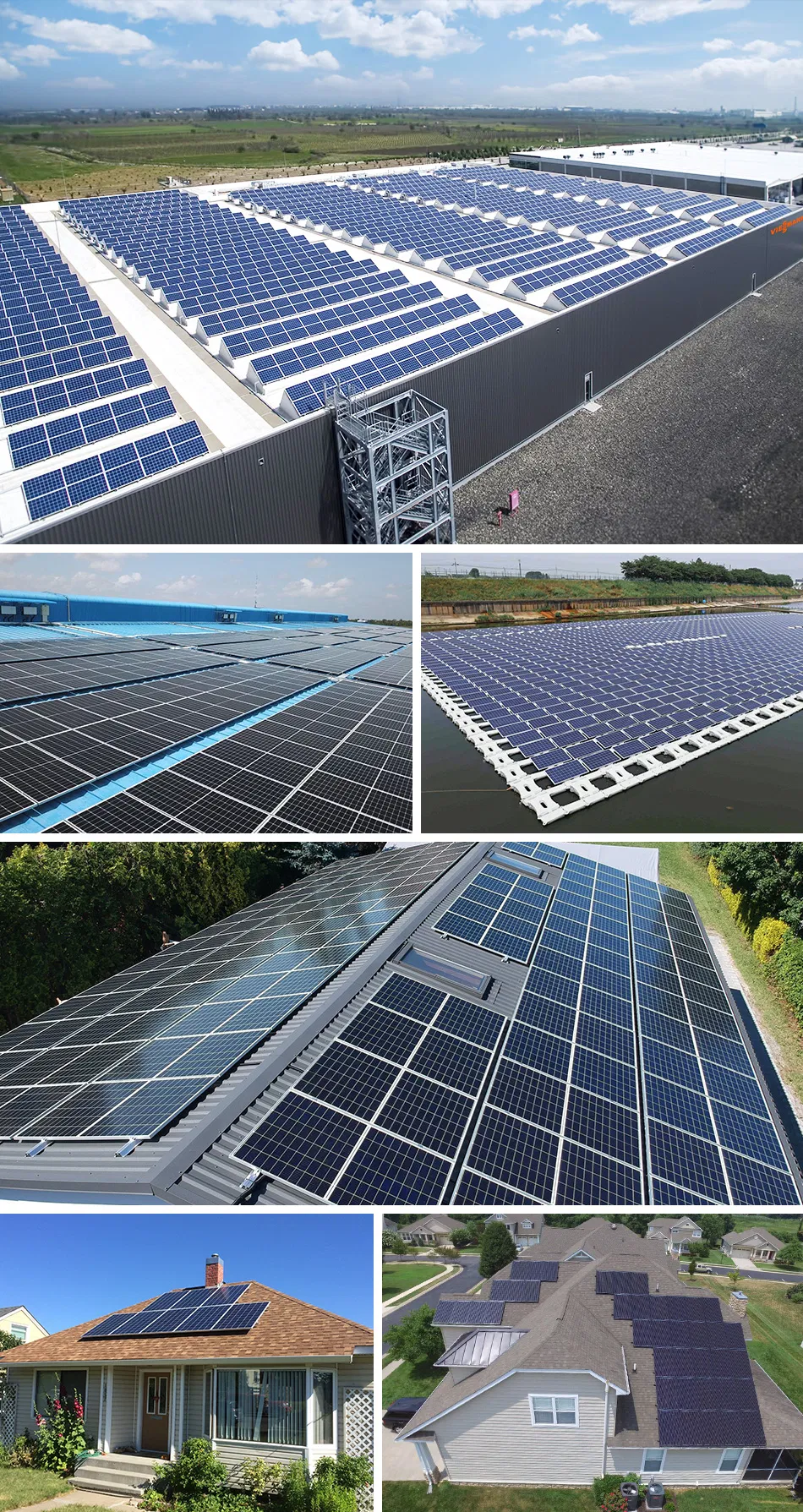

Projects

Payment

Payment Term	Method	Trade Terms	Payment Condition
Payment Details	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB	30% T/T in advance, paid the balance before shipment
		CFR(CNF)	30% T/T in advance, paid the balance against copy of B/L
		CIF	30% T/T in advance, paid the balance against copy of B/L
L/C	Letter of Credit	All Terms	L/C amount above 50,000 USD, we can accept L/C at sight
Western Union	Western Union	All Terms	Amount lower than 5,000 USD

Frequently Asked Questions

Q1: What are the dimensions and weight of the Hi-MO 7 solar panel?

A1: The panel dimensions are 2278 x 1134 x 30mm, and each panel weighs approximately 31.8kg.

Q2: What type of solar cells are used in these modules?

A2: They utilize 182mm x 182mm Grade A, Monocrystalline Silicon cells designed with PERC, Half Cell, Bifacial, and N-Type TOPCon technologies.

Q3: What certifications do these solar panels comply with?

A3: The panels are fully certified under ISO and CE international standards, ensuring top-tier safety and performance levels.

Q4: What is the maximum system voltage supported?

A4: The modules support a maximum system voltage rating of 1000V/1500V DC.

Q5: How are the products packaged for shipping?

A5: The panels are shipped using robust packaging methods, specifically wrapped inside carton boxes and loaded safely on wooden pallets. Custom packaging and OEM options with your logo are also available.

Q6: What payment methods and terms are accepted?

A6: We accept T/T (with 30% advance deposit and the remaining balance paid before shipment or against the B/L copy), L/C at sight for amounts exceeding 50,000 USD, and Western Union for smaller amounts under 5,000 USD.
