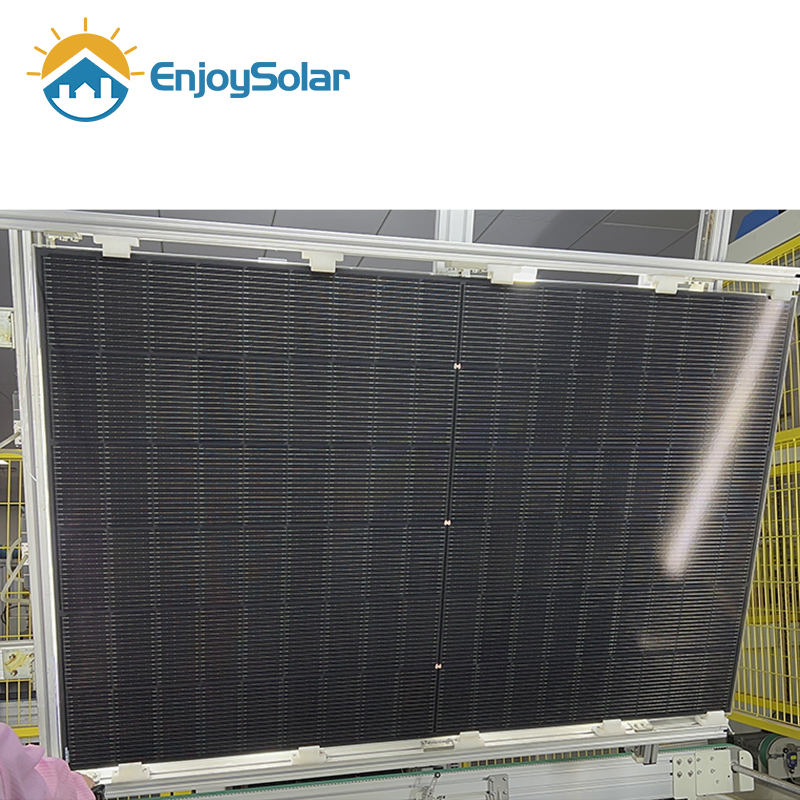

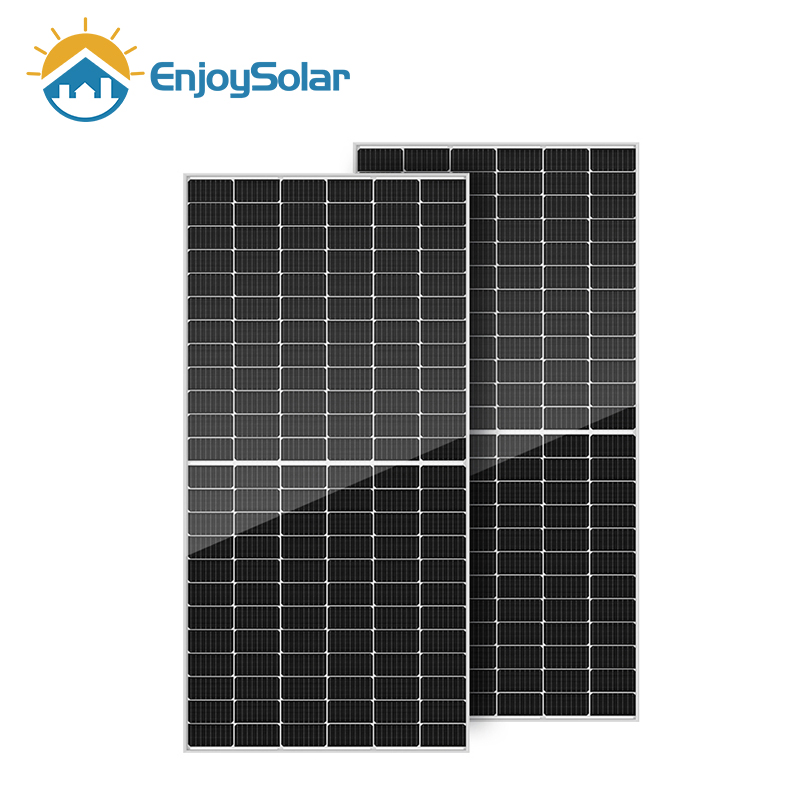

Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
1 / 5
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System

Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Longi N Type Double Glass Commercial Solar Power Panels Module 680W 690W 700W 710W 720W Non Flexible Bifacial Solar Cell Panel Price for Solar System
Basic Info.
Model NO.ES720-66M-H12NS
Number of Cells132cells (66*2cells )
ApplicationSolar Power System, Power Production
ConditionNew
CertificationISO, CB, CE, CSA, TUV, UL, Immetro, Retie, Cec
MaterialMonocrystalline Silicon
Package Details33PCS/Carton, 594PCS/40hq
Cell Dimensions210*105mm
Power Range700W-730W
Dimension2384*1303*33mm
Weight37.5kg
FrameAnodized Aluminium Alloy
Junction BoxIP68
Maximun System Voltage1000/1500V/DC(IEC)
Static LoadingSnow Loading: 5400PA / Wind Loading: 2400PA
No.of Bypass Diodes3
Cable Length+400mm, -200mm or 1200mm (Customizable)
Cable Cross Section SizeTUV: 4mm^2(0.06in^2), UL: 12wg
Maximum Series Fuse30A
Safety ClassII
OEM/ODMYes, Acceptable
Transport PackageWooden/Carton Box/Pallet
SpecificationN-type Topcon Bifacial
OriginChina
HS Code8541402000
Production Capacity10000 PCS Per Day
Packaging & Delivery
Package Size240.00cm * 120.00cm * 20.00cm
Package Gross Weight50.000kg
Products Highlights
Extraordinary N-type Solar Panel
Extraordinary N-type Solar Panel, 730 Solar Panel, 23.50% Ultra-high Eff
Compared with PERC solar panels, TOPCon solar panels based on N-type Silicon wafers, have a longer lifetime, lower degradation, and higher efficiency potential.
430w TOPCon solar panel's efficiency up to 23.04%,
630w TOPCon solar panel's efficiency up to 24.39%,
and 730w TOPCon solar panel's efficiency up to 23.50%

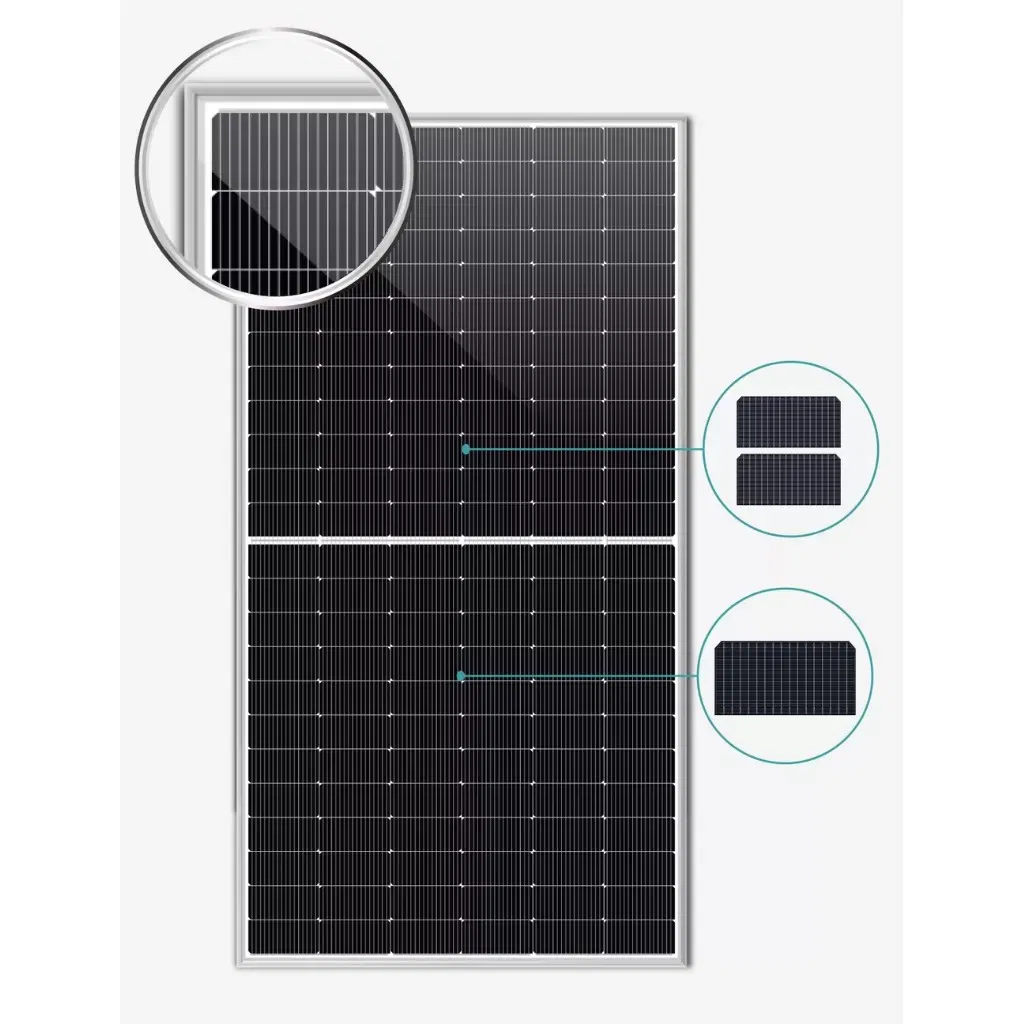

16BB Super-MBB Technology / Half Cell Technology
TOPCon Solar Panel adopts 16-busbar technology.
More busbars of the cell decrease the current transverse propagation path by 50%, effectively reducing the internal loss, and improving the power of solar panels.
The half-cut cell design can decrease the power loss by the shadow effect.
The optimized circuit design not only realizes the maximum power output but also assures the reliability of solar panels.
16BB Super-MBB Technology

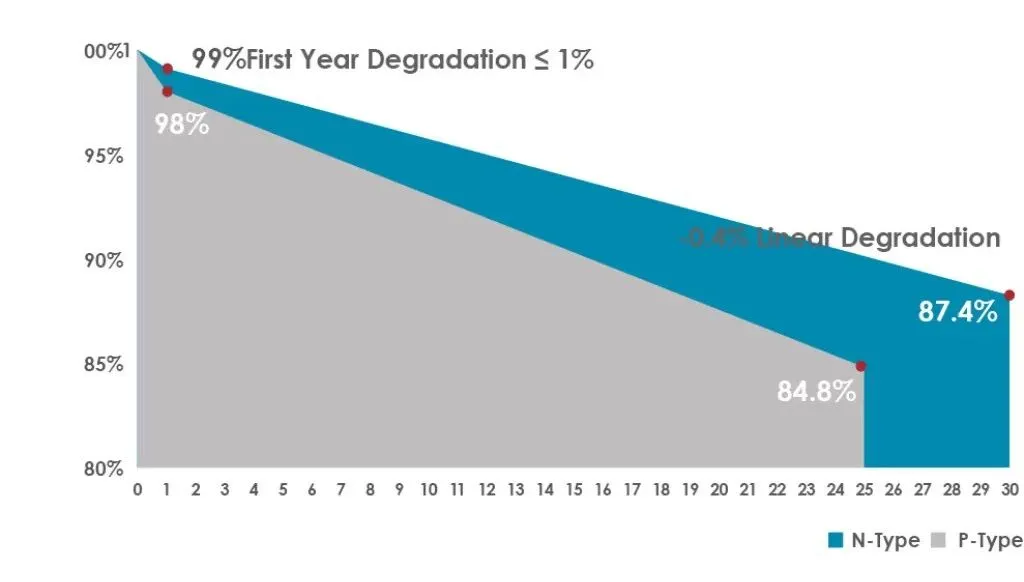

First Year Degradation
First Year Degradation ≤ 1% / -0.4% Linear Degradation
Comparing with PERC solar panel, TOPCon solar panel first year degradation is less than 1%.
After 30 years of certification, the output power is not less than 87.40% of the original output power.
-0.30%/ºC Optimized Temp Coeff / Excellent Weak Light Performance
TOPCon solar panel has Excellent weak light performance. Under cloudy or haze conditions, weak light performance helps produce more energy.
The temperature coefficient of the PERC solar panel is -0.35%/ºC, while the TOPCon solar panel is -0.30%/ºC.
A temperature coefficient rating of -0.30%/ºC supports TOPCon solar panels to generate up to 2% more power than PERC solar panels at high temperatures.

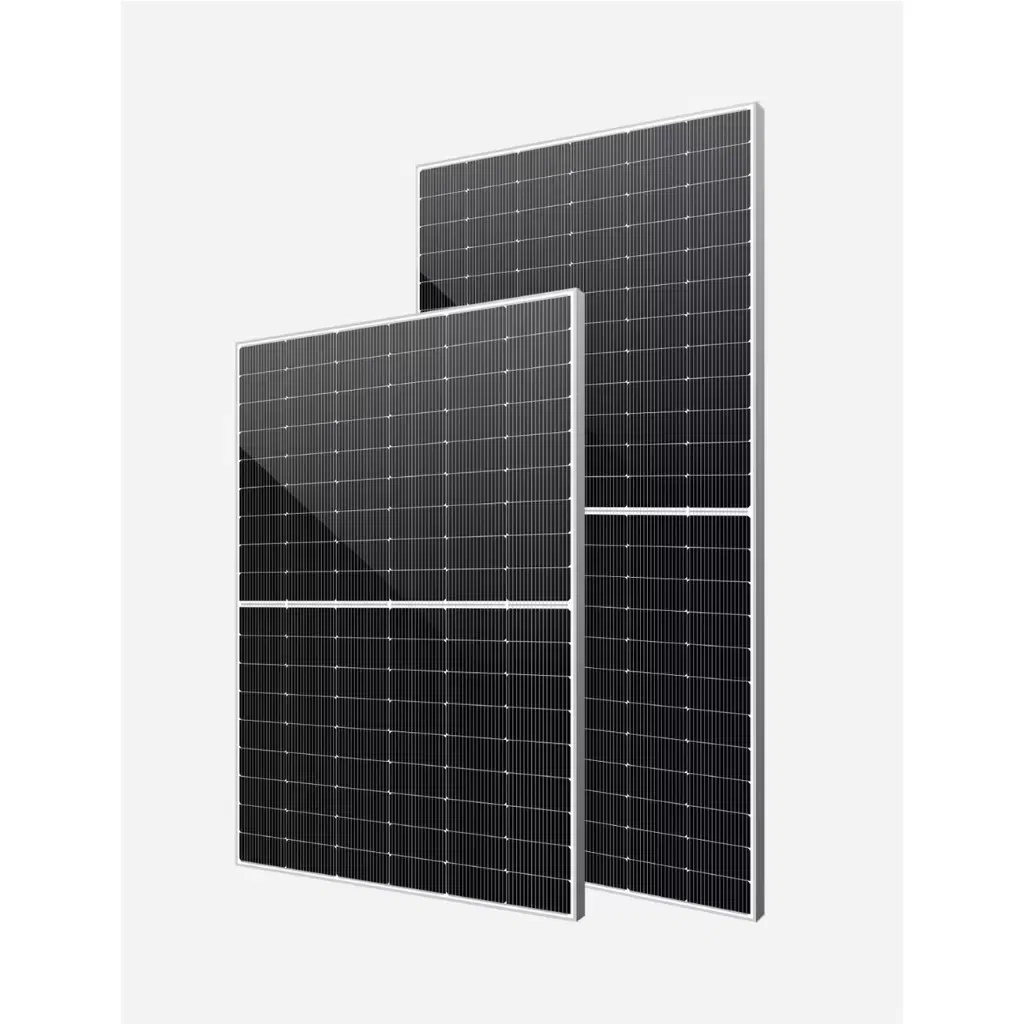

Optimized Temp Coeff

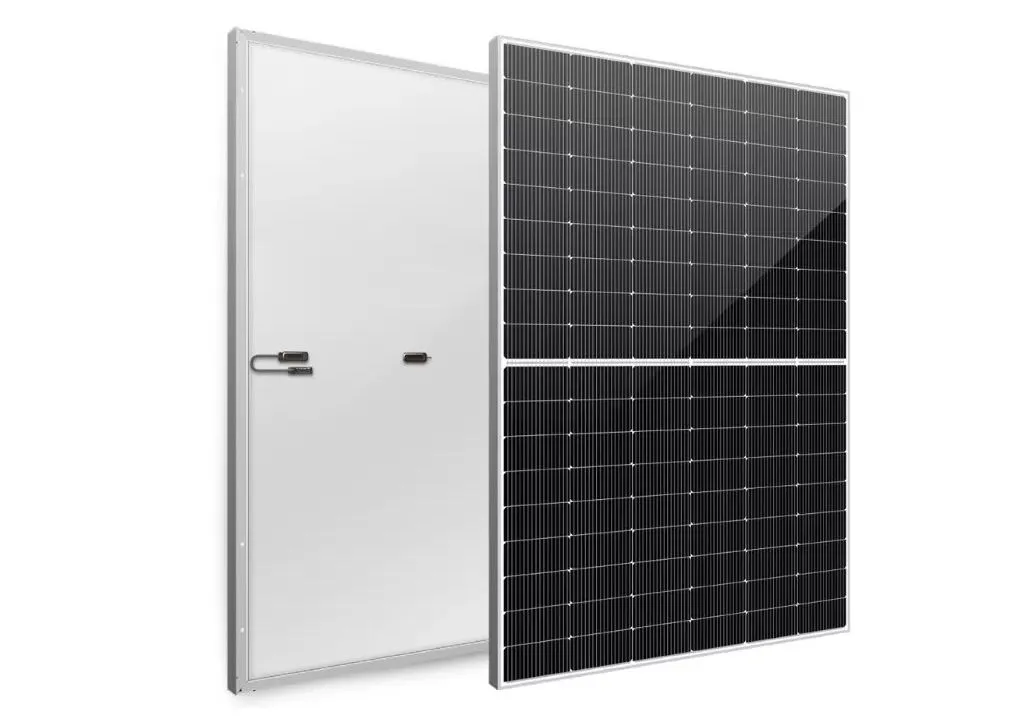

Lower LID / LETID
Lower LID / LETID
TOPCon solar panel uses N-type solar cell technology, resulting in extremely low LID/LETID, which supports reliability and longevity.
Supports more power generation than PERC solar panels.
Product Parameters
Electrical Characteristics (STC/BSTC)
Module Type ES700-66M-H12NS ES710-66M-H12NS ES720-66M-H12NS ES730-66M-H12NS
Test Conditions STC BSTC STC BSTC STC BSTC STC BSTC
Maximum Power-Pmax(w) 700 770 710 780 720 790 730 800
Open Circuit Voltage-Voc(V) 50.13 50.13 50.44 50.44 50.74 50.74 51.03 51.03
Short Circuit Current-Isc(A) 17.43 19.17 17.55 19.28 17.67 19.39 17.79 19.50
Voltage at Pmax-Vmp(V) 42.10 42.10 42.39 42.39 42.68 42.68 42.97 42.97
Current at Pmax-Imp(A) 16.63 18.29 16.75 18.41 16.87 18.51 16.99 18.62
Module Efficiency-% 22.53 / 22.86 / 23.18 / 23.50 /
Power Tolerance(W) (0, +4.99W)
Maximum System Voltage(V) 1500Vdc(IEC/UL)
Maximum Series Fuse Rating(A) 35A
*STC: Irradiance 1000W/m2, Cell Temperature 25ºC, Air Mass 1.5
*BSTC: Front side irradiance 1000W/m2, back side reflection irradiance 135W/m2, Air Mass 1.5. Ambient Temperature 25ºC
*Measurement tolerance: ±3%               *Power binning up to: +3%
Packaging & Shipping

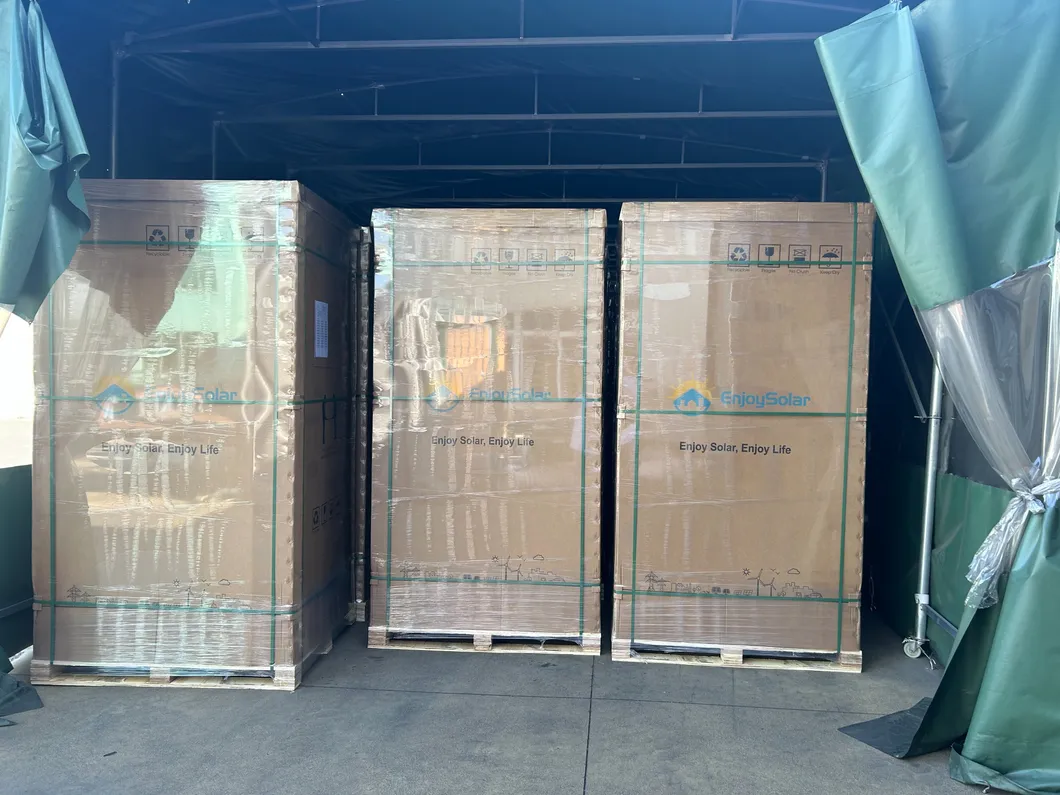

Solar Panels Packaging Detail 1

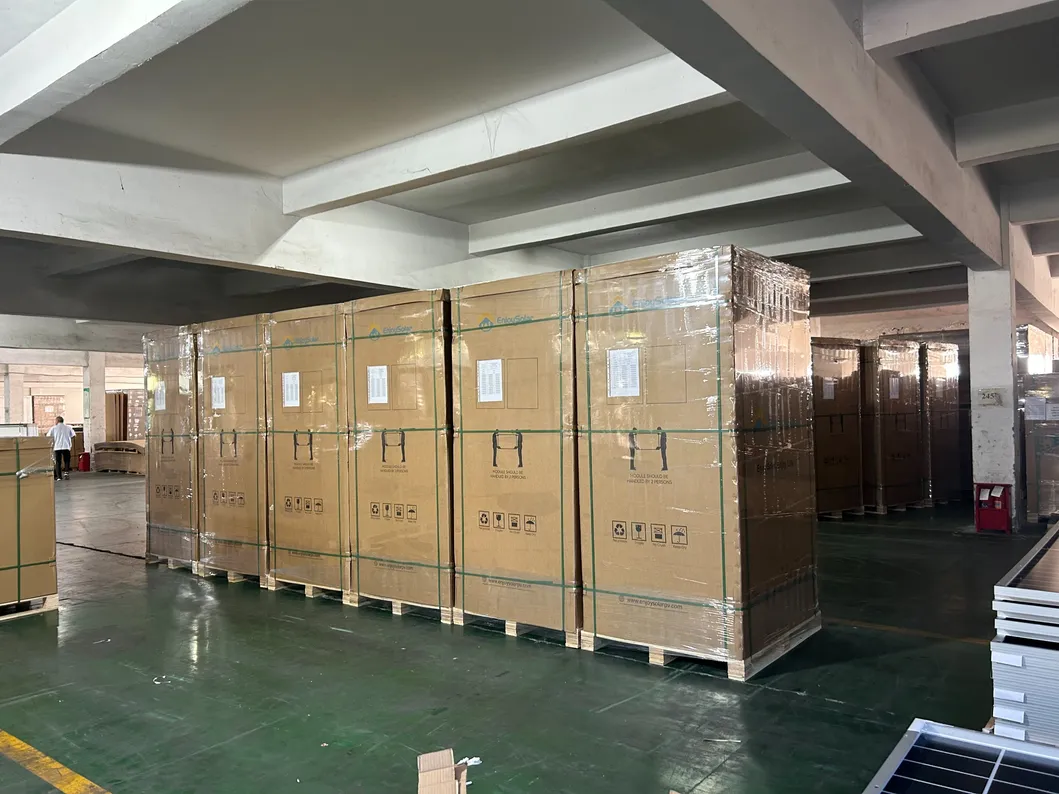

Solar Panels Packaging Detail 2
Our Factory

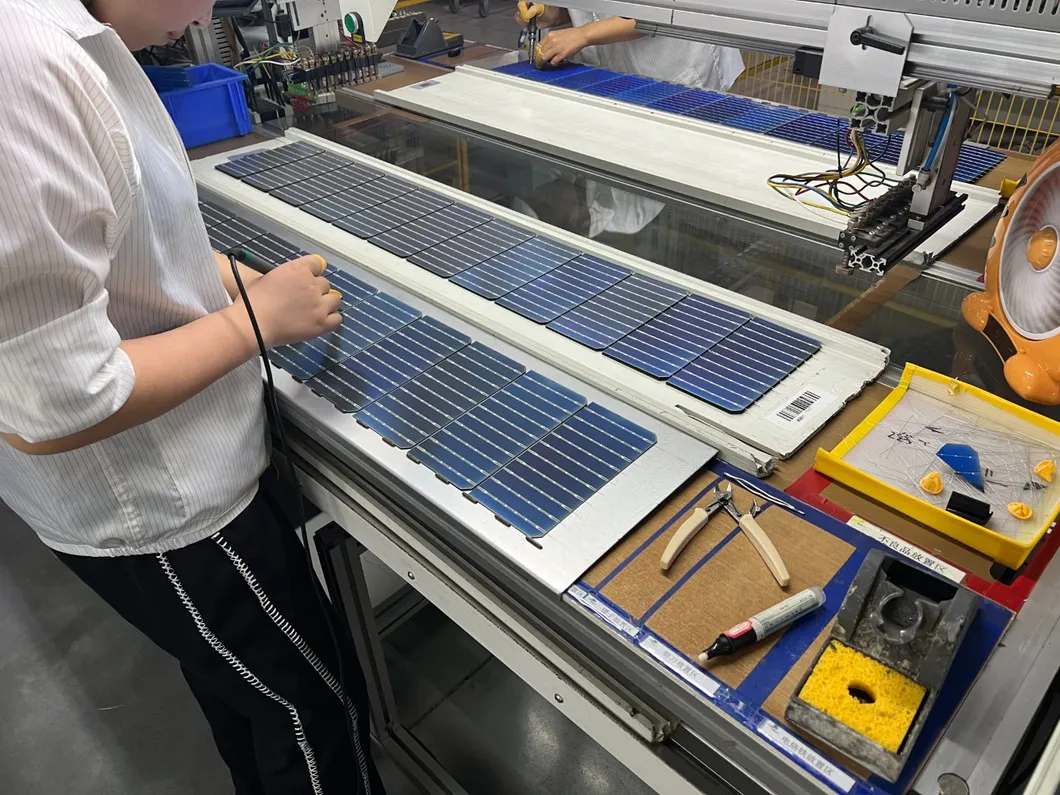

Factory Machine 1

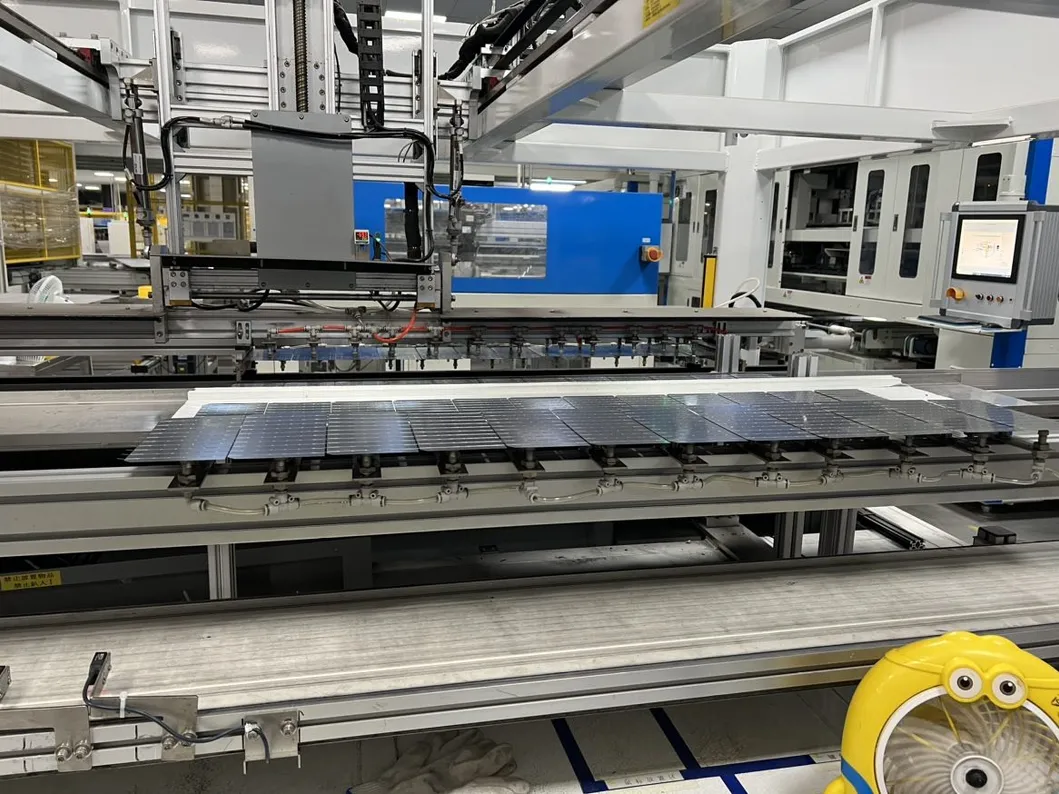

Factory Machine 2

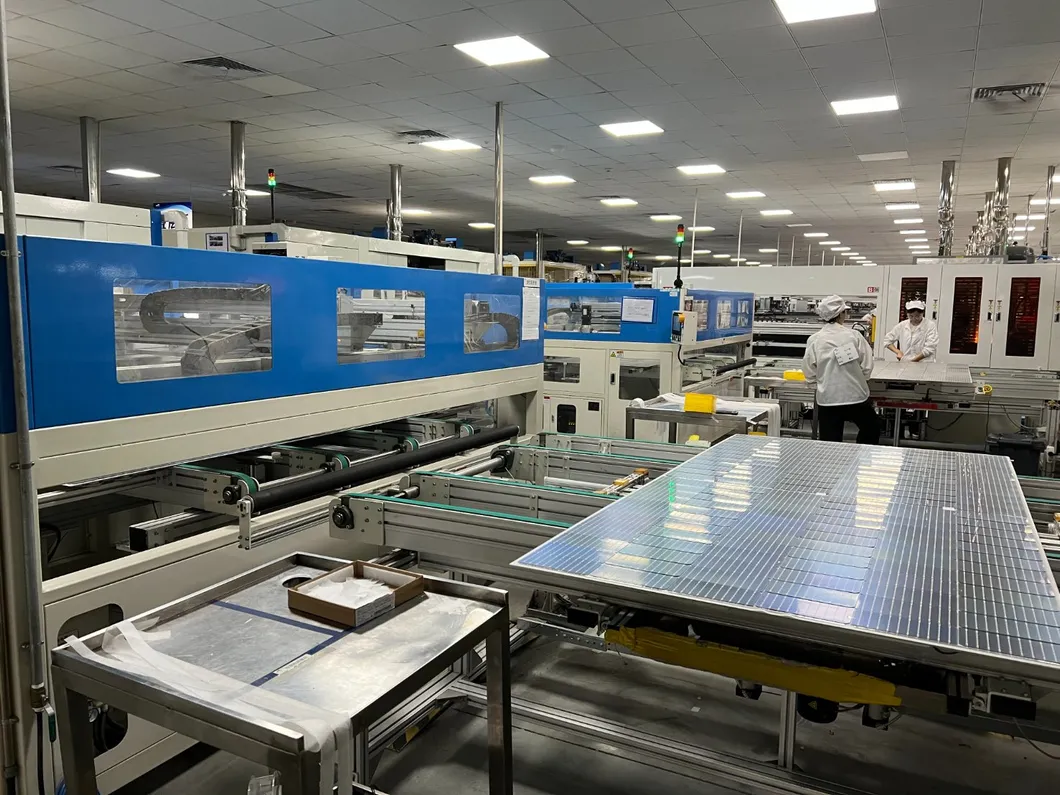

Factory Manufacturing Process

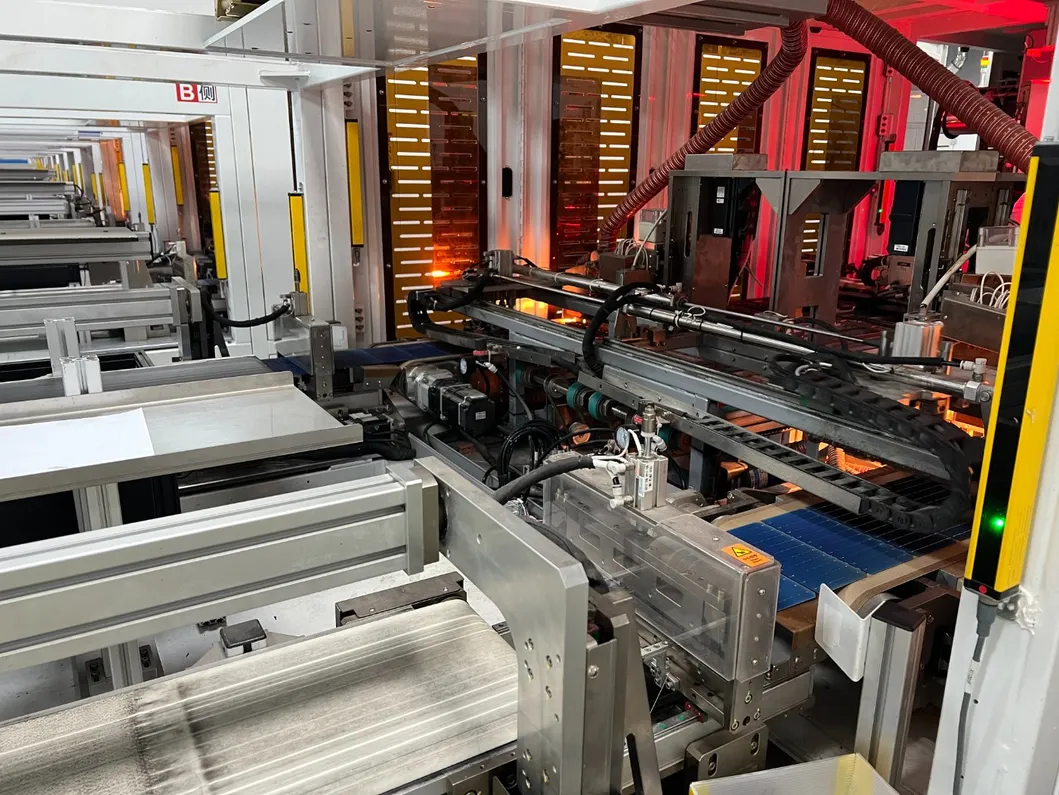

Factory Assembly Line

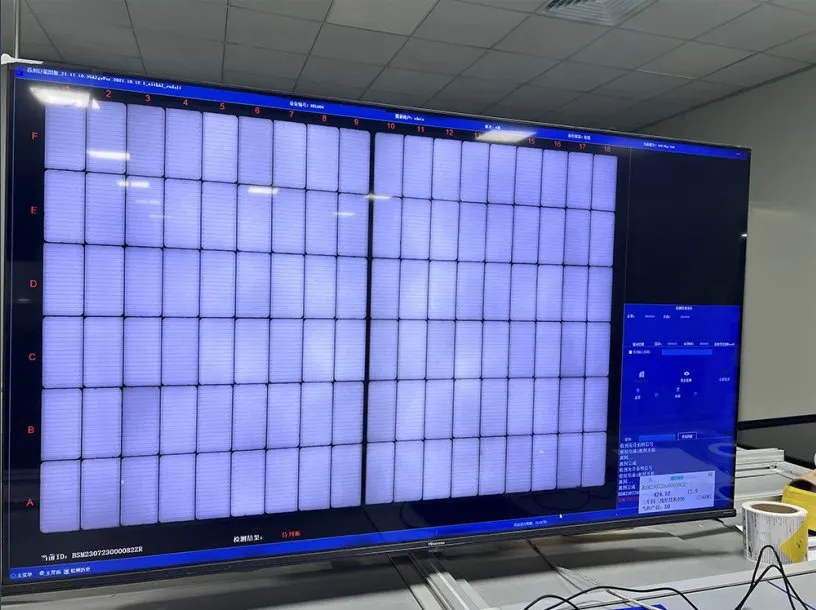

Quality Inspection

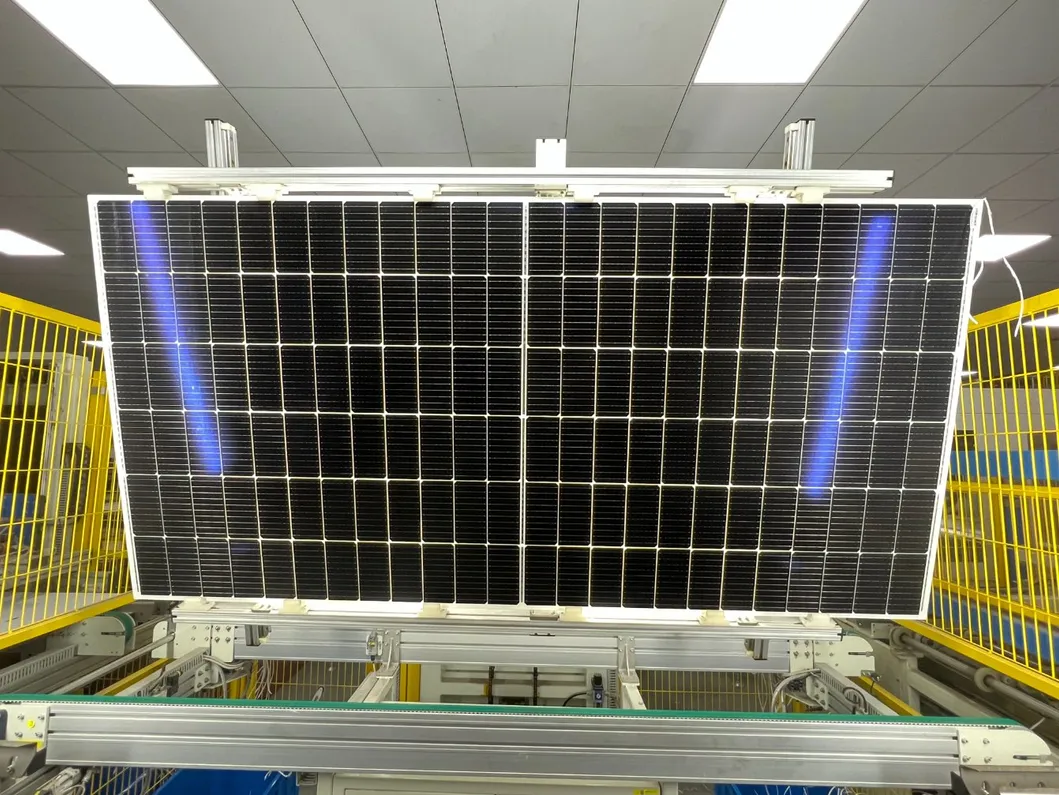

Factory Storage
Certifications

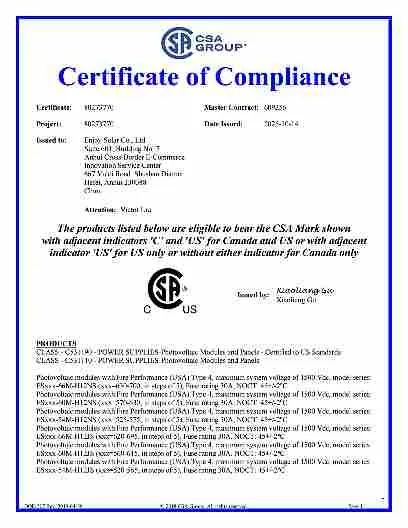

Certification Certificate 1

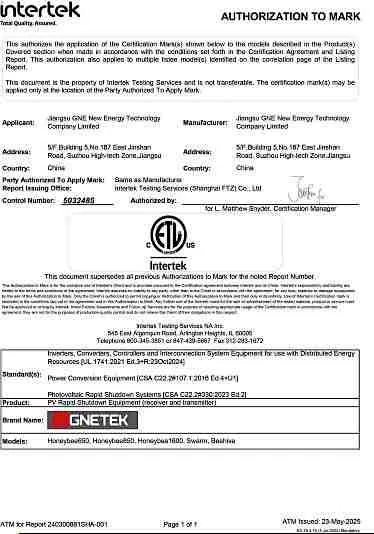

Certification Certificate 2

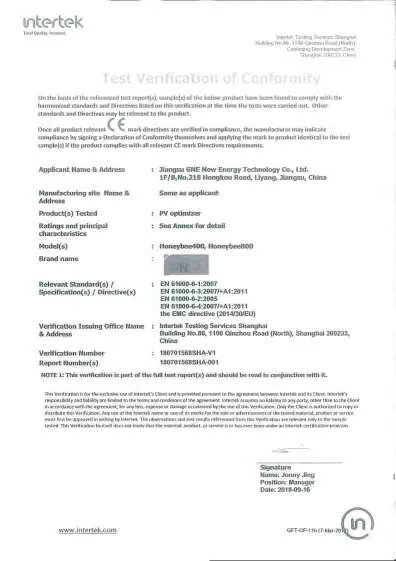

Certification Certificate 3
Our Project

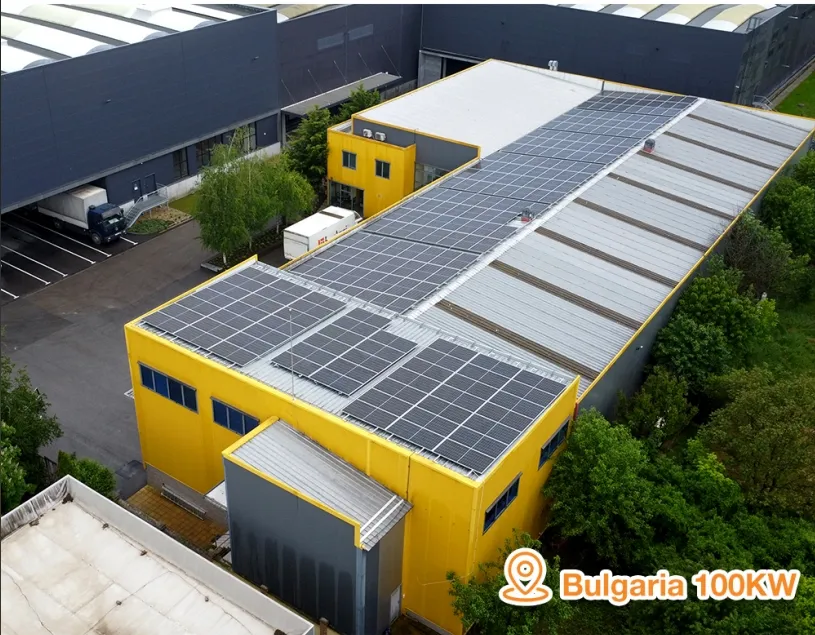

Commercial Solar Installation 1

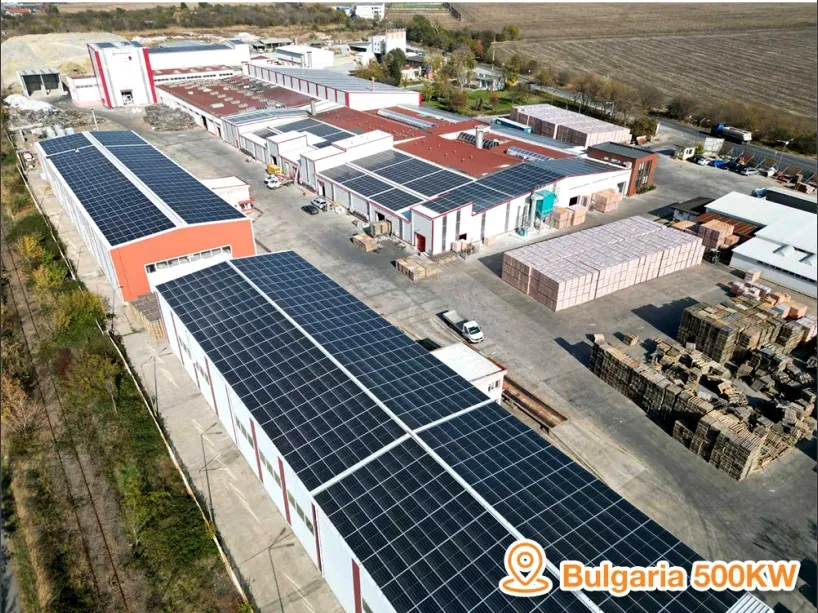

Commercial Solar Installation 2

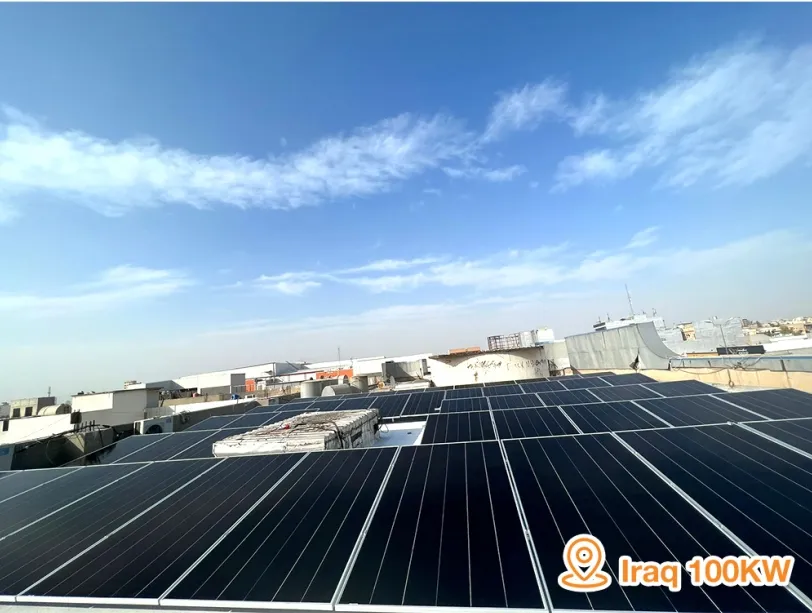

Rooftop Solar Installation 1

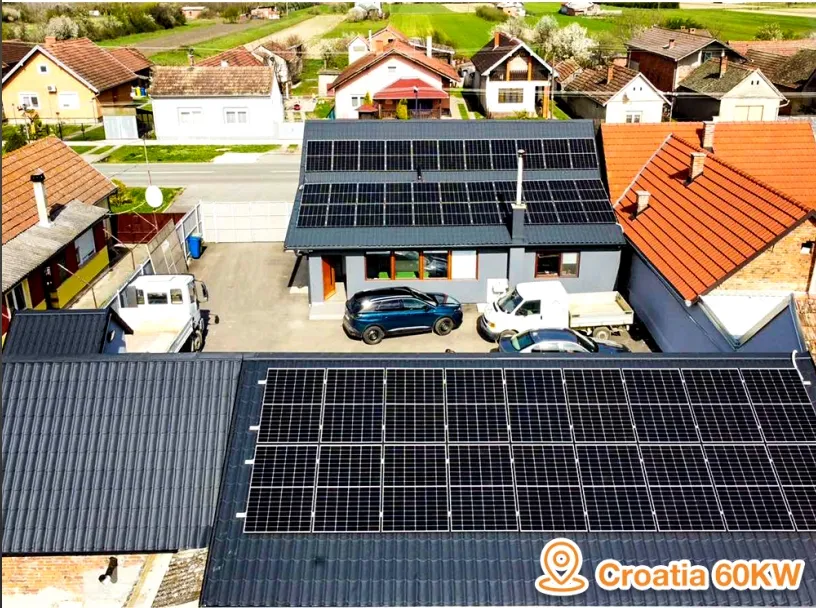

Rooftop Solar Installation 2
Frequently Asked Questions
What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
Are you a factory or trading company?
We are a factory with more than seven years of experience in producing solar energy series products. You are welcome to visit our factory.
Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
How can I do if I need more help with the order?
You can chat with our sales online or send an inquiry email, we will respond to you immediately.
