410W 450W 550W 670W 580W Grade a Silicon Hybrid Energy Balcony Crystalline Home Half Cut Mono Solar PV Module Cell Panel Storage Cleaning Tracking PV System

Basic Info.

Model NO. BR-M580W

Number of Cells 72pcs

Application Industrial

Condition New

Certification ISO, CE

Material Monocrystalline Silicon

Back Colour White, Black

Solar Panel (W) 580W

Size 2279*1134*30mm

Net Weight 21kg

Junction Box IP68 Rated/Pass The TUV

Lifespan More Than 30 Years

Type Perc, Half Cell, Bifacial, Double-Glass, All Black

Panel Efficiency 21.9%

Solar Cell 10bb 182*182mm, 210*210mm

Product Name Backsheet Monocrystalline Module

Frame Color Black

Frame Material Anodic Aluminium Alloy

Power Range 580W

OEM Order Acceptable

Front Glass High Transparency Tempered Glass

Transport Package by Pallet

Specification BR-M410W

Origin China

HS Code 8541402000

Production Capacity 50000PCS/Year

Packaging & Delivery

Package Size 80.00cm * 50.00cm * 30.00cm

Package Gross Weight 50.000kg

Product Description

Tier 1 Half Cut Black Frame 15 Years Warranty 182mm 21.9% Efficiency Mono Perc 400W 410W 415W 450W 550W 670W Mono Solar Cell Panels BR-M580W

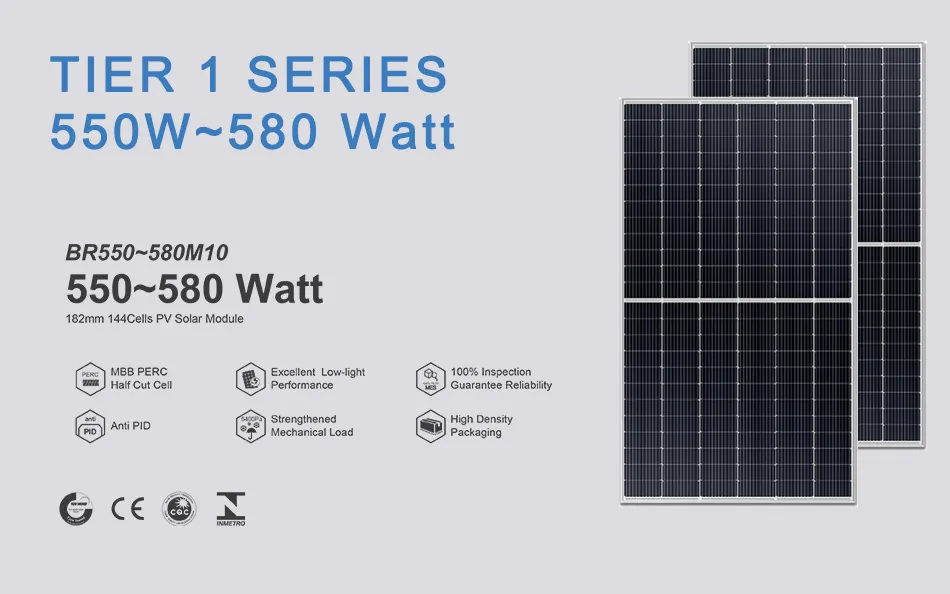

Mono Solar Panels 182mm 144cells 550W~580W High Efficiency

Grade A Silicon Hybrid Energy Crystalline Home Half Cut Mono Solar PV Module Cell Panel

Mono Solar PV Module Cell Panel Storage Cleaning Tracking PV System Details

Electrical Data (STC)

Module Type	BR550M10		BR555M10		BR560M10		BR565M10		BR570M10		BR575M10		BR580M10
Module Type	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power - Pmax (W)	550	416	555	420	560	424	565	427	570	431	575	435	580	438
Open Circuit Voltage - Voc (V)	49.90	46.68	50.05	46.81	50.20	46.94	50.35	47.06	50.50	47.18	50.65	47.31	50.80	47.44
Short-Circuit Current - Isc (A)	14.00	11.17	14.07	11.21	14.14	11.25	14.21	11.29	14.28	11.33	14.35	11.37	14.42	11.41
Voltage at Pmax - Vmp (V)	41.96	39.43	42.12	39.64	42.28	39.85	42.45	40.06	42.62	40.27	42.78	40.48	42.94	40.71
Current at Pmax - Imp (A)	13.11	10.55	13.18	10.59	13.25	10.63	13.32	10.67	13.39	10.71	13.46	10.75	13.53	10.79
Power Tolerance (W)	(0, +4.99W)
Maximum System Voltage (V)	1500Vdc (IEC)
Maximum Series Fuse Rating (A)	25A

STC: Irradiance 1000W/m², Cell Temperature 25ºC, Air Mass 1.5
NOCT: Irradiance 800W/m², Ambient Temperature 20ºC, Air Mass 1.5, Wind Speed 1m/s

Detailed Photos

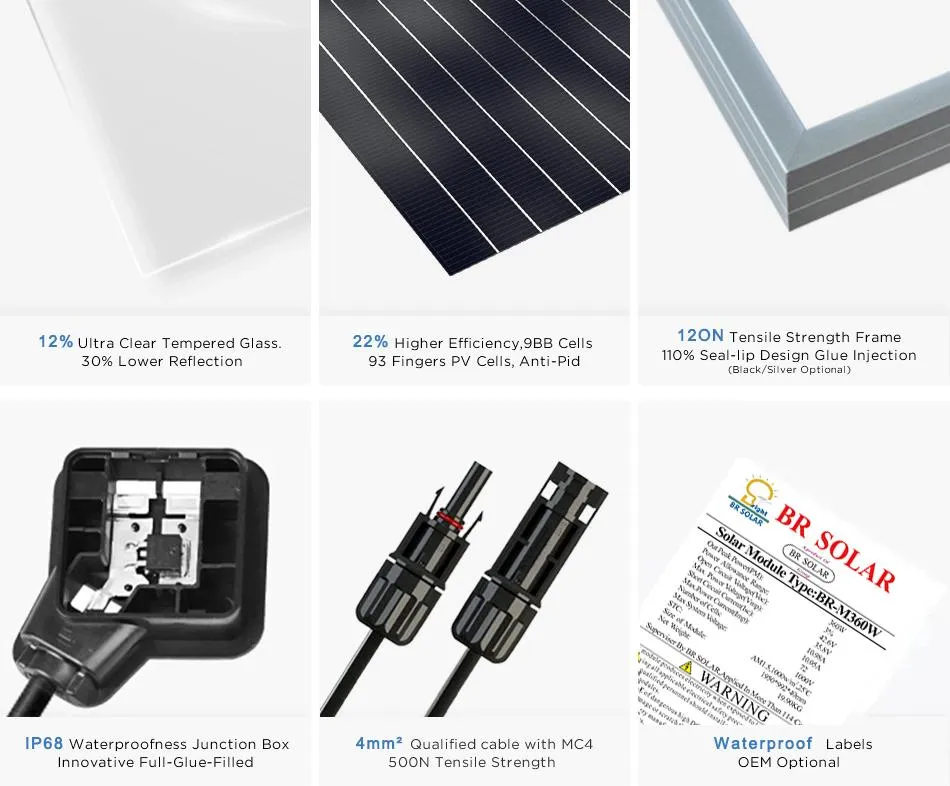

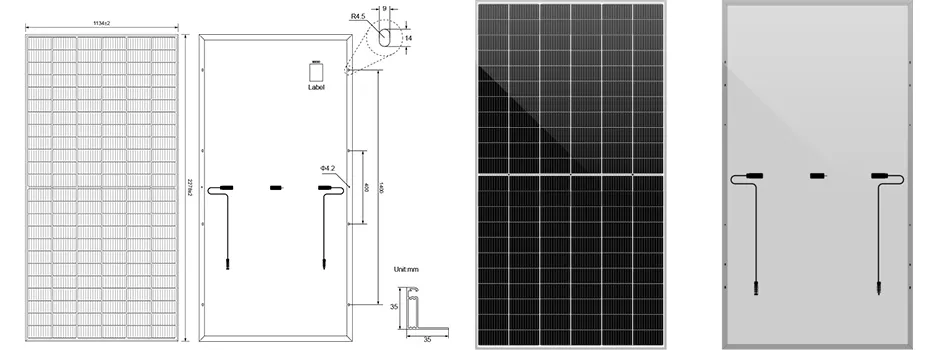

Mono Solar PV Module Technical Details and Design Structure

Certifications

Solar panels comply with TUV (IEC61215, IEC61730). Also received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (OHSAS 18001:2007) from both DNV GL and GZCC. Through close cooperation with international authorities like TUV, Intertek, CNAS and SGS, we established an in-house "Testing and R&D center", continuously polishing products with innovation and advanced manufacturing technology, improving the testing ability of the PV industry chain and analyzing ability covering the entire life cycle of the solar industry.

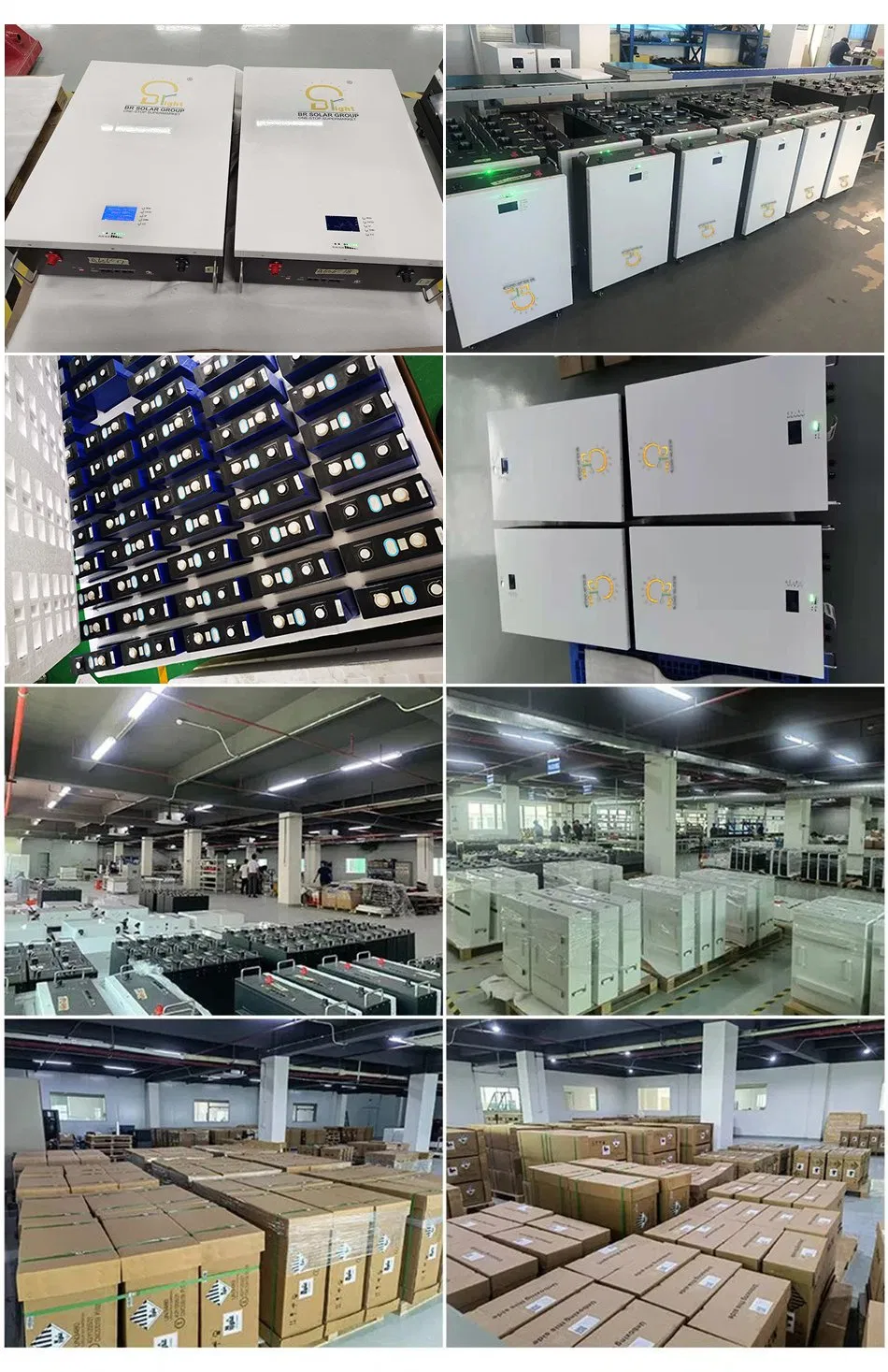

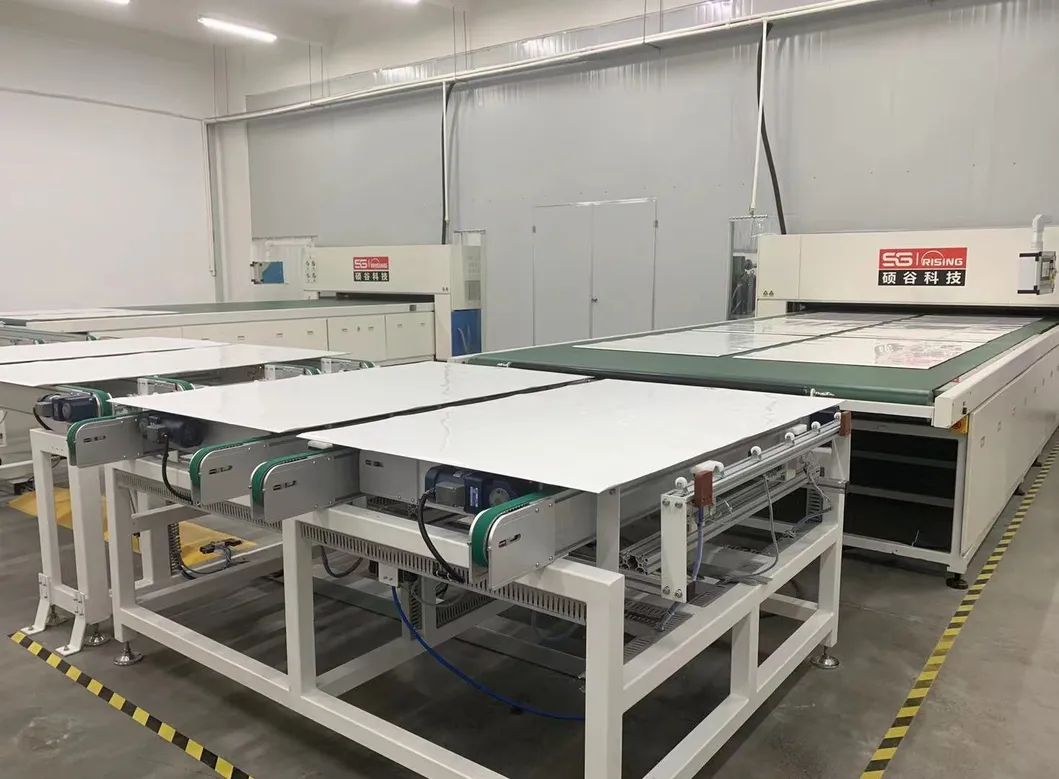

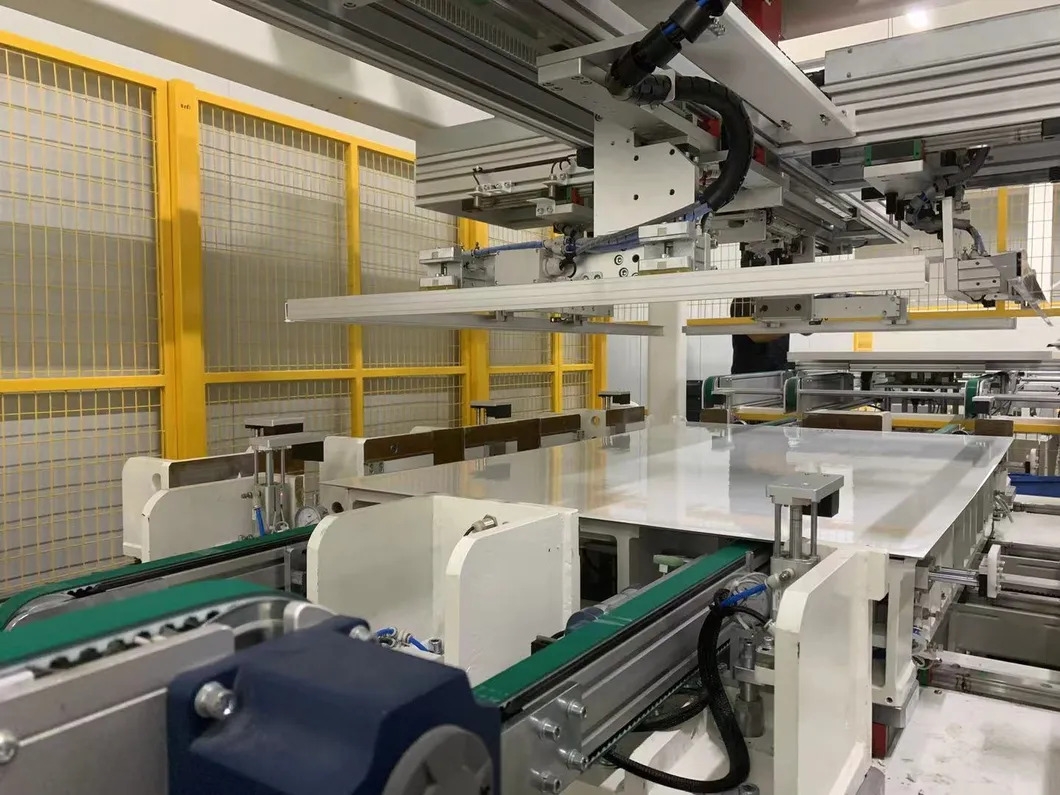

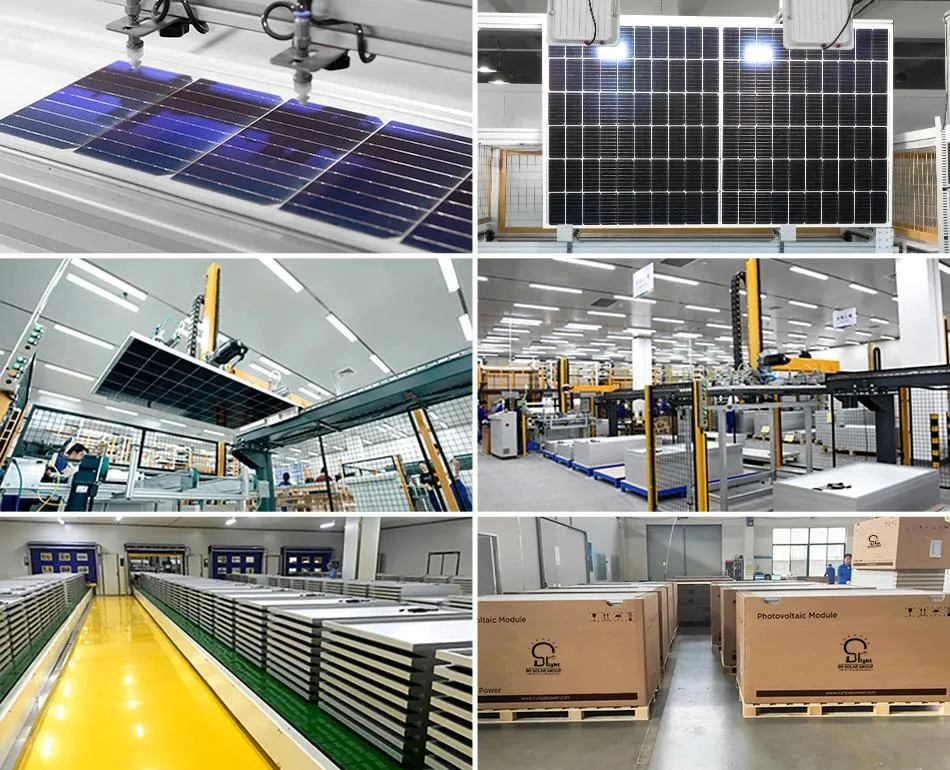

Factory Overview

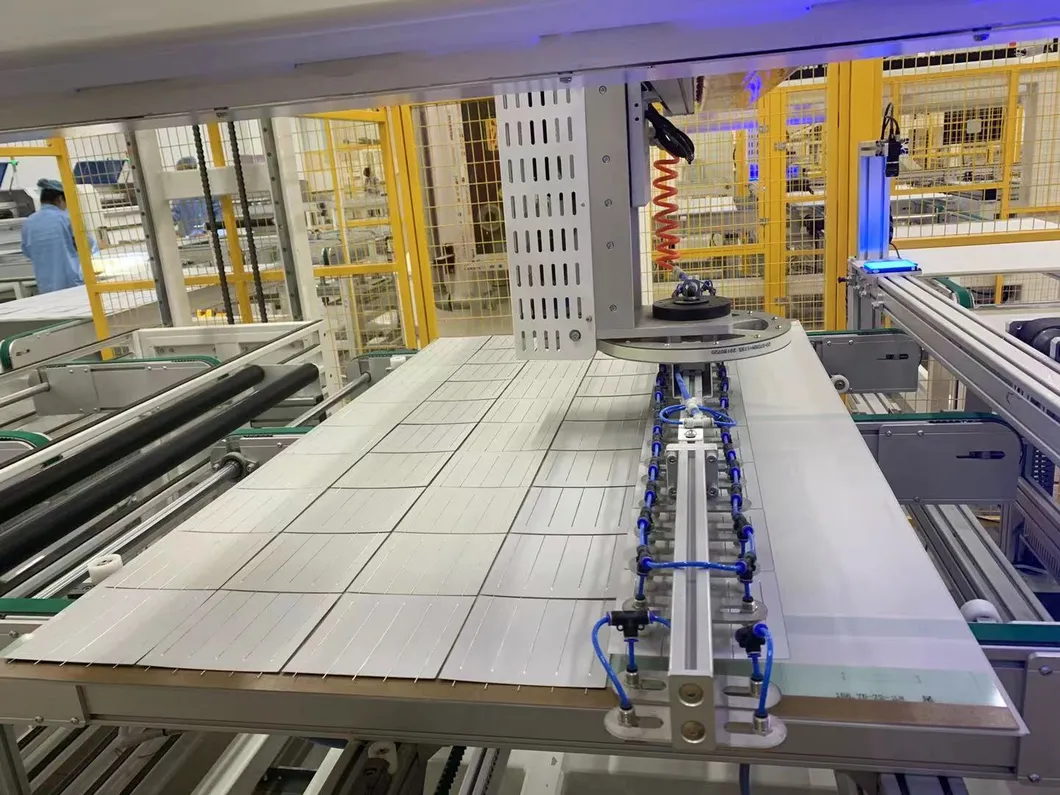

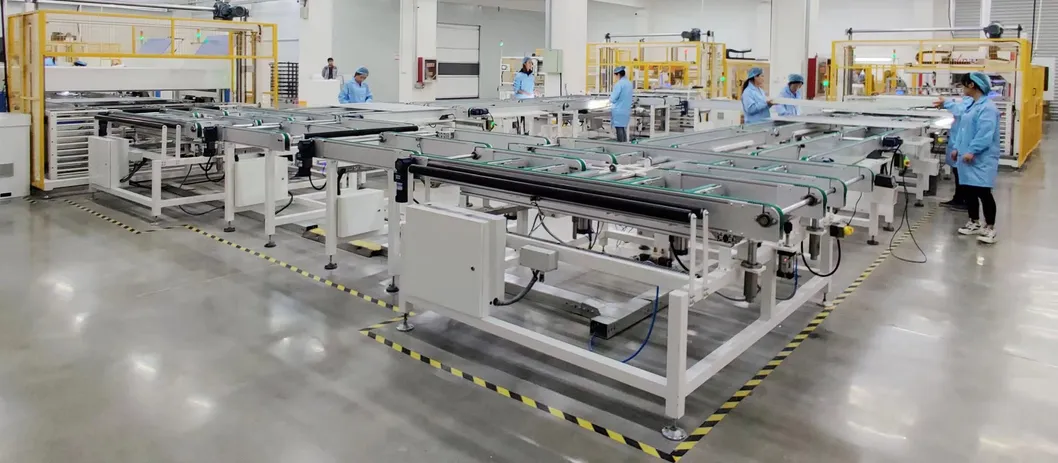

Strict QC System

100% Commitment to High-Quality Solar Panel Manufacturing

100% Cells Sorting

Ensures strict consistency in cell color and power tolerance.

100% Inspection

Conducted before and after lamination, supported by intelligent automated alarms for process control.

100% EL Testing

Dual testing before and following lamination guarantees zero micro-cracks prior to final release.

100% Zero-Defect Target

Rigorous final checks adhering to standard acceptance guidelines and optimal tolerance rules.

100% Optimal Power Output

Confirms 0~+5W positive tolerance via a barcodes QC tracking system.

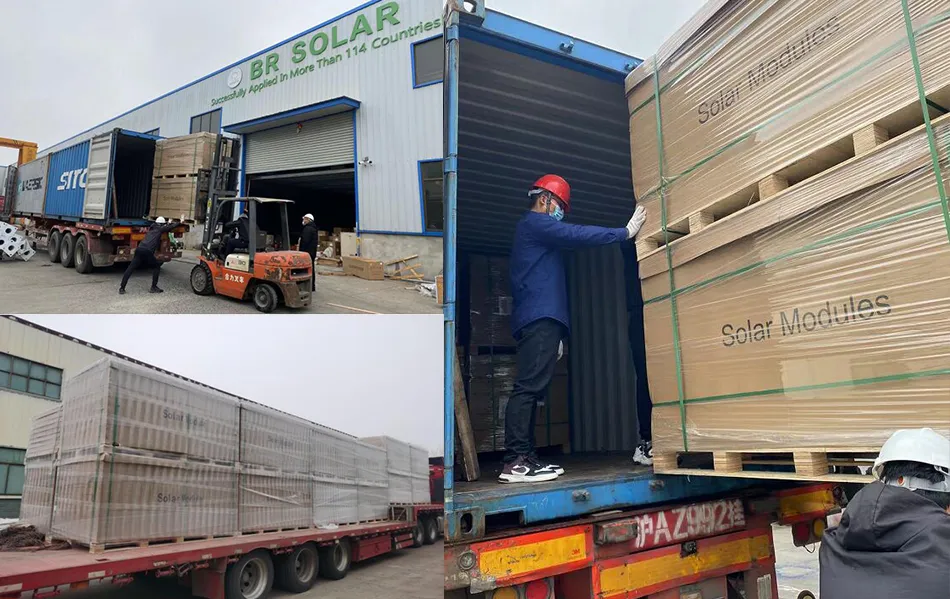

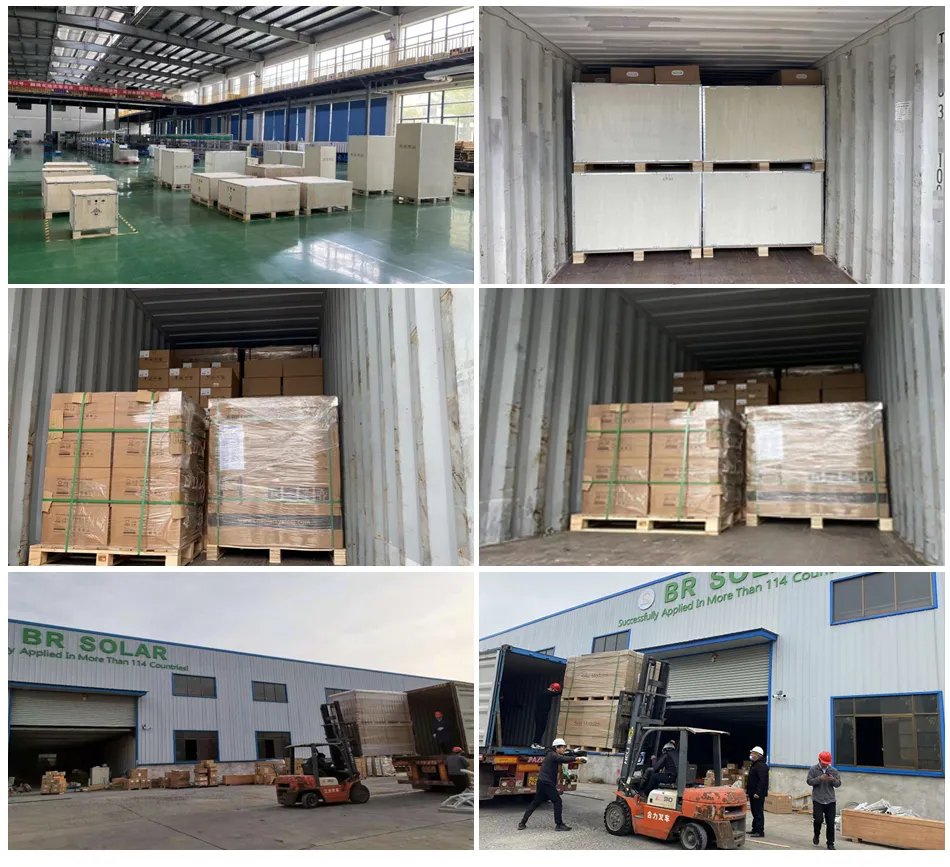

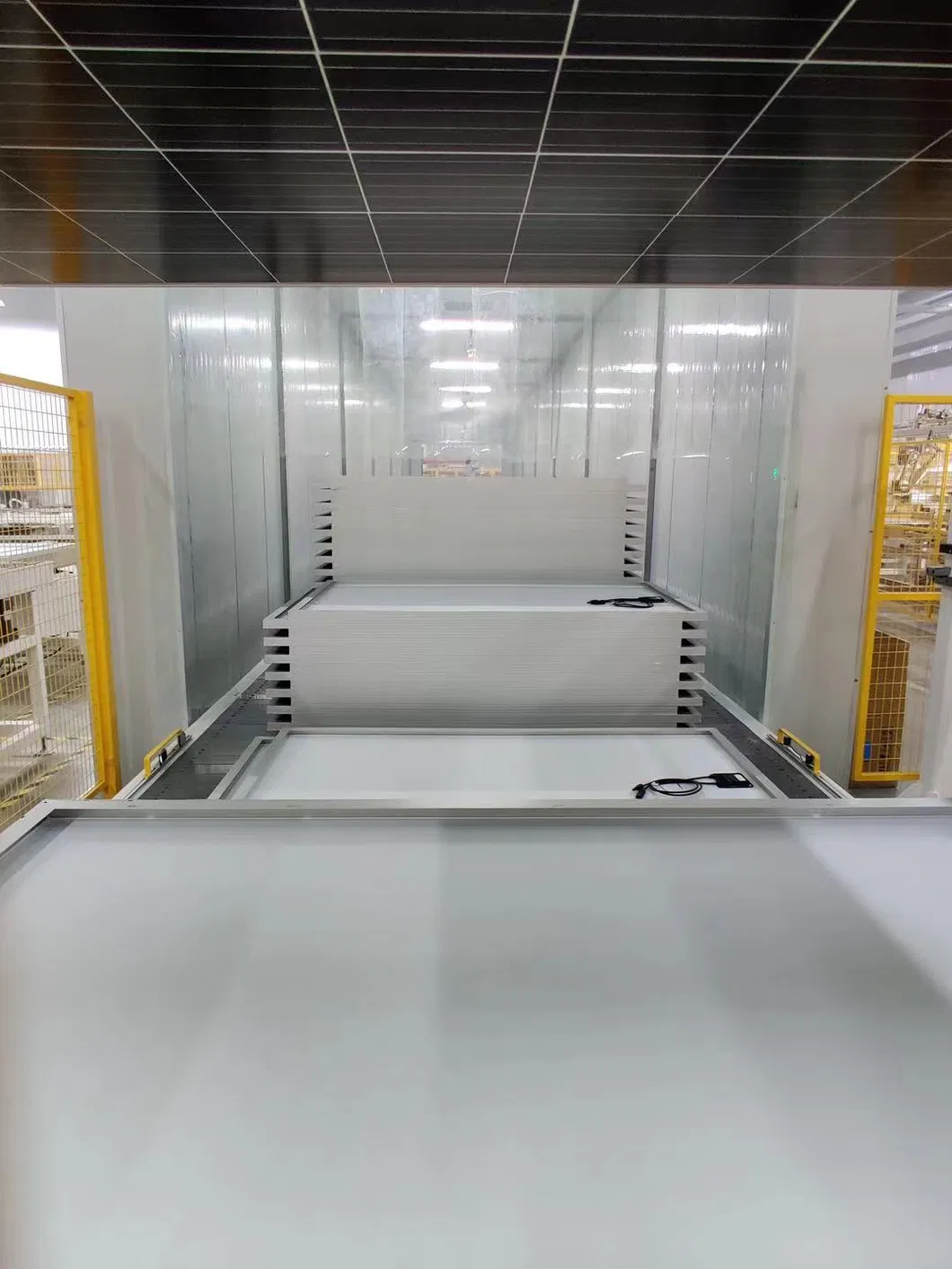

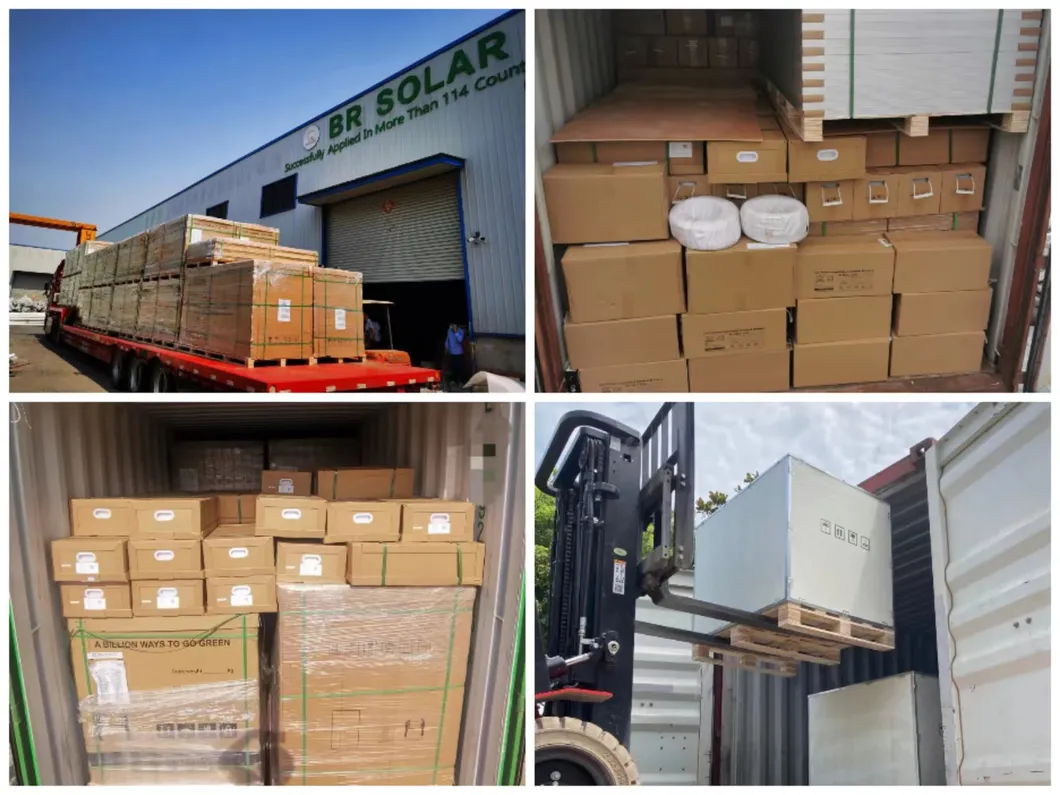

Loading & Transportation

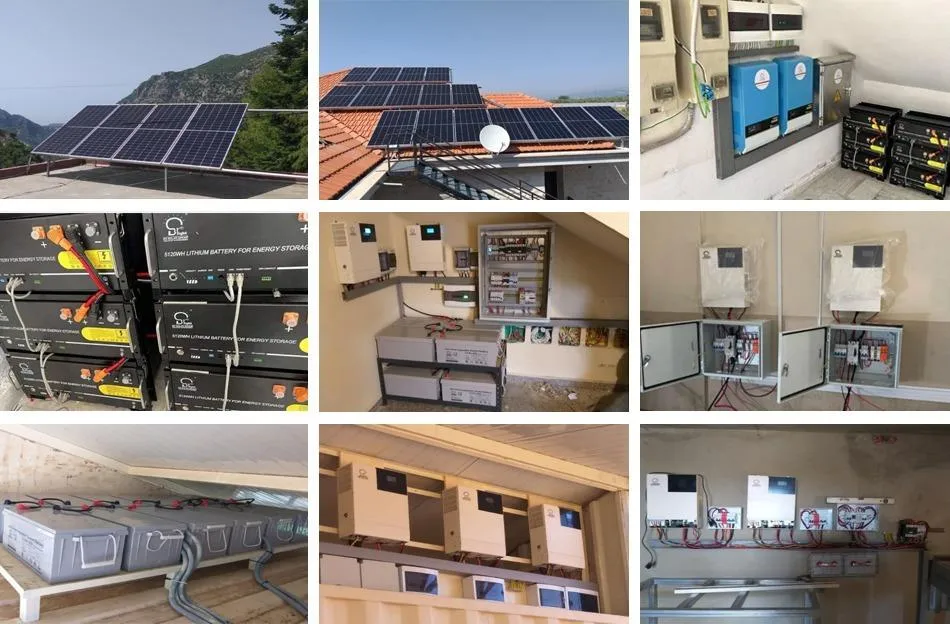

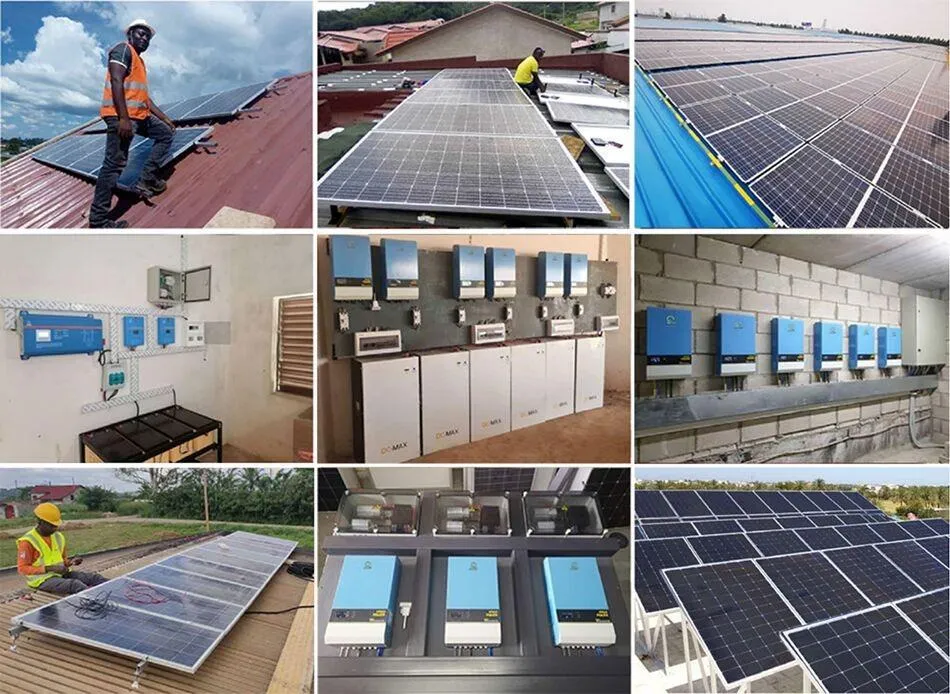

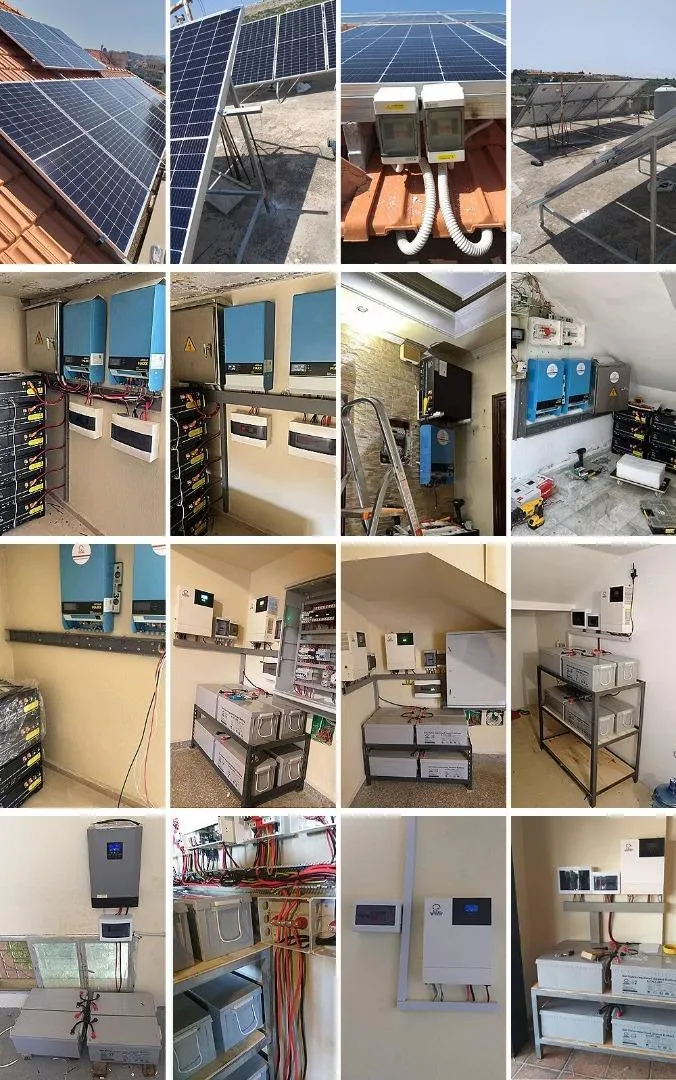

Project Cases

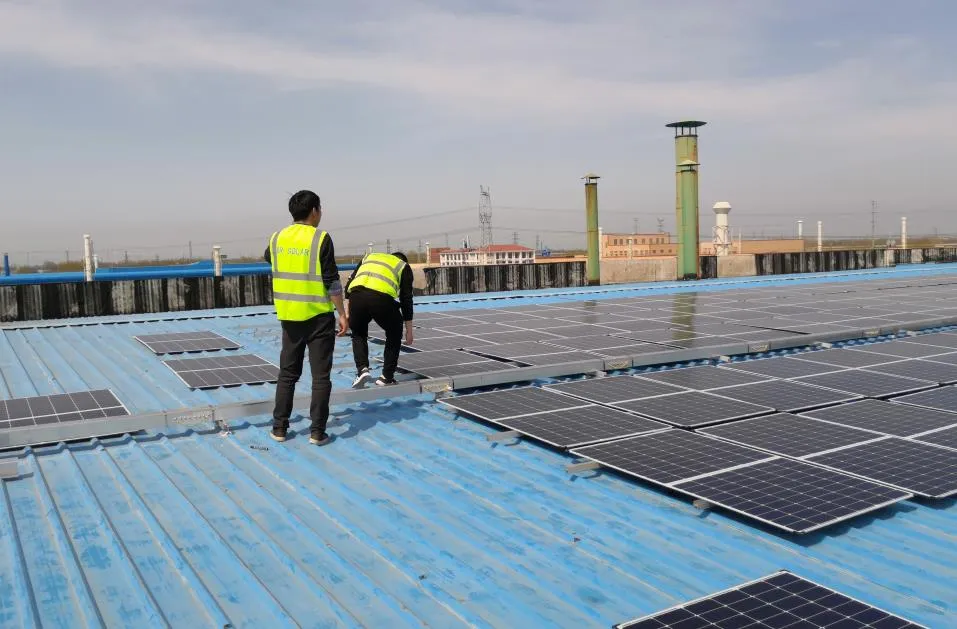

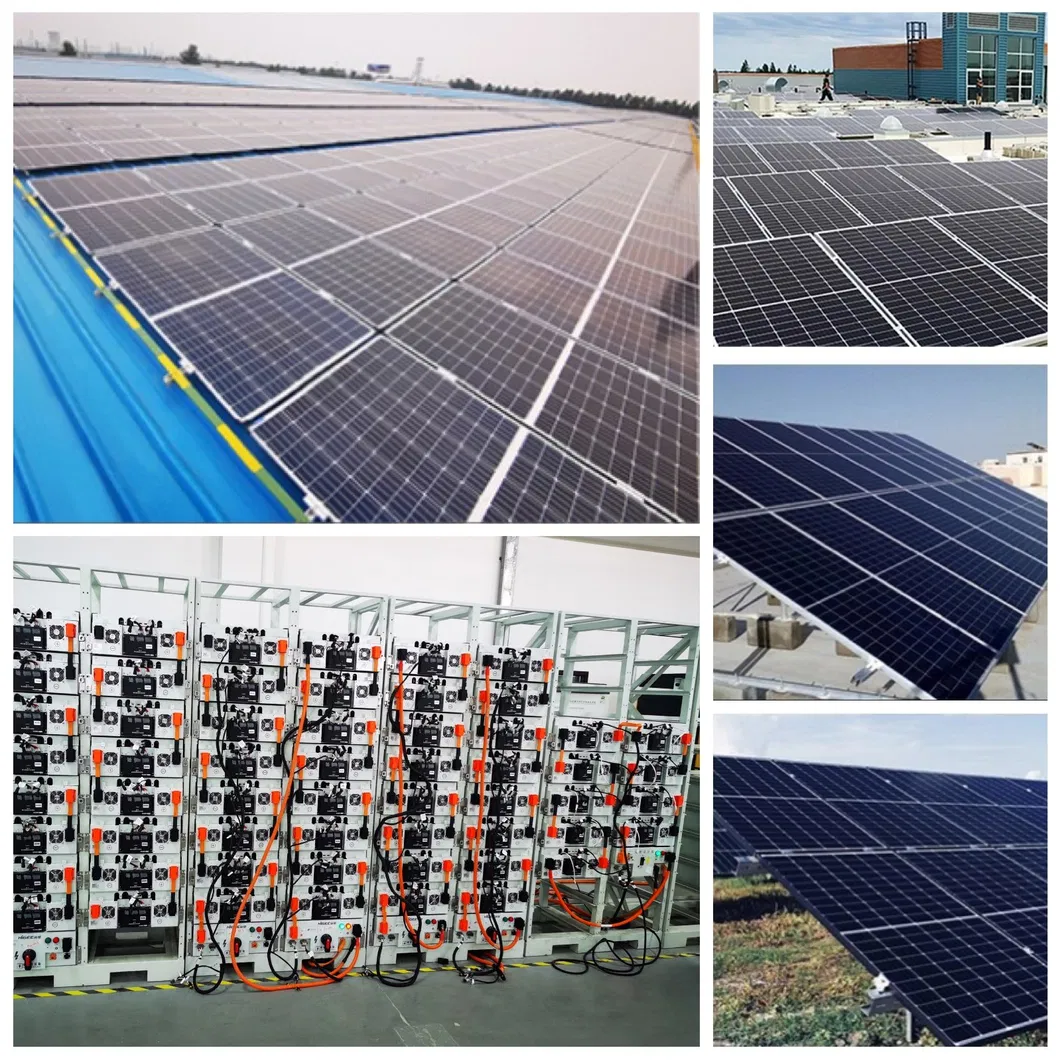

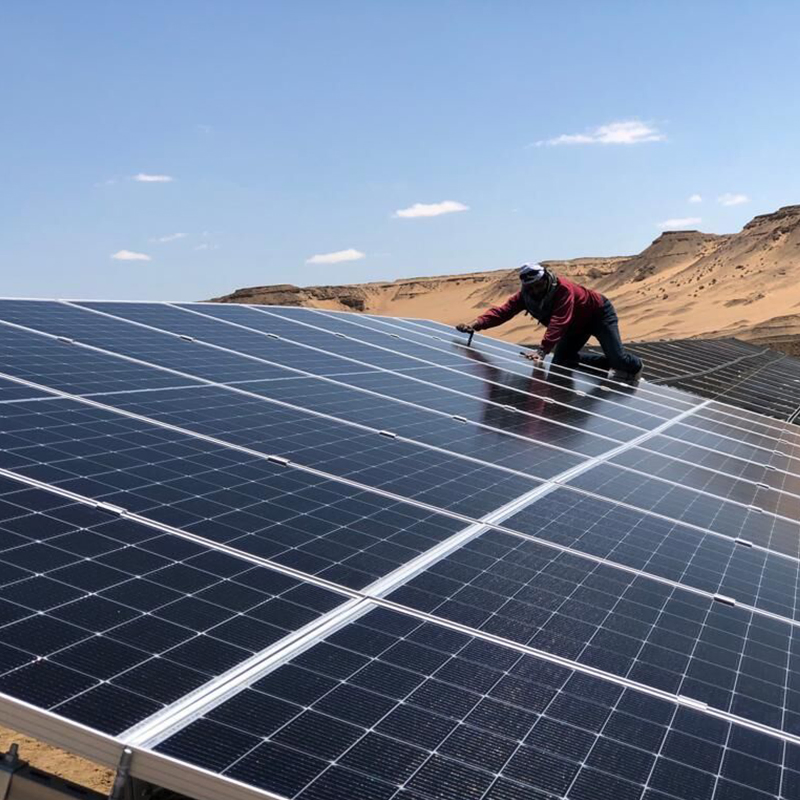

Bifacial Double Glass Solar Installation Site

FAQ

Q What type of solar cells are used in the panels?

We utilize monocrystalline solar cells (including cell sizes 158.75*158.75mm, 166*166mm, 182*182mm, and 210*210mm) and polycrystalline solar cells (156.75*156.75mm).

Q What is the typical lead time for orders?

The standard lead time is normally 15 working days following the receipt of the advance payment.

Q What is your monthly manufacturing capacity?

Our monthly manufacturing capacity reaches approximately 200MW.

Q What is the warranty coverage duration?

We offer a 12-year product materials warranty, a 25-year 80% power output warranty for monofacial panels, and a 30-year 80% power output warranty for bifacial solar modules.

Q What technical support services are available?

We provide lifetime online assistance. Our support includes remote video guidance and, if required for large-scale operations, on-site engineer deployments.

Q Are samples provided, and is there a sample charge?

Samples are available at cost. The fees associated with the initial sample are fully refunded upon confirmation of a bulk contract.
