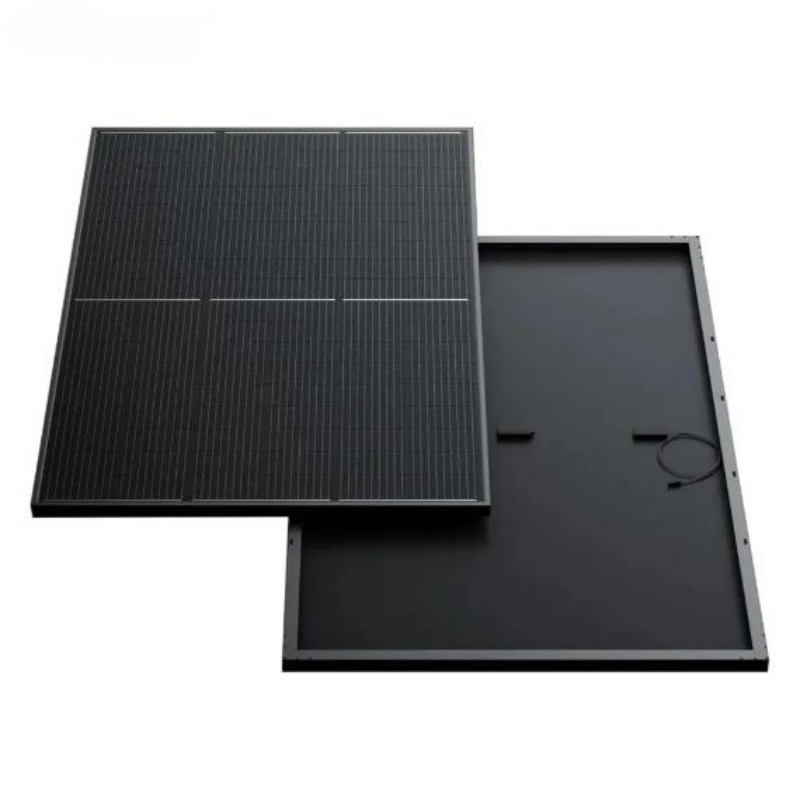

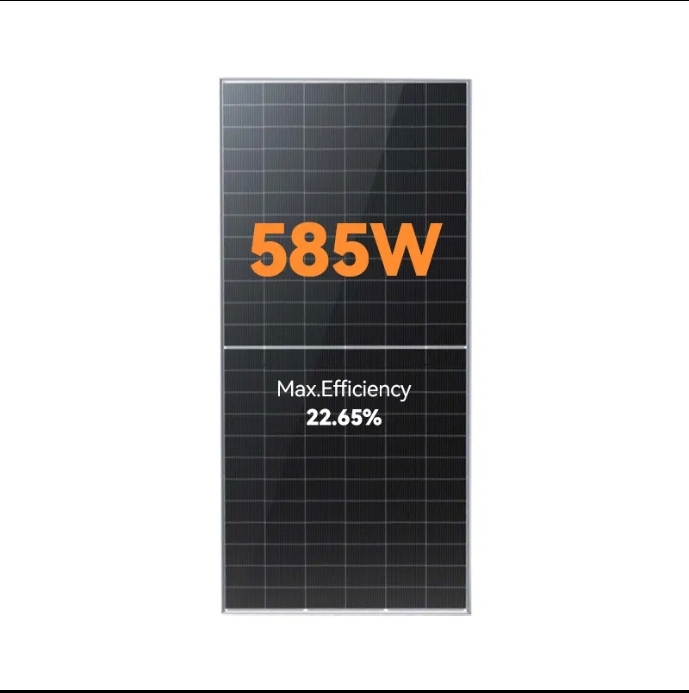

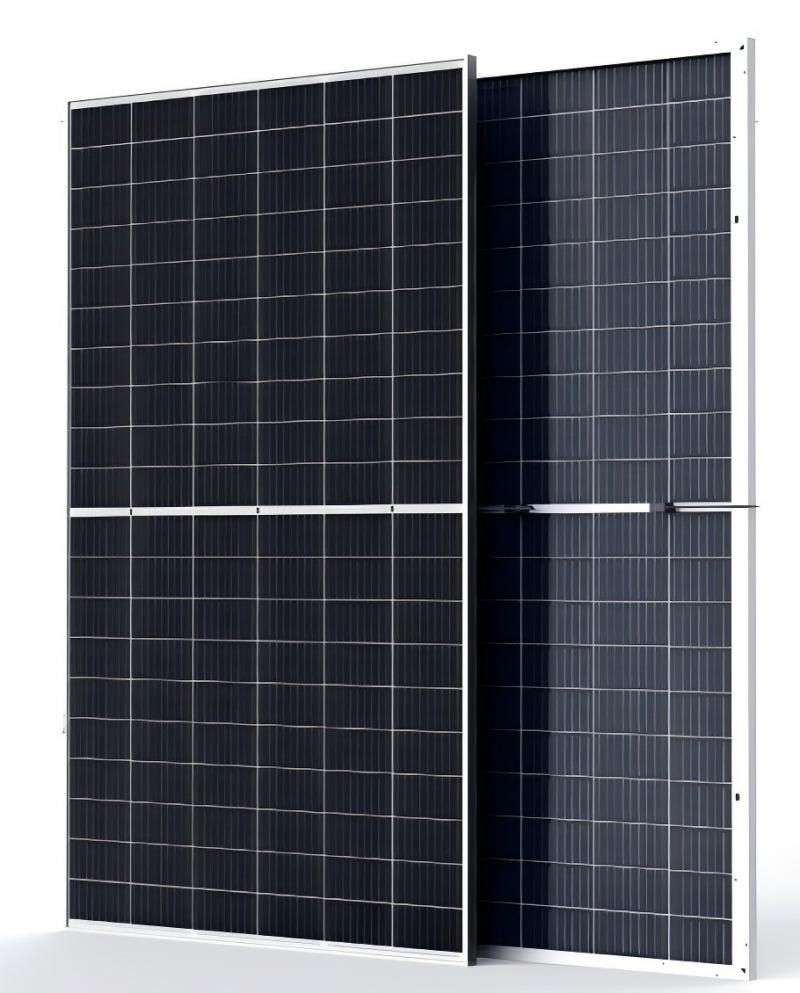

Trina/Ja 500-720W Solar Panel for Home, Commercial, Industrial, and Farm with European/Dubai Warehouses

Still deciding? Get samples of $ !
Order Sample

Product Description

Solar Panel Banner

Basic Info

Model NO. 300-700W ODA-144MHD Black
Number of Cells 144(12*12)
Application Industrial
Condition New
Certification EST, ISO, CB, CE
Material Monocrystalline Silicon
Transport Package Pallet; Container
Specification 300-700W
Trademark JY Future
Origin China
HS Code 854140

Product Description

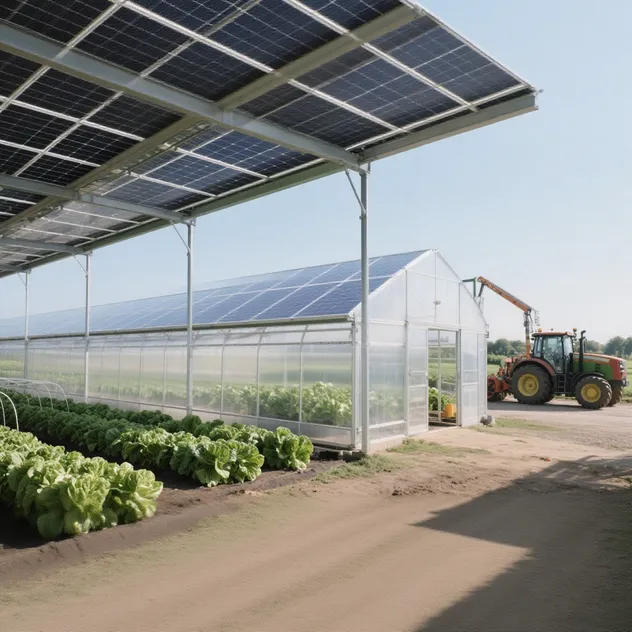

Solar Panel Detail 1

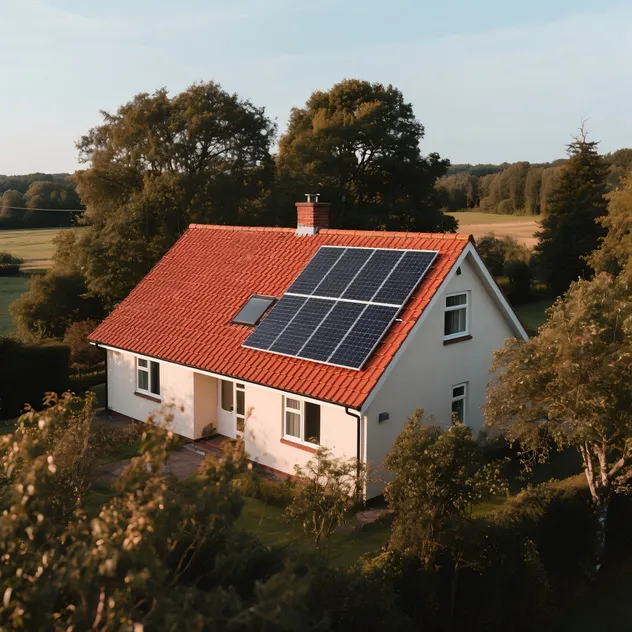

Solar Panel Detail 2
Solar Panel Detail 3
💡 Definition and Application of Photovoltaic Solar Panels
Photovoltaic (PV) modules, or solar panels, are key solar energy components that interconnect and hermetically package dozens to hundreds of PV cells—typically semiconductor-based (e.g., monocrystalline/polycrystalline silicon)—into one robust unit. Shielded by tempered glass, EVA film, and a weatherproof backsheet, they resist harsh conditions (rain, dust, temperature swings) and last 25–30 years.
Linked via wiring, multiple modules form a solar array, often mounted on sun-aligned adjustable racks to boost sunlight absorption. Inverters are critical here: they convert the modules' direct current (DC) electricity to alternating current (AC)—the universal form for power use.
Scalable by design, these systems suit diverse needs: small residential arrays (10–20 modules) power homes and cut utility costs; large solar farms (thousands of modules) supply regional grids; commercial/industrial arrays offset operational energy use, supporting low-carbon goals.

Specification

Specification View 1
Specification View 2

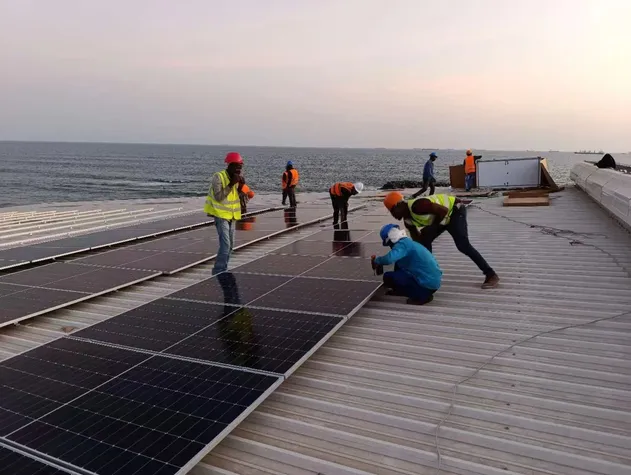

Specification View 3
MECHANICAL CHARACTERISTICS ELECTRICAL PARAMETERS
Model Type 182*91NType Bifacial Mono POWER CLASS ODA580-36V-MHD
No. of Cells 144 (12×12) Maximum power (Pmax) 580W
Dimensions 2278*1134*30mm Maximum Power Voltage (Vmp) 42.37V
Weight 32kg Maximum Power Current (Imp) 13.69A
Front Glass 2.0mm AR coating tempered glass Open-circuit Voltage (Voc) 51.02±3% V
Back Glass 2.0mm Glazed Glass Short-circuit Current (Isc) 14.47±3% A
Frame Anodized Aluminium Alloy Module Efficiency (%) 22.45%
Junction box IP68 3 diodes Application Class A
Output cables 4mm² cable 35cm (Including MC4) STC Rating:
Irradiance 1000W/m², AM1.5, and cell temperature of 25°C.
Max Wind/Snow Load 2400Pa / 5400Pa
Power Tolerance 0~+3%
Operating & Storage Temp -40°C ~ +85°C
Tech Specs Sheet 1
Tech Specs Sheet 2
Performance Chart 1
Performance Chart 2

Product Features & Services

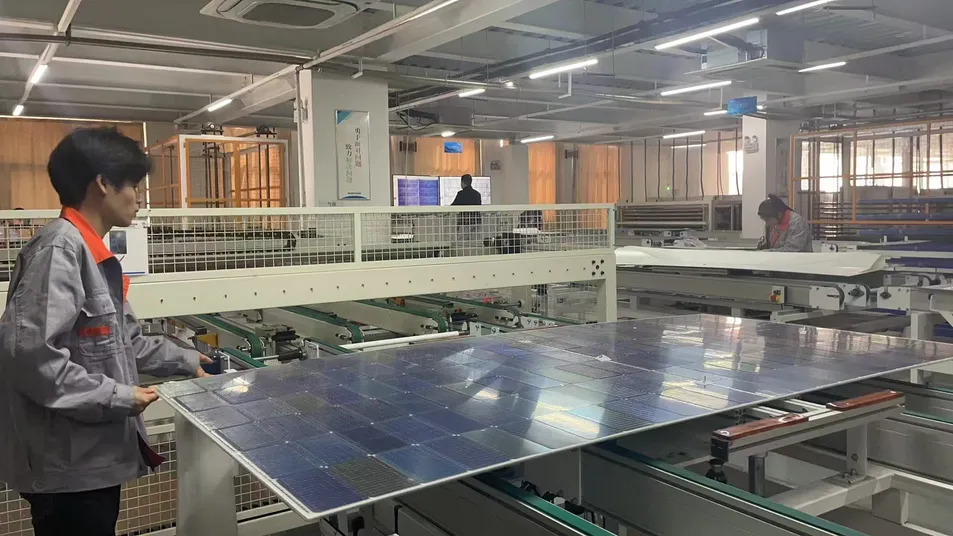

Manufacturing Details

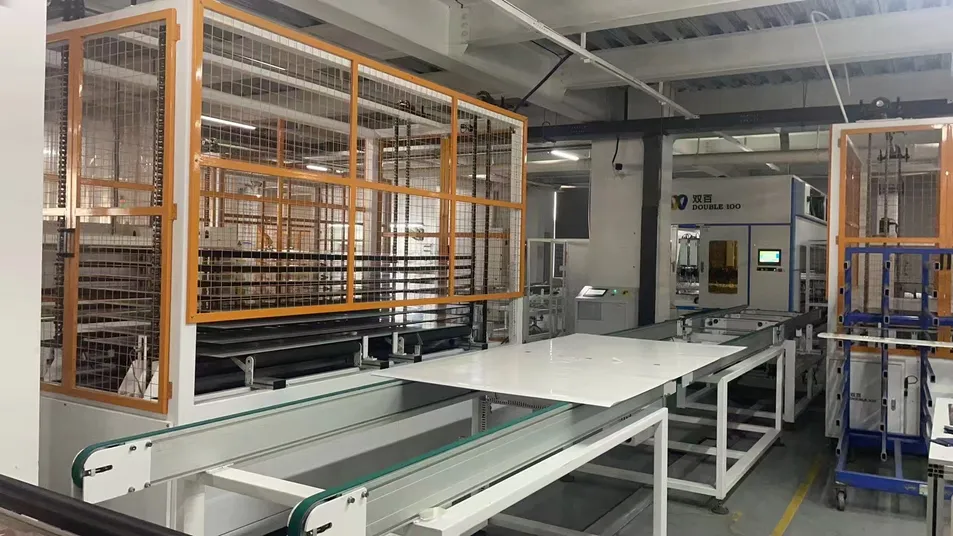

Quality Inspection
⚙️ Key Product Features
  • SMBB Technology: Better light trapping and current collection to improve module power output and reliability.
  • PID Resistance: Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
  • Higher Power Output: Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR.
  • Enhanced Mechanical Load: Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal).
🛠️ OEM & ODM Services
Maximize sunlight harvest with our high-efficiency panels (up to 22%+) designed for durability across climates. Full customization available:
  • Size (100W-700W+) & frame style adjustments
  • Color & wattage optimization
  • IEC/UL-certified reliability standards
  • Perfect for homes, businesses, industries, or utility solar farms

Packing & Delivery

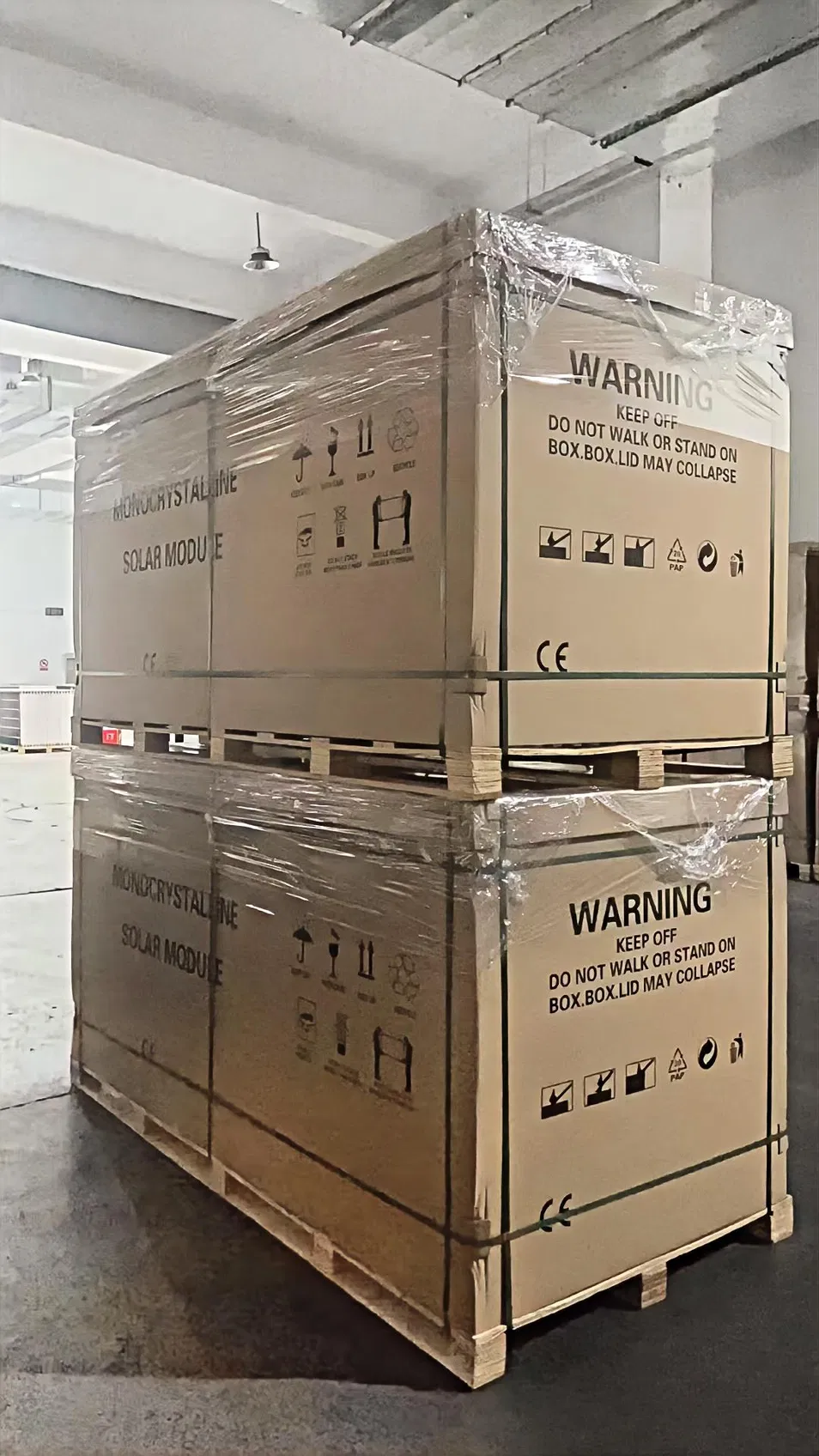

Packaging vertical view 1

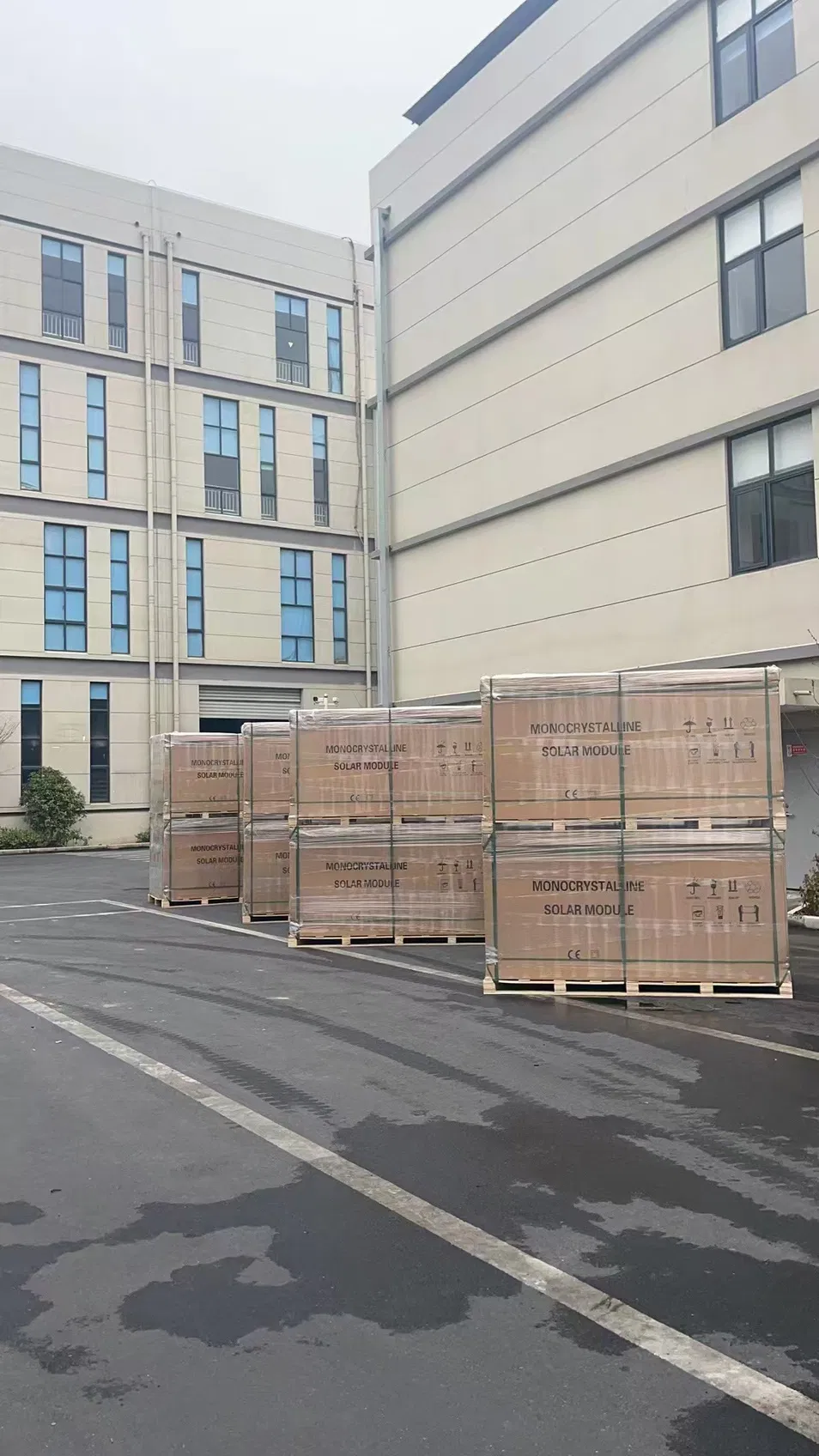

Packaging vertical view 2
🚢 Delivery Information
FOB Port: Tianjin/European, Dubai Warehouse
Container Capacity: 20FT Container / 40HQ Container
Packages/Pcs: 5 / 185 (20FT) | 20 / 740 (40HQ)
📦 Packaging Specifications
Package Size: 2278*1134*30mm
Package Net Weight: 32kg
Package Gross Weight: 34kg
Lead Time: 30-45 days

Packaging & Shipping

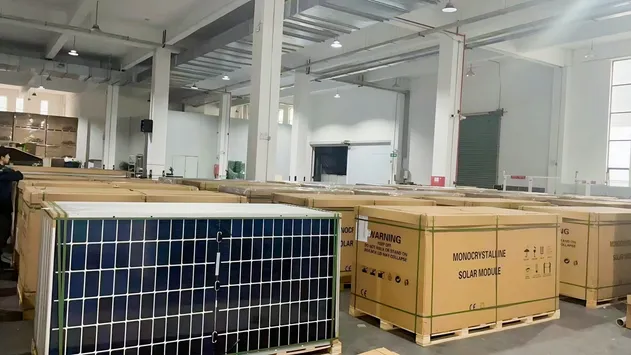

Warehouse logistics 1

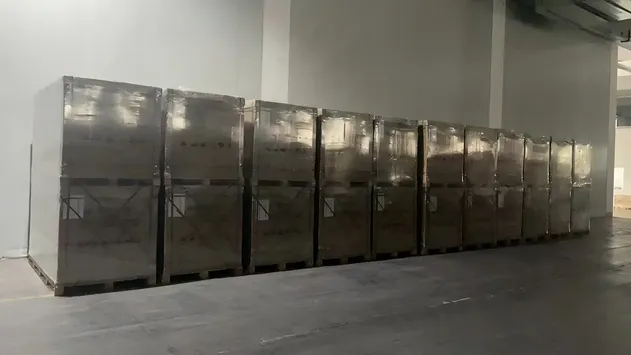

Warehouse logistics 2

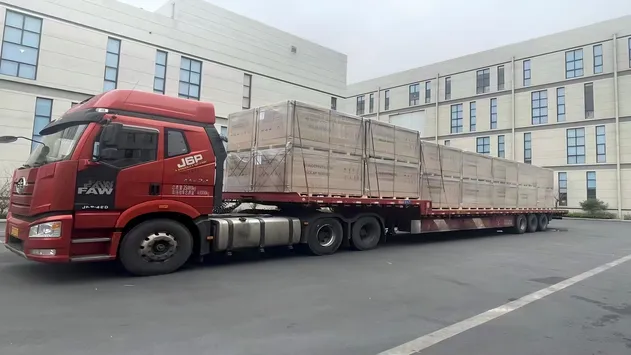

Warehouse logistics 3

Certifications

Certificates Banner
Certification document 1
Certification document 2

Company Profile

As a leading Chinese manufacturer of clean energy products, we specialize in comprehensive solutions for photovoltaic systems and energy storage applications, including various types of solar panels and large or portable energy storage systems for homes, businesses, industrial plants, solar farms, etc. We operate two fully automated production lines capable of producing between 10,000 and 20,000 pieces daily. OEM/ODM/Custom-engineered solutions are available, including frame styles, color, and wattage adjustments. Moreover, we are a certified supplier and strategic partner to top brands like LONGi and JinkoSolar.

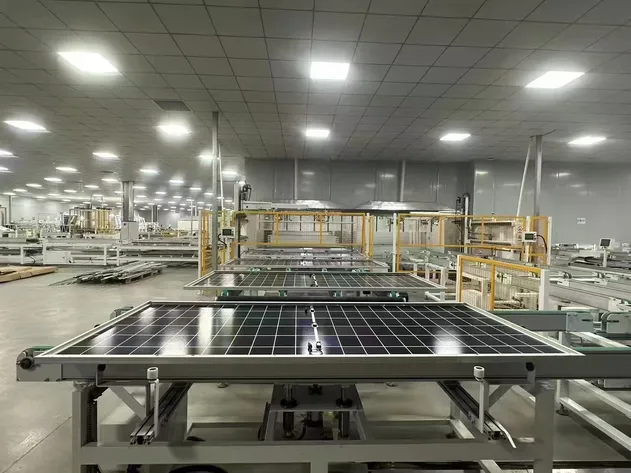

Factory Overview

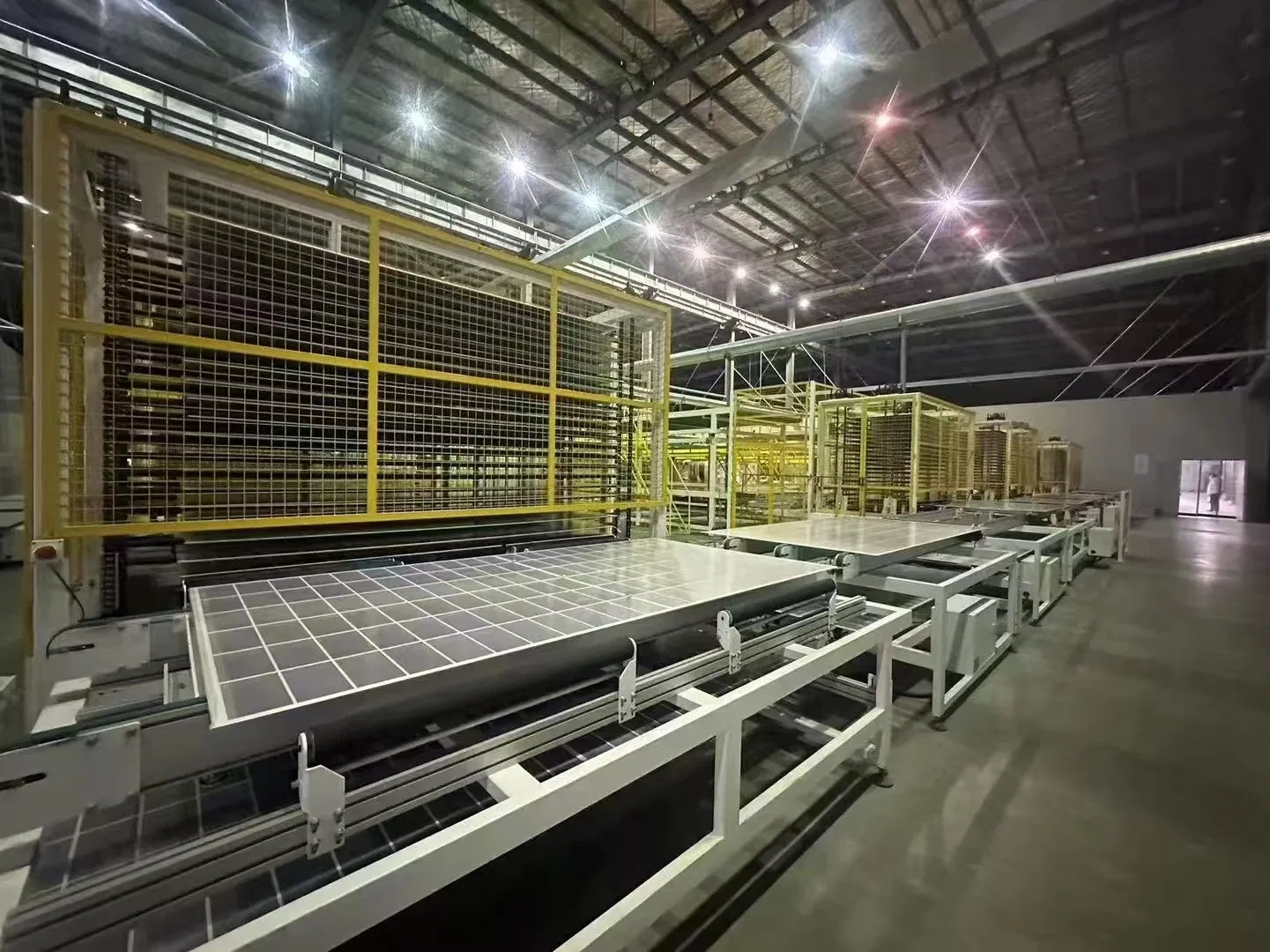

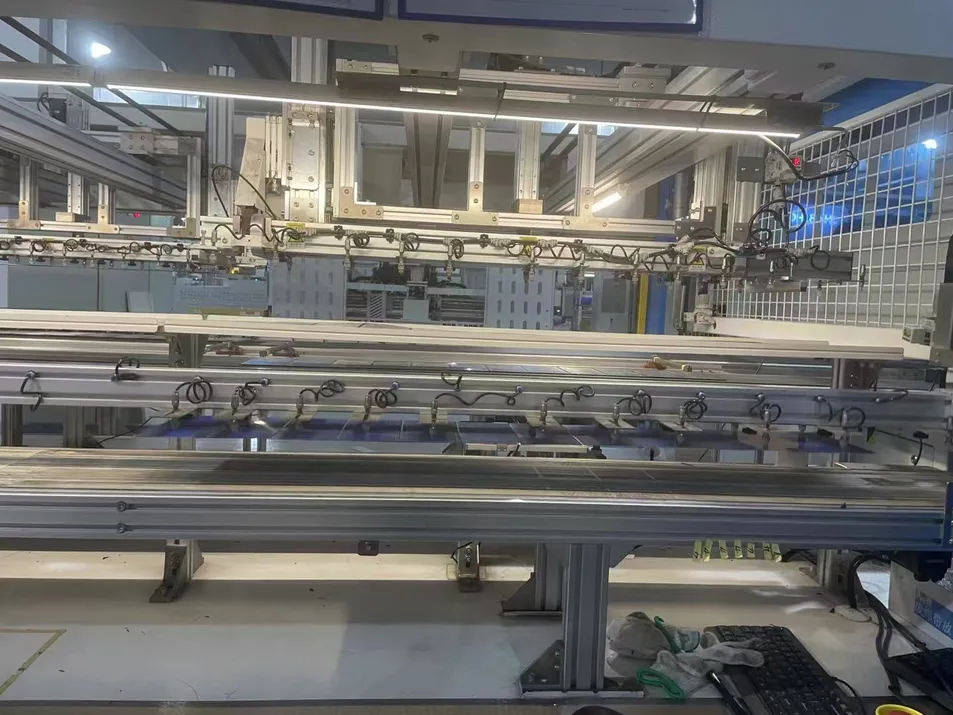

Production Line
🎯 What can we do?
We specialize in comprehensive solutions for photovoltaic systems and energy storage applications, including various types of solar panels and large or portable energy storage systems for homes, businesses, industrial plants, solar farms, etc. OEM/ODM/Custom-engineered solutions are fully available. We are a strategic partner to top industry brands like LONGi and JinkoSolar.
Our Advantages
  • End-to-end solar and storage solutions for a stable power supply.
  • For Distributors/Resellers: Competitive pricing and quality assurance.
  • For Projects: European and Middle Eastern warehouses with premium quality for cost efficiency.
  • Partnership with top brands (LONGi, JinkoSolar, etc.) to provide high-quality components.
  • Rich experience with hundreds of European, Middle Eastern, and Australian clients.

FAQ

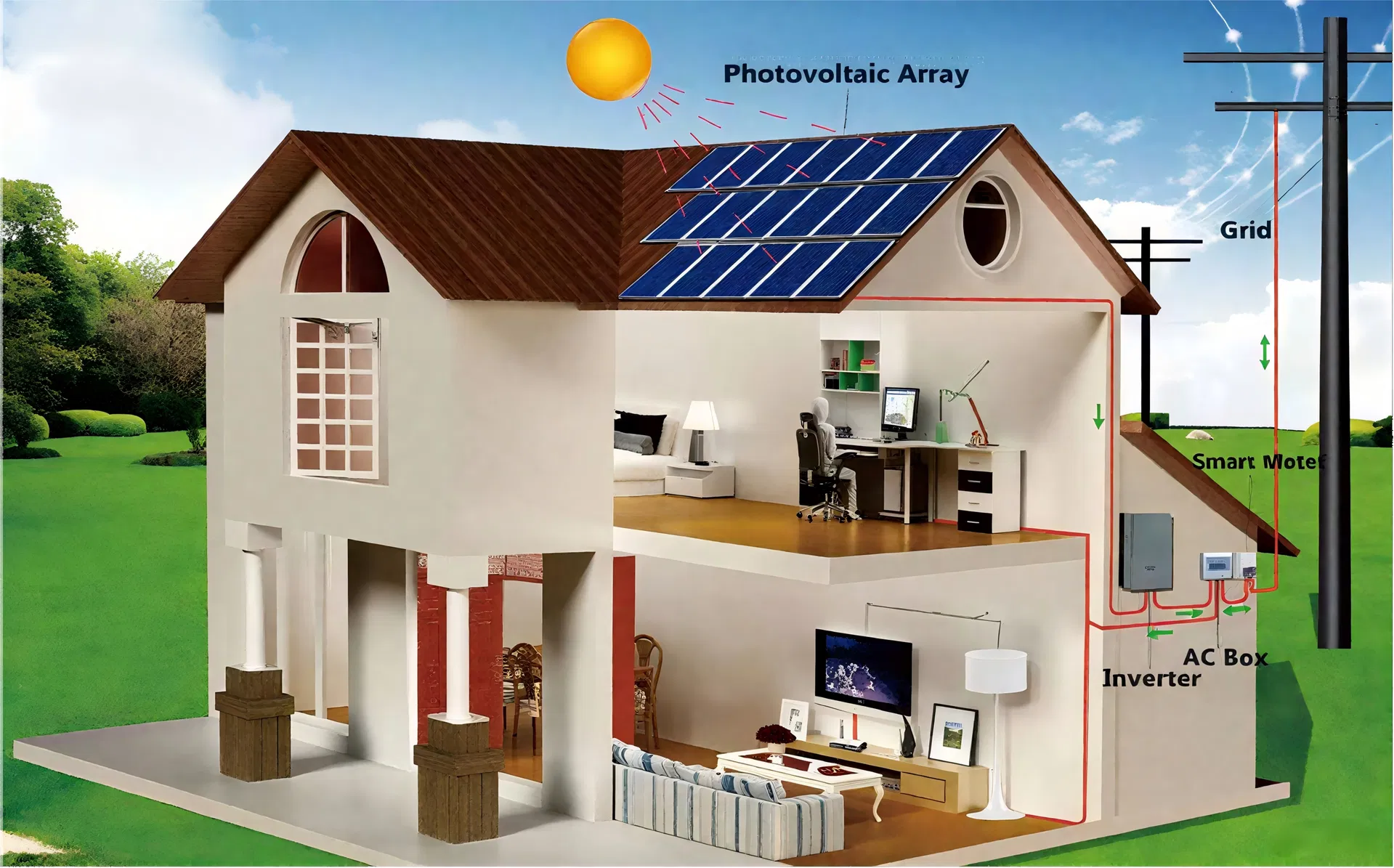

FAQ banner image
Q1: What are the installation requirements?
A: Ensure a tilt angle ≥15° (for latitude 40° regions), use galvanized brackets, and allow a 10mm thermal expansion gap.
Q2: How is power degradation handled under warranty?
A: On-site testing is provided. Immediate replacement if measured power is less than 90% of rated value; free repair for greater than 10% degradation within 25 years.
Q3: Does surface scratching affect performance?
A: Minor scratches (≤3mm) are harmless, but we recommend regular cleaning; deep scratches require replacement to prevent hot-spot damage.
Q4: Can I customize the size/colors?
A: 12V/24V/48V system-compatible sizes are available. The standard color is black matte. Custom colors incur a 15% surcharge.
Q5: What mechanical loads are these panels certified to withstand?
A: The solar panels are certified to withstand wind loads of up to 2400 Pascal and snow loads of up to 5400 Pascal.
Q6: What is the typical lead time and packaging detail?
A: The standard lead time is 30-45 days. Single packages have a net weight of 32kg and a gross weight of 34kg with dimensions of 2278*1134*30mm. Transport packages are structured for safe transit using pallets and containers.
