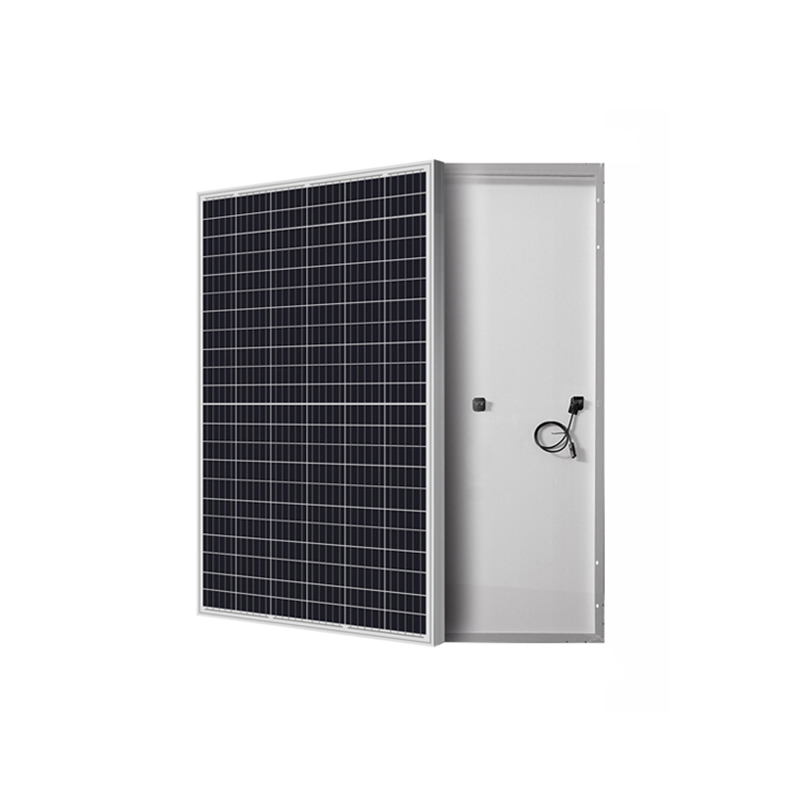

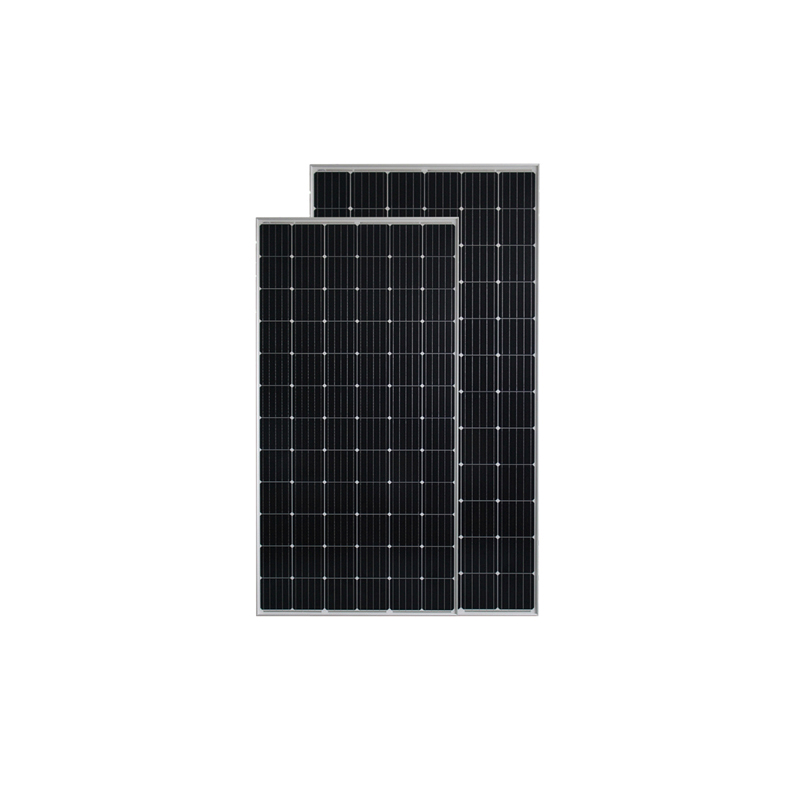

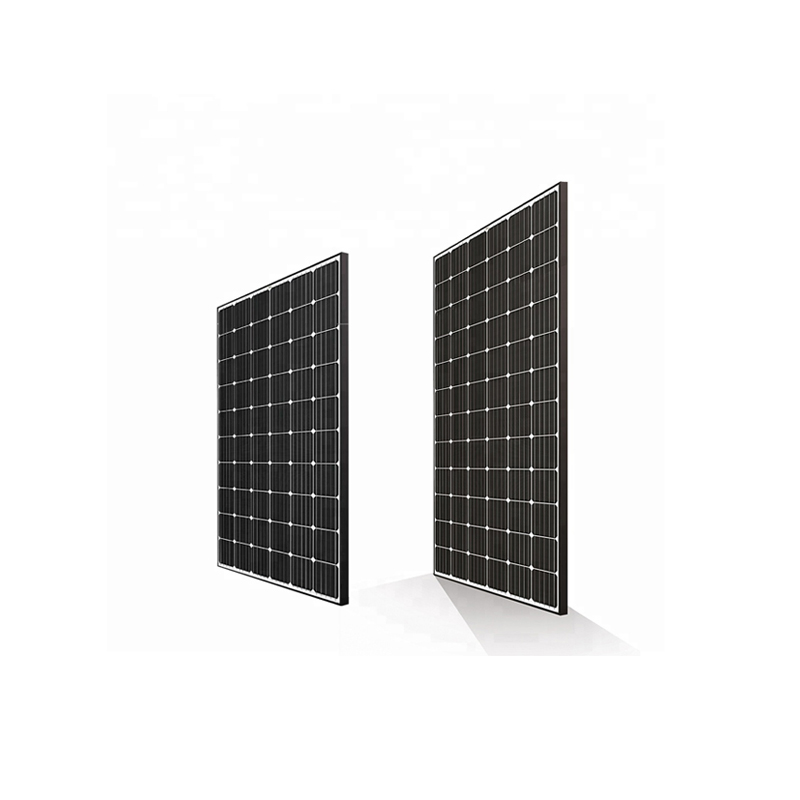

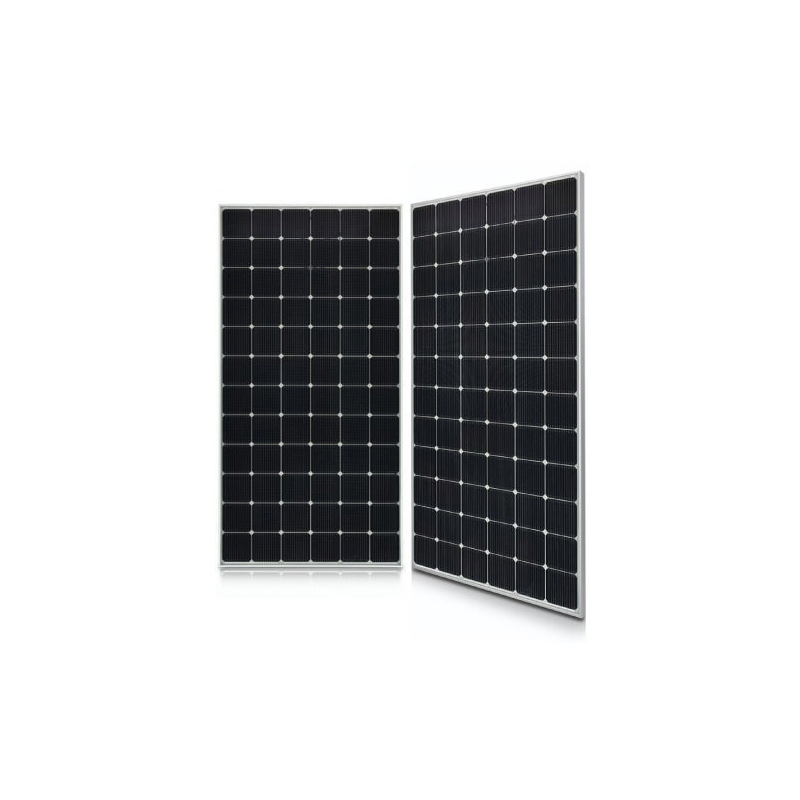

Wholesale Perc 535W 540W 545W 550W Mono Solar Panel

1 / 5

Wholesale Perc 535W 540W 545W 550W Mono Solar Panel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview
Product Description
Product Parameters
Packaging & Shipping
Exhibition
Certifications

Basic Info

Model NO. SF-SP37

Number of Cells 144PCS

Application Industrial

Condition New

Certification ISO, CE

Material Monocrystalline Silicon

Product Name Solar Panel

Type Standard Solar Panel

Frame Anodized Aluminium Alloy

Junction Box IP67 Rated

Certificate TUV CE ISO

Color Blue and Black

Weight 23.5kg

Connector Compatible Connector

Transport Package 31 Pieces Per Pallet

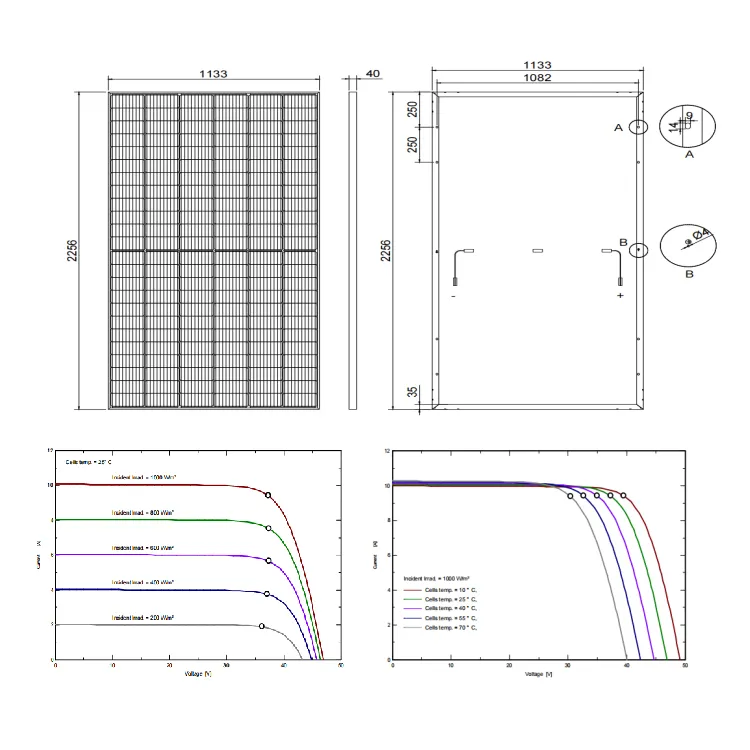

Specification 2256*1133*30mm

Origin China

Production Capacity 14000000 Watts/Week

Product Description

Product Parameters

Model	535M	540M	545M	550M

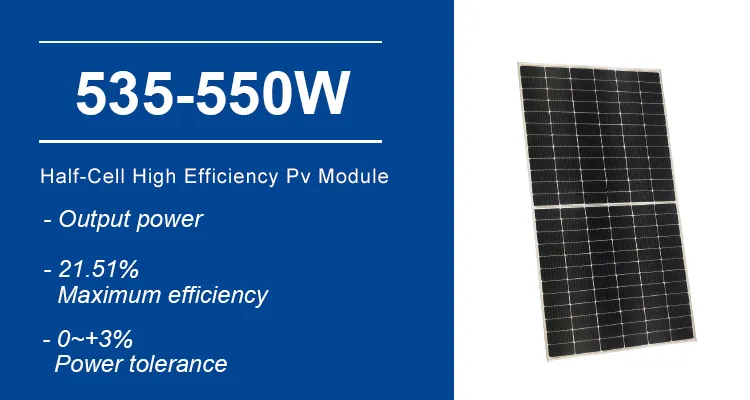

Maximum Power	535	540	545	550
Working Point Voltage	41.6	41.76	41.93	42.1
Working Point Current	12.84	12.93	13	13.06
Open Circuit Voltage	49.5+-3%	49.7+-3%	49.9+-3%	50.1+-3%
Short Circuit Current	13.61+-3%	13.72+-3%	13.81+-3%	13.9+-3%
PV Module efficiency	20.93%	21.12%	21.32%	21.51%
Standard Test Conditions	Irradiance 1000 W/m2, AM 1.5, and cell temperature of 25°C

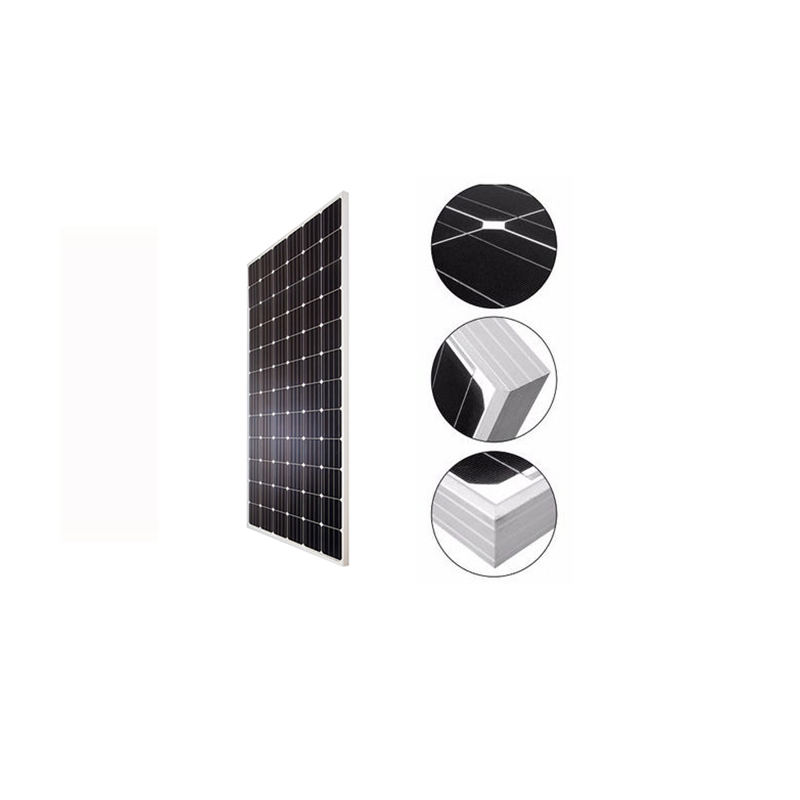

Solar Cell

High Efficiency PV Cells
High PID resistant
Color sorting ensures consistent appearance on each module
Appearance Consistency

Glass

Antireflective glass
Translucency of normal luminance is increased by 2%
Self-cleaning function
Module efficiency is increased by 2%

Frame

Silver or black frames are optional
Boost bearing capability and prolong service life
Serrated-clip design tensile strength

Junction Box

IP67 protection level
Quality diode ensures module running safety
Excellent heat dissipation performance
Long service life

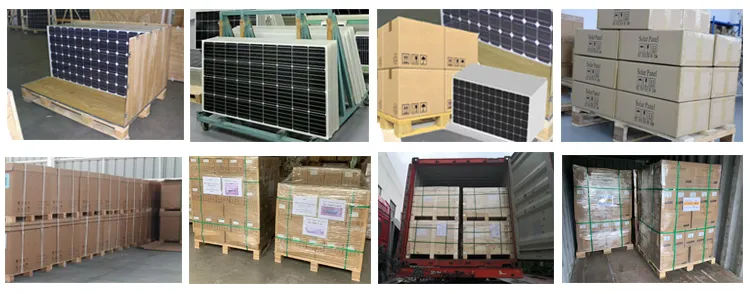

Packaging & Shipping

Exhibition

Certifications

Frequently Asked Questions

What are the power options available for these monocrystalline solar panels?

These solar panels are available in maximum power outputs of 535W, 540W, 545W, and 550W, designed to meet varying industrial energy requirements.

What type of cell technology is used in these modules?

The modules utilize high-efficiency Monocrystalline Silicon cells (144 pieces per panel) with advanced PID-resistant properties to ensure longevity and consistent power output.

How does the antireflective glass improve the module's efficiency?

The antireflective glass increases translucency of normal luminance by 2%, incorporates a self-cleaning function, and ultimately boosts overall module efficiency by an additional 2%.

What is the protection rating of the junction box?

The junction box features an IP67 protection level rating. It includes quality diodes to ensure safe module operation, excellent heat dissipation performance, and a long service life.

What certifications do these solar panels hold?

Our standard solar panels are fully certified under international standards, including TUV, CE, and ISO certifications.

What is the packaging standard for secure transportation?

The solar panels are packaged with 31 pieces per pallet to guarantee safe shipping and minimize structural vibration or damage during transport.
