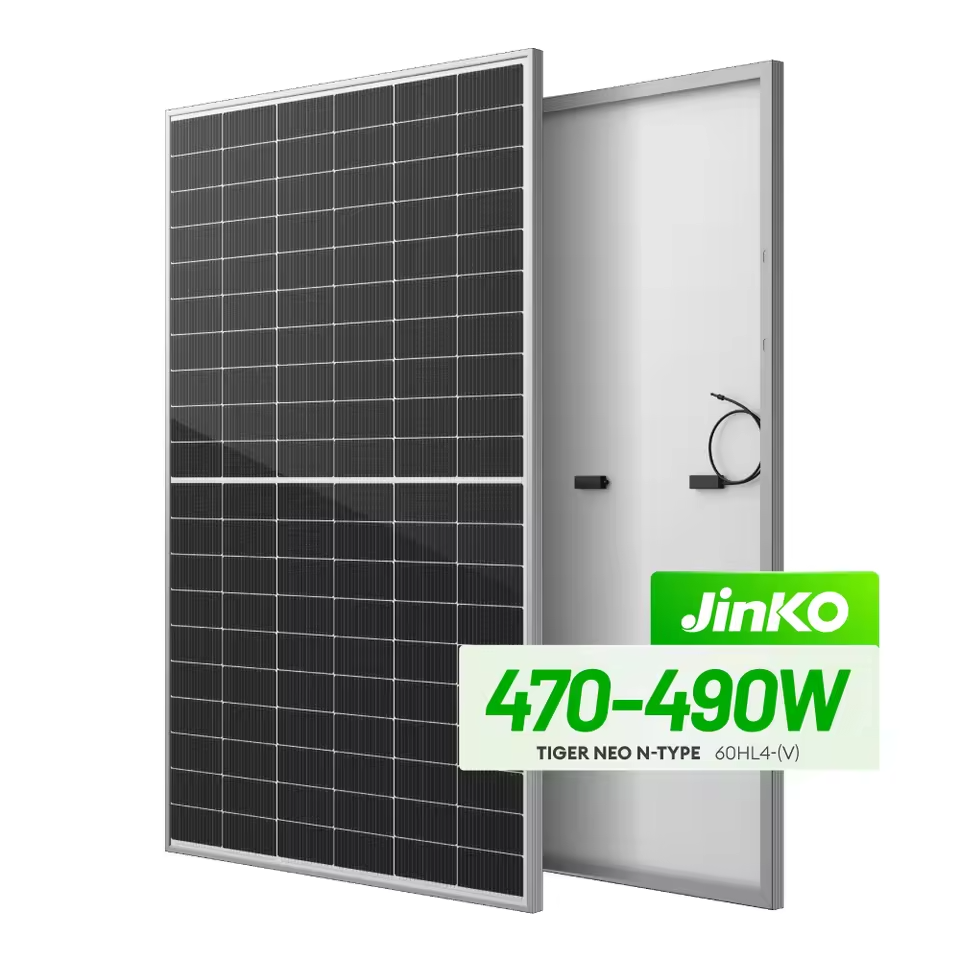

For 120cells Tiger Neo HJT N-type Mono All Black Half-Cell Double-Glass Solar Panel 470-490W 22.71% Efficiency Residential

1 / 5

For 120cells Tiger Neo HJT N-type Mono All Black Half-Cell Double-Glass Solar Panel 470-490W 22.71% Efficiency Residential

Send Inquiry

Product Description

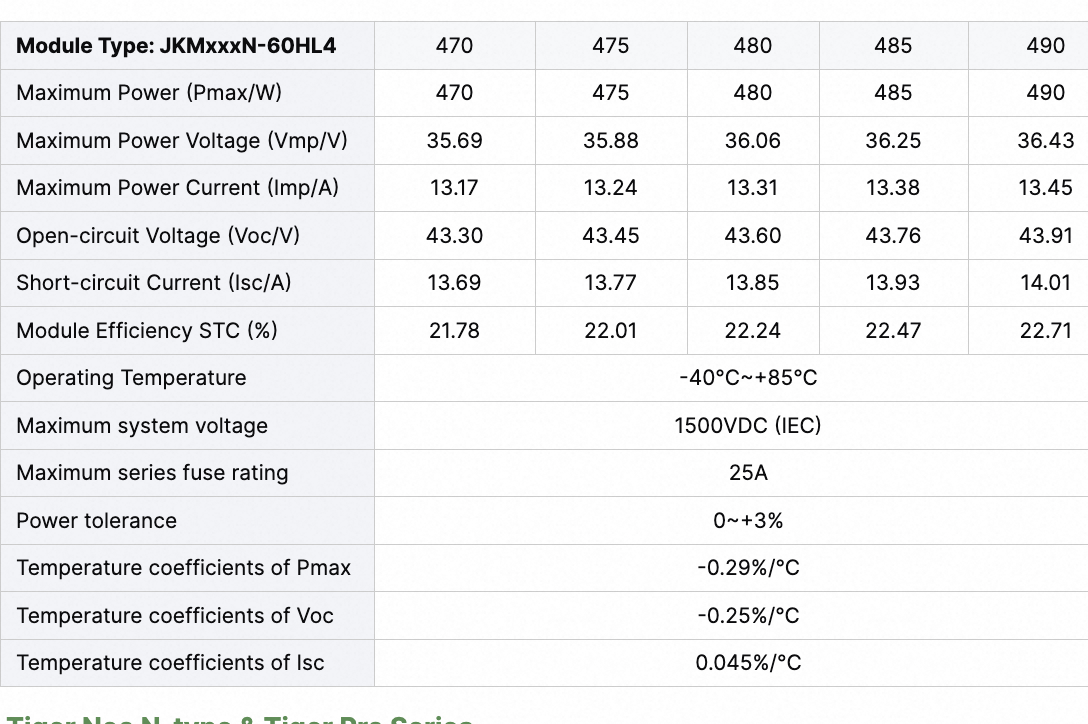

Technical Specifications

Module Type: JKMxxxN-60HL4	470	475	480	485	490
Maximum Power (Pmax/W)	470	475	480	485	490
Maximum Power Voltage (Vmp/V)	35.69	35.88	36.06	36.25	36.43
Maximum Power Current (Imp/A)	13.17	13.24	13.31	13.38	13.45
Open-circuit Voltage (Voc/V)	43.30	43.45	43.60	43.76	43.91
Short-circuit Current (Isc/A)	13.69	13.77	13.85	13.93	14.01
Module Efficiency STC (%)	21.78	22.01	22.24	22.47	22.71
Operating Temperature	-40°C~+85°C
Maximum system voltage	1500VDC (IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/°C
Temperature coefficients of Voc	-0.25%/°C
Temperature coefficients of Isc	0.045%/°C

Frequently Asked Questions

What are the core technical advantages of these modules?

These N-type solar modules utilize advanced N-type technology which offers higher efficiency, lower degradation, and superior temperature coefficients, translating to higher energy yield over the lifetime of the system.

What range of maximum power outputs does this series provide?

The series offers a power range from 470W up to 490W under Standard Test Conditions (STC), helping system owners optimize their design configurations.

How well do these modules perform in high-temperature environments?

With a low temperature coefficient of Pmax at -0.29%/°C, these modules are highly optimized to minimize power loss under hot climate conditions, providing stable energy generation.

What is the benefit of a 1500VDC maximum system voltage?

A 1500VDC rating enables longer string design layouts in utility-scale PV systems. This reduces the overall balance of system (BOS) costs, including cabling, combiner boxes, and installation labor.

Are these solar panels certified for harsh weather conditions?

Yes, these modules are designed to run safely within an operating temperature range of -40°C to +85°C, ensuring high mechanical durability and resistance against extreme environmental stresses.

What is the power tolerance specification for this series?

This series features a positive power tolerance of 0 to +3%, which ensures that the modules will perform at or slightly above their rated power specifications under standard conditions.
