Halkirk Solar
1 / 5
| Brand Name | JA Solar |
| Model Number | JAM66D45-595/LB |
| Cell Type | N type Mono-crystalline |
| Panel Dimensions | 2382*1134*30mm |
| Panel Efficiency | 23.0% |
| Warranty | 30 year |
| Junction Box | IP68 Rated |
| Connector | QC4.1-351/ MC4-EV02A |
| Frame | Anodized Aluminium Alloy |
| Weight | 33.1 kg |
| Power Tolerance | 0~+3% |
| Operate Temperature | -40 C~+85 C |
| Application | Solar Panel System |

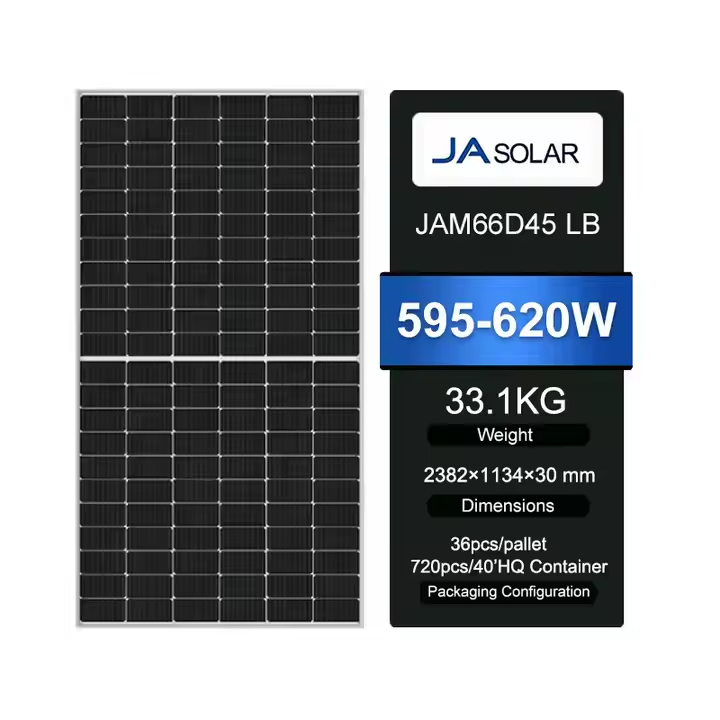

| Model | JAM66D45 LB 595-620W | |||||
| Maximum Power (Pmax) | 595 | 600 | 605 | 610 | 615 | 620 |
| Maximum Power Voltage (Vmp) | 39.27 | 39.44 | 39.60 | 39.77 | 39.96 | 40.21 |
| Maximum Power Current (Imp) | 15.15 | 15.21 | 15.28 | 15.34 | 15.39 | 15.42 |
| Open-circuit Voltage (Voc) | 47.50 | 47.70 | 47.90 | 48.10 | 48.30 | 48.50 |
| Short-circuit Current (Isc) | 15.90 | 15.95 | 16.00 | 16.05 | 16.10 | 16.13 |
| Module Efficiency STC (%) | 22.0 | 22.2 | 22.4 | 22.6 | 22.8 | 23.0 |

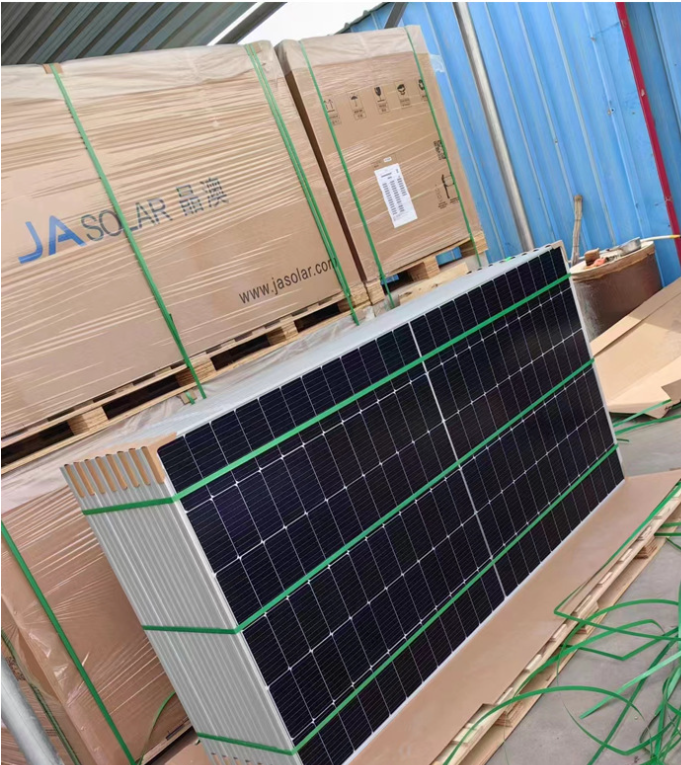

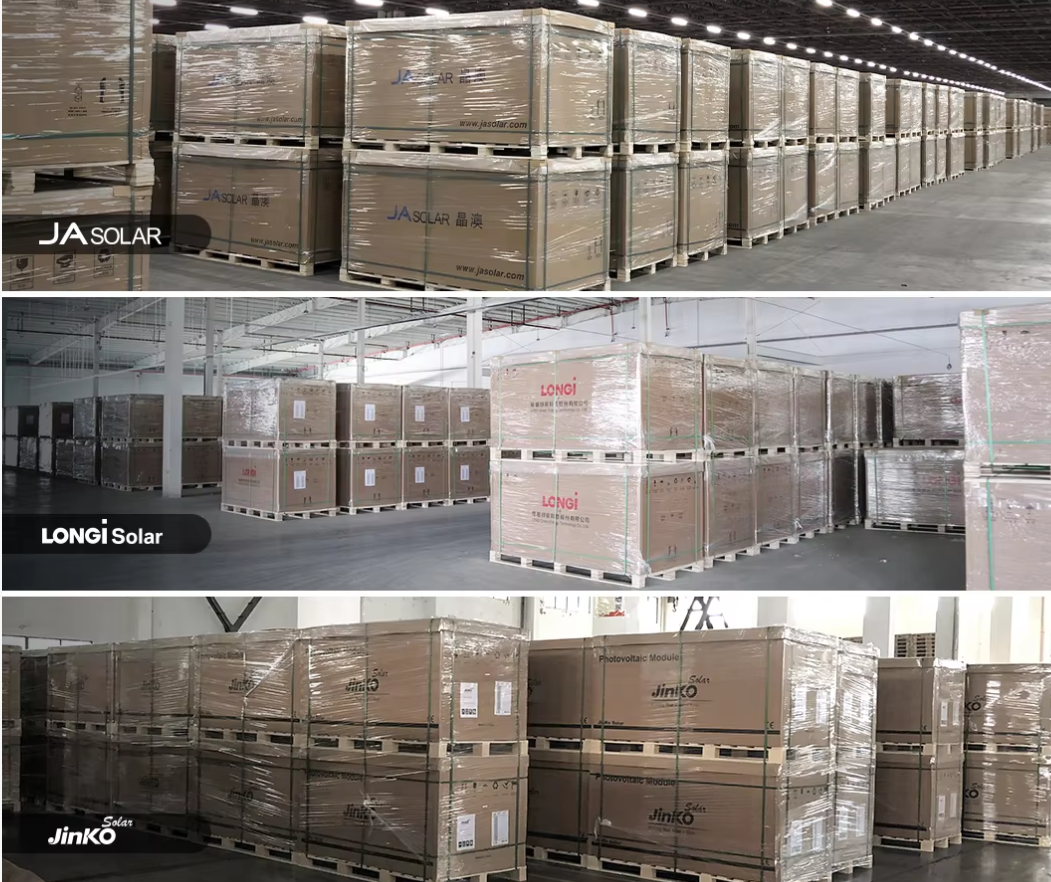

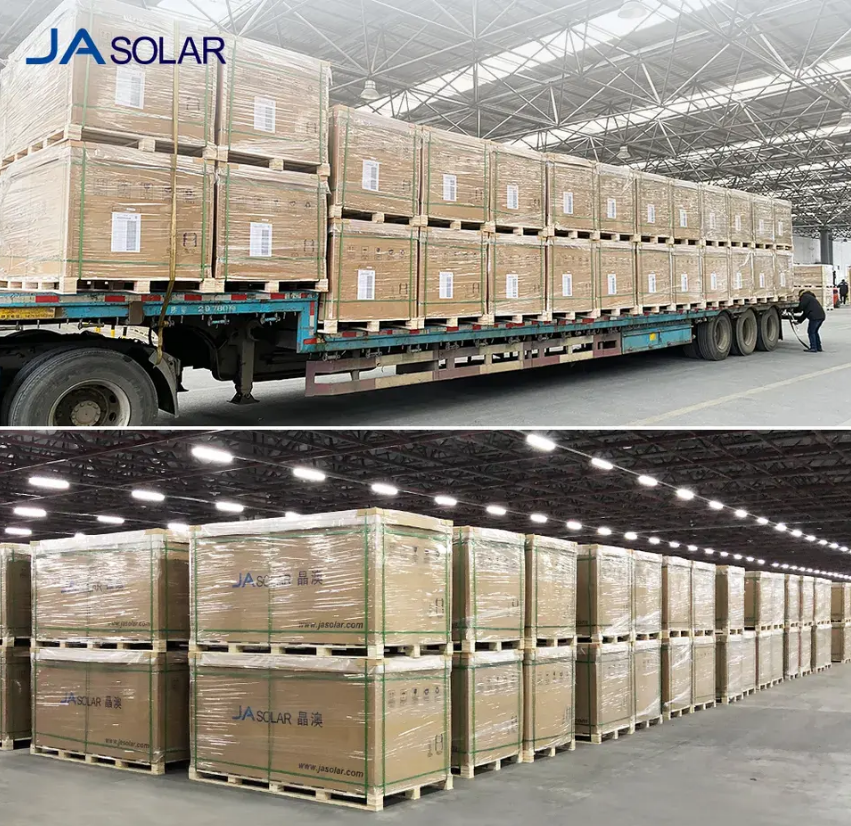

| Packaging Configuration | Standard Export Packaging |
| Number per pallet | 36 PCS |
| Package per 40'HQ | 20 Pallets |
| Total Quantity per 40'HQ | 720 PCS |
| Pallet Dimensions | 2420×1120×1250mm |
