Halkirk Solar
1 / 5
Combining gettering and single-side pc-Si technology ensures higher cell efficiency and module power.
Higher power generation under working conditions, thanks to passivating contact cell technology.

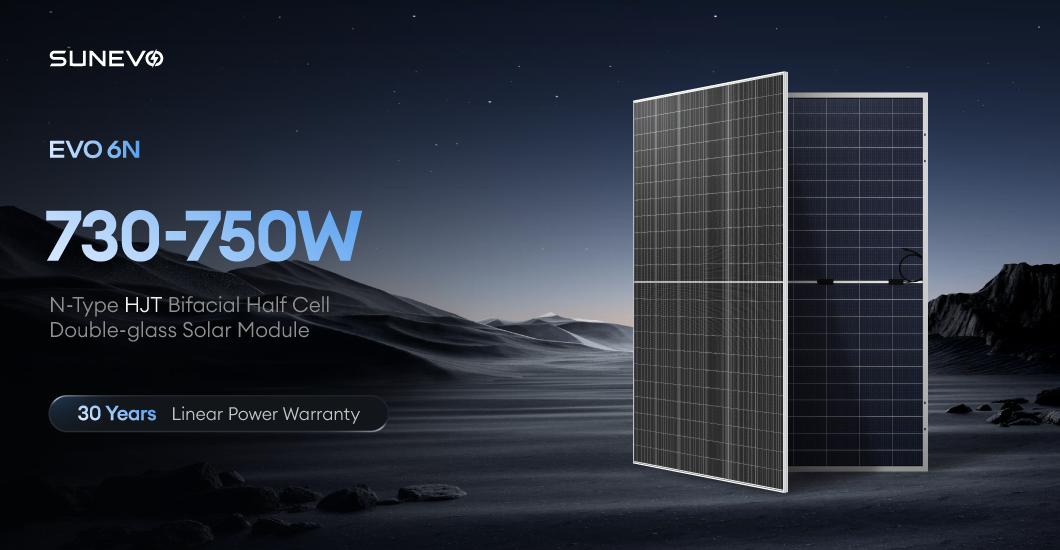

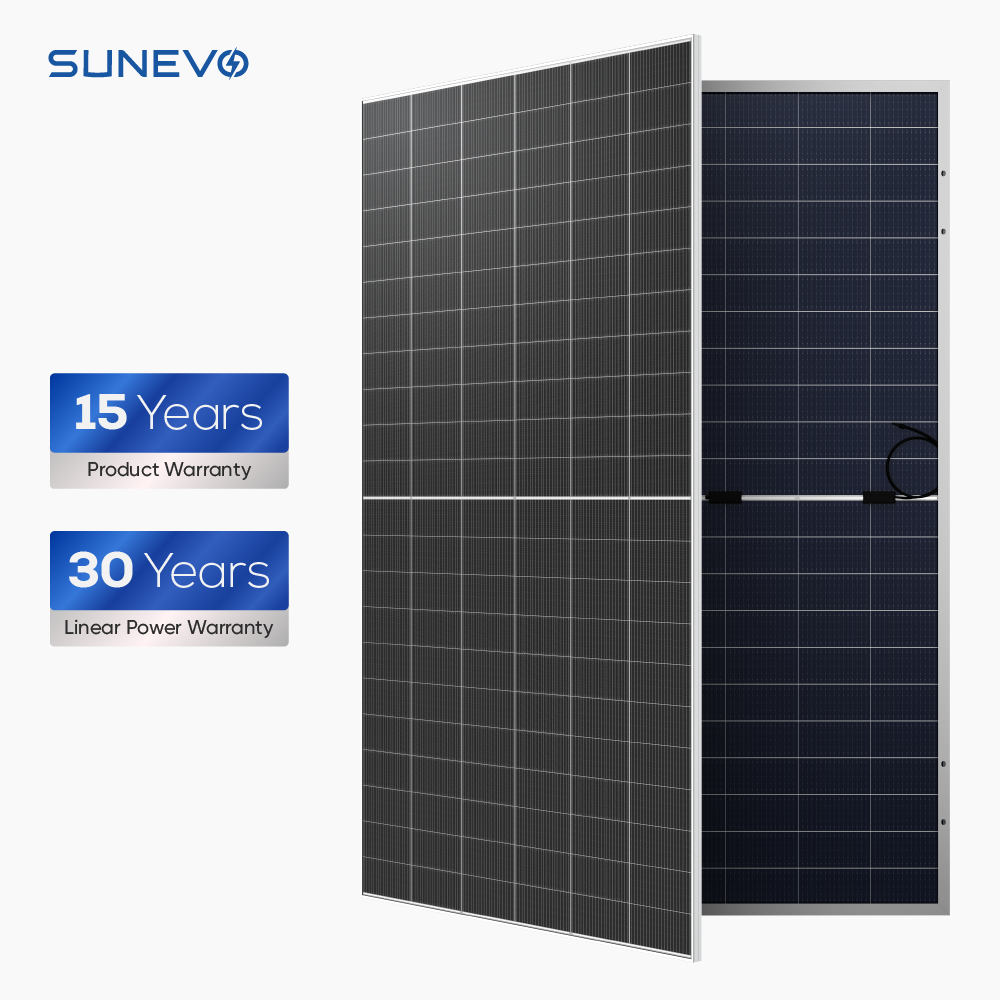

Natural symmetrical bifacial structure bringing more energy yield from the backside.
Integrated coating frames ensuring modules passing the IEC salt-mist test level 8.

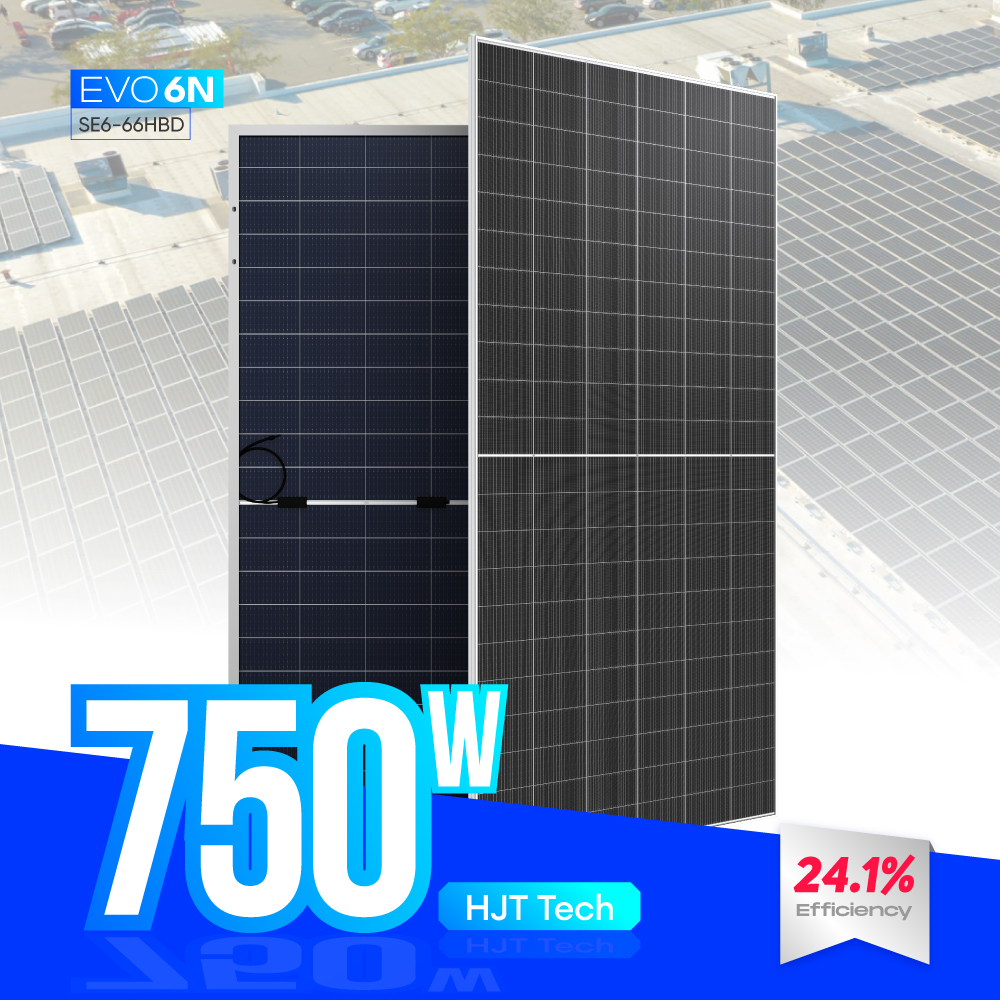

| Model: SE6-66HBD | 730 | 735 | 740 | |||
|---|---|---|---|---|---|---|
| STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax/W) | 730 | 557 | 735 | 561 | 740 | 565 |
| Maximum Power Voltage (Vmp/V) | 42.32 | 40.41 | 42.41 | 40.50 | 42.50 | 40.58 |
| Maximum Power Current (Imp/A) | 17.26 | 13.79 | 17.34 | 13.86 | 17.42 | 13.92 |
| Open Circuit Voltage (Voc/V) | 50.37 | 48.08 | 50.47 | 48.17 | 50.57 | 48.27 |
| Short Circuit Current (Isc/A) | 18.35 | 14.67 | 18.44 | 14.74 | 18.53 | 14.81 |
| Module Efficiency (%) | 23.50 | 23.70 | 23.80 | |||
| Model: SE6-66HBD | 745 | 750 | ||
|---|---|---|---|---|
| STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax/W) | 745 | 568 | 750 | 572 |
| Maximum Power Voltage (Vmp/V) | 42.59 | 40.67 | 42.68 | 40.76 |
| Maximum Power Current (Imp/A) | 17.50 | 13.99 | 17.58 | 14.05 |
| Open Circuit Voltage (Voc/V) | 50.67 | 48.36 | 50.77 | 48.46 |
| Short Circuit Current (Isc/A) | 18.62 | 14.88 | 18.71 | 14.95 |
| Module Efficiency (%) | 24.00 | 24.10 | ||
| Parameter | 818 | 824 | 829 | 835 | 841 |
|---|---|---|---|---|---|
| Maximum Power (Pmax/W) | 818 | 824 | 829 | 835 | 841 |
| Voltage at Pmax (Vmp/V) | 42.47 | 42.56 | 42.65 | 42.74 | 42.83 |
| Current at Pmax (Imp/A) | 19.28 | 19.37 | 19.46 | 19.55 | 19.64 |
| Open Circuit Voltage (Voc/V) | 50.54 | 50.65 | 50.75 | 50.85 | 50.95 |
| Short Circuit Current (Isc/A) | 20.58 | 20.68 | 20.78 | 20.88 | 20.98 |

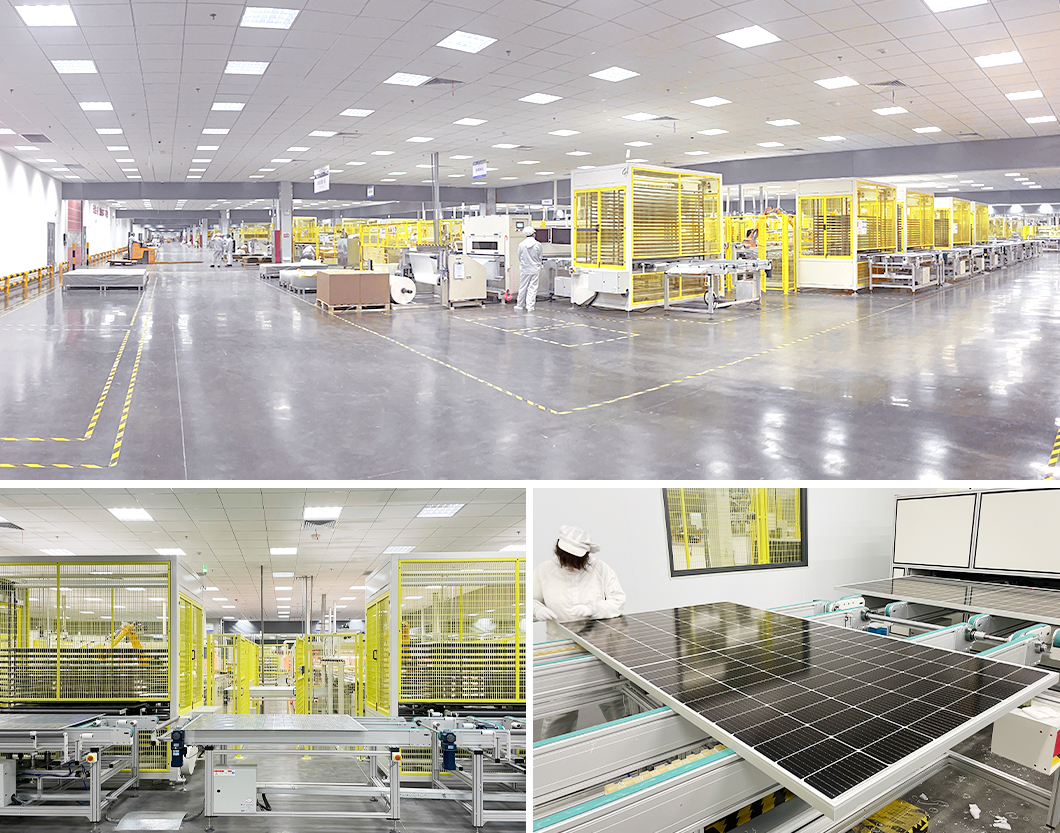

Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and efficiency, the whole production chain is divided into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.

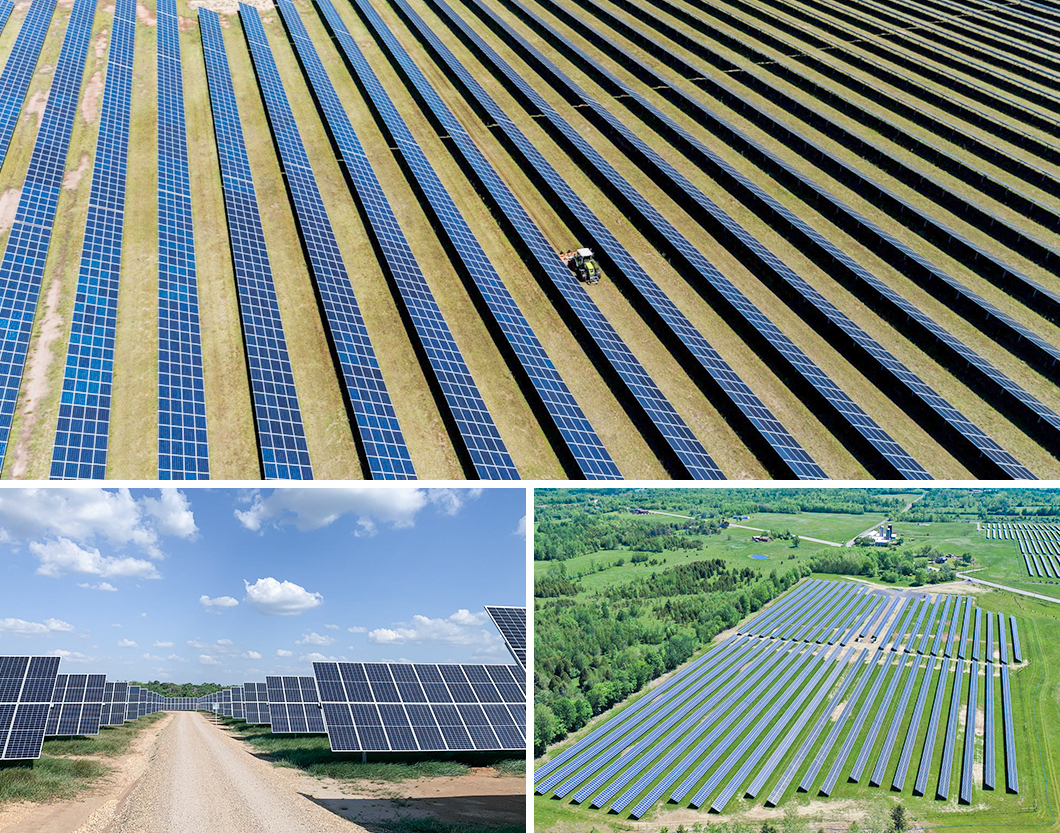

With years of professional experience, we can provide you the perfect module product for your perfect projects so as to maximize your benefits of investments.

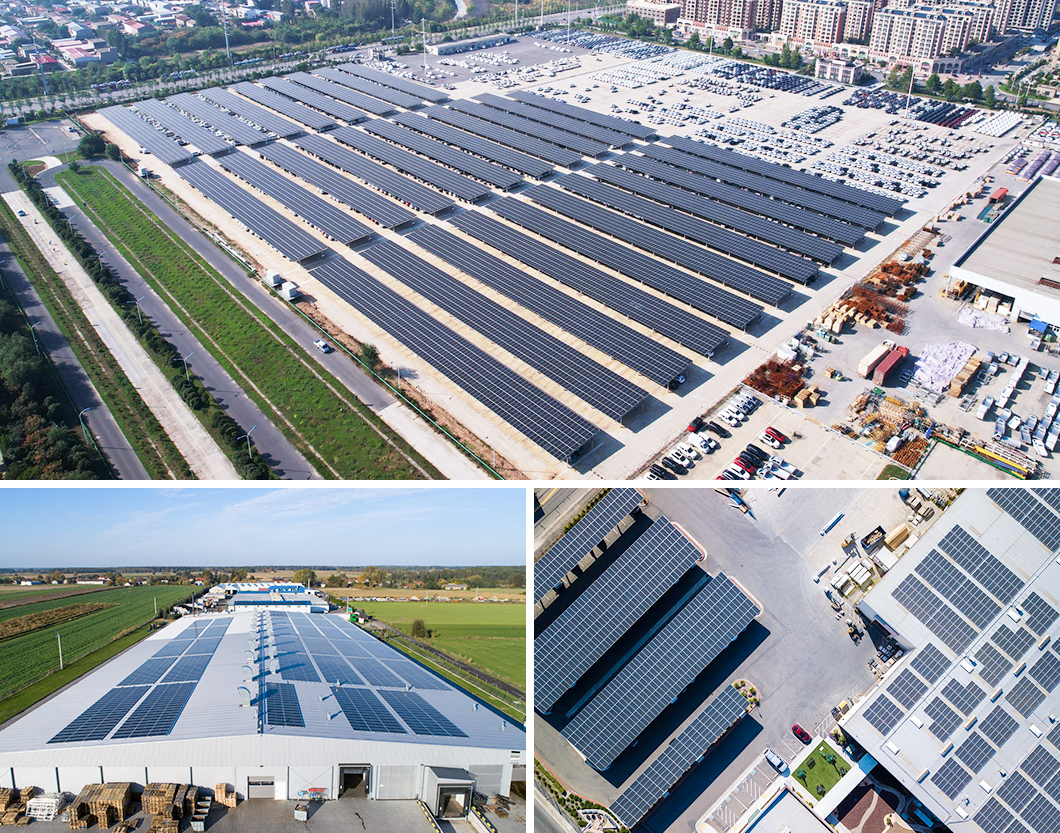

Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And we were, is, and will always be a reliable partner which you won`t regret to choose.

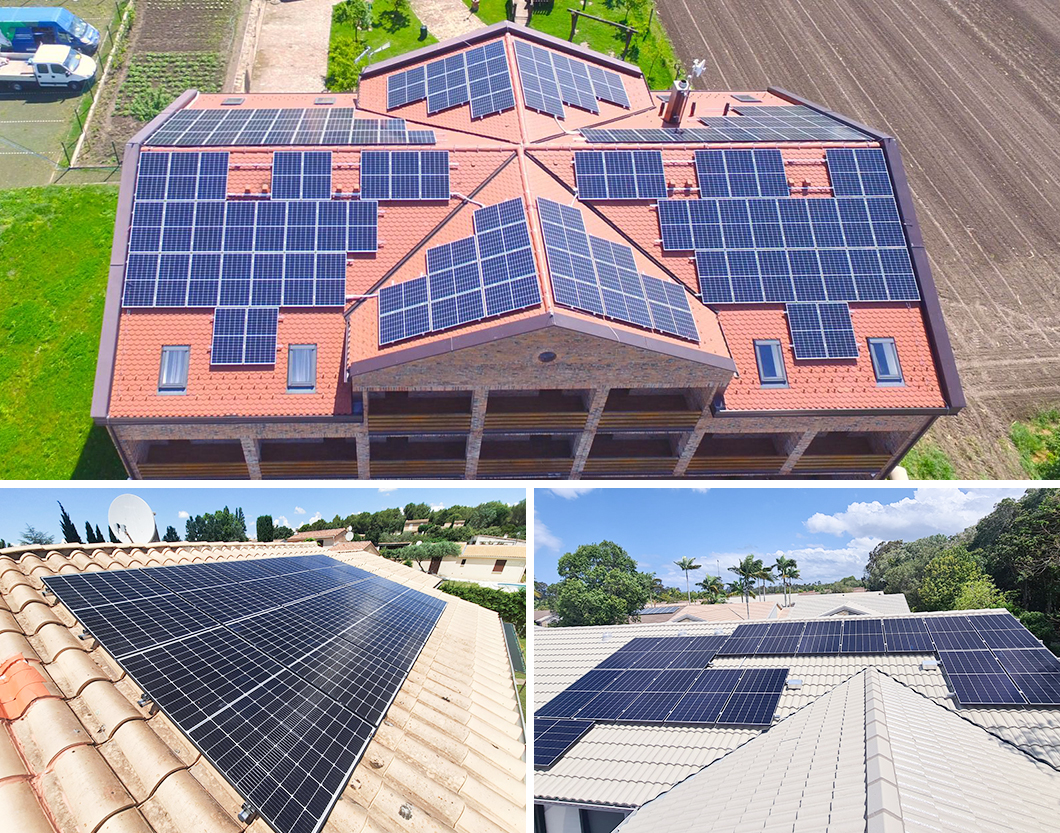

Thousands of houses around the globe are equipped with our solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.
