| Cell Type | N-type Mono-crystalline |
| No.of cells | 132(66×2) |
| Dimensions | 2384×1303×33 mm |
| Weight | 37.5 kg |

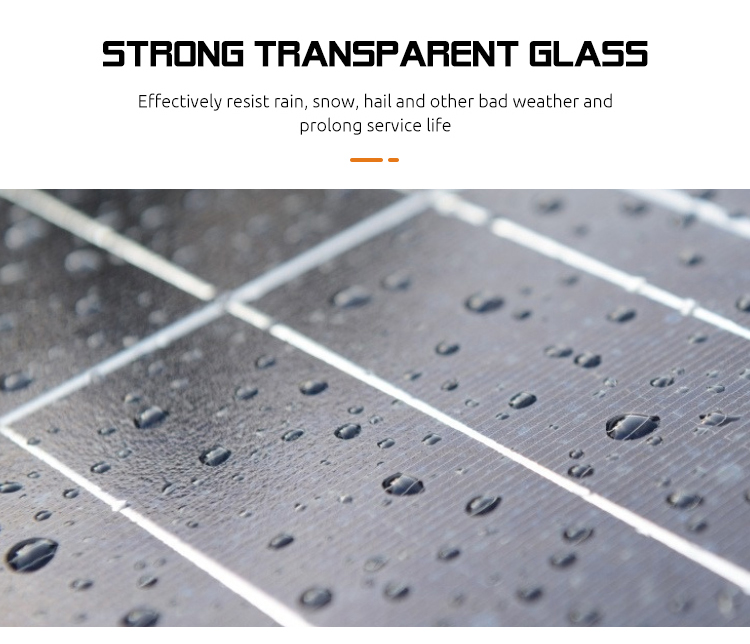

| Front Glass | 2.0 mm, Anti-Reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Output Cables | 4.0 mm² (+): 400 mm, (-): 200 mm or Customized Length |

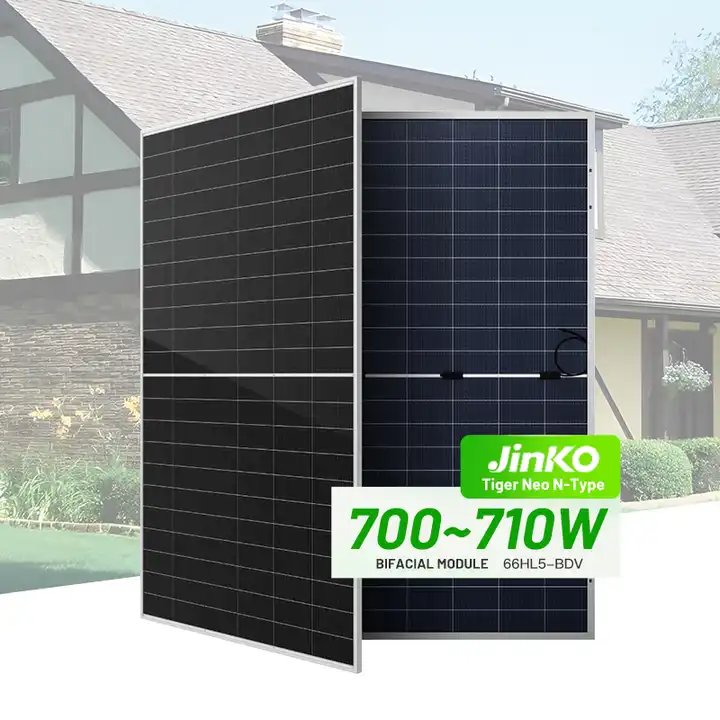

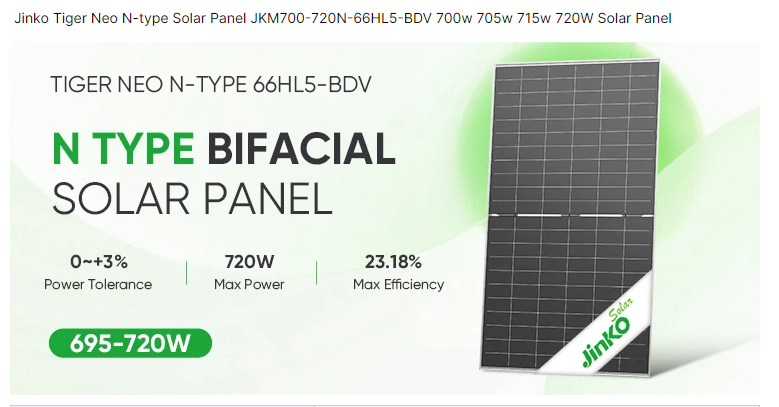

| TiGER Neo BIFACIAL MODULE WITH DUAL GLASS JKM700-720N-66HL5-BDV | ||||||
|---|---|---|---|---|---|---|
| Specifications (STC) | ||||||
| Maximum Power-Pmax [Wp] | 695 | 700 | 705 | 710 | 715 | 720 |
| Maximum Power Voltage-Vmp [V] | 40.29 | 40.42 | 40.53 | 40.65 | 40.77 | 40.89 |
| Maximum Power Current-Imp [A] | 17.25 | 17.32 | 17.40 | 17.47 | 17.54 | 17.61 |
| Open-circuit Voltage-Voc [V] | 48.24 | 48.40 | 48.56 | 48.73 | 48.88 | 49.04 |
| Short-circuit Current-Isc [A] | 18.33 | 18.40 | 18.46 | 18.53 | 18.60 | 18.67 |
| Module Efficiency STC [%] | 22.37 | 22.54 | 22.70 | 22.86 | 23.02 | 23.18 |
| Power Tolerance | 0~+3% | |||||
| Temperature Coefficients of Pmax | -0.29 %/°C | |||||
| Temperature Coefficients of Voc | -0.25 %/°C | |||||
| Temperature Coefficients of Isc | 0.045 %/°C | |||||
| STC: Irradiance 1000W/m², Cell Temperature 25°C, AM = 1.5 | ||||||
| Specifications (BNPI) | ||||||
| Maximum Power-Pmax [Wp] | 767 | 773 | 779 | 784 | 790 | 795 |
| Maximum Power Voltage-Vmp [V] | 40.26 | 40.41 | 40.55 | 40.66 | 40.80 | 40.92 |
| Maximum Power Current-Imp [A] | 19.05 | 19.13 | 19.21 | 19.28 | 19.36 | 19.43 |
| Open-circuit Voltage-Voc [V] | 48.34 | 48.47 | 48.59 | 48.72 | 48.85 | 48.99 |
| Short-circuit Current-Isc [A] | 20.25 | 20.33 | 20.40 | 20.48 | 20.55 | 20.63 |
| BNPI: Irradiance: front 1000W/m², rear 135W/m², Cell Temperature 25°C, AM=1.5 | ||||||
| Application Conditions | ||||||
| Operating Temperature | -40°C ~ +70°C | |||||
| Maximum System Voltage | 1500 VDC (IEC) | |||||
| Maximum Series Fuse Rating | 35A | |||||
| Bifaciality Coefficient | φVoc: 98±5%, φIsc: 80±5%, φPmax: 80±5% | |||||
