| STC | SMF520J-12X12UW |
|---|---|
| Maximum Power ( Pmax ) | 520 |
| Maximum Power Voltage ( Vmp ) | 42.3 |
| Maximum Power Current ( Imp ) | 12.31 |
| Open-circuit Voltage ( Voc ) | 49.5 |
| Short-circuit Current ( Isc ) | 13.56 |
| Module Efficiency (%) | 19.3 |
| Operating Temperature | -40ºC to 85ºC |
| Maximum System Voltage | 1500V DC(IEC) |
| Maximum Series Fuse Rating | 25A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Weight | 8.6KG |

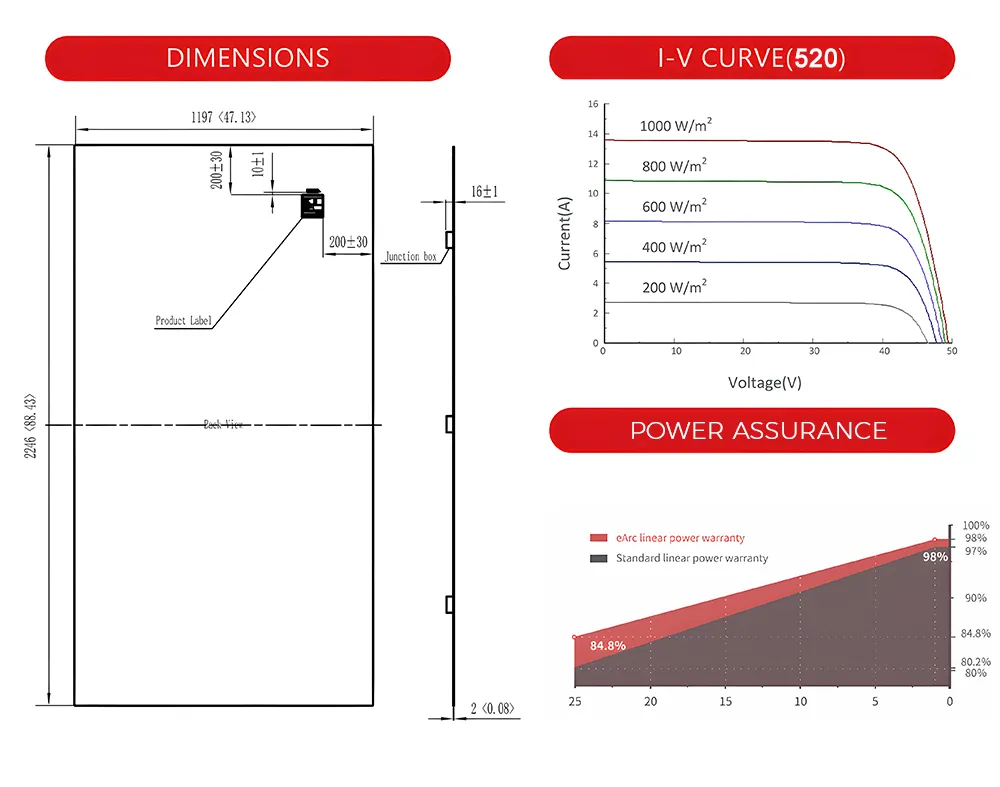

| Size | 2246*1197*2mm |
| STC: Irradiance 1000W/m2, Cell temperature 25ºC, AM=1.5 | Tolerances of Pmax, Voc and Isc are within ±5% |

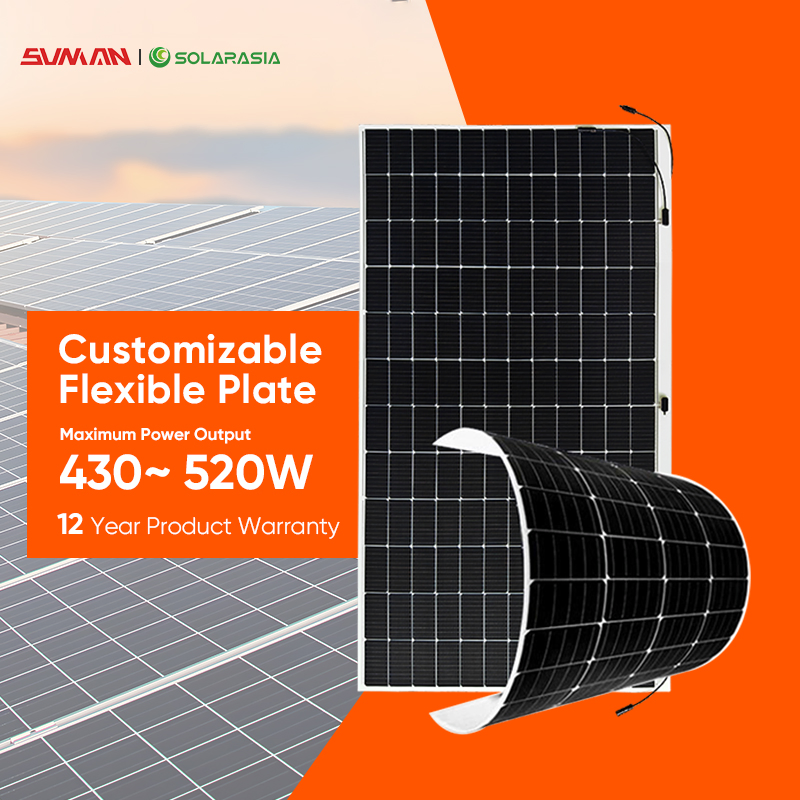

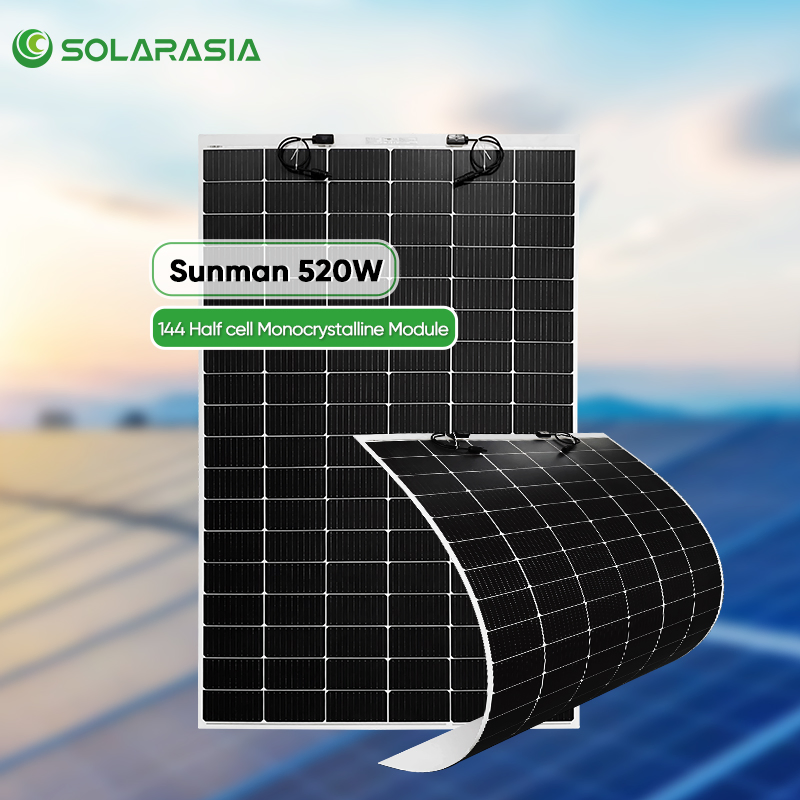

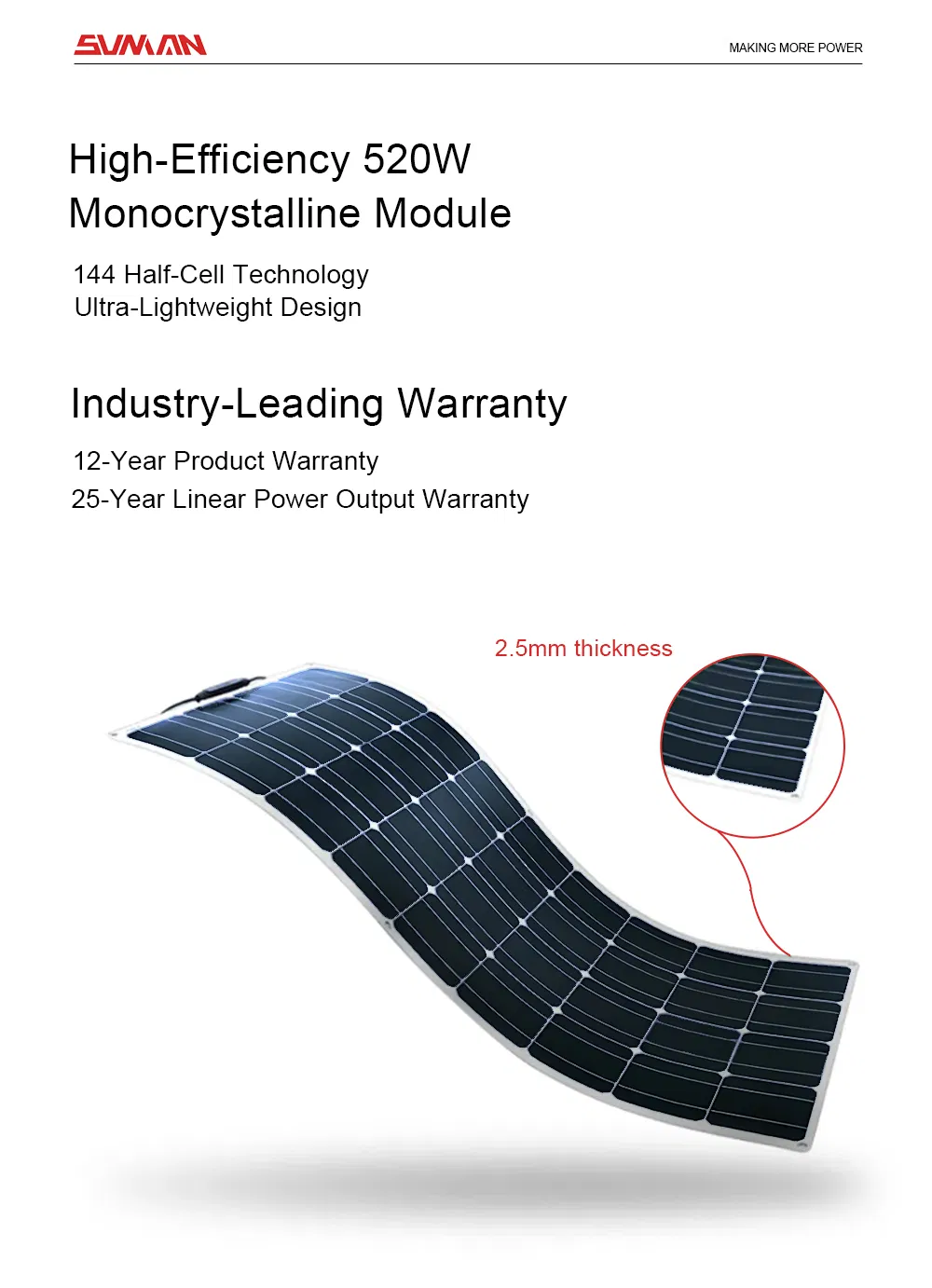

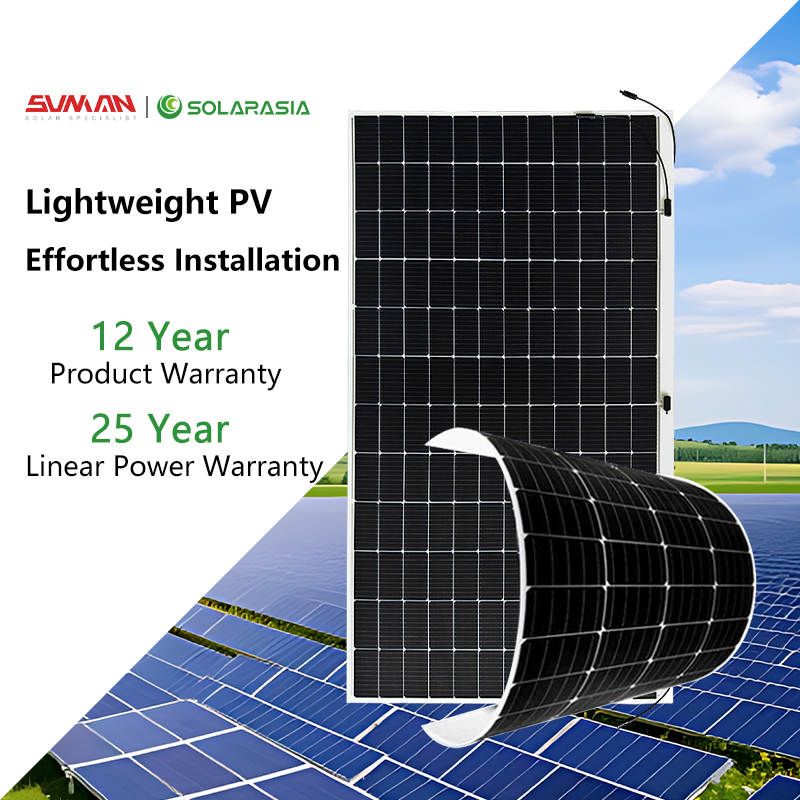

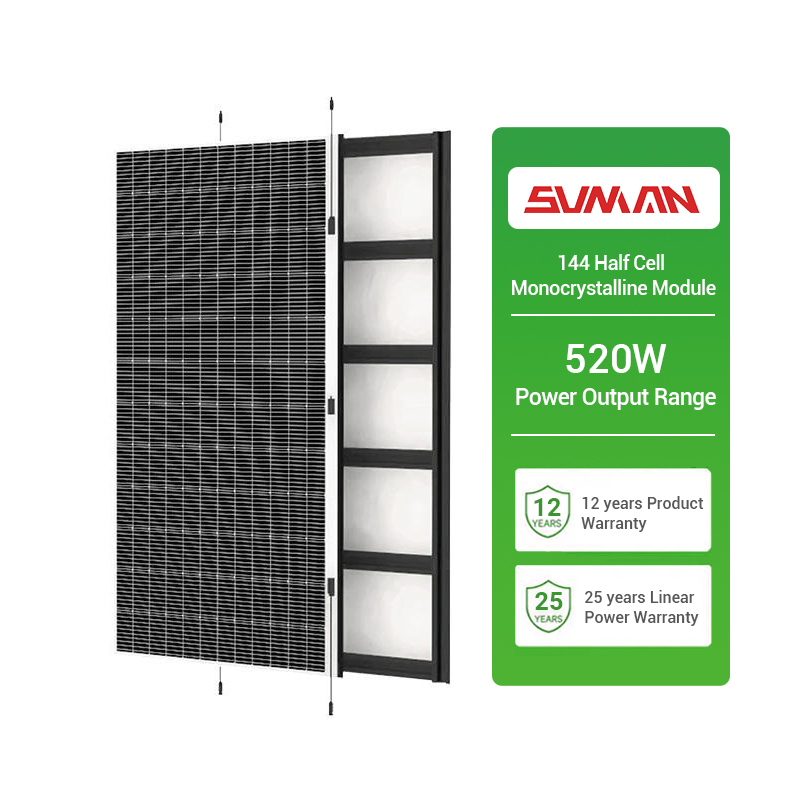

The SMF520J-12X12UW is a 520W flexible solar panel designed for lightweight and curved surface installations. It is ideal for applications where traditional rigid solar panels cannot be installed.
Flexible solar panels are lighter, bendable, and easier to install. They place less load on the mounting surface and can be installed on curved roofs, mobile structures, RVs, boats, and lightweight buildings, making them more versatile than rigid modules.

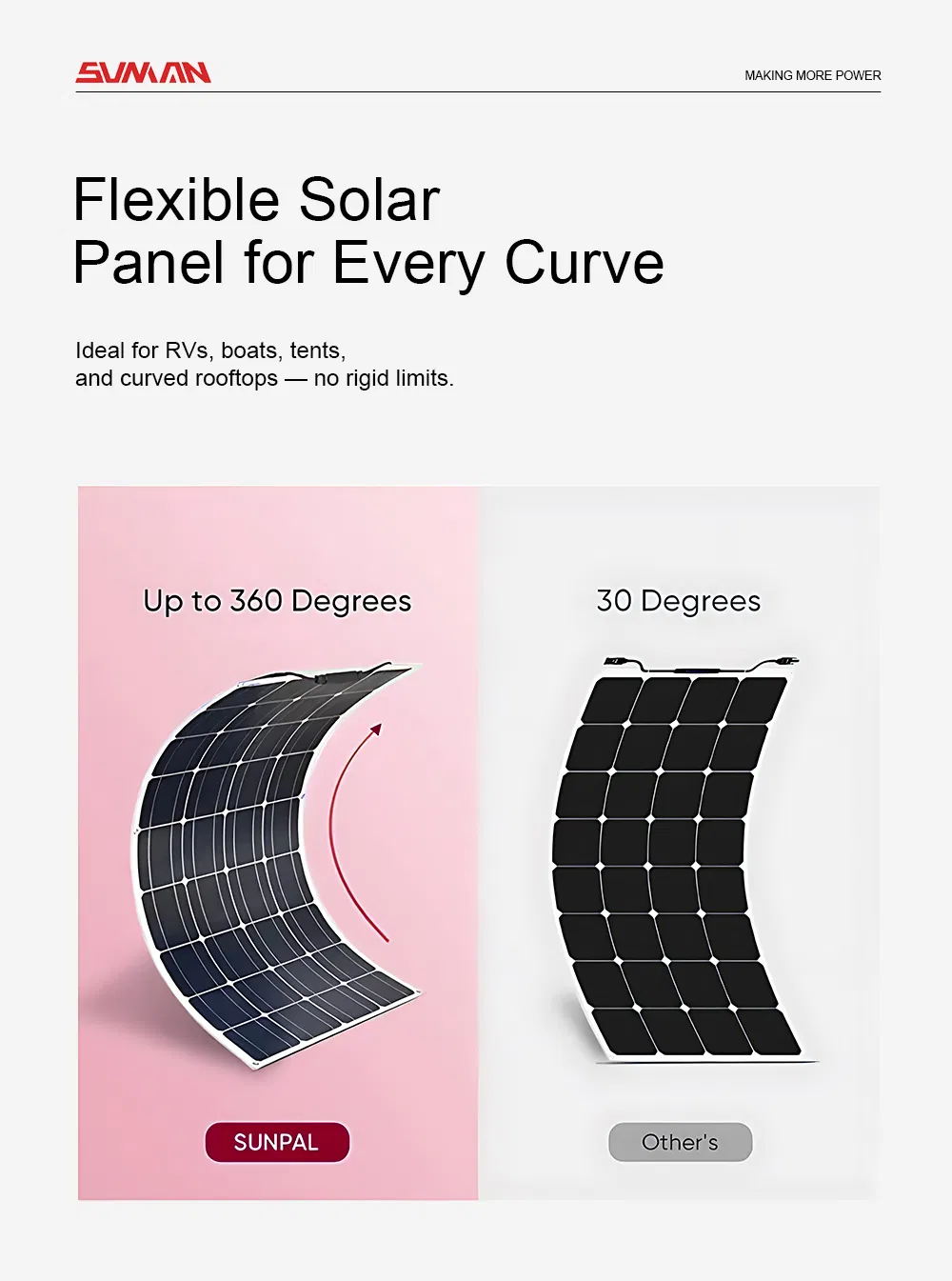

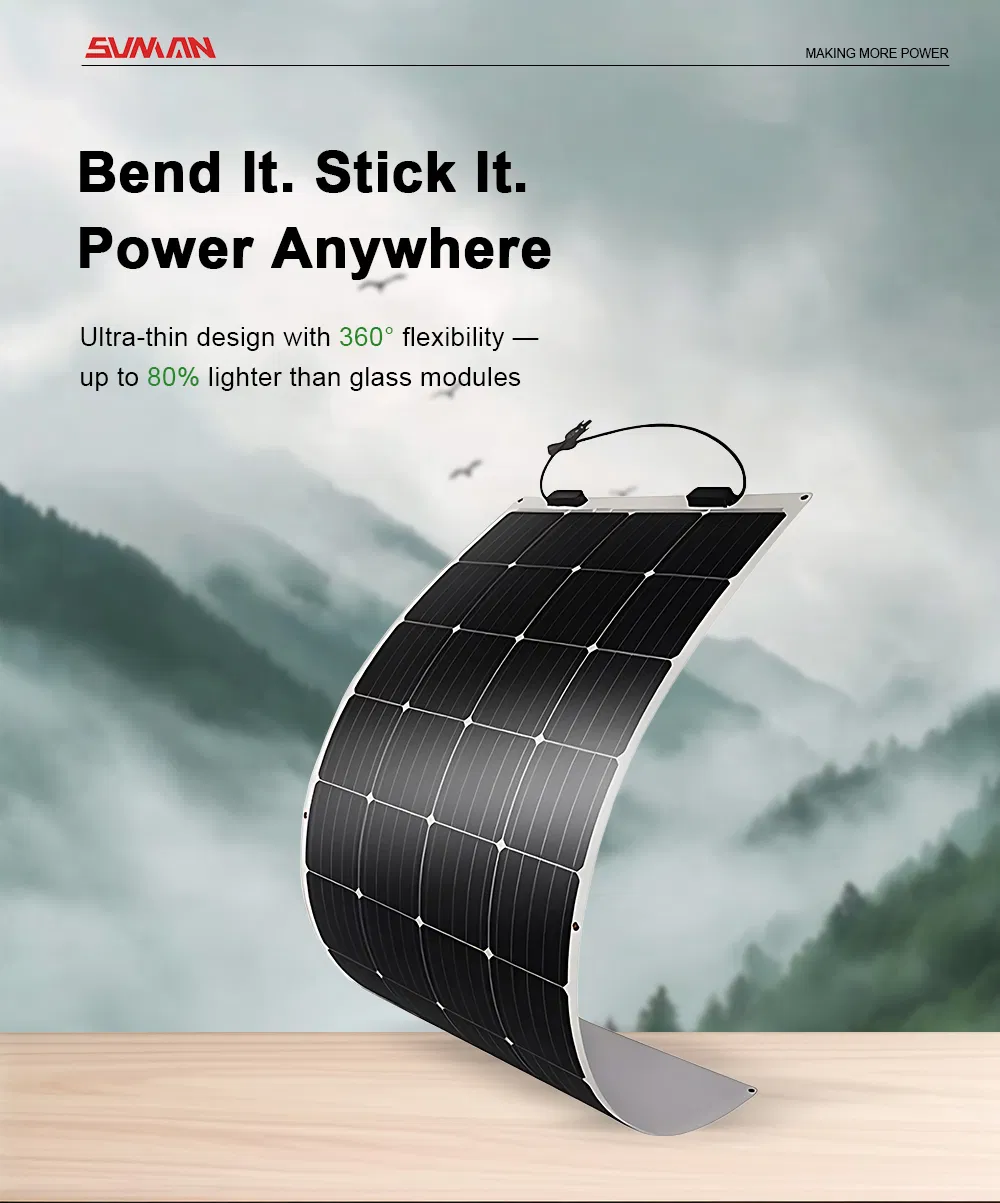

Yes. The SMF520J-12X12UW can be installed on gently curved surfaces, allowing it to adapt to non-flat roofs and structures without damaging the solar cells.
Yes. This model delivers a high power output of 520W, which is significantly higher than many standard flexible solar panels. It uses high-efficiency solar cells to ensure stable and reliable energy generation.

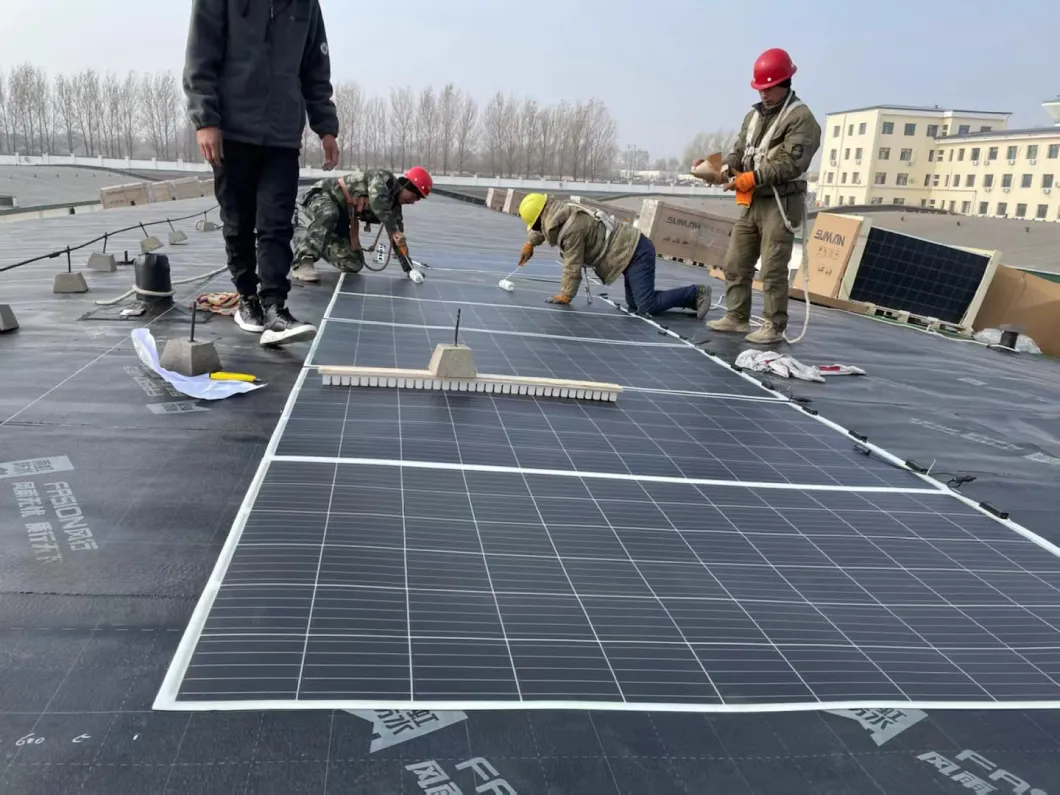

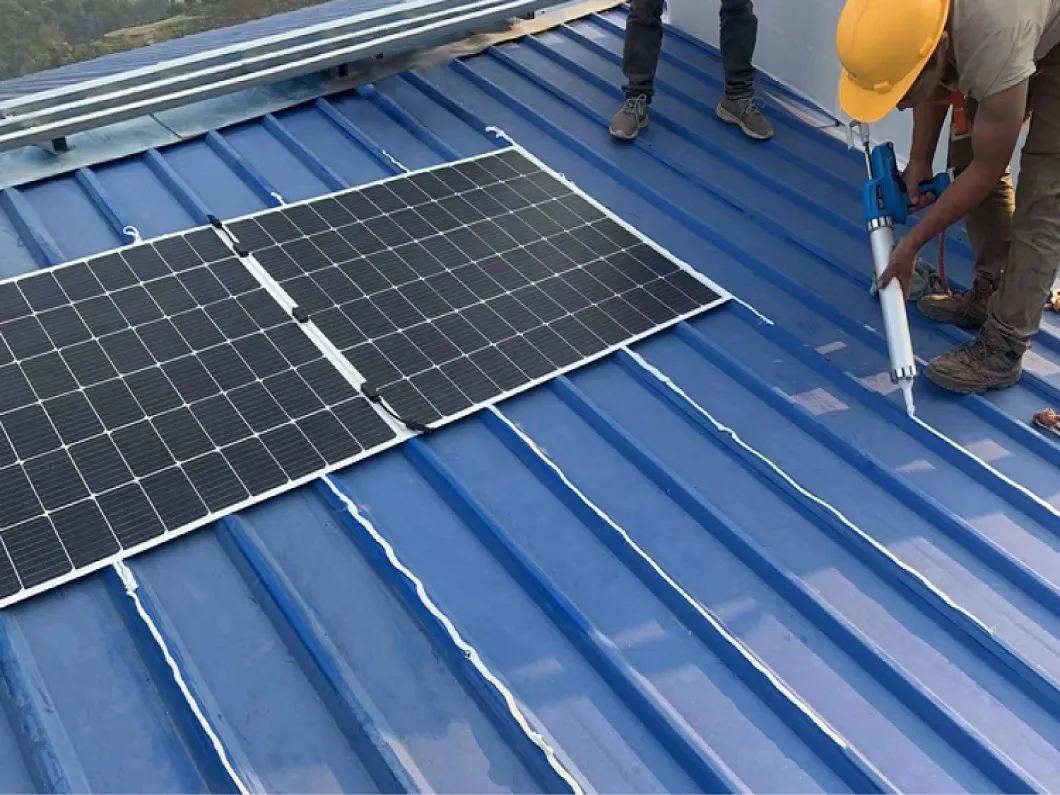

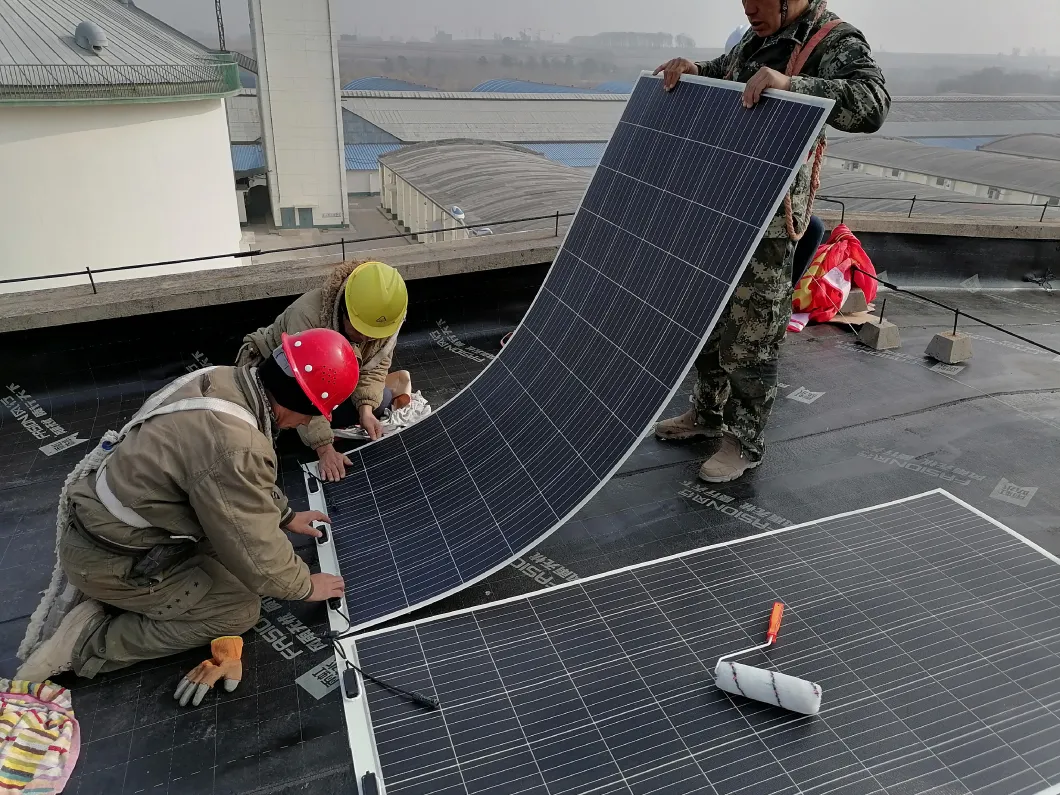

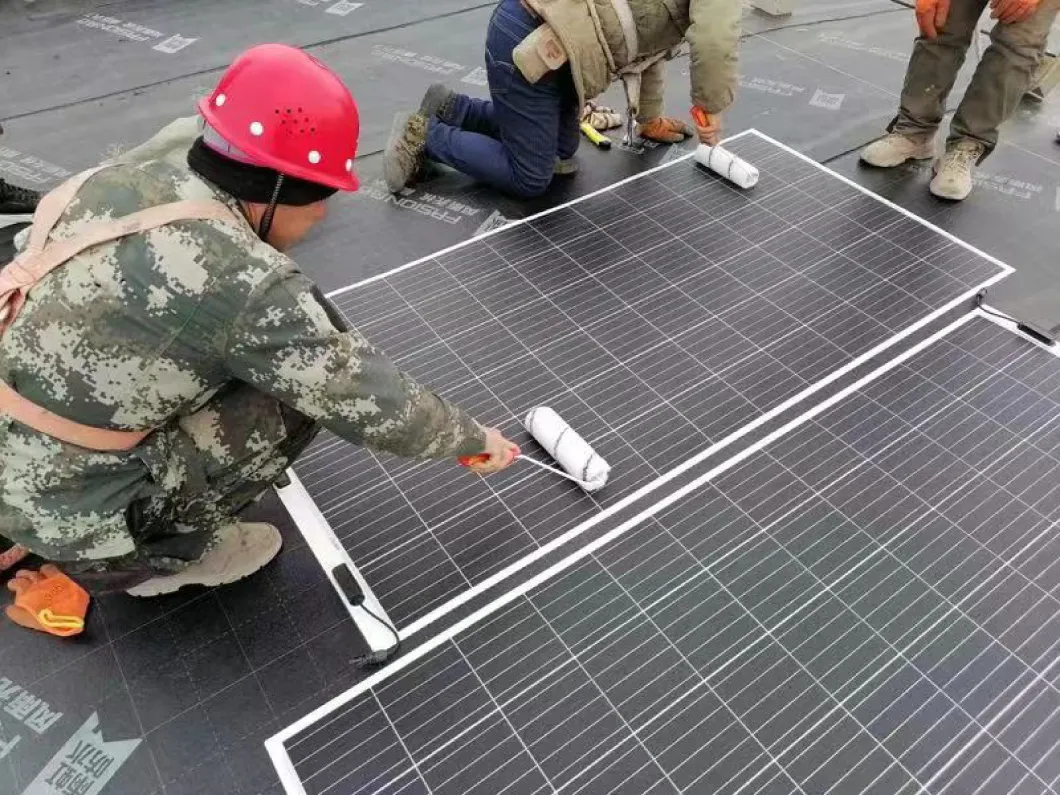

The panel supports adhesive mounting, mechanical fastening, or customized mounting solutions, depending on the installation surface and project requirements. Its lightweight design simplifies transportation and installation.

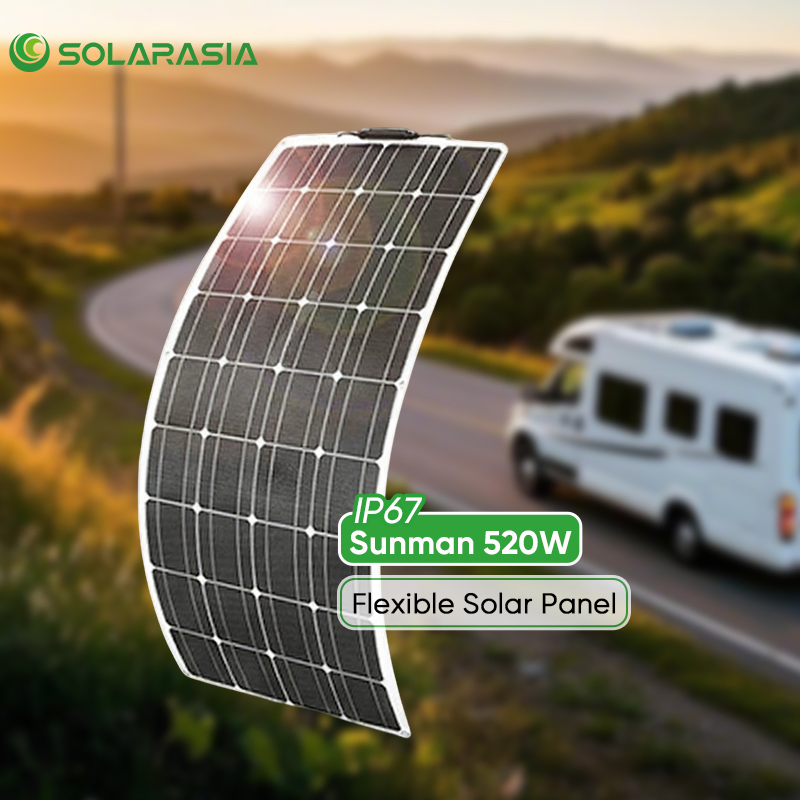

Yes. The panel is designed for outdoor use and performs well in environments such as marine, RV, camping, and mobile solar applications, where durability and weather resistance are required.
