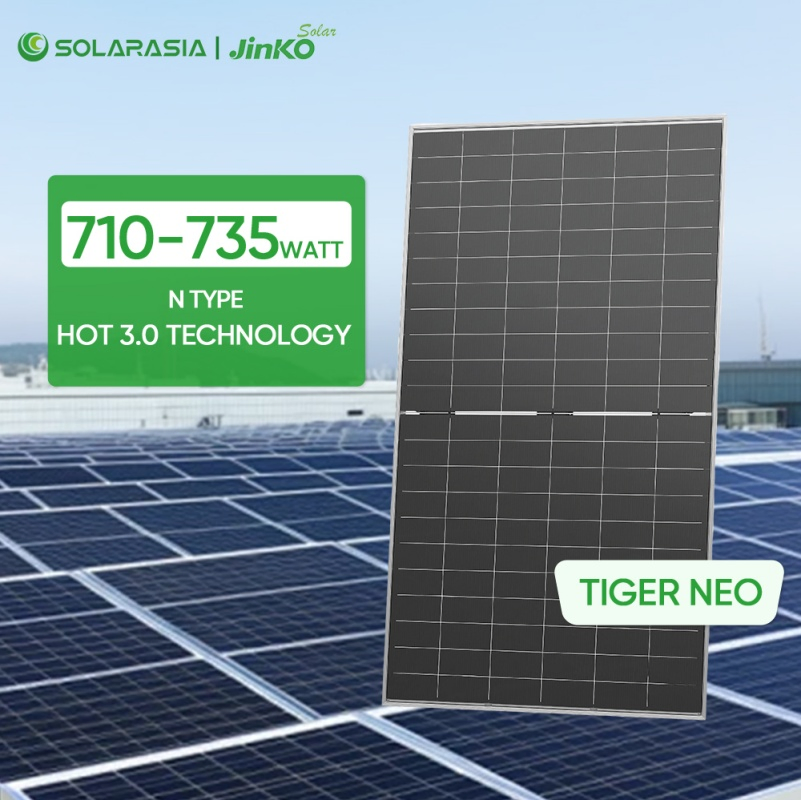

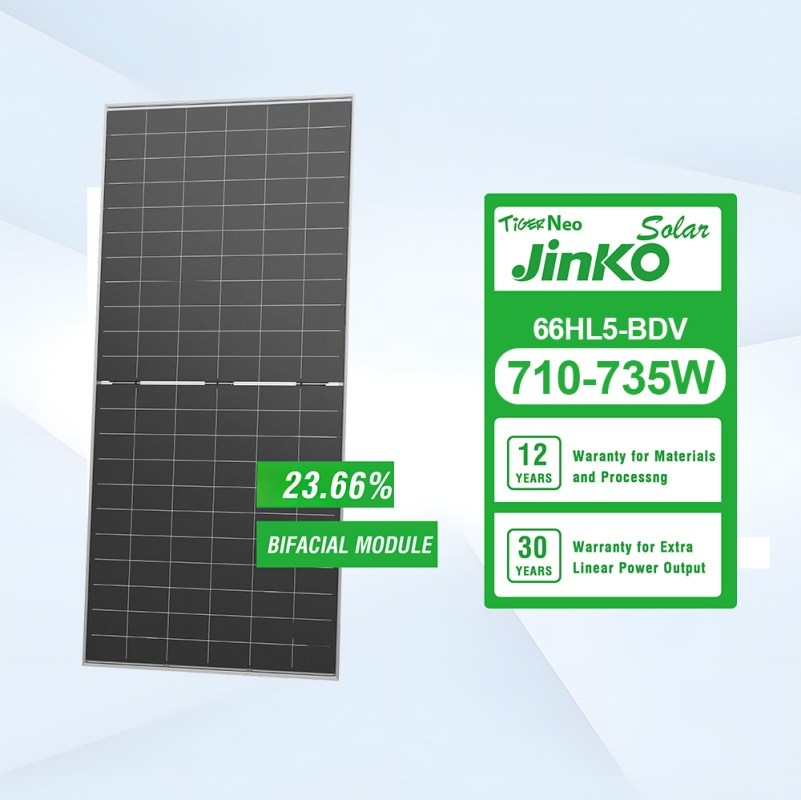

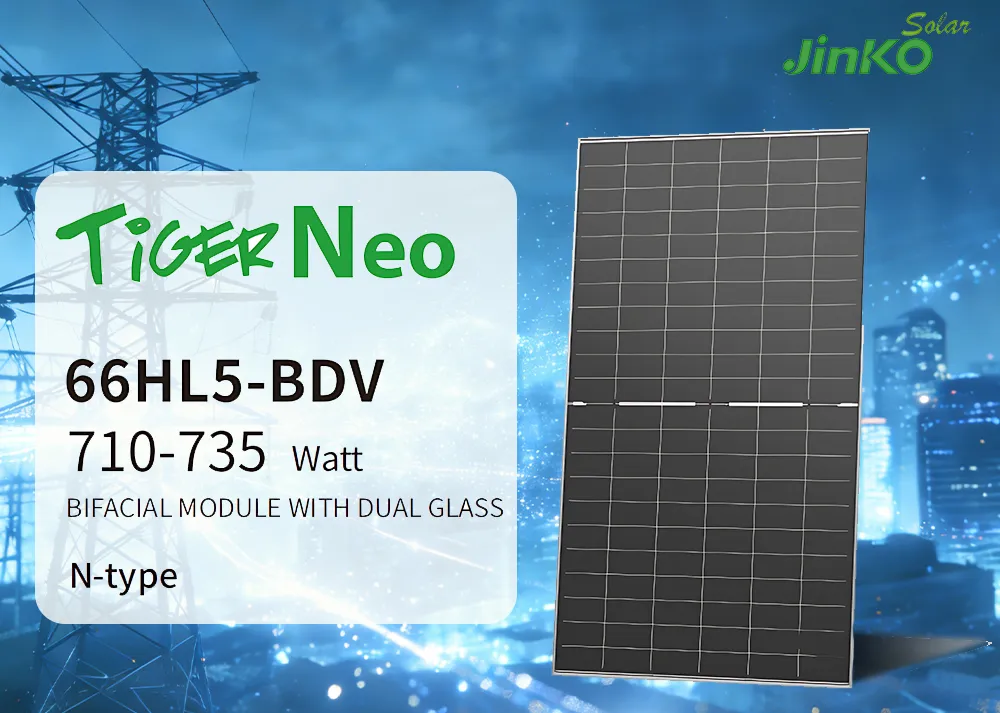

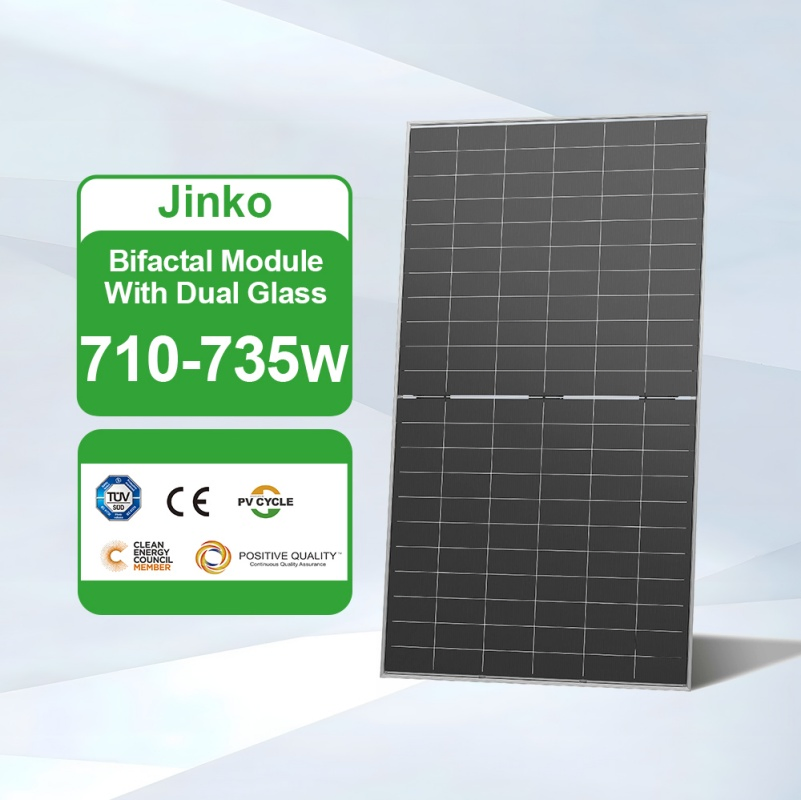

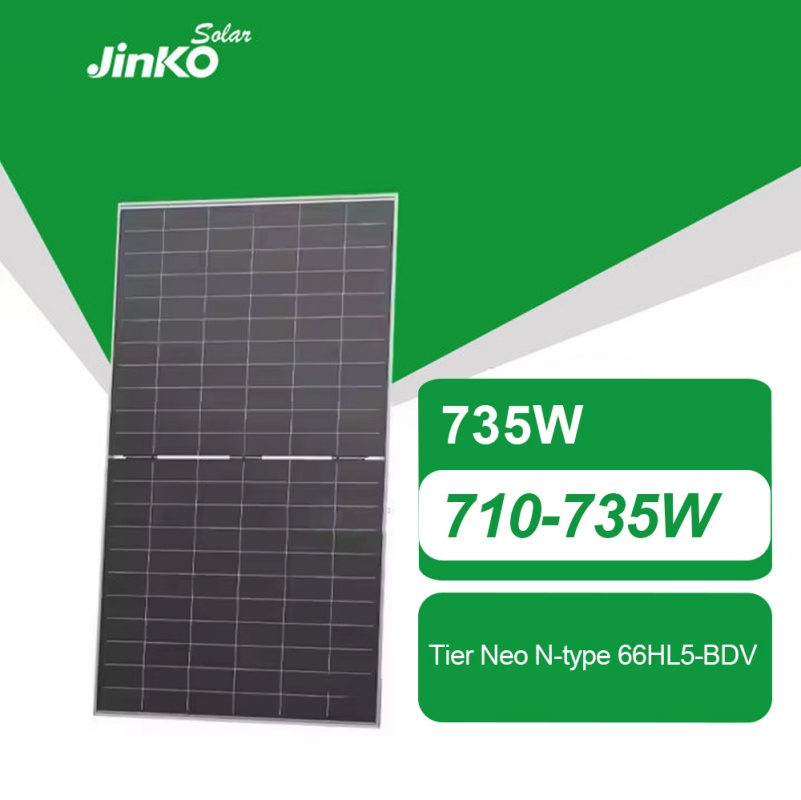

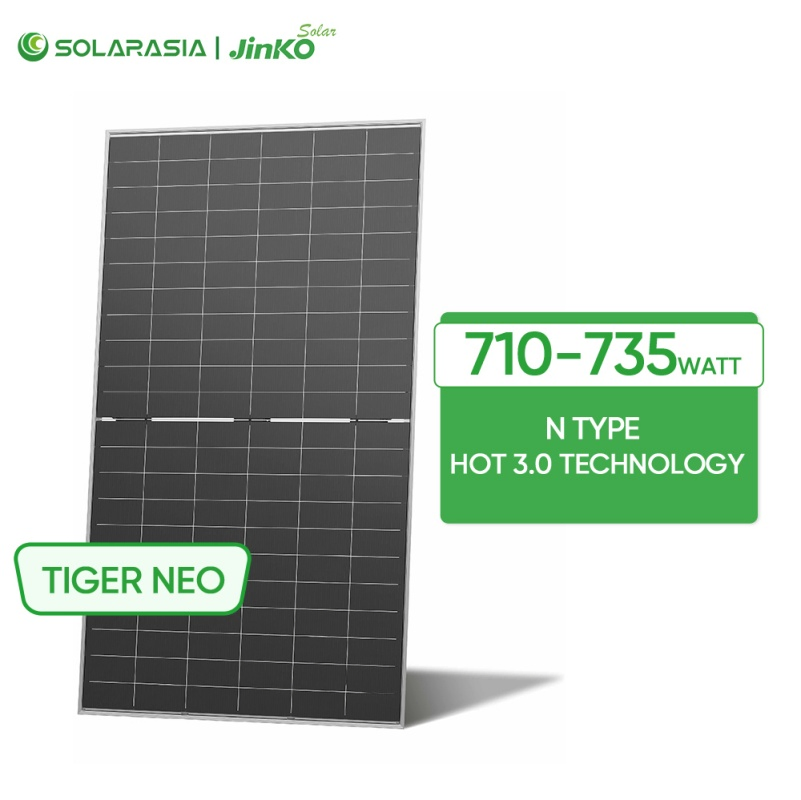

Jinko Solar Panel Tiger Neo 66hl5-Bdv Mono Crystalline Solar Panel 710W 715W 720W 725W 730W Bifacial N-Type Double Glass Solar Panel for Utility Solar Farm
The 66HL5-BDV is a high-efficiency, ultra-high-power photovoltaic module designed for utility-scale solar plants, commercial & industrial (C&I) projects, and large rooftop installations.
With a power output range of 710W to 735W, this module significantly reduces BOS cost, land use, and installation time, making it an ideal solution for large solar energy projects with high performance requirements.
Product Parameters
Key Specifications
Model: 66HL5-BDV
Power Output: 710W / 725W / 735W

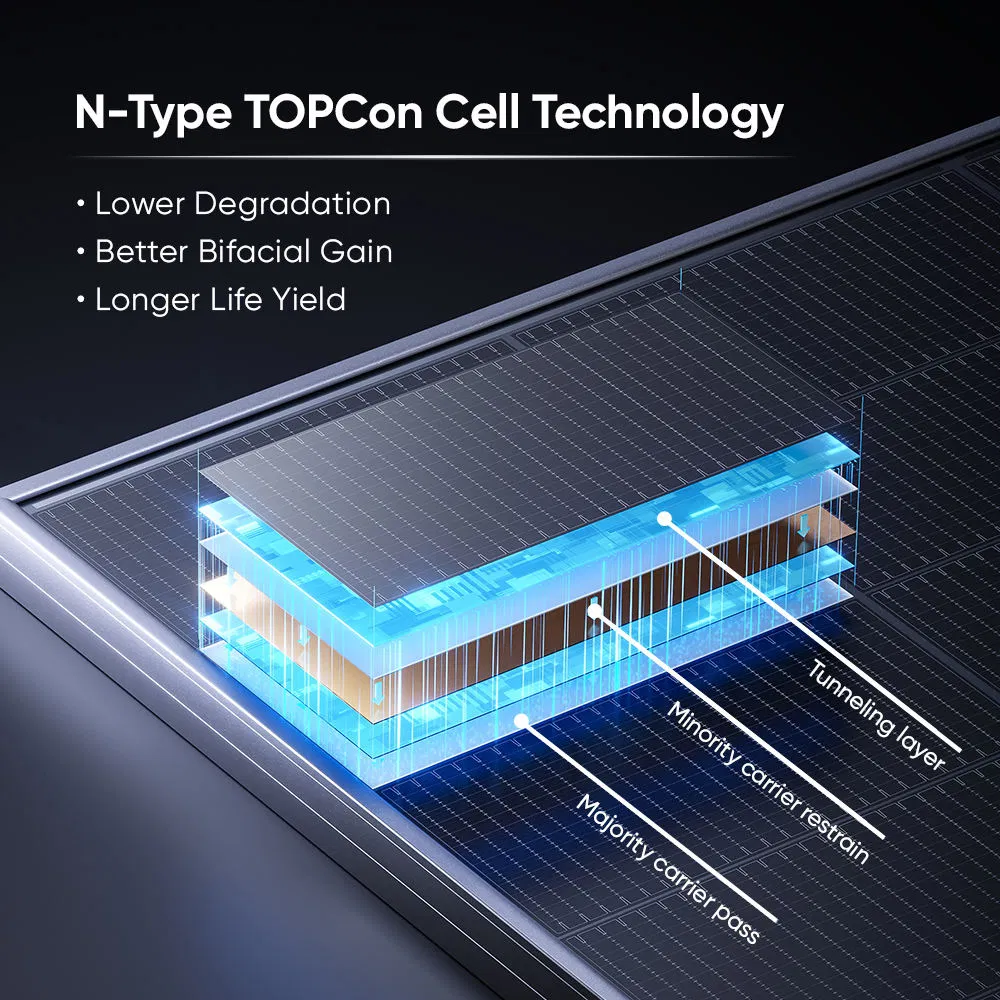

Cell Type: High-efficiency monocrystalline
Module Type: High Power Solar PV Module
Application: Utility-Scale, Commercial & Industrial Solar Projects
Maximum Power-Pmax[Wp]
710
715
720
725
730
735
Maximum Power Voltage-Vmp[V]
40.65
40.77
40.89
41.00
41.11
41.23
Maximum Power Current - Imp [A]
17.47
17.54
17.61
17.69
17.76
17.83
Open-circuit Voltage - Voc [V]
48.73
48.88
49.04
49.20
49.36
49.52
Short-circuit Current - Isc [A]
18.53
18.60
18.67
18.74
18.81
18.88
Module Efficiency STC [%]
22.86
23.02
23.18
23.34
23.50
23.66
Power Tolerance
0~+3%
Temperature Coefficients of Pmax
-0.29%/℃
Temperature Coefficients of Voc
-0.25%/℃
Temperature Coefficients of Isc
0.045%/℃
Core Features & Advantages
Ultra-High Power Output up to 735W
Power range from 710W to 735W provides higher energy yield per module. Requires fewer modules for the same system capacity, resulting in lower installation cost, reduced mounting structure, and cabling.
High Efficiency for Large-Scale Generation
Optimized cell layout for maximum power density. Delivers excellent performance under high irradiance conditions. Ideal for utility-scale and large commercial solar plants to maximize power generation per square meter.
Performance in Harsh Environments
Ensures reliable operation under high temperature conditions. Stable power output in dusty, humid, and challenging outdoor environments. Extremely suitable for desert, coastal, and high-irradiance regions.
Reduced Balance of System (BOS) Cost
High wattage reduces the number of modules required per MW. Lowers installation labor, transportation cost, and simplifies overall system design for EPC contractors.
Manufacturing Quality
Produced under strict quality control processes. Provides stable performance and long-term reliability that is widely accepted in global solar markets.
Wide Application Range
Perfectly suited for utility-scale solar power plants, commercial & industrial rooftop systems, ground-mounted solar projects, and large distributed solar installations.

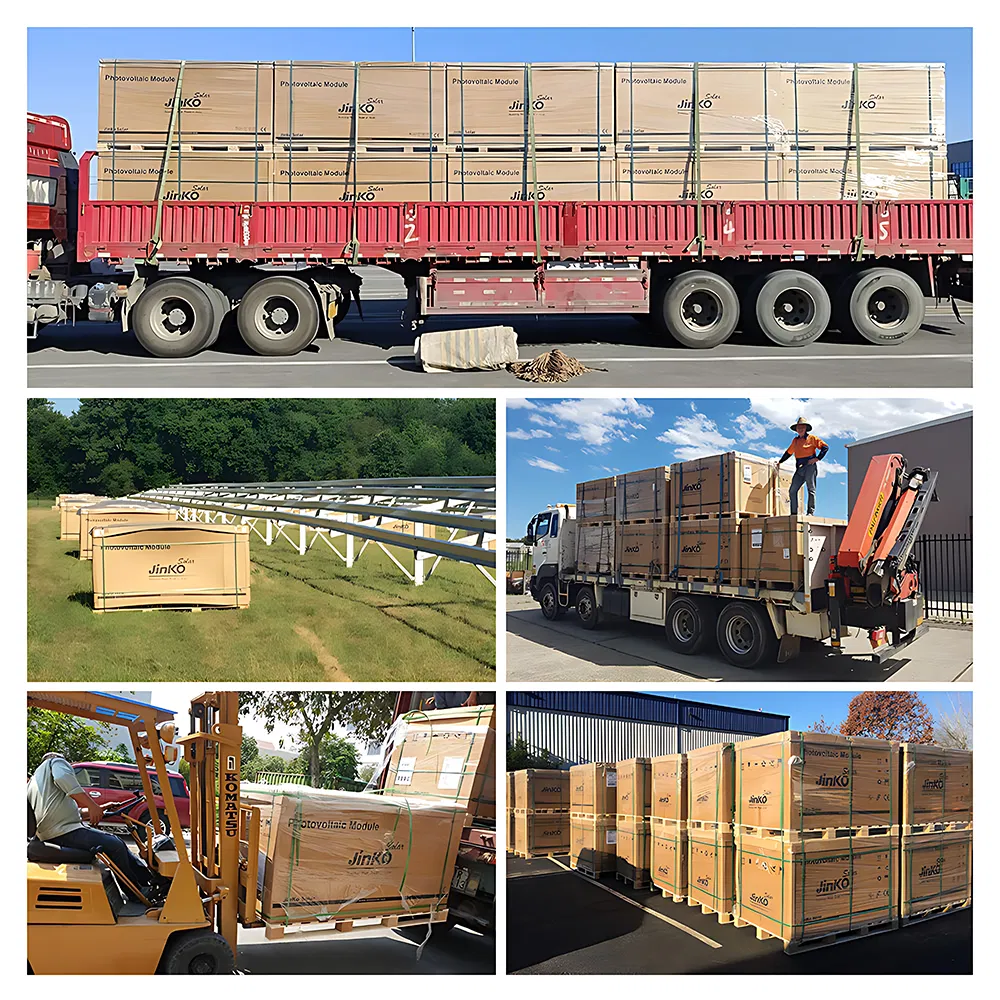

Packaging & Shipping

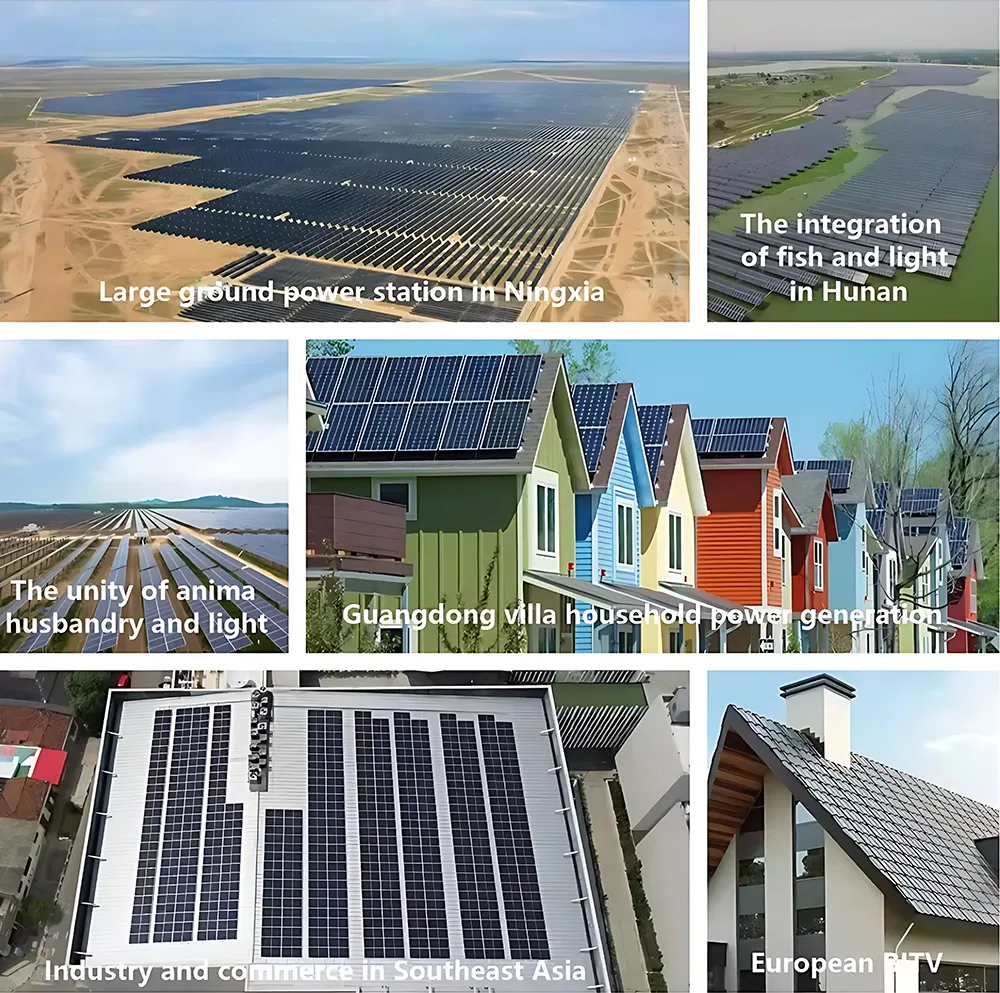

Project Case
Certifications
Company Profile
FAQ
Q1: What type of projects is the 66HL5-BDV suitable for?
A: The 66HL5-BDV is designed for utility-scale solar power plants, large commercial & industrial (C&I) projects, and ground-mounted solar systems. Its ultra-high power output makes it especially suitable for projects that require high energy yield and reduced BOS cost.
Q2: What power ratings are available for this model?
A: This model is available in 710W, 715W, 720W, 725W, 730W and 735W power classes. Buyers can select the appropriate wattage based on project design, land availability, and system configuration requirements.
Q3: What are the main advantages of using 710W–735W high power modules?
A: High-power modules reduce the number of panels needed per megawatt, which helps to:
• Lower mounting structure and cabling costs
• Reduce installation labor
• Improve overall project efficiency and ROI
Q4: Is this module suitable for harsh environmental conditions?
A: Yes. The module is designed to deliver stable performance in high-temperature, high-irradiance, and outdoor environments, making it suitable for desert, coastal, and industrial regions.
Q5: Can this module be used in grid-connected solar systems?
A: Yes. This module is widely used in grid-connected utility-scale and commercial solar projects, where high power density and reliable long-term performance are required.
Q6: Is this module suitable for export and international projects?
A: Yes. The module is widely used in international utility-scale and C&I solar projects. Its high power output, stable quality, and strong brand recognition make it suitable for global procurement and export applications.
