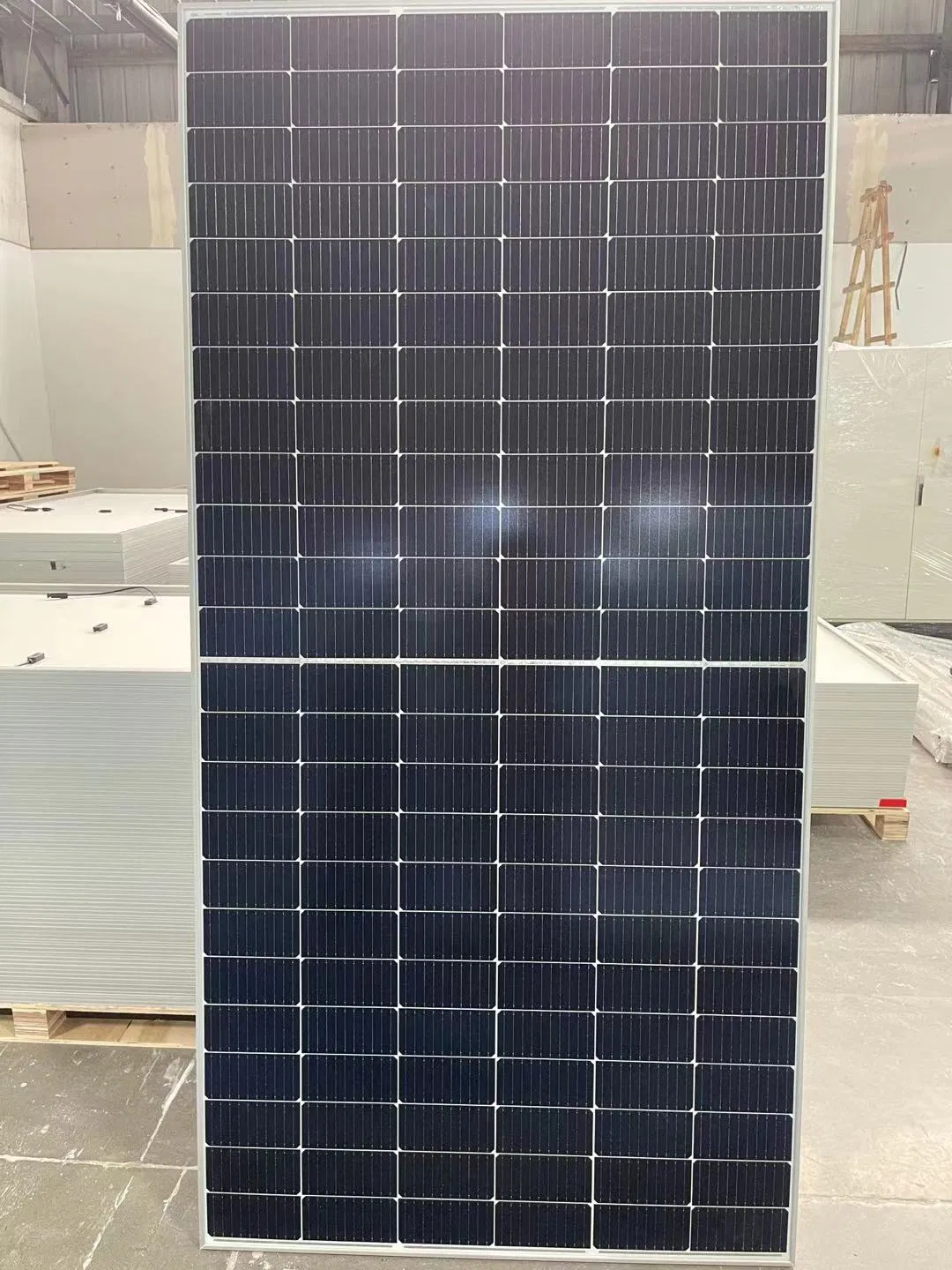

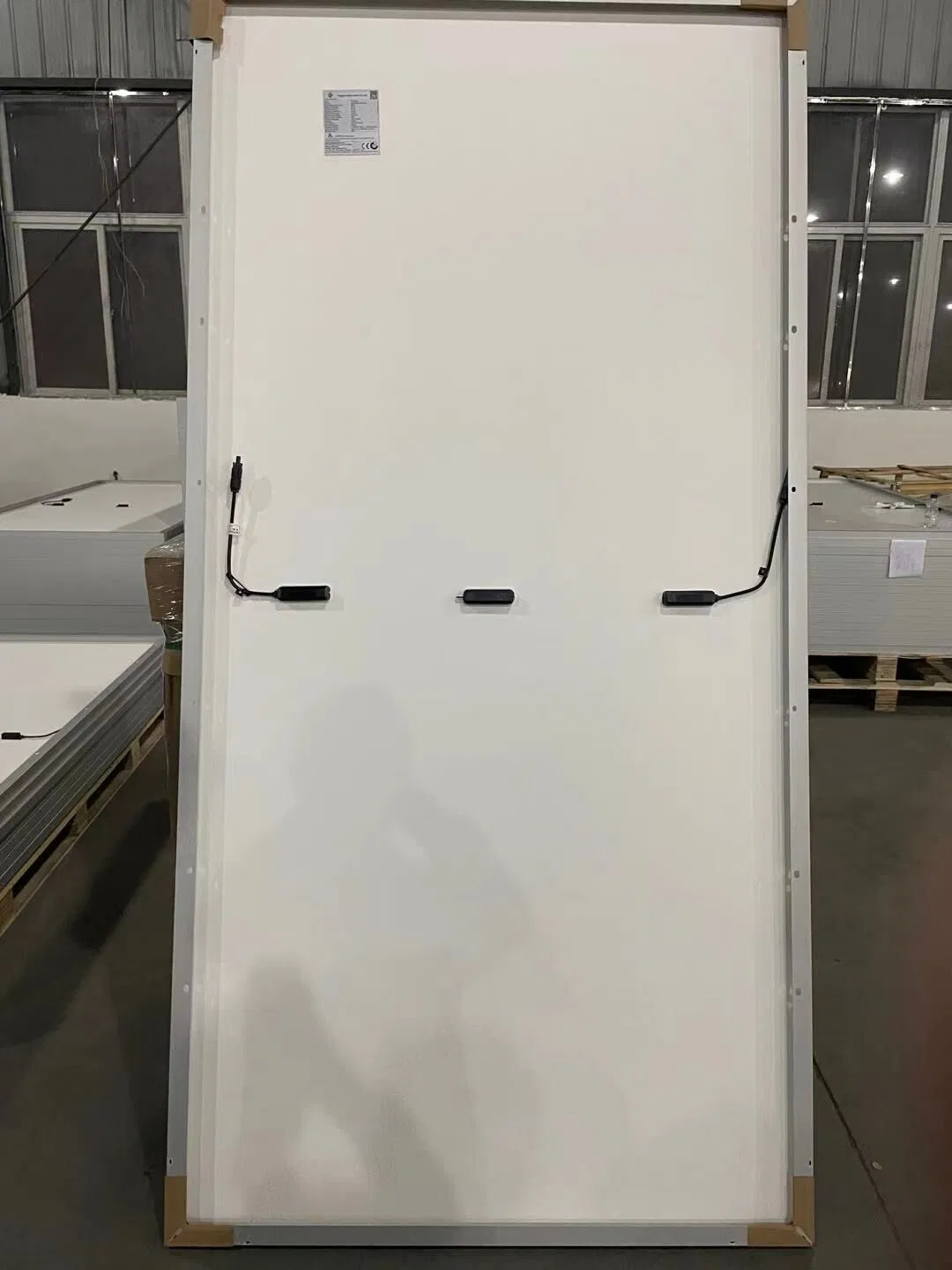

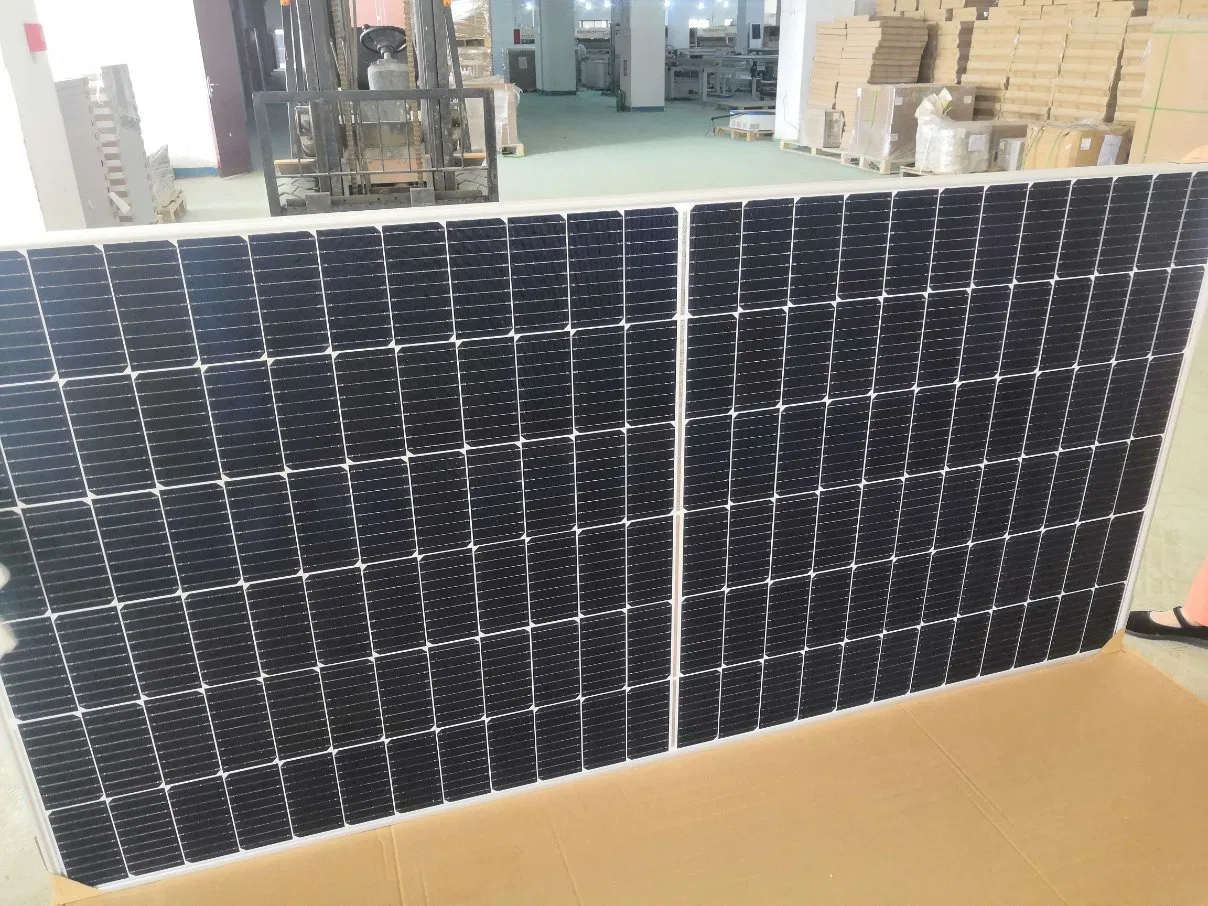

Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
1 / 5
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO
Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO

Jinko Ja Solar 570W 580W 590W 600W 182mm Cheap Price Half Cell PV Module Monocrystalline Solar Panel with 25 Years Warranty CE TUV ISO

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
YS550M-72
Number of Cells
144PCS
Application
Industrial
Condition
New
Certification
ISO, CE, TUV, Cec, IEC61215, IEC61730
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Waterproof
Solar Cell
Mono 182X91mm Cell
Front Cover
3.2mm High Transmission Low Iron Tempered Glass
Size
2274*1134*35mm
Connector
Mc4 Compatible Connector
Backsheet Color
White or Black or Transparent
OEM Order
Acceptable
Frame Color
Silvery or Black
Weight
28.9 Kg
Transport Package
2PCS /Carton, 30 PCS/Pallet
Specification
550W
Origin
China
HS Code
8541402000
Production Capacity
12000 Pieces /Week
Product Description

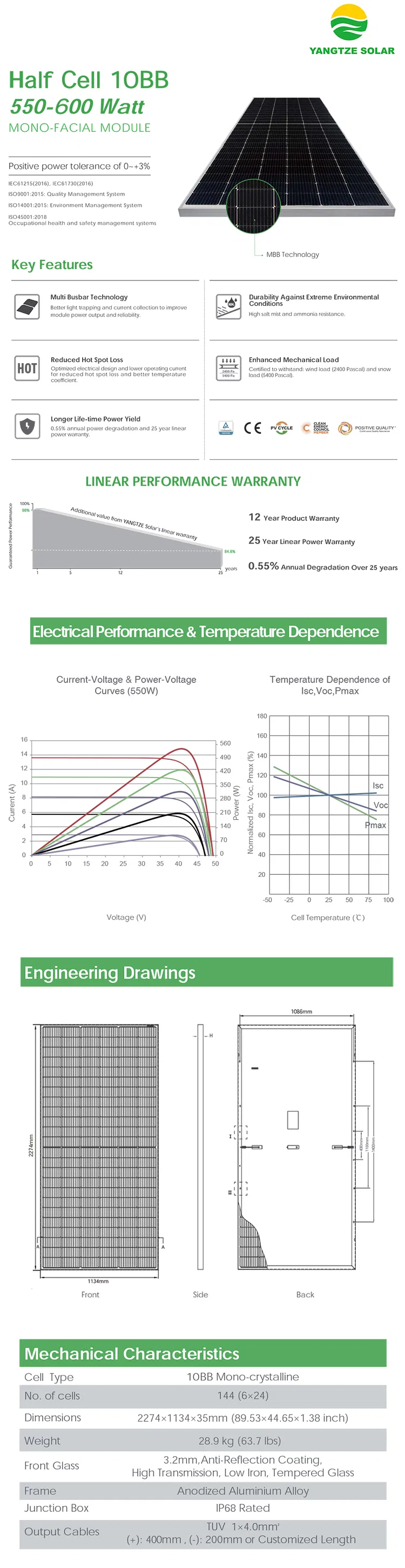

Half Cell PV Module Monocrystalline Solar Panel Specifications

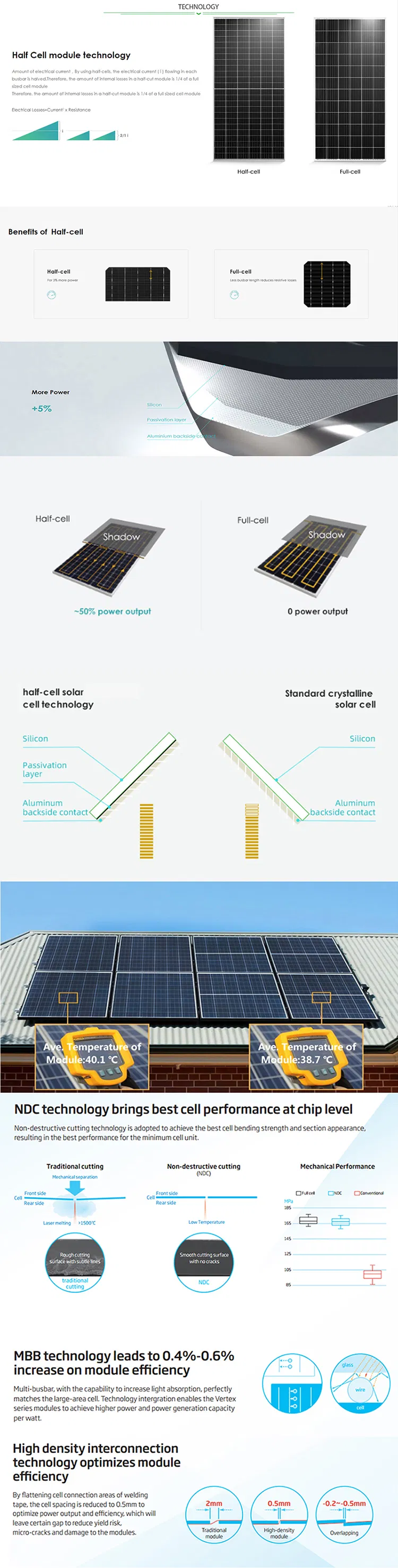

Half Cell PV Module Details
Technical Specifications
Module type YS550M-72 YS560M-72 YS570M-72 YS580M-72 YS590M-72 YS600M-72
Maximum Power (Pmax) 550W 560W 570W 580W 590W 600W
Maximum Power Voltage (Vmp) 40.90V 41.10V 41.30V 41.50V 41.90V 42.10V
Maximum Power Current (Imp) 13.45A 13.63A 13.27A 13.98A 14.08A 14.25A
Open-circuit Voltage (Voc) 49.62V 49.72V 49.82V 49.91V 49.95V 49.99V
Short-circuit Current (Isc) 14.03A 14.33A 14.62A 14.81A 14.92A 14.97A
Module Efficiency STC 21.33% 21.72% 22.10% 22.49% 22.87% 23.27%
Operating Temperature -40~+85ºC
Maximum System Voltage 1000VDC/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/ºC
Temperature coefficients of Voc -0.28%/ºC
Temperature coefficients of Isc 0.048%/ºC
Nominal operating cell temperature (NOCT) 45±2ºC

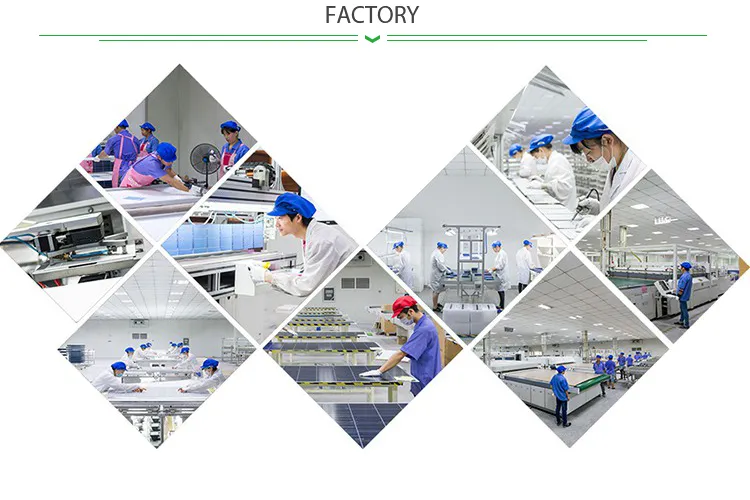

Solar Panel Manufacturing Info
Production Process Flow
Quality Testing Details
Key Features & Advantages
  • 900MW solar panel production capacity, solar panel power range 3watt to 700watt for both polycrystalline and monocrystalline solar panel.
  • 10 years total workmanship and materials warranty, 10 years for at least 90% and 25 years for 80% linear power output warranty.
  • 100% EL test before package and shipping.
  • Cooperated with world famous big companies like Trina Solar, Suntech Solar, Yingli Solar, HUAWEI.
  • Products are exported to more than 150 countries.
  • Products are certified by TUV(Germany), CE.
  • Turn-key solar systems are offered, to save the time and money for the clients.
  • Rich experience in overseas construction of solar projects.

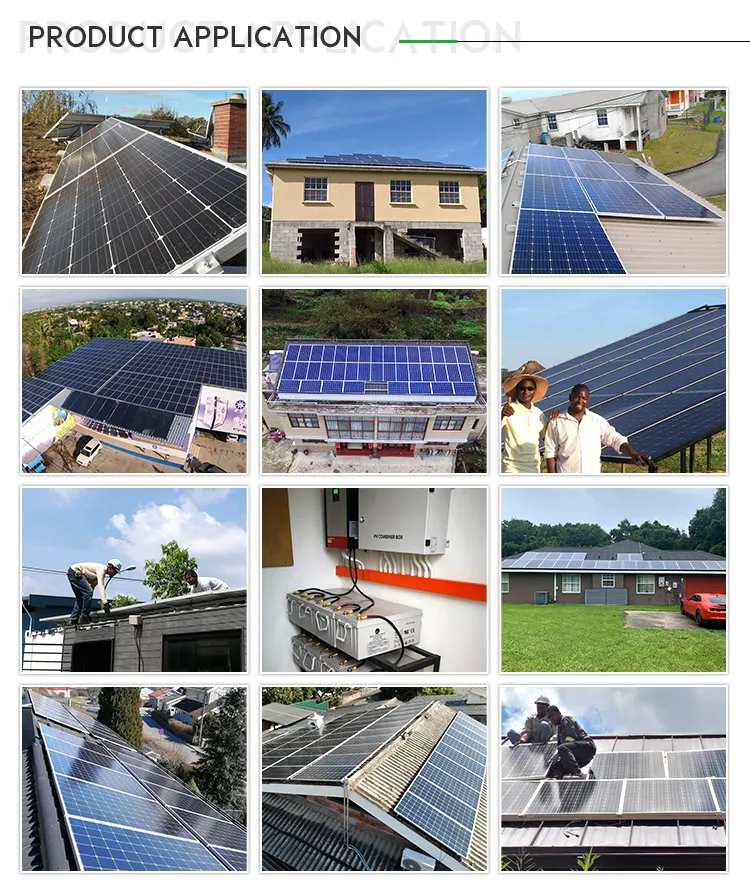

Solar Installation Setup
Certification Showcase

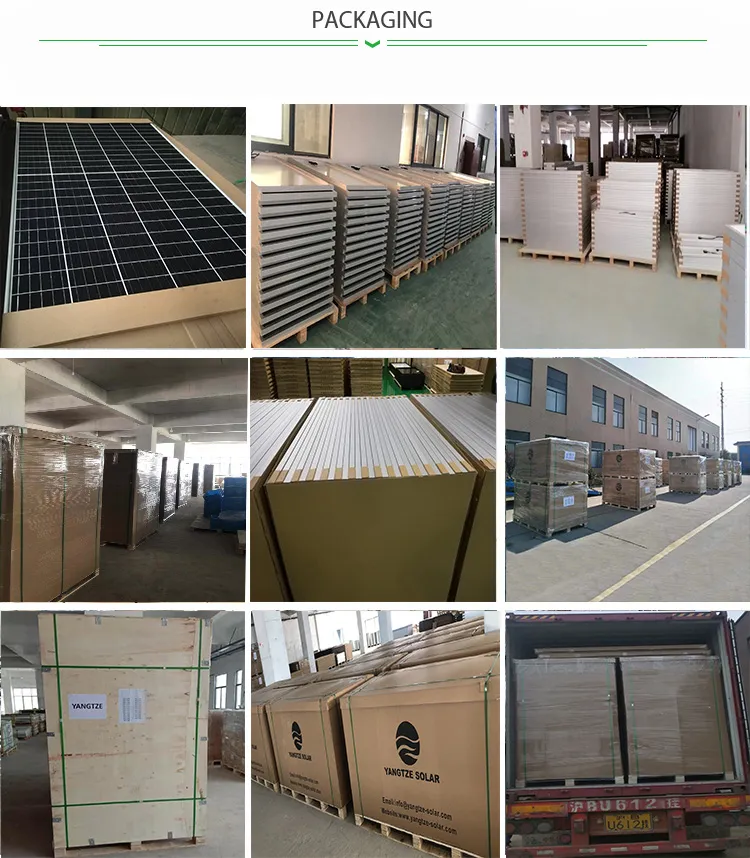

Packaging and Shipping Details
Frequently Asked Questions
What are the main applications for these monocrystalline solar panels?
These panels are highly optimized for industrial applications, but they can also be effectively utilized in large-scale commercial and utility projects due to their high durability and power output.
What is the efficiency rate of the YS series modules?
The module efficiency under Standard Test Conditions (STC) ranges from 21.33% up to 23.27%, depending on the specific model variation (from 550W up to 600W).
How durable are the frames and junction boxes of these panels?
Each panel features a frame made of anodized aluminum alloy and is equipped with an IP68 waterproof junction box, providing superior protection against harsh environmental conditions.
What certifications do these solar modules possess?
The modules are fully certified under major international standards, including ISO, CE, TUV, Cec, IEC61215, and IEC61730.
What warranties are provided with the purchase of these modules?
We offer a 10-year total workmanship and materials warranty, along with a linear power output warranty guaranteeing at least 90% output for 10 years and 80% output for 25 years.
Do you accept customized or OEM orders?
Yes, OEM orders are fully acceptable to meet custom configurations, specifications, or branding requirements for global projects.
