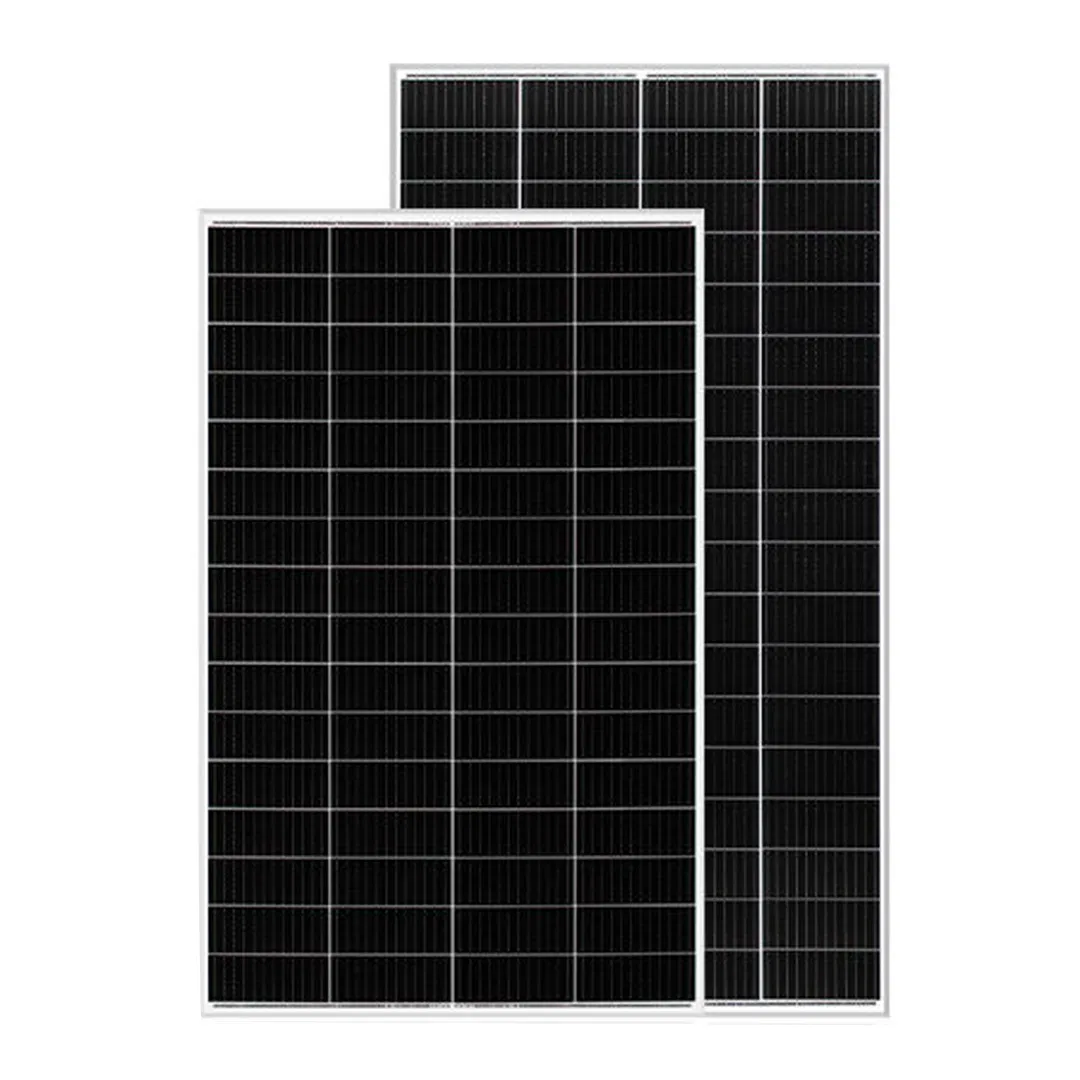

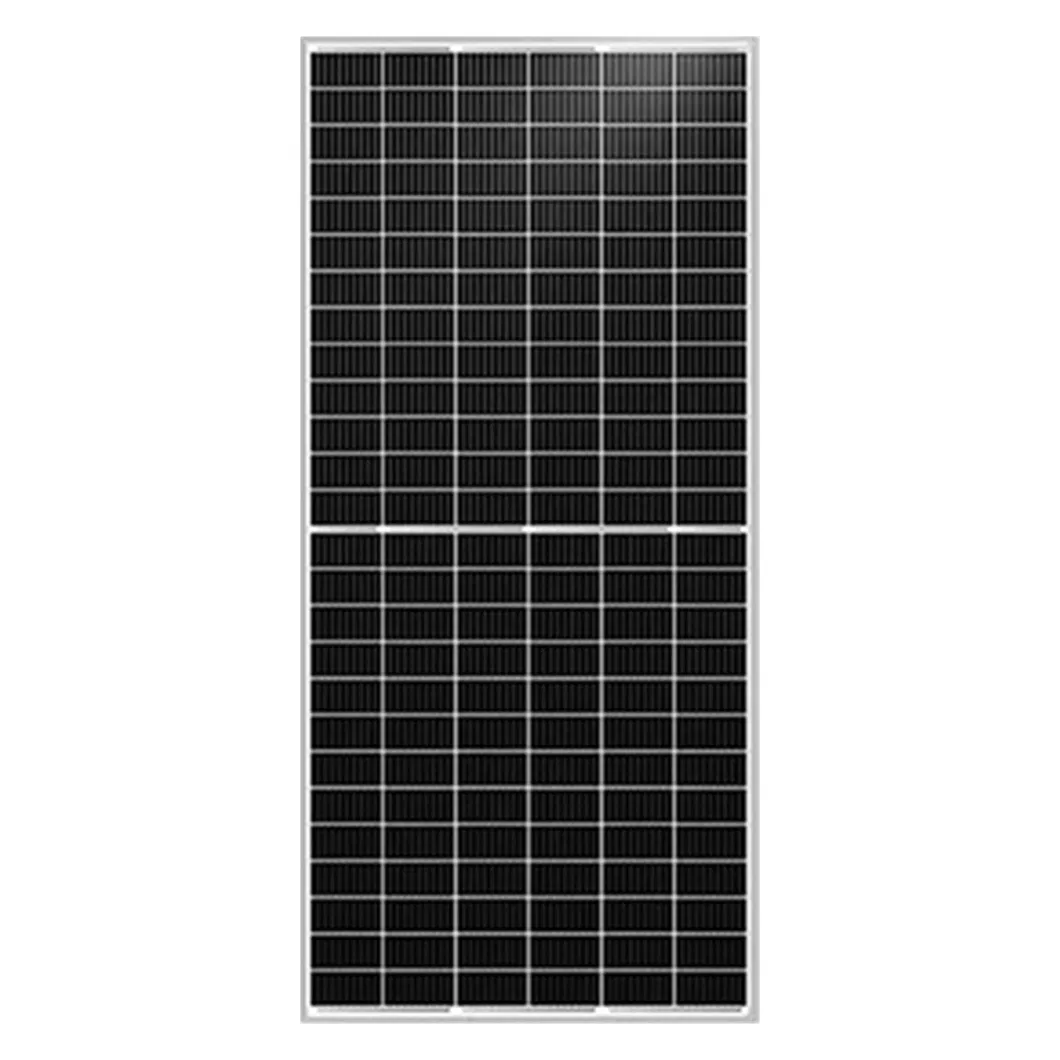

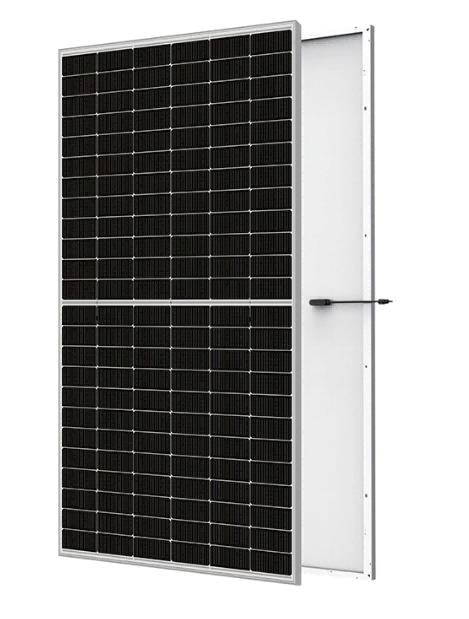

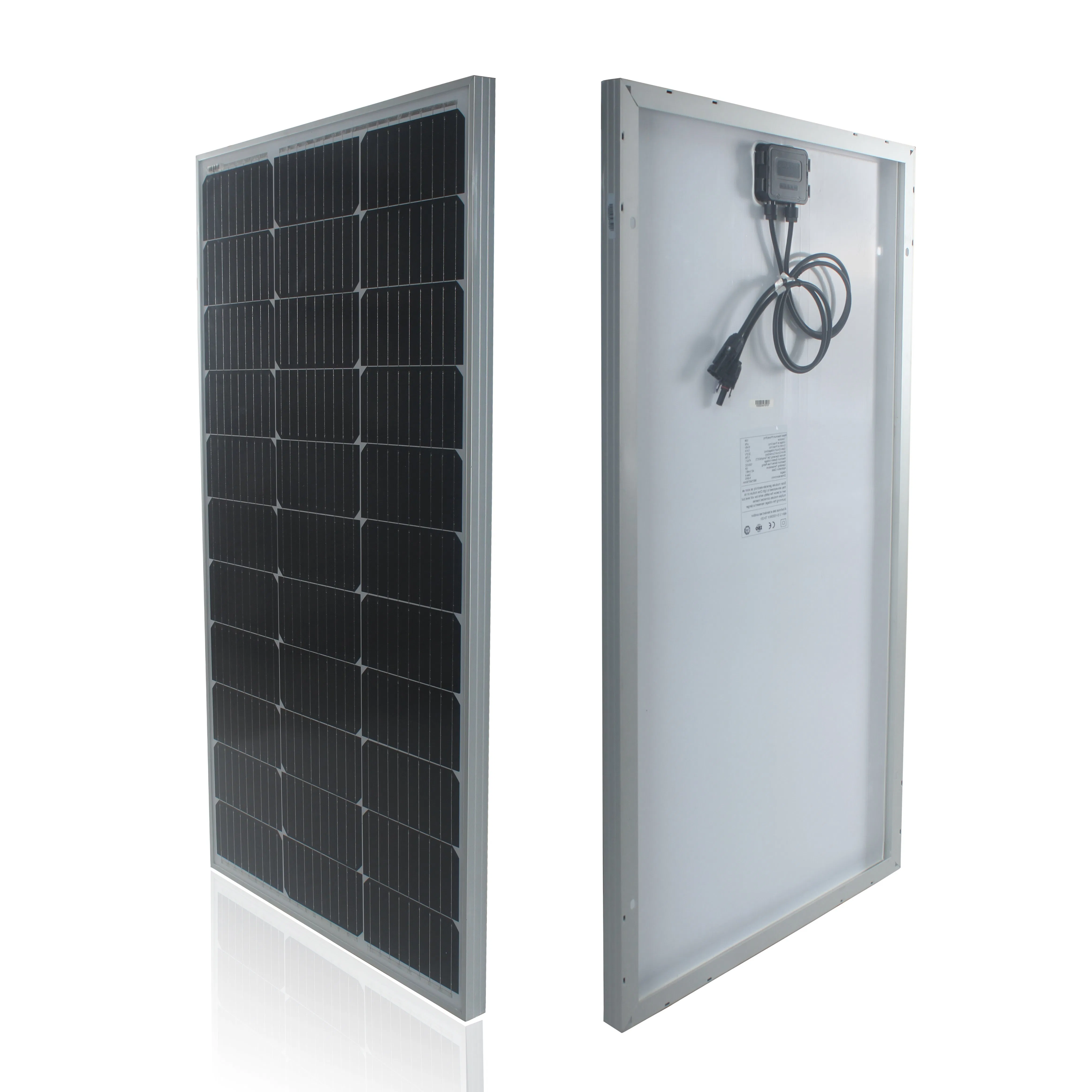

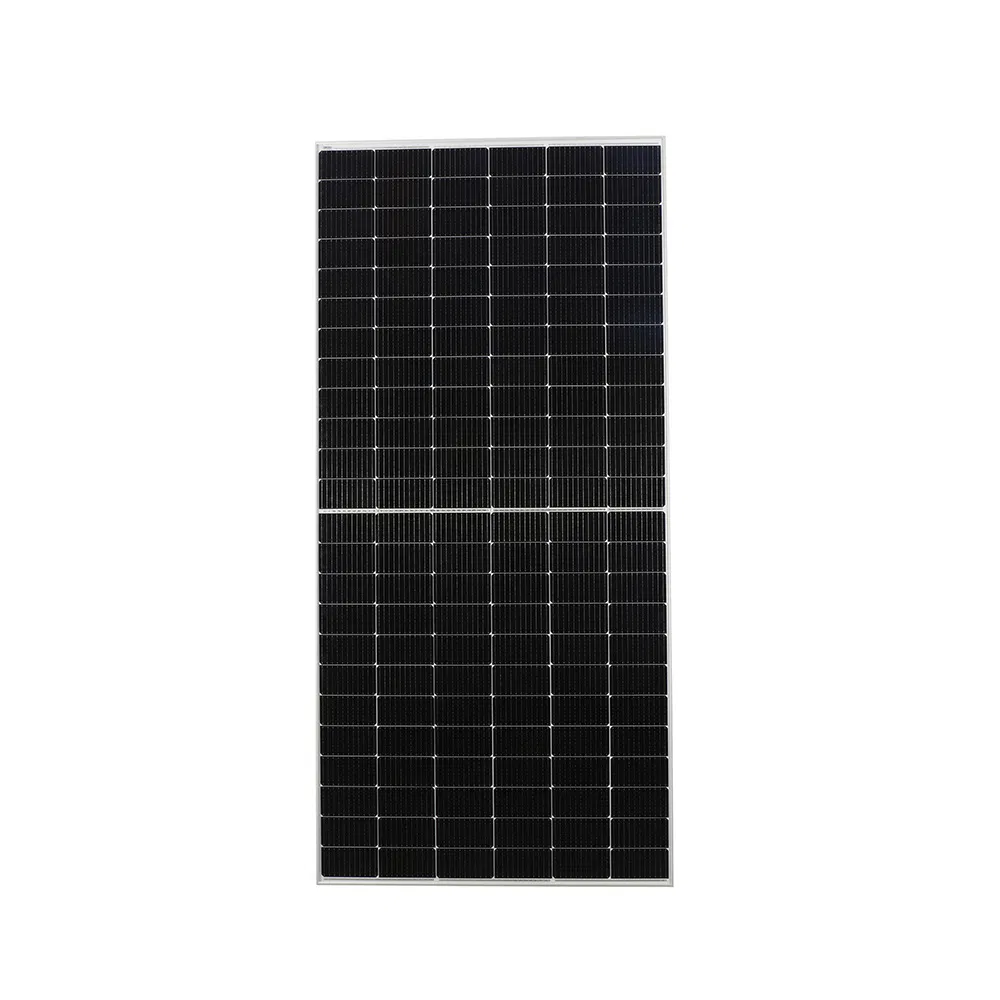

Monocrystalline High Efficiency Glass 550W 580W 590W 600W PV Modules Solar Energy Panel with CE TUV

Product Description

✓Based on M10 wafer Best choice for ultra-large power plants.
✓Advanced module technology Delivers superior module efficiency.
✓Excellent outdoor performance Optimized for outstanding power generation.
✓High module quality Ensures long-term reliability and stability.

Product Parameters

Maximum Power(Pmax)	Open-circuit voltage(Voc)	Short circuit current(Isc)	Working voltage(Vmp)	Working current(Imp)	Size(MM)	Weight(KG)
5W	24.12V	0.27A	20.16V	0.25A	28019017mm	0.9kg
10W	24.12V	0.53A	20.16V	0.50A	40020017mm	1.2kg
20W	21.12V	1.21A	18.56V	1.08A	36039025mm	1.9kg
30W	21.12V	1.82A	18.56V	1.62A	47039025mm	2.3kg
40W	21.12V	2.43A	18.56V	2.16A	66039025mm	3.1kg
50W	23.76V	2.70A	20.88V	2.39A	52059025mm	3.6kg
60W	21.78V	3.53A	19.14V	3.13A	57059025mm	3.9kg
80W	21.78V	4.71A	19.14V	4.18A	74059030mm	5.1kg
100W	27.72V	4.63A	24.36V	4.11A	93058030mm	6.2kg
150W	21.12V	9.11A	18.56V	8.08A	104077030mm	8.8kg
160W	21.12V	9.71A	18.56V	8.62A	104077030mm	8.8kg
180W	23.76V	9.71A	20.88V	8.62A	116077030mm	9.7kg
200W	26.40V	9.71A	23.20V	8.62A	128077030mm	10.7kg
250W	23.76V	13.49A	20.88V	11.97A	173077030mm	14.2kg
260W	23.76V	14.03A	20.88V	12.45A	173077030mm	14.2kg
300W	27.52V	13.89A	22.78V	13.17A	191077030mm	15.6kg
310W	27.72V	14.34A	24.36V	12.73A	1340113430mm	15.8kg
320W	27.72V	14.80A	24.36V	13.14A	1340113430mm	15.8kg
370W	39.60V	11.98A	34.80V	10.63A	1755103835mm	19.1kg
410W	47.52V	11.84A	41.76V	10.78A	2094103835mm	22.6kg
450W	39.60V	13.69A	34.80V	12.93A	1909113435mm	22.5kg
580W	47.52V	13.62A	41.76V	13.17A	2279113435mm	26.6kg

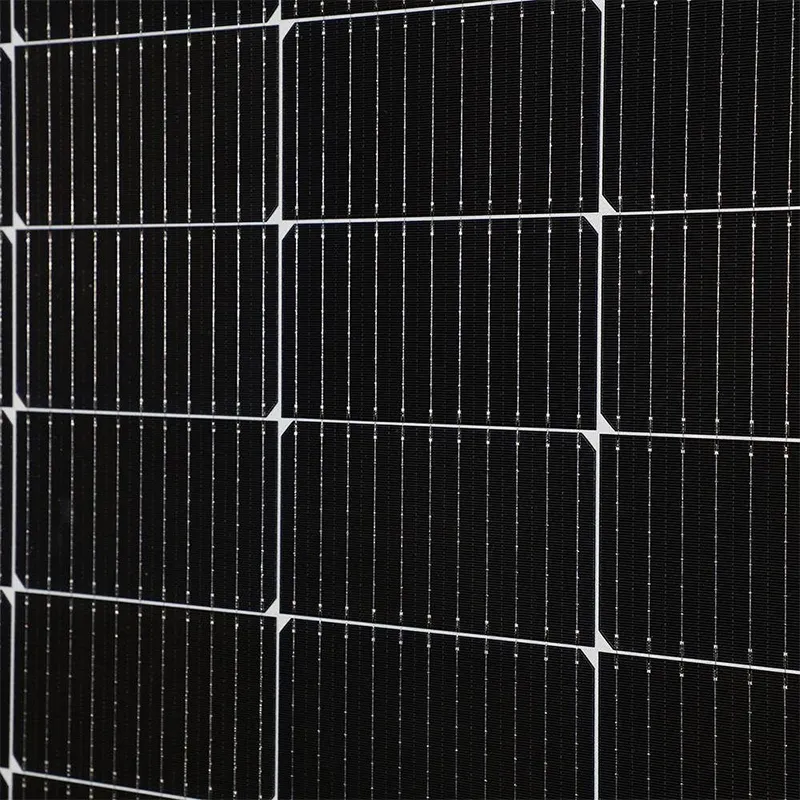

Detailed Photos

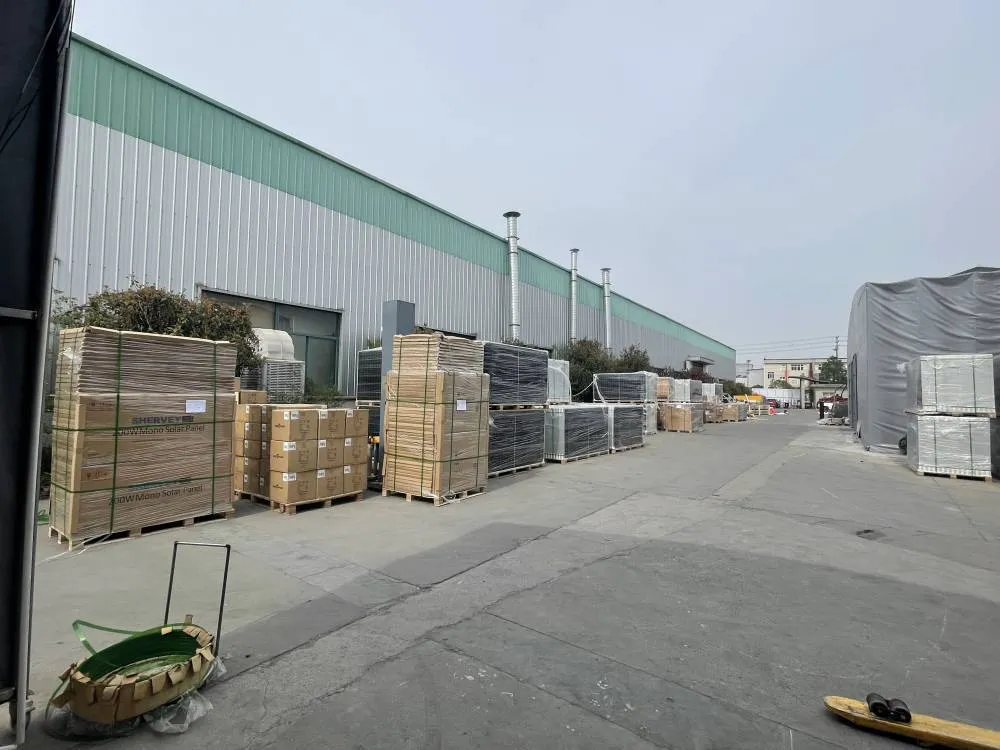

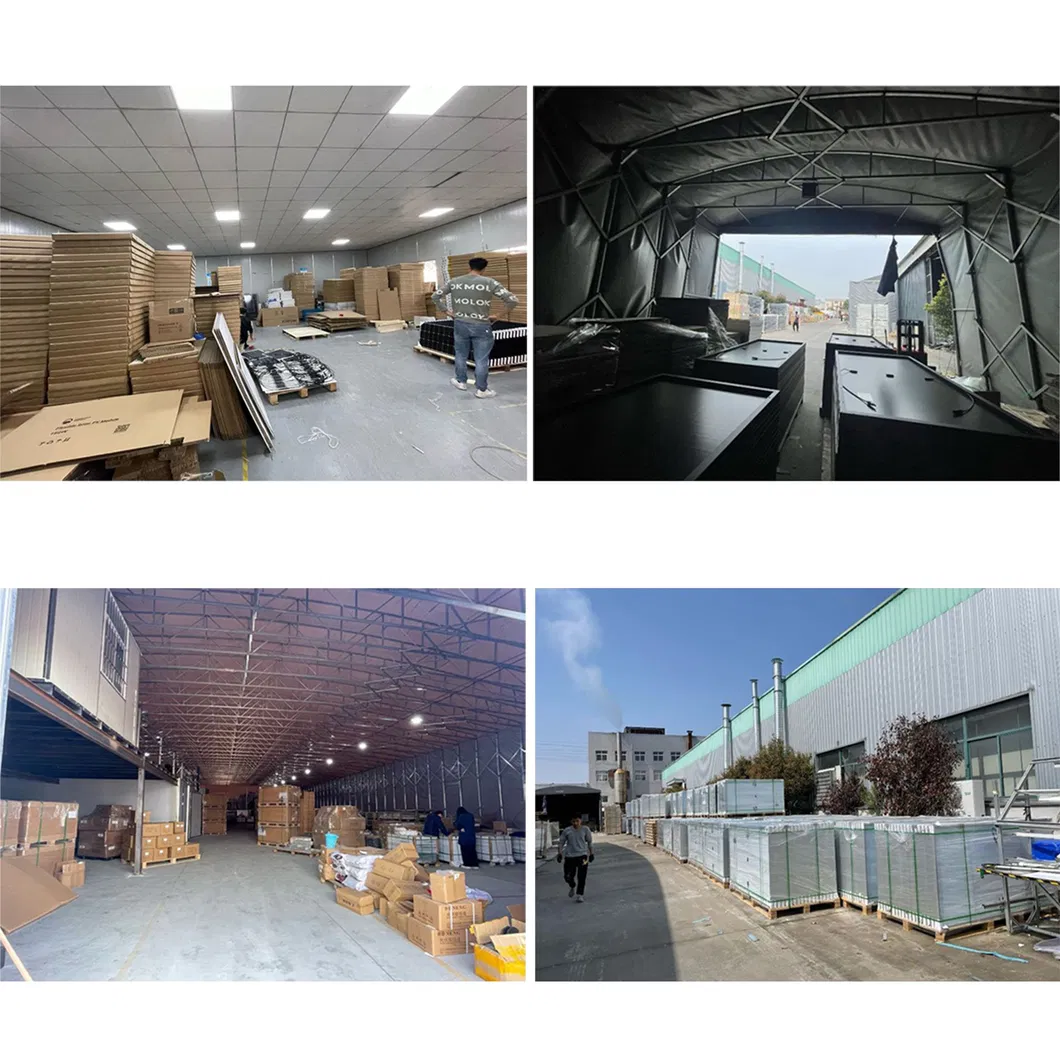

Packaging & Shipping

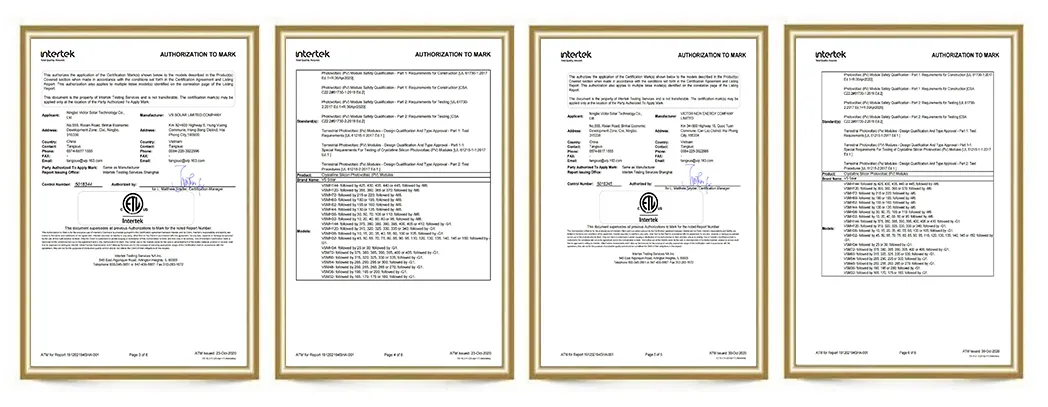

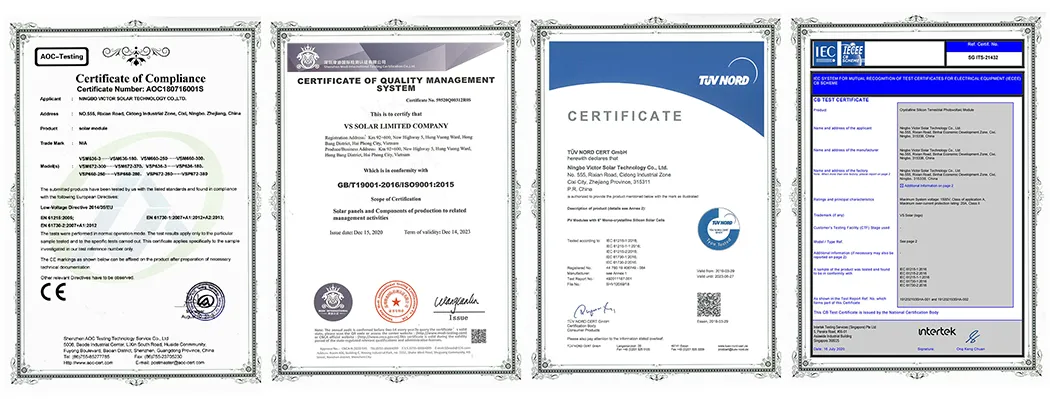

Certifications

FAQ

Q: Do these panels have brackets attached to the roof?

The component itself is equipped with a junction box connector output voltage. If you need to access the off-grid system, you need to purchase additional appropriate wiring.

Q: Can this solar panel accommodate 12V/24V/36V/48V batteries?

It can be used, but must be connected to a controller. When selecting the controller, it is necessary to adapt the maximum component input power that the controller can access (not exceeding).

Q: How many kilowatt hours can this solar panel produce in a day?

In the case of STC, the power generation is the product of standard power and time (W*H).

Q: What is the difference between high power modules and low power modules?

The biggest difference is that the efficiency of the cells used is not the same, which will result in different power generation efficiency of the PV modules. At the same time, due to the different efficiency of the cells used, their open voltage will not be the same. In addition, at the installation end, the high power module needs less quantity to meet the customer's demand compared to the low power module, which is also convenient for the wiring and installation at the installation end.

Q: What cell technology is used in these PV modules?

These solar energy panels are designed as monocrystalline high-efficiency glass modules based on M10 wafer technology, delivering superior performance.

Q: Are these monocrystalline solar modules certified?

Yes, these high-efficiency solar energy panels are PV modules that come fully certified with CE and TUV.
