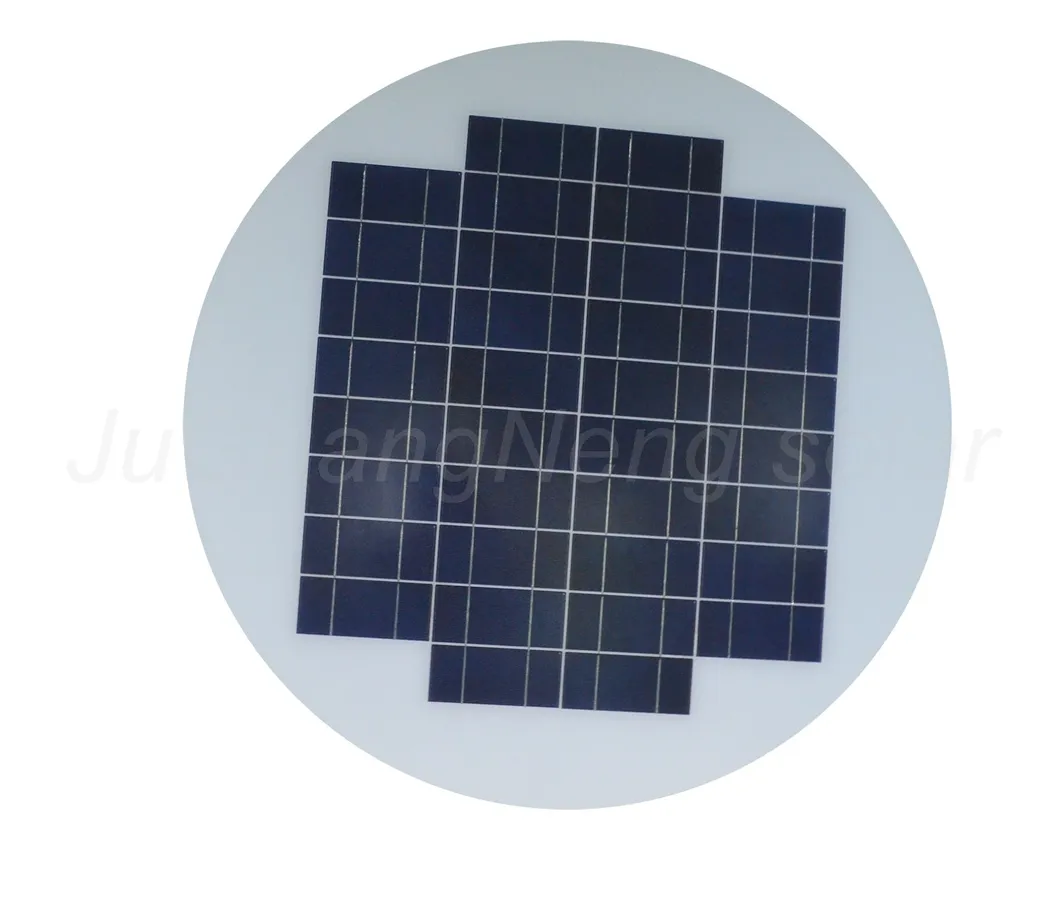

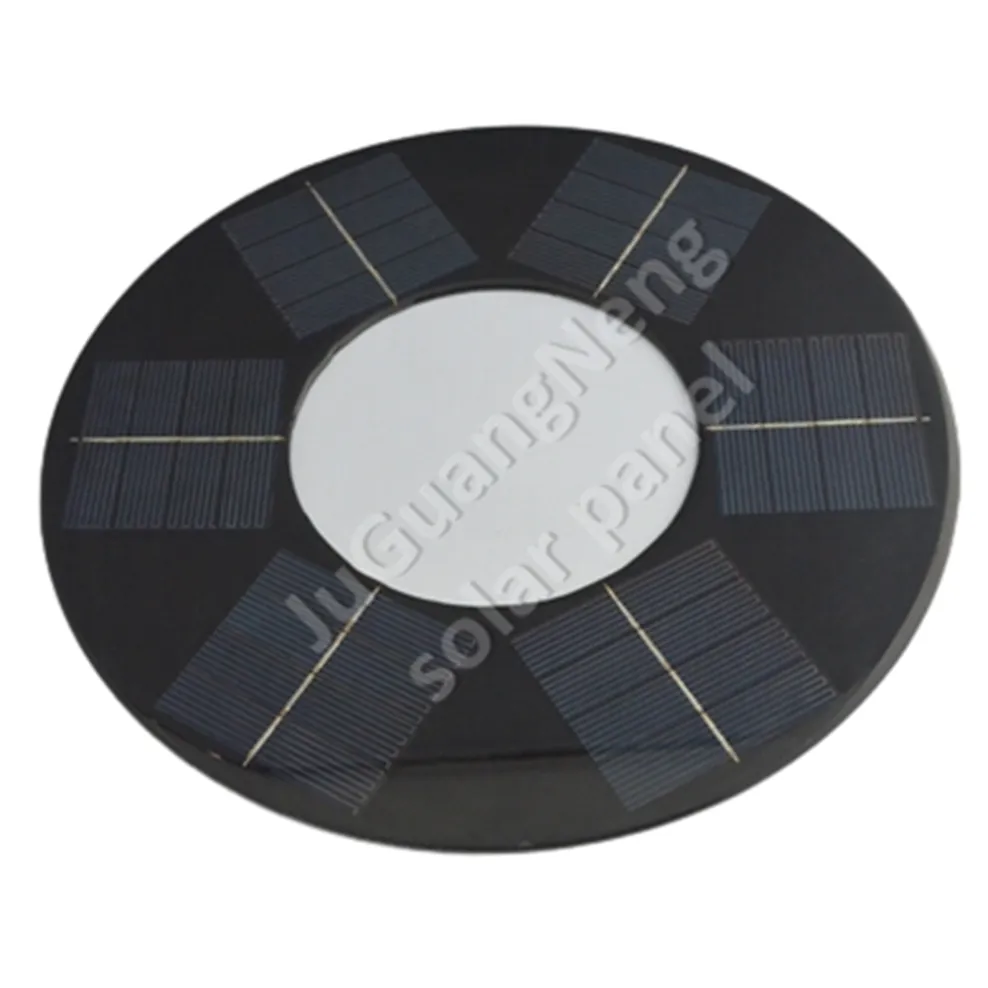

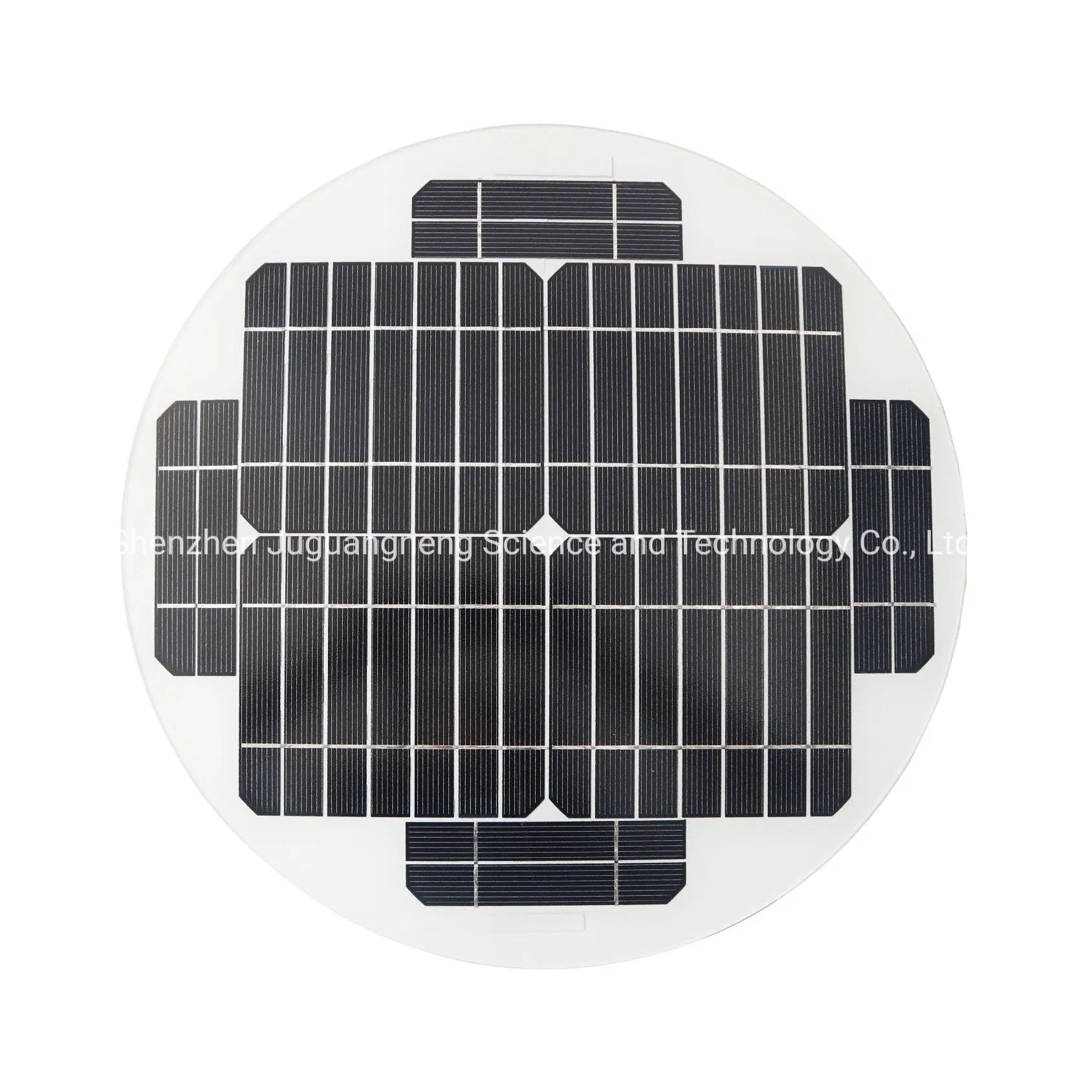

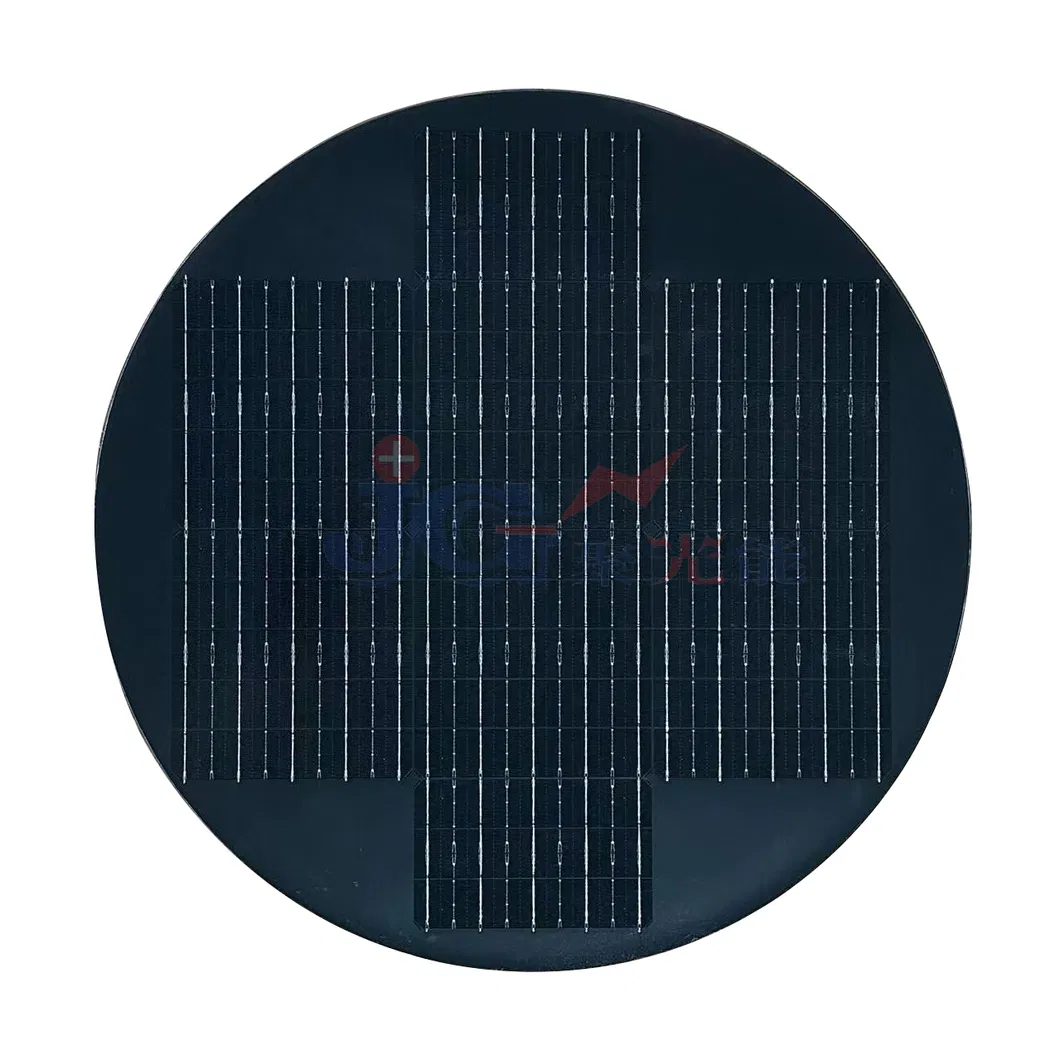

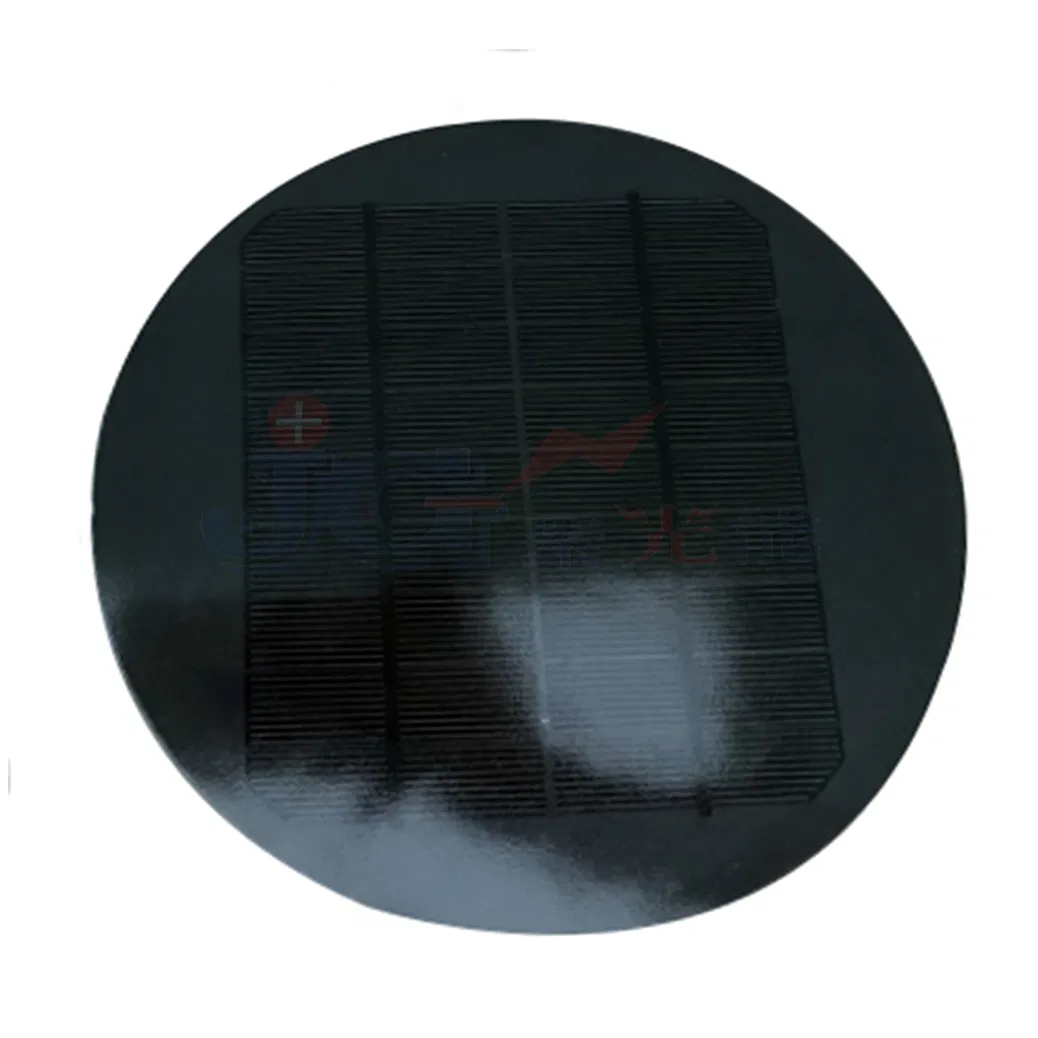

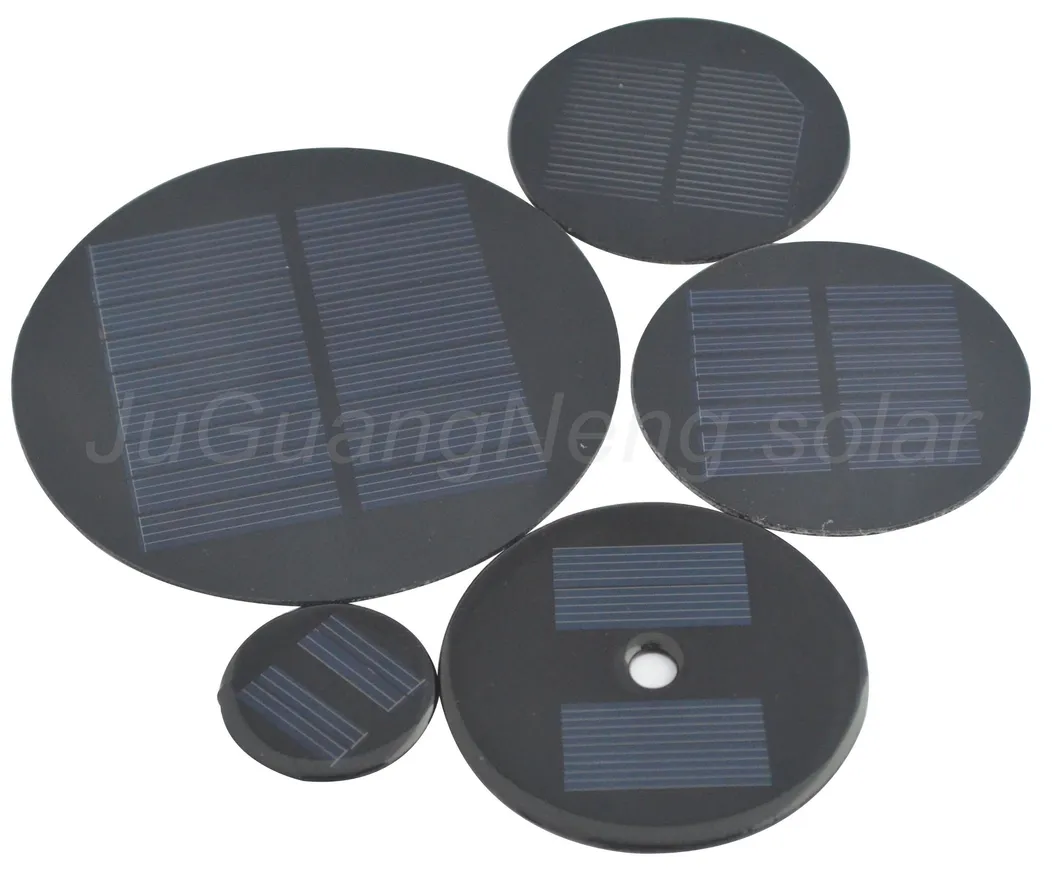

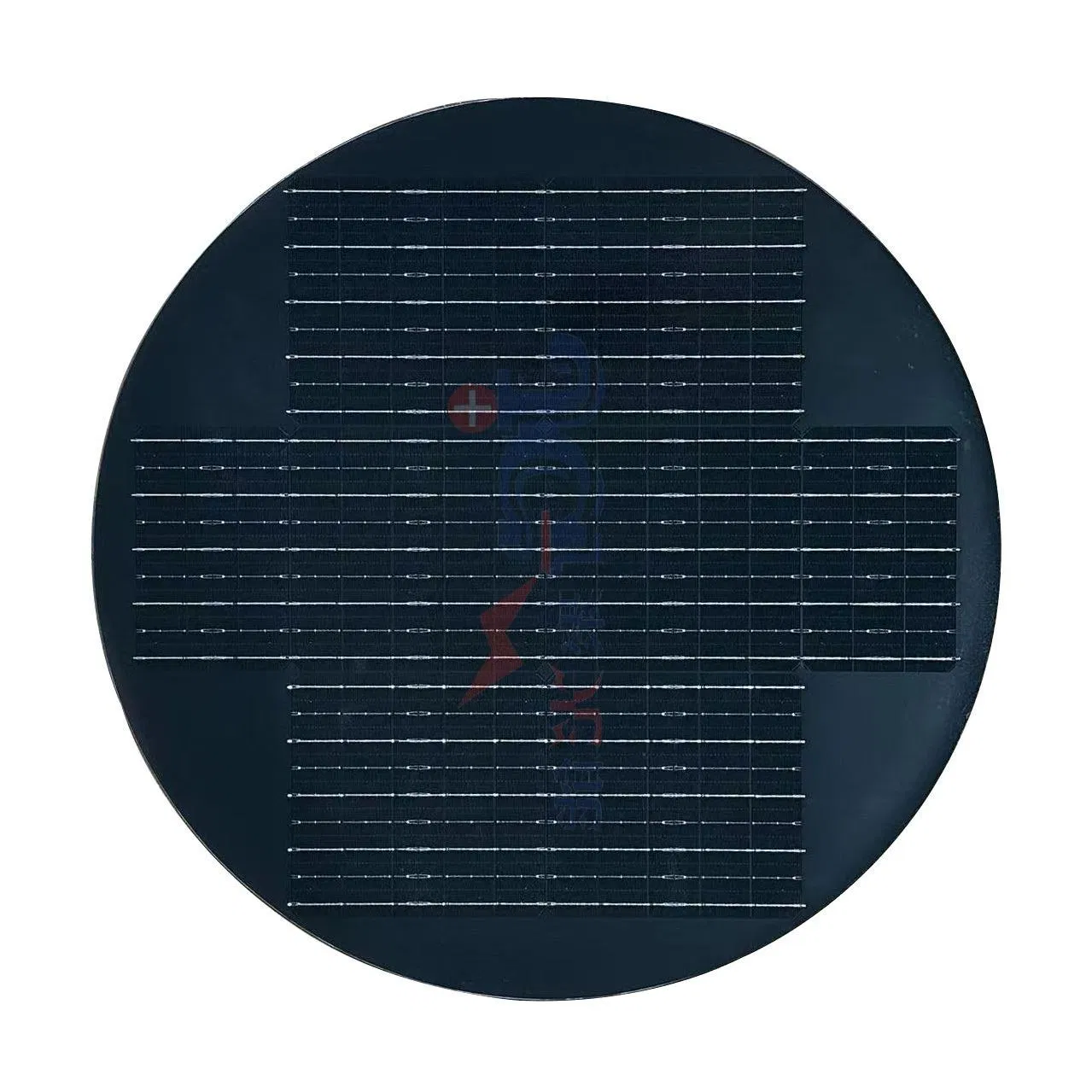

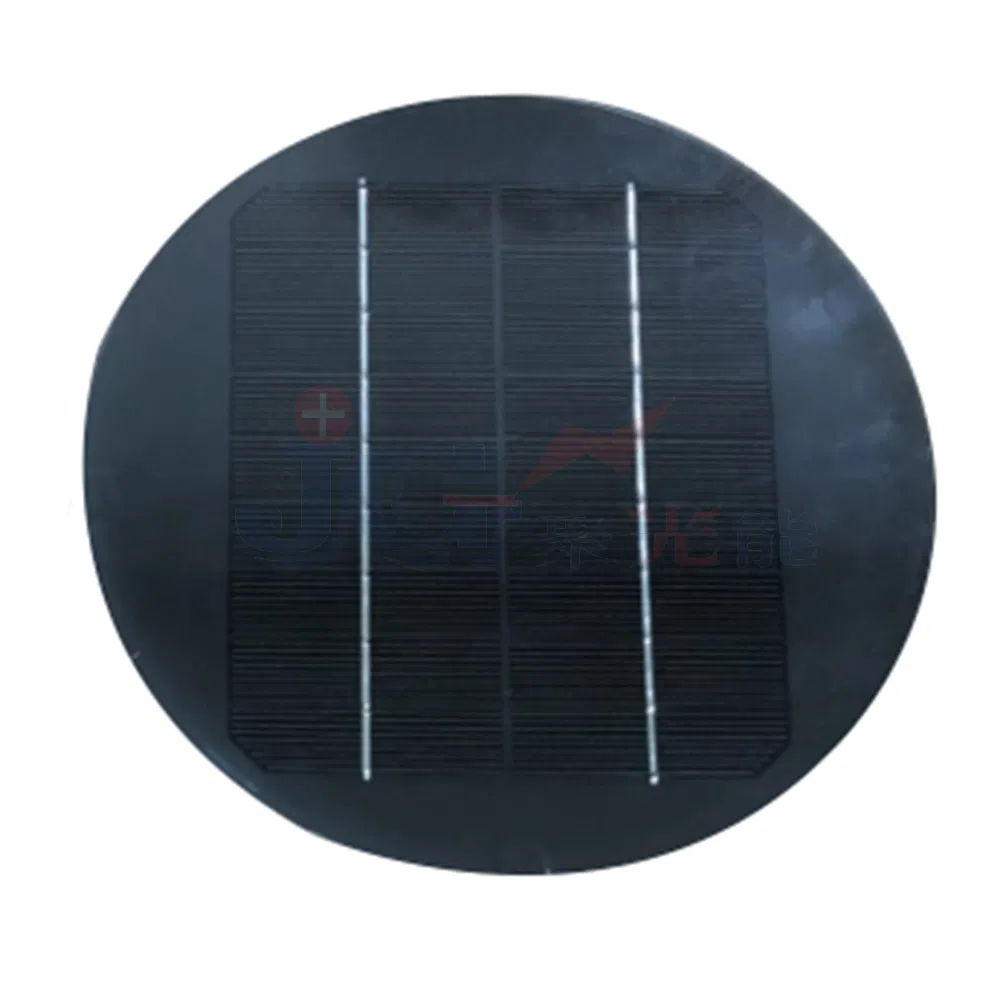

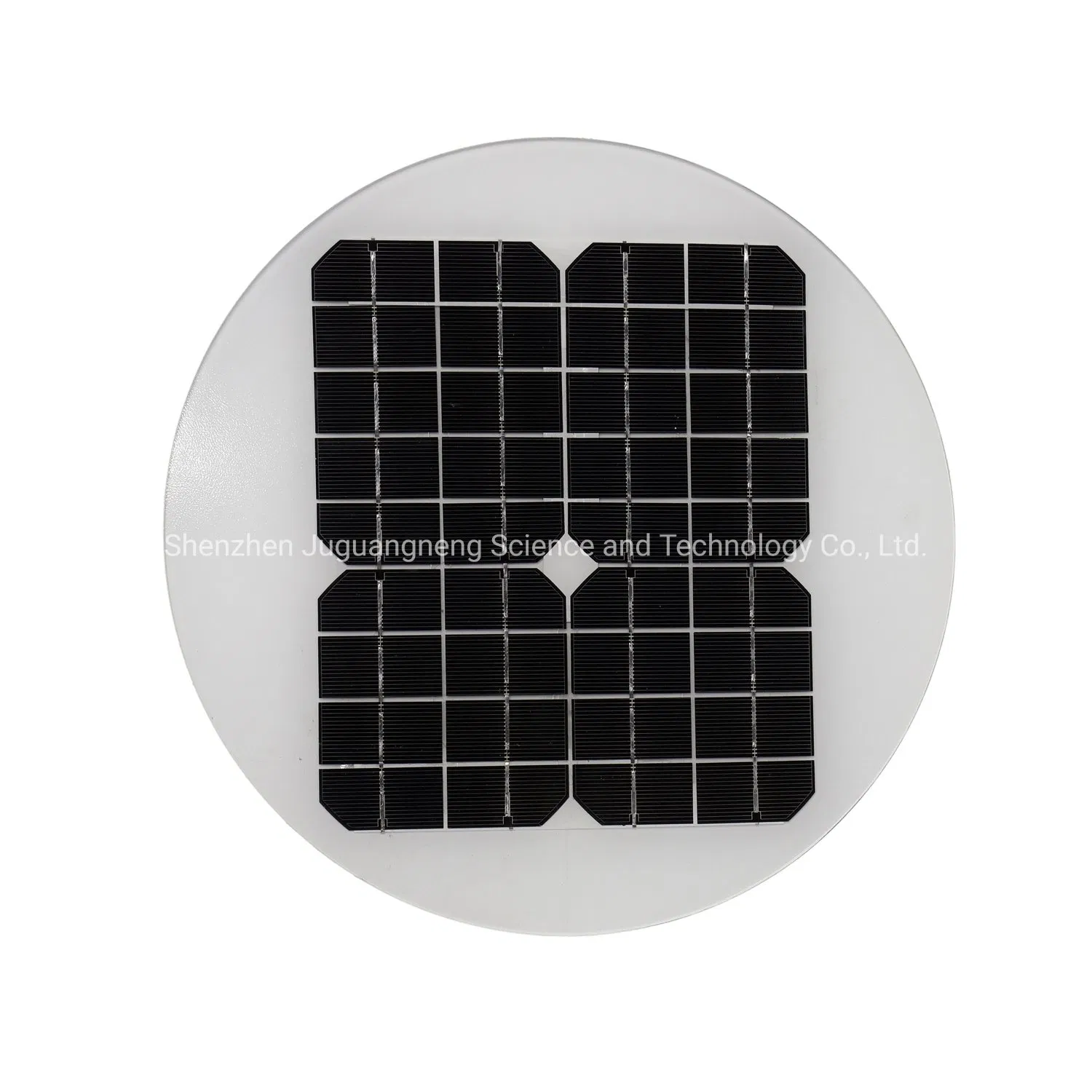

High Modules Conversion Efficiency, 2.7W 3.3W 9W 38W 40W 6V 12V 18V monocrystalline solar panel charges 18v battery.
This solar light relies on solar energy, which is clean, endless and environment-friendly. In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. The charged bulb can be used as a mobile lighting lamp. The photovoltaic panel is fixed in the roof or a place with sufficient sunlight. Energy Saving, Long Life Expectancy.
| Model number | JGN-38W |
| Peak power / Pm(W) | 38W |
| Open circuit voltage / Voc(V) | 21.6 |
| Max. power voltage / Vmp(V) | 18 |
| Max. power current / Imp(A) | 2.11 |
| Short circuit current / Isc(A) | 2.79 |
| Dimensions(L*W*T) | D600mm(NOT including the thickness of junction box). |
| Solar cell / No. of cells and connections | Monocrystalline solar cells / 36-cell in series. |
| Encapsulation | Tempered glass laminated. |
| Backsheet | TPT(black-color).(white optional) |
| Junction box protection degree | None, but optional ≥IP65; Located on the back side of the panel. |
| Cable & connector | None, but optional, MC4 connectors.(cable and connector optional) |
| Standard Testing Conditions | Irradiance:1000W/m2, Cell temperature:25ºC, AM:1.5(air mass). |
| Product Certifications / Standards | CE, RoHS |
| Other Certifications | ISO9001 |

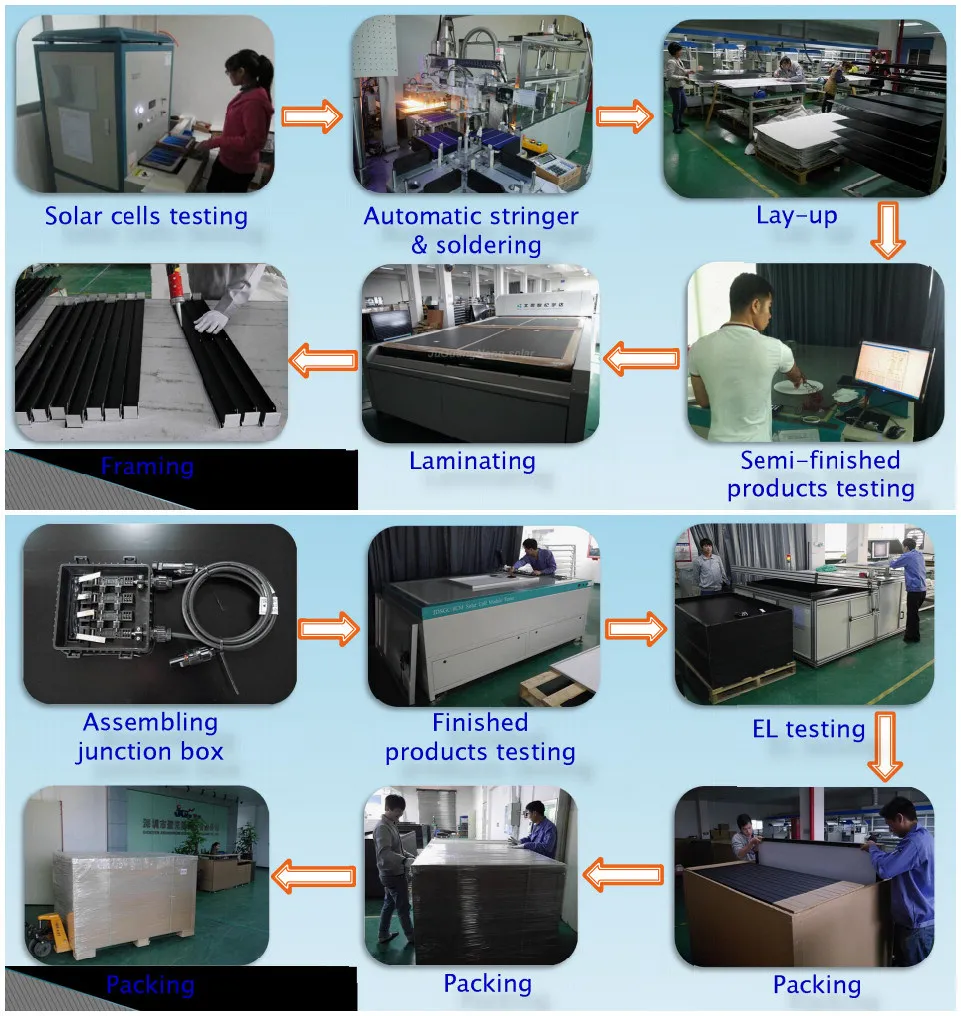

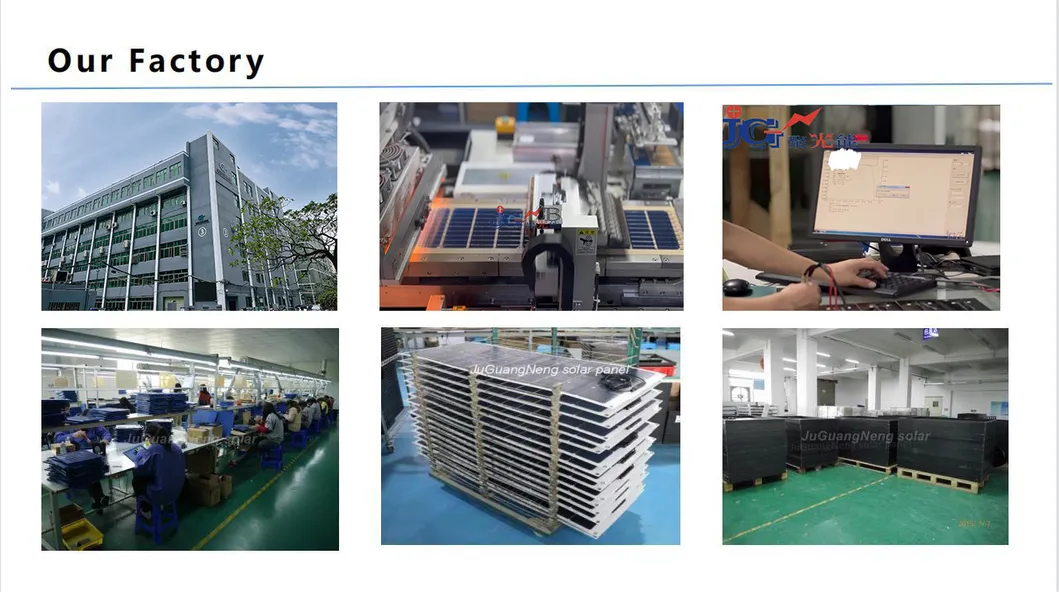

We are a professional manufacturer specialized in various solar panels from 0.1W to 400W+ with 30-year solar panels' production experiences.
Our qualified products cover Small watt solar panels (PET/PCB laminated and Epoxy resin solar panels), Tempered glass solar panels (0.1W-400W+), Semi-flexible Solar panels (5W-400W+) with MONO solar cells, and 10W-400W+ Portable Foldable solar panels, etc.
